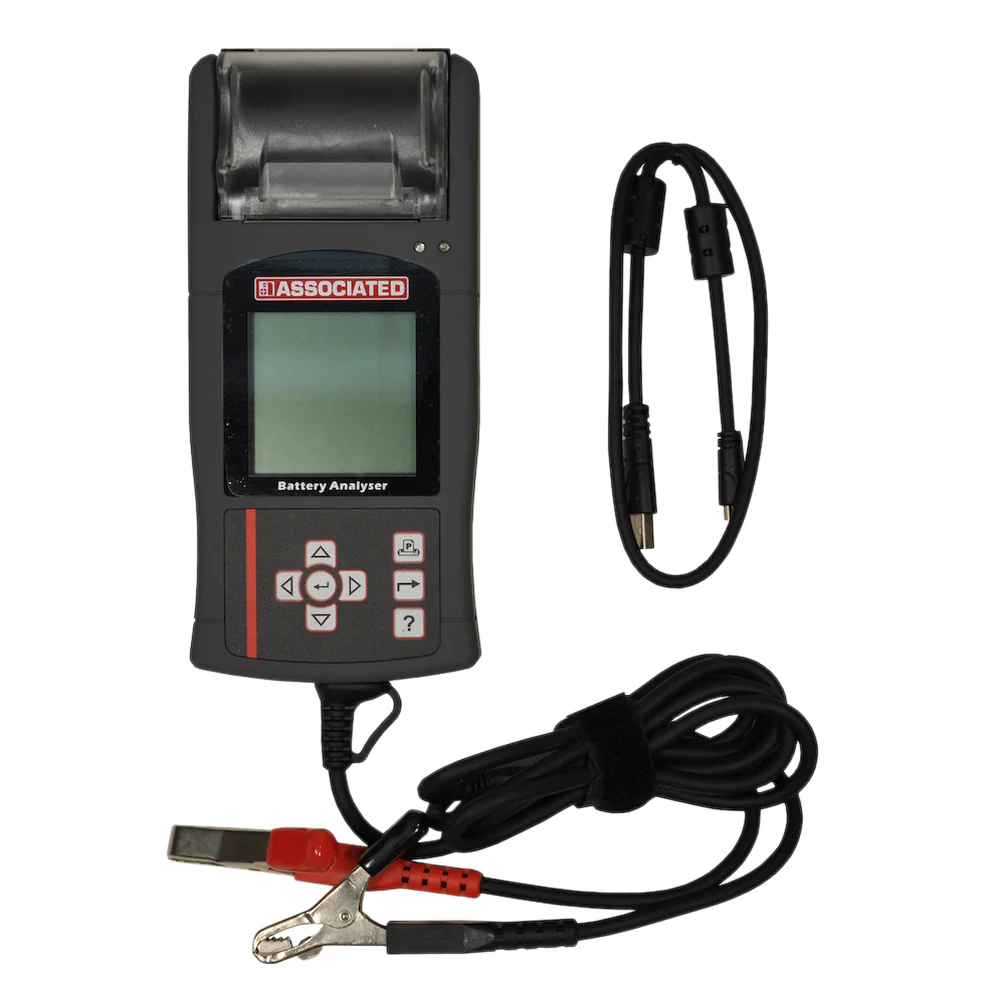

Hand-held Digital Battery and Electrical System Analyzer Tester. Tests Starter, Alternator, Ground and Battery. Built-in Thermal Printer and USB Port. Approved by several OEM Vehicle and Battery Manufacturers. Cables and carrying case are included.



- Light-weight digital battery tester with thermal printer and USB port
- Stores last 250 test series with or without power
- Tests all types of Flooded Acid Batteries, AGM Flat Plate and Spiral, Gel Cells and Enhanced Flooded Batteries
- Back-lit display for easy reading in all light conditions
- Performs Ground Test

Battery test displays:
  - Battery Good or Replace
  - Imputed CCA of test being performed
  - Battery CCA Rating after Test
  - Open circuit voltage of battery at test
  - Internal Resistance of battery
  - Estimated remaining life of battery in percentage

Starter Test displays:
  - Lowest voltage of battery during start
  - Voltage Drop - Normal/High

Alternator Test displays:
  - Good/Low/High
  - Average / Max / Min during test, for loaded and no load test
  - Checks Diode Ripple
  - Carrying Case and cables included

Specifications

Model Number: 12-1015
Load: Resistance
Voltmeter: 9-15 Volts DC
Battery CCA Test Range: 100 - 1700 CCA
Leads: 6 FT
Clamps: Kelvin Connection
Limited warranty: 1 Year
Display: 10 Line LCD Display
Printer: Thermal
Weight: 3.5 lbs
Shipping Dimensions: 10.5" x 14.5" x 4.5"

Information Downloads

Quick Start Guide



User Manual



Product Bulletin
