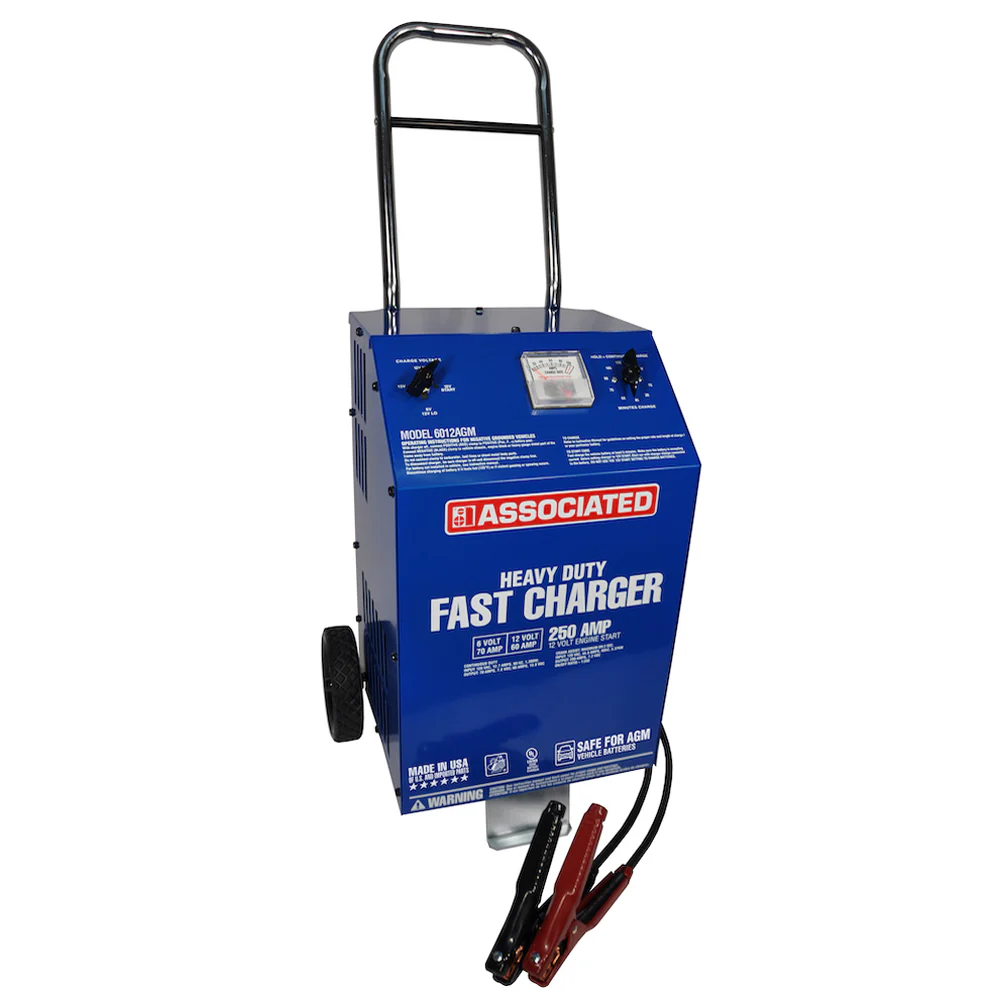

Associated 6012AGM Heavy Duty Wheel Charger, AGM Safe - 6/12V, 70/60A
Associated 6012AGM 6/12V Heavy Duty Charger, AGM Safe - 70A / 60A
Continuous Charge Rates - 70A, 60A
250 Amp Crank Assist
12V "SAFE FOR AGM" Setting
Associated Wheel Chargers are “Safe in Any Weather” with clamp bars for extra safety. Associated chargers are made with powder-coated steel enclosures, chrome tubular handles, 100% copper cable with flexible insulation (cold weather application), steel foot, and copper jaws on insulated steel clamps.
- Fan cooling mechanism prevents overheating and extends product life
- Heavy duty vacuum impregnated transformer to seal the unit against external agents
- Patented multi-diode rectifiers
- 400 Amp Fully Insulated Clamps
- Automatic reset AC and DC circuit breakers
- Automatic electric timer
- “Safe in any Weather” design
- Two-Year “Bumper-to-Bumper” Manufacturer’s Warranty and Five-Year Limited Warranty for Transformer/ Rectifier
- DOE Compliant and Energy Efficient
- Made in USA of US and Global Components
Specifications
Continuous Charging Rate: 70A @ 6V, 60A @ 12V
Crank Assist: 250A
Operating Charging Voltage: 6V / 12V
Battery Types: Lead-Acid Flooded Cell, AGM
Indoor/Outdoor Rated: Yes
Polarity Indicator: No
DC Cables: 6.5 ft, 6.5AWG copper
DC Clamp: 400A, Insulated Copper Jaw
AC Input: 120 VAC (nominal)
AC Cord: 6.5 ft, 16-3, Grounded North American Plug
Weight: 48 lbs
Length: 17.25"
Width: 16.5"
Height: 26.5"
