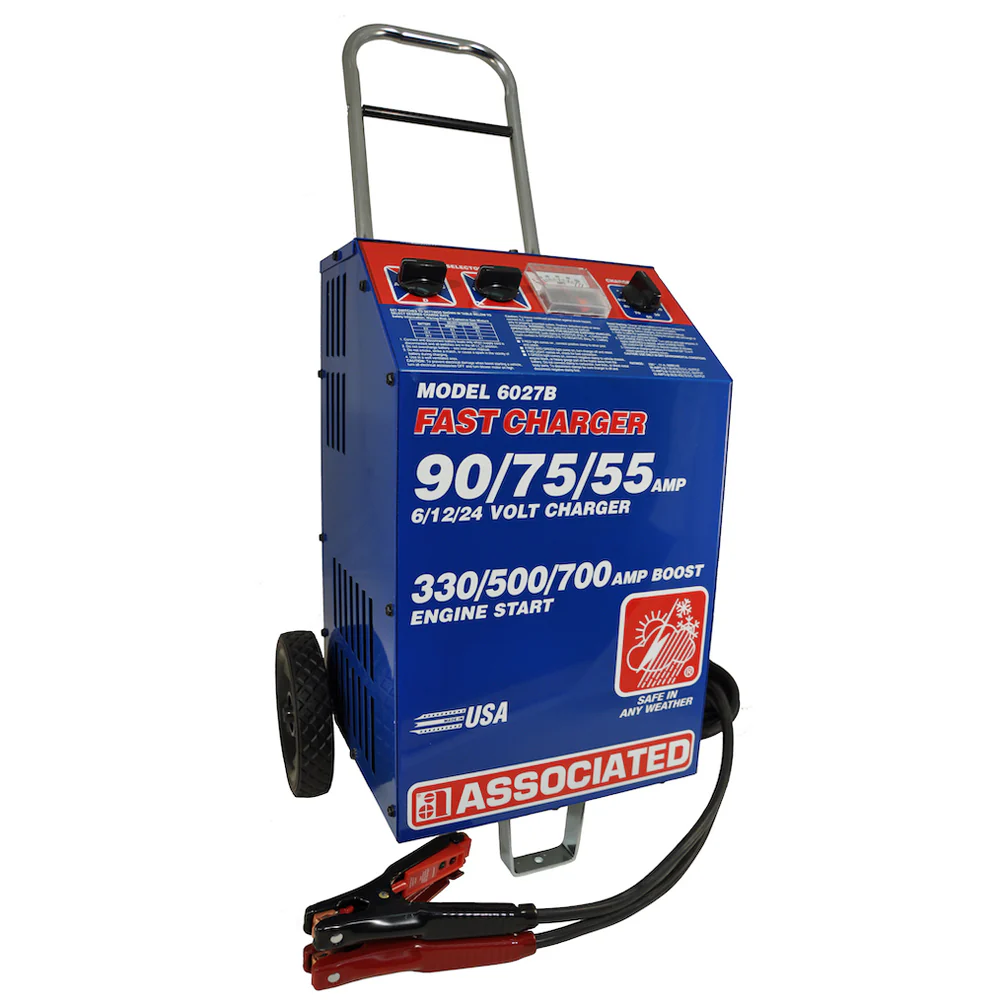

Associated 6027B Heavy Duty 6/12/24V, 220VAC International Commercial Charger, 90/75/55A

Continuous Charge Rates - 90A, 75A, 55A
500 Amp Crank Assist
Associated's highest output 220 VAC charger (Euro plug)



Associated Wheel Chargers are “Safe in Any Weather” with clamp bars for extra safety. Associated chargers are made with powder-coated steel enclosures, chrome tubular handles, 100% copper cable with flexible insulation (cold weather application), steel foot, and copper jaws on insulated steel clamps.



- Fan cooling mechanism prevents overheating and extends product life
- Heavy duty vacuum impregnated transformer to seal the unit against external agents
- Patented multi-diode rectifiers
- 500 Amp Fully Insulated Clamps
- Automatic reset AC and DC circuit breakers
- Automatic electric timer
- “Safe in any Weather” design
- Two-Year “Bumper-to-Bumper” Manufacturer’s Warranty and Five-Year Limited Warranty for Transformer/ Rectifier
- DOE Compliant and Energy Efficient
- Made in USA of US and Global Components
- CE Approved – Tested for safety by TUV Rhineland of North America
- CE Approved – Tested for EMC by DLS Electronic Systems

Specifications

Continuous Charging Rate: 90A @ 6V, 75 @ 12V, 55A @ 24V
Crank Assist: 500A
Operating Charging Voltage: 6V / 12V / 24V
Battery Types: Lead-Acid Flooded Cell
Indoor/Outdoor Rated: Yes
Polarity Indicator: Yes
DC Cables: 8 ft, 4AWG copper
DC Clamp: 500A, Insulated Copper Jaw
AC Input: 230 VAC (nominal)
AC Cord: 8 ft, 230VAC, Euro Plug
Weight: 75 lbs
Length: 15.5"
Width: 19"
Height: 21.5"

Information Downloads

Operator Manual
