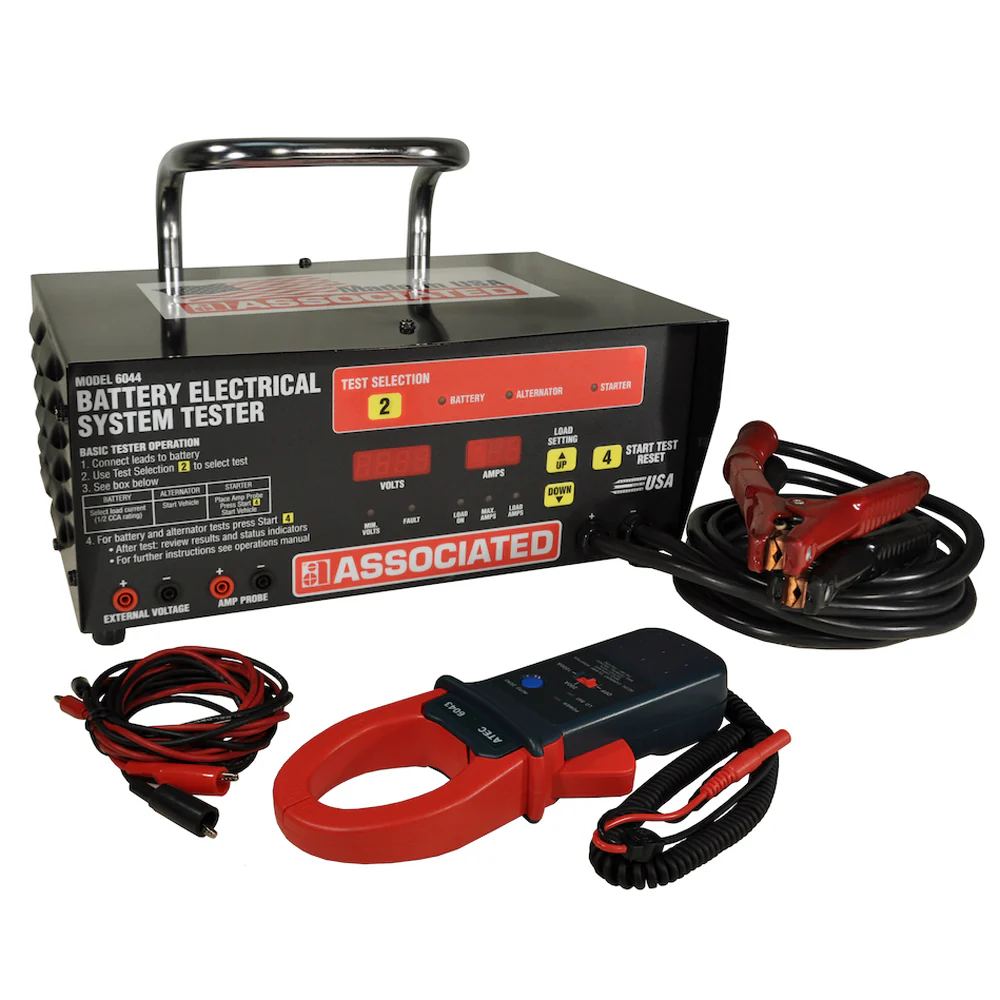

Associated 6044 12V Automatic Battery & 12/24V Electrical System Analyzer



- Easy-to-read LED voltmeter and ammeter
- 500 amp safety clamps with “Flexi-Spring” and patented side terminal adapters
- Separate 6 ft. high impedance test leads with alligator clips for tight spots
- Cart / Printer can be purchased separately – Cart Model 6038C, Printer Model 6041
- Automated testing of Batteries, Alternators, & Starters
- Max/Min of Current and Voltage
- Microprocessor based control board protected from reverse connections
- Testing of 12V and 24V electrical systems
- Test all types of batteries
- Ideal for testing remotely mounted batteries accurately
- Automated 500A variable load tester
- INCLUDES: Model 6043 1000 Amp AC/DC Inductive Amp Clamp for checking starter draw or parasitic drain test, also can be used with conventional multi-meters
- Made in USA of US and Global Components
- 1 Year Limited Warranty

Specifications

Load: 500A Variable
Amp Meter: 0-999A Digital LED
Volt Meter: 0-45.0V Digital LED
Clamp Leads: 8 ft, 4 AWG
Clamps: 500A
Shipping Wt: 23 lbs

Information Downloads

Operator Manual
