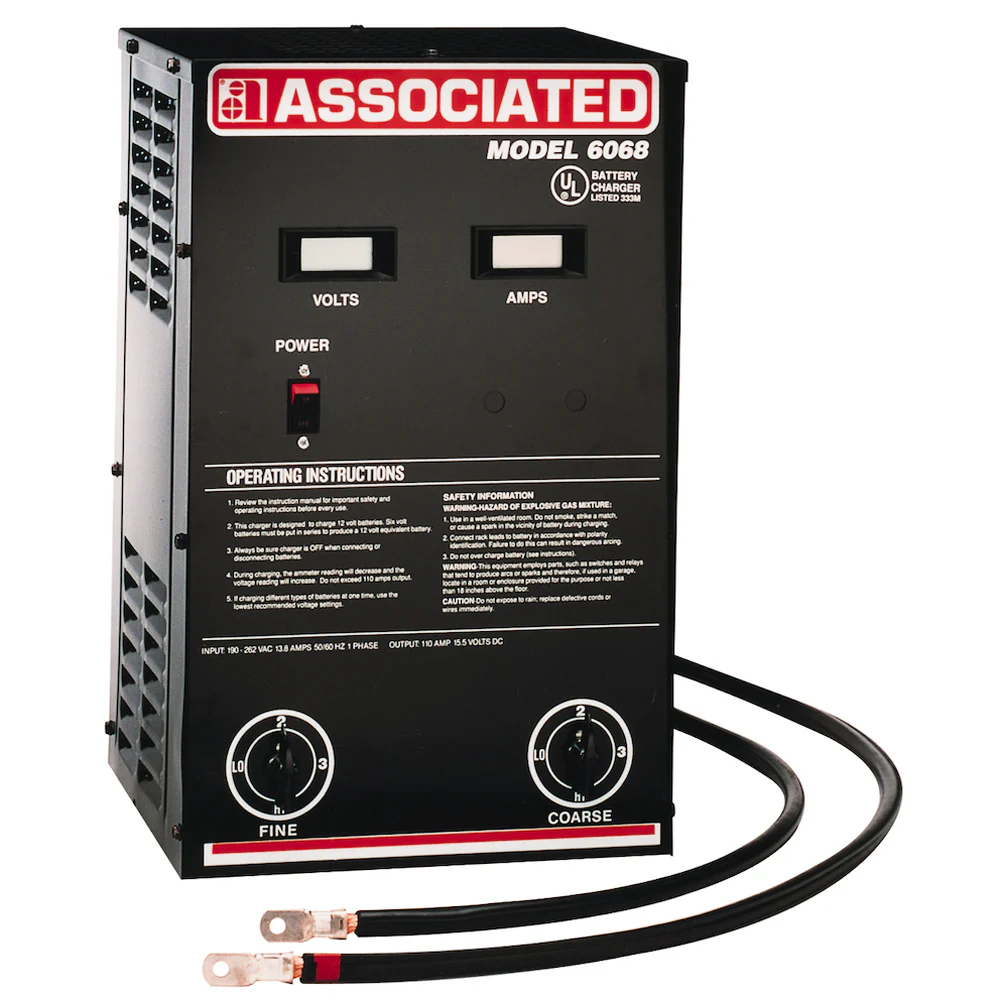

Associated 6068 Parallel Charger, 12V, 110A, 1-36 Batteries, 220VAC
Associated 6068 Parallel Charger, 12V, 110A, 1-36 Batteries, 220VAC
Charges up to 36 batteries, in parallel, in less than 24 hours. Can be wall-mounted or on a stationary bench. 16 charge rates for precise charging. Each battery accepts charge required, depending on size, state of charge and temperature. Engineered so that an initial high charge rate tapers down to a safe finishing level. UL listed. Isolated transformer and a heavy-duty diode rectifier with deep reserve capacity are standard features. Digital voltmeter and digital ammeter improve accuracy and reliability. Use Model 6075 bus bar sets as needed (NOT INCLUDED).
- 110 Amp Output at 15.5 Volts
- Charges 1-36, 12 volt batteries in less than 24 hours in parallel
- Designed for 190–262VAC 50/60Hz electrical environments
- Includes a pigtail rectifier with a deep reserve capacity
- Digital Control shows testing efficiency results
- Additional accessories available
- Use Model 6075 bus bars as needed (NOT INCLUDED)
- Made in USA of US and Global Components
- 1 Year Bumper-to-Bumper Warranty
Specifications
AC Input: 190-262V, 13.9A, 50/60Hz
DC Output: 110A, 15.5V
Charging Capacity: 1-36, 12V Battery
Battery Types: Conventional/Maintenance-Free Flooded Cell, AGM, EFB, Lithium-Ion, Gelled Electrolyte
Parallel/Series/Individual Design: Parallel
Smart Charger/Battery Diagnostics: No
Charge Rate Settings: 16
Volt Meter: 0-19.99V Digital LED
Amp Meter: 1-110A Digital LED
DC Cables: 5 ft, 1 AWG
Clamp: N/A (Lugs Only)
AC Cord: Permanent Installation Only
Shipping Wt: 83 lbs
