610970 - Associated Eqpt Jaw Kit 500 Amp (Repairs One Clamp)



OEM Clamp jaw repair kit features heavy duty copper construction for long life and high conductance.



Includes:

1 - Heavy-Duty "Hot" Copper Jaw
1 - "Cold" Copper Jaw
2 - Nylon Bushings
2 - Screws
2 - Acorn Nuts



BETTER VALUE $$ - Check out these clamp kits made by Associated Equipment. They include the entire clamp assembly, including this jaw kit - saving you $$.



7012 - Heavy-Duty Insulated Red Booster Cable & Battery Charger Clamp, with 500A Isolated Copper Jaw



7013 - Heavy-Duty Insulated Black Booster Cable & Battery Charger Clamp, with 500A Isolated Copper Jaw



7014 - Heavy-Duty Insulated Booster Cable & Battery Charger Clamp Set, with 500A Isolated Copper Jaws - pair



Features

- Heavy Duty Copper construction for long life and high conductance.
- Includes insulators and screws with acorn nuts.
- Requires Crimping and soldering for best connection
- See Clamp 6202 for entire replacement clamp instructions.

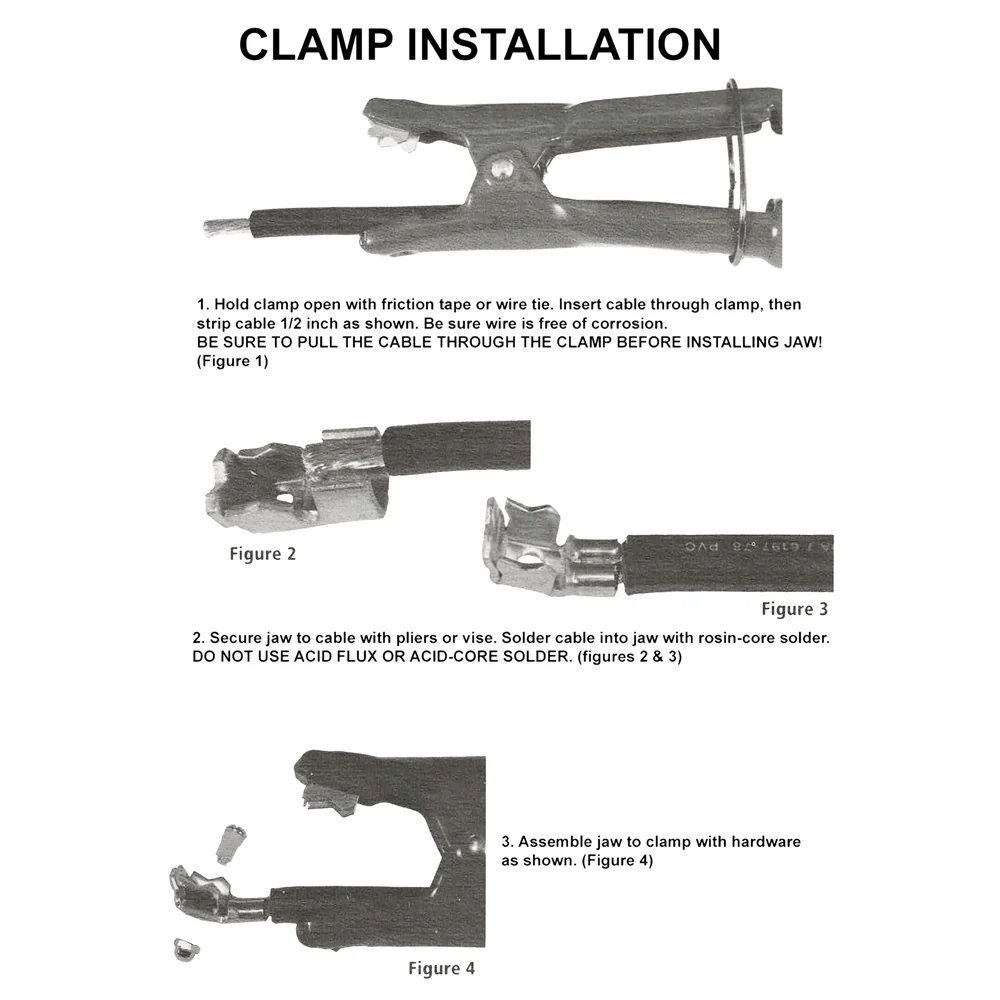

Instructions

- Hold clamp open by wrap of friction tape or cable tie around handles.
- Insert cable under clamp spring.
- Strip cable 1/2".  Be sure wires are free of corrosion.
- Solder cable into copper jaw with rosin core solder and torch or heavy iron. DO NOT USE ACID FLUX OR ACID CORE SOLDER.

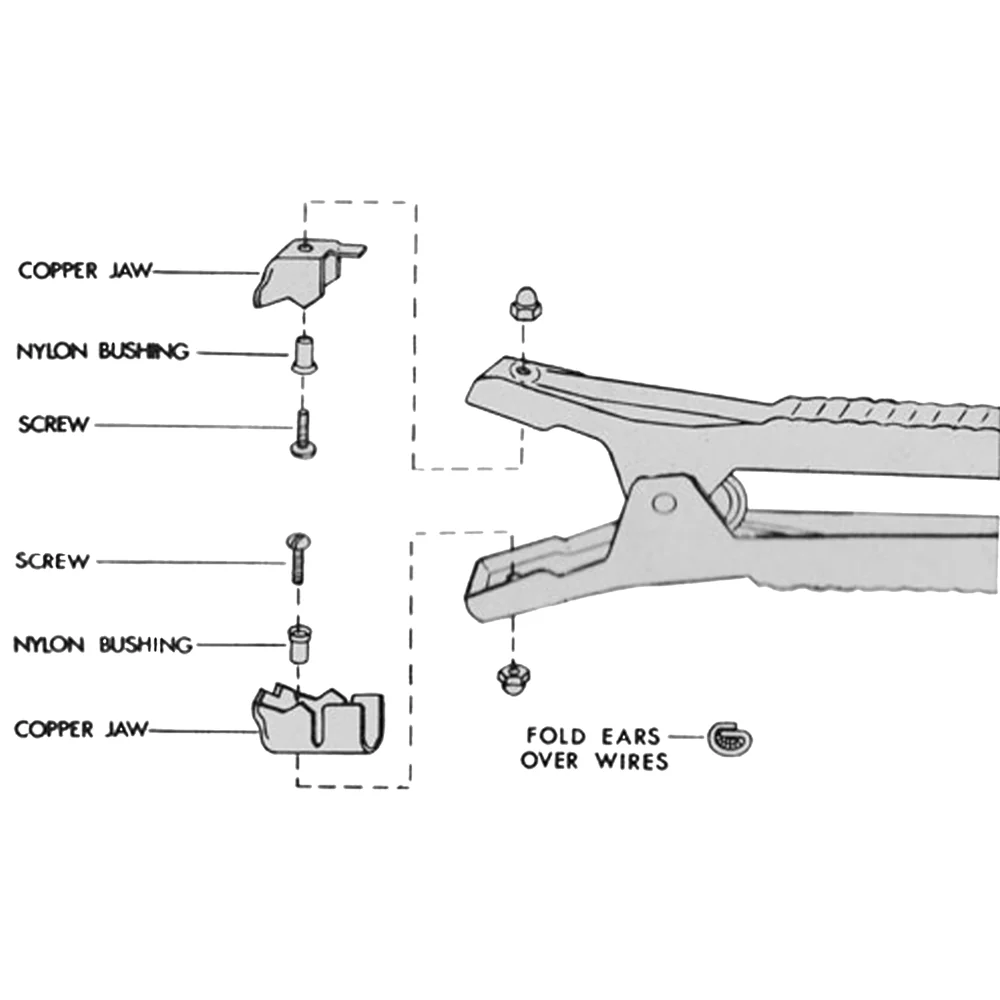

- Bolt parts into place in the sequence illustrated.
- For chargers with cell test leads strip cable 3-1/2" instead of 1/2" to permit re-connection of the black #18 wire cell test lead.
