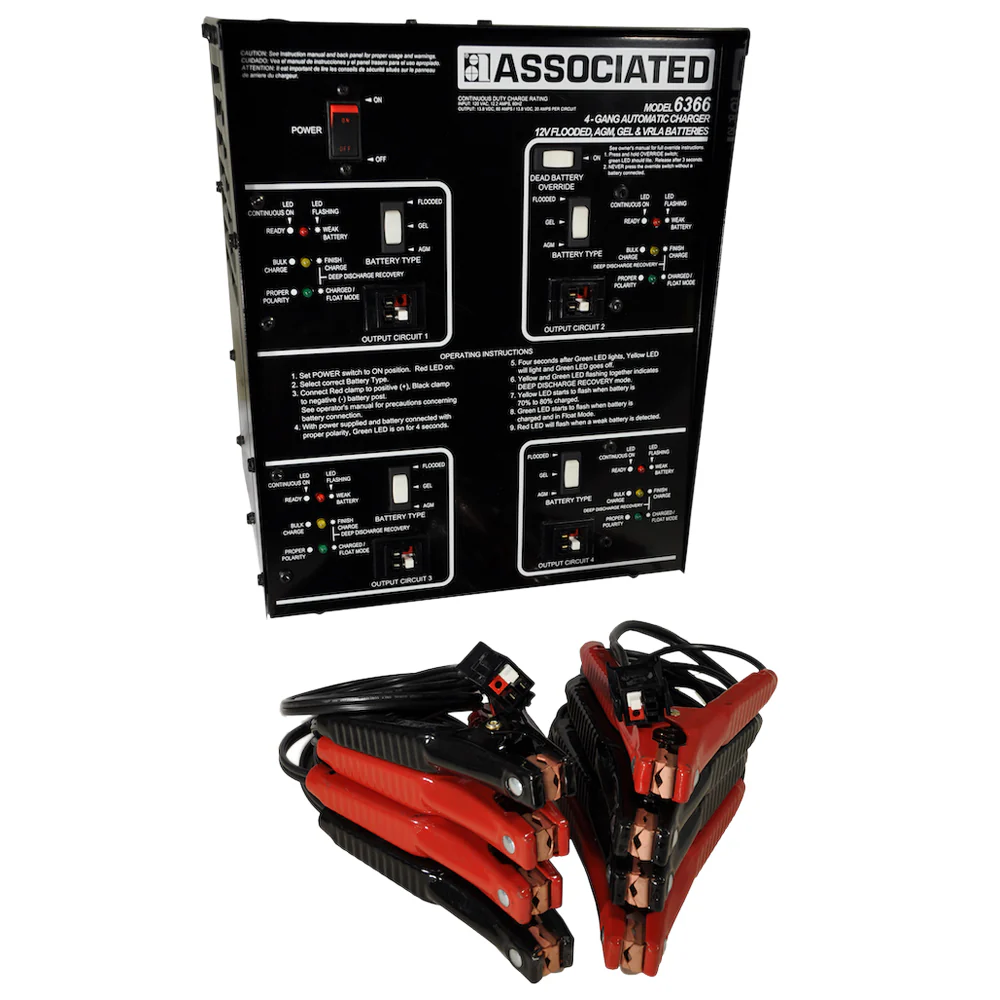

Associated 6366 Intellamatic 12 Volt 4 Channel x 20 Amp Multi Battery Charger
Associated 6366 Intellamatic 12 Volt 4 Channel x 20 Amp Multi Battery Charger
4 X 20 Industrial Gang Charger for Standard Automotive, Deep-Cycle, AGM, and Gel Batteries
- Four independent, Fully-Automatic charging channels that control voltage and current up to 20 Amps per circuit
- Four sets of LED indicators showing charging status by battery

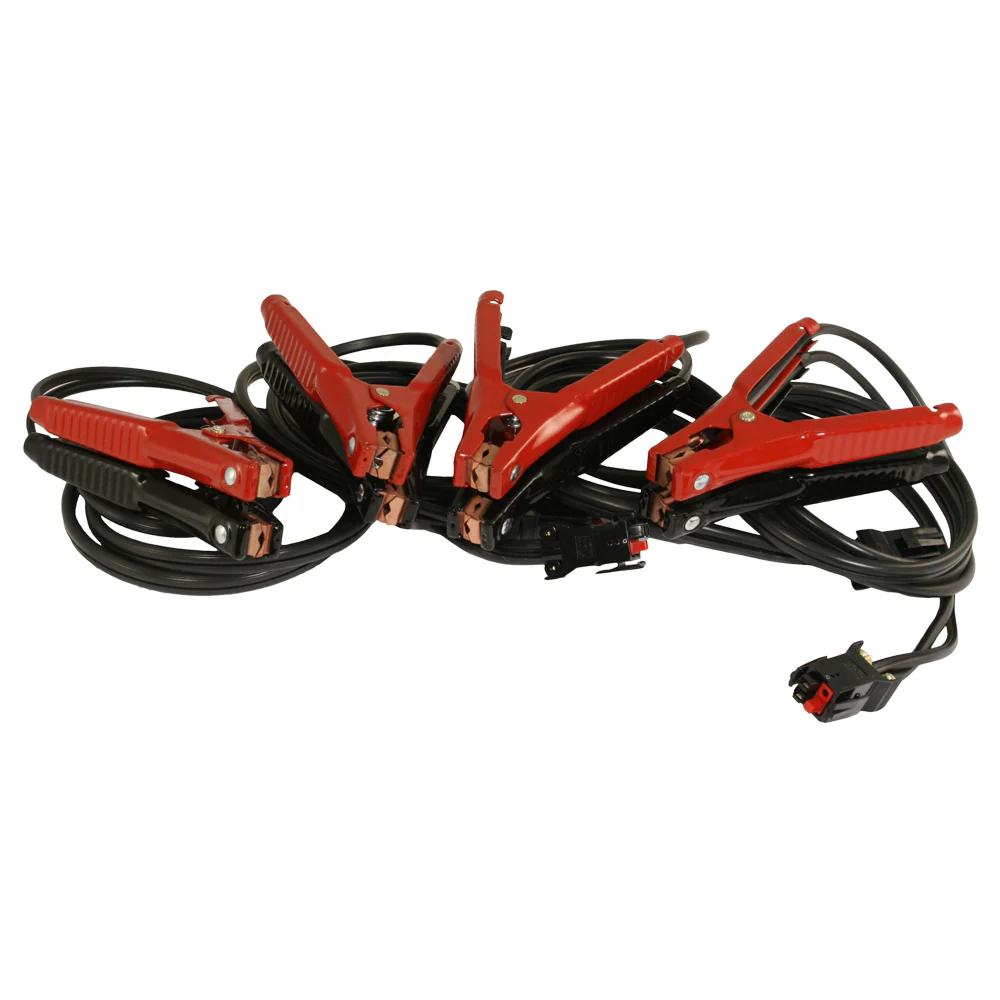

- Four sets of detachable 6 foot leads with 300 Amp heavy duty clamps
- Charges all types of 12 Volt batteries
- Designed for AGM, Gel Cell, Sealed, and Standard Flooded batteries - including Spiral Cell, Orbital, or Optima batteries
- Patented diagnostics indicate weak or defective battery
- Dead Battery Override Control
- CSA Listed
- MADE IN USA
Specifications
Model: 6366
DC Output: 20 Amps x 4 Channels
DC Leads: 6 ’ 12 AWG
Clamp Rating: 300A x 4 Sets
AC Input: 120 VAC 12.5 Amps 60 Hz
Battery Types: 12 Volt Flooded, AGM, and Gel Cell batteries - including Spiral Cell, Orbital or Optima batteries
Display: 3 LED display indicating charge status
Shipping Dimensions: 16” x 19” x 16”
Weight: 40 lbs
Warranty: One Year Parts and labor
