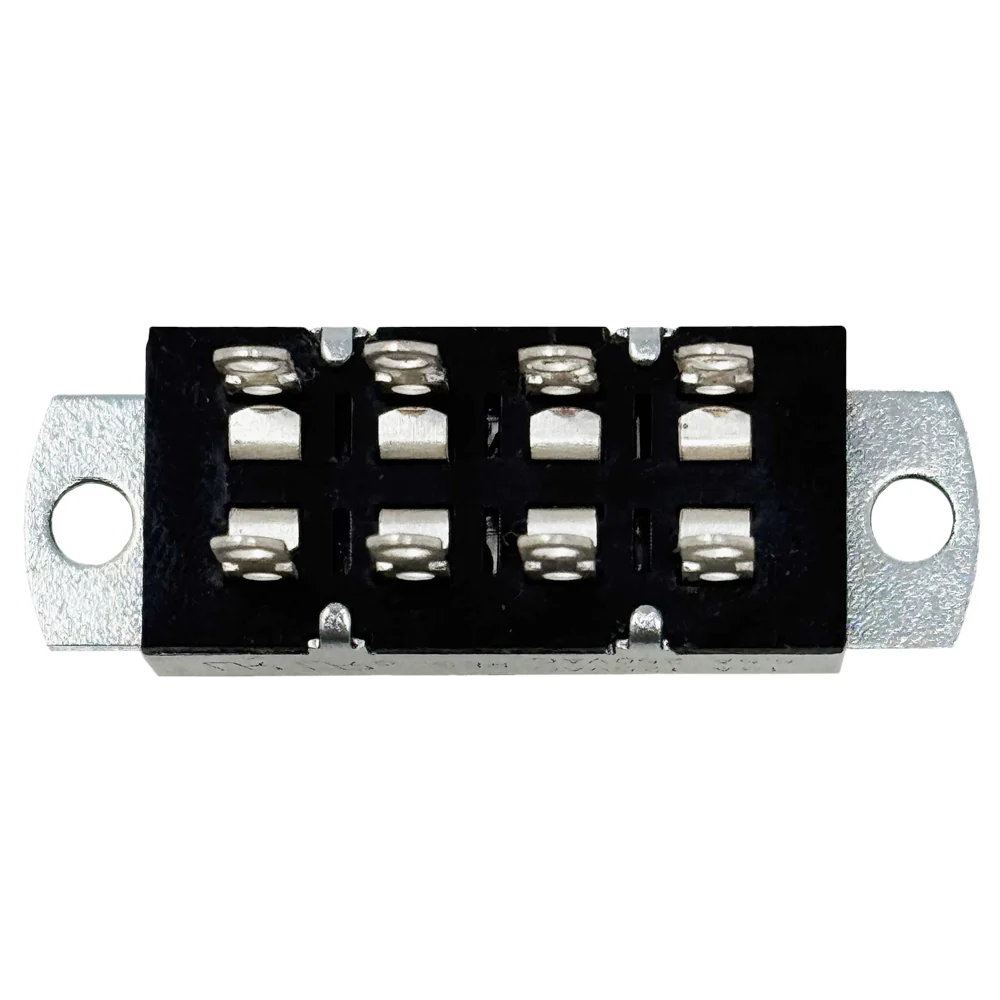

Switch Kit - 3 Position Slide Switch (8 terminal)
This switch is typically used as the Charge Mode select switch on Schumacher chargers.
This switch can be used to replace Schumacher switch 0499000030 (3-position, 4 terminal) by using a single row of the terminals.
Includes mounting screws and nuts.

Replaces

Schumacher 0499000066
Schumacher 0499-000066
Schumacher  0499000030 (0499000030 is a 4-terminal version, use one row of 4 terminals on new switch)

Charger Compatibility

SE-82-6
SE-1275A
SE-5212A (Rate Select)
SE-20MA (0499000030 Rate Select)
SE-40MA (0499000030 Rate Select)
SE-50MA (0499000030 Rate Select)
SE-520MA (0499000030 Volt Select)

Specifications

Contact Rating UL: 16A 125VAC, 8A 250VAC
Operating Temperature: 55°C
Electrical Life: more than 10,000 cycles

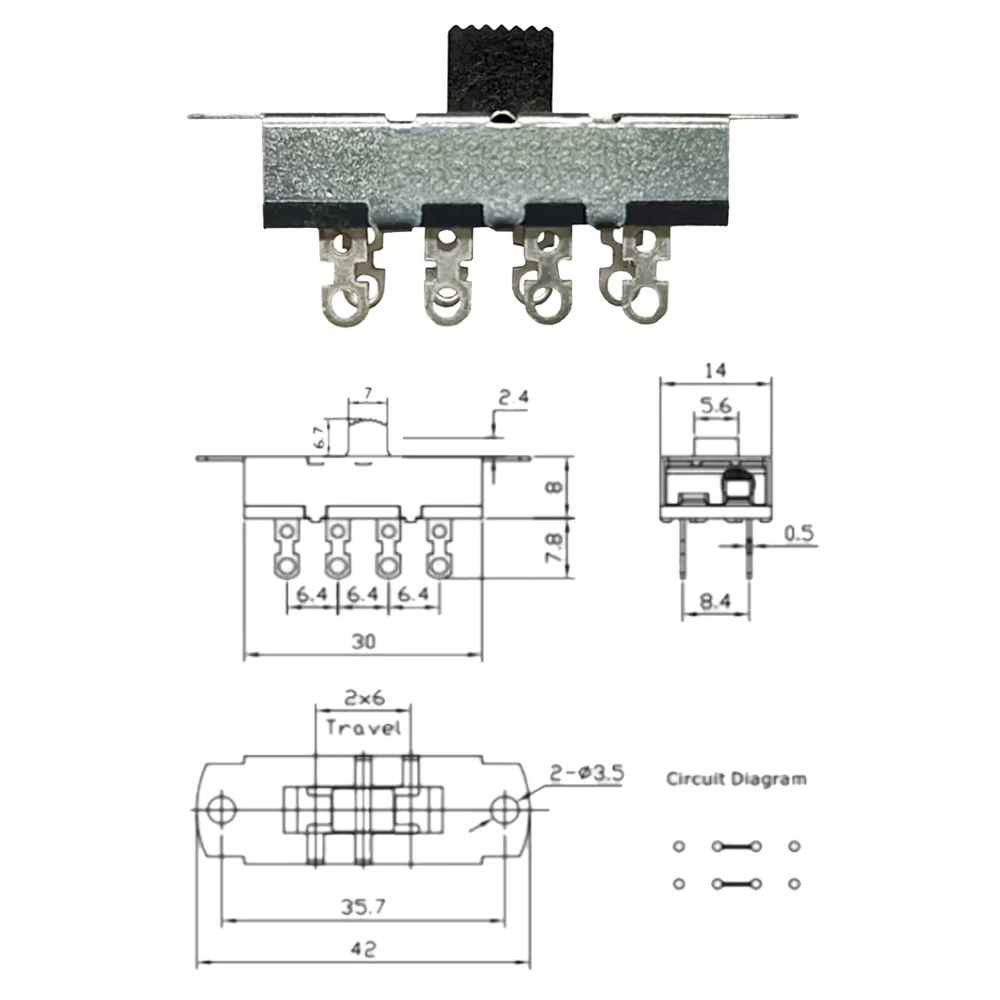

Dimensions:
Length: 1.65 in (42 mm)
Mounting Holes OC: 1.40 in (35.6 mm)
Mounting Hole Dia: 0.139 in (3.5 mm)
Width: .55 in (14 mm)
Height (overall): .87 in (22 mm)
Terminal Width: 0.120 in (3.05 mm)
Knob Width: .22 in (5.5mm)
Knob Height: .28 in (7 mm)
