Battery Charger Switch Kit - 5 Position Replacement Switch with Panel Nut Mount fits Various Battery Chargers



This rugged rotary switch is a favorite for replacing obsolete charge rate switches in various battery chargers. It can be used as a cost-effective retrofit to replace more expensive OEM switches in many brands. Designed to be easy to install through a 7/16" stem-mounting hole and retained with a panel nut. The wire terminals use industry-standard solderless .250" push-on connectors.



This switch has an OFF position and 4 power positions that are spaced in 60° increments across a 240° arc. When oriented with the OFF position at 12 o'clock, the 4 contact positions are at 2, 4, 6, and 8 o'clock.



The switch may be rotated to accommodate chargers that have the OFF position labeled at other clock positions on the charger cabinet. For example, if OFF is located at 8 o'clock on the charger, this switch may be installed to align with OFF at 8 o'clock and the power positions would then be at 10, 12, 2, and 4 o'clock.



NOTE: No specialty tools are required. Drilling of the cabinet may be necessary, using 1/4" and 7/16" drill bits. Drilling instructions and template are provided in the instructions. This switch is a good choice as a non-OEM replacement for obsolete switches in older battery chargers. Instructions are included to assist in determining proper wiring connections for these retrofit applications. The instructions require the use of a multimeter.



NOTE: Effective May 2026, this switch is shipping with a friction-fit push-on knob with a spring-steel insert. It has the same appearance as the set-screw knob, but it is easier to install and will not work loose over time. The part number for the new knob is 696554.

Features

- OFF position, plus 4 power positions
- 1/4" (6MM) shaft with flat
- Mounts easily in 7/16" panel hole with included panel nut and lock washer
- Indexing Tabs prevent rotation and misalignment
- Electrical Rating: 20.2A 125/250VAC (UL, C-UL)
- Industry-Standard 250" Push-On Connectors
- Manufactured to meet or exceed industry standards
- Includes Knob
- Instructions included

Specifications

SWITCH SPECIFICATIONS

Electrical Rating: 20.2A 125/250VAC (UL, C-UL)
Contact Resistance: DC 2-4V 1A 30mΩ or less
Insulation Resistance: DC 500V 100MΩ or more
Withstand Voltage: AC 1500V or more for 1 min.
Operating Temperature: 32~131° F, 0~55° C
Electrical Life: 6,000 cycles
Materials: Steel faceplate, Bakelite housing
Certifications: UL E68037, C-UL E68037
Terminals: 0.250" Fast-On Terminals
Length (in): 1.65 (42.0 mm)
Width (in): 1.69 (43.0 mm)
Height, without stem (in): 1.40 (35.6 mm)
Height, with stem (in): 2.03 (51.6)
Weight (lbs): 0.14 (64 g)
Stem Material: Steel

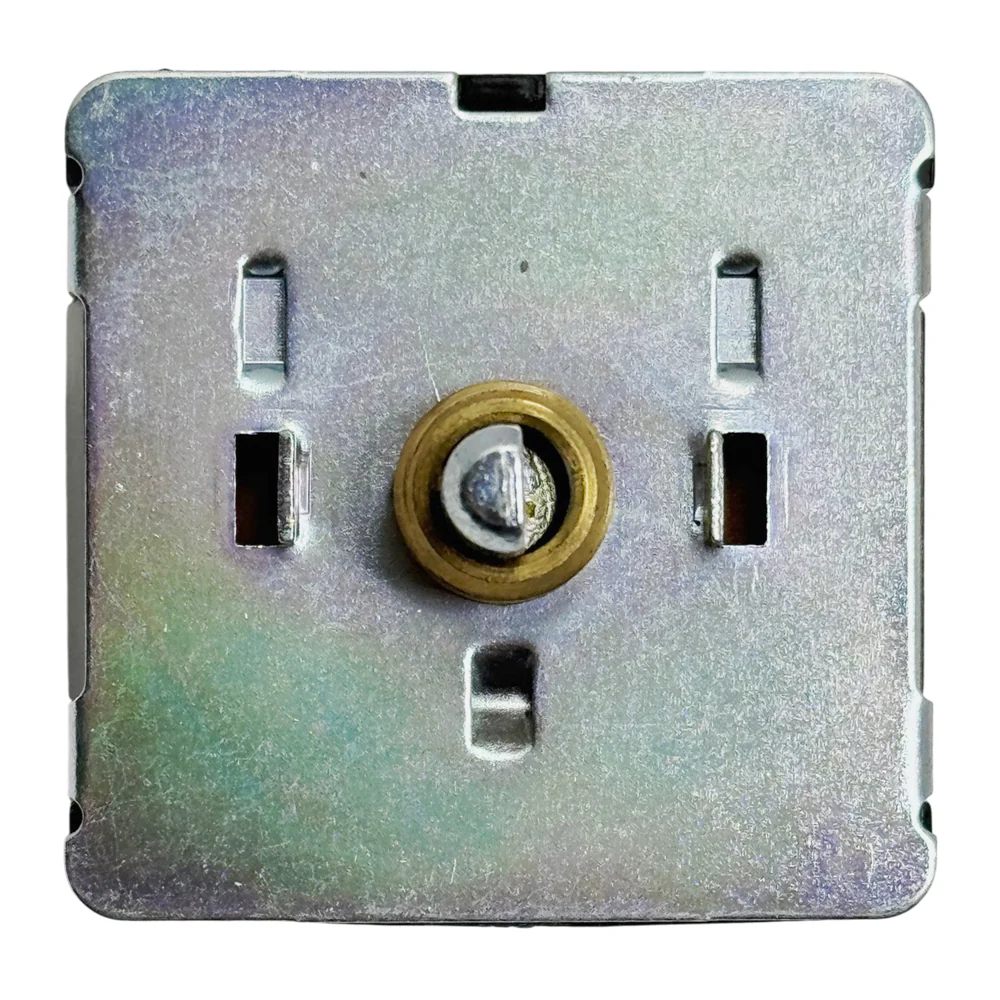

Stem Diameter (in): 0.236 (6.0 mm), flatted to 0.1575 (4.0 mm)
Stem Length Total (in): 0.63 (16.0 mm)
Stem Length from Bushing (in): 0.30 (7.5 mm)
Stem Flat Orientation: 180° (opposite knob pointer)
Securing Nut: 7/16"-20 Panel Nut
Index Tab Location: On the 12 o'clock to 6 o'clock centerline, 7/8" (20.0 mm) on center

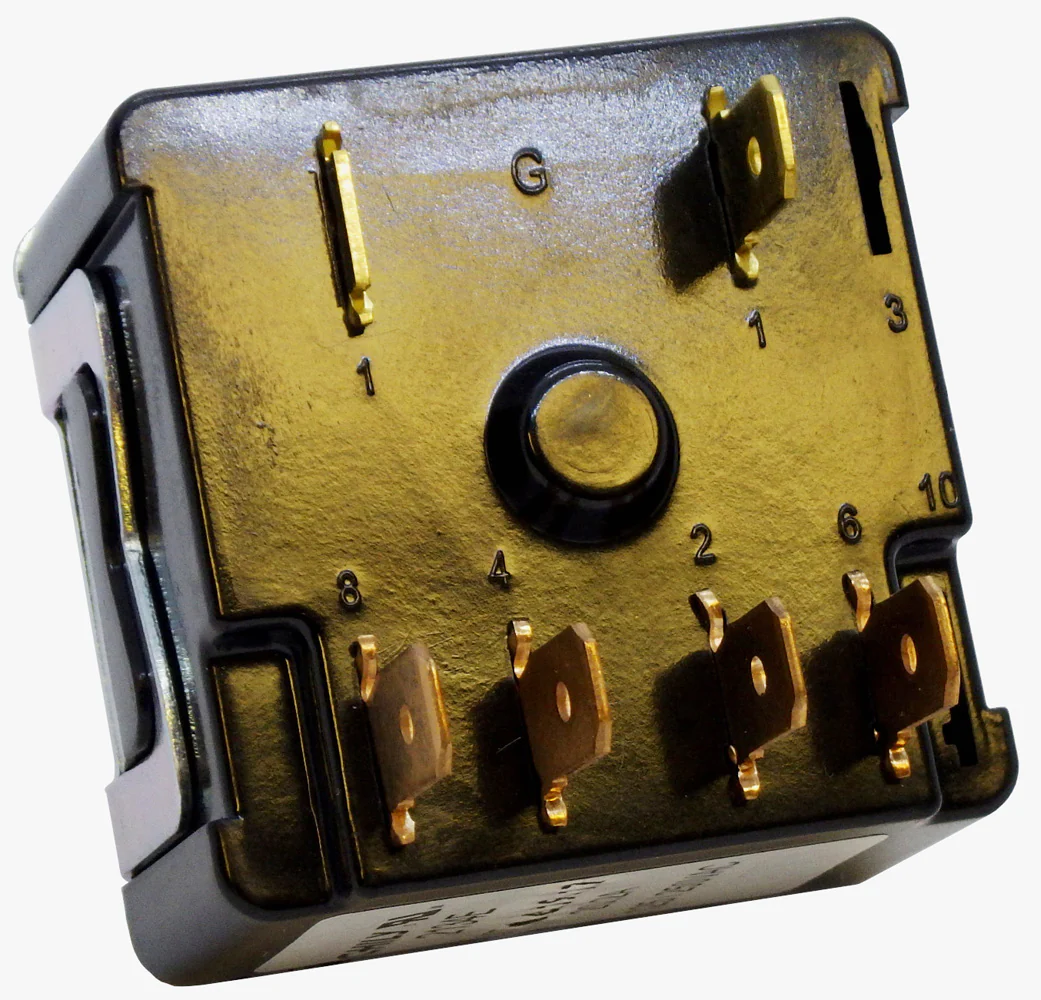

SHAFT/TERMINAL POSITIONS (Switch oriented with OFF at 12 o'clock)

Position 1: 0° (12 o'clock), Output Terminal - NA
Position 2: 60° (2 o'clock), Output Terminal - 2
Position 3: 120° (4 o'clock), Output Terminal - 4
Position 4: 180° (6 o'clock), Output Terminal - 6
Position 5: 240° (8 o'clock), Output Terminal - 8

What's in the Box

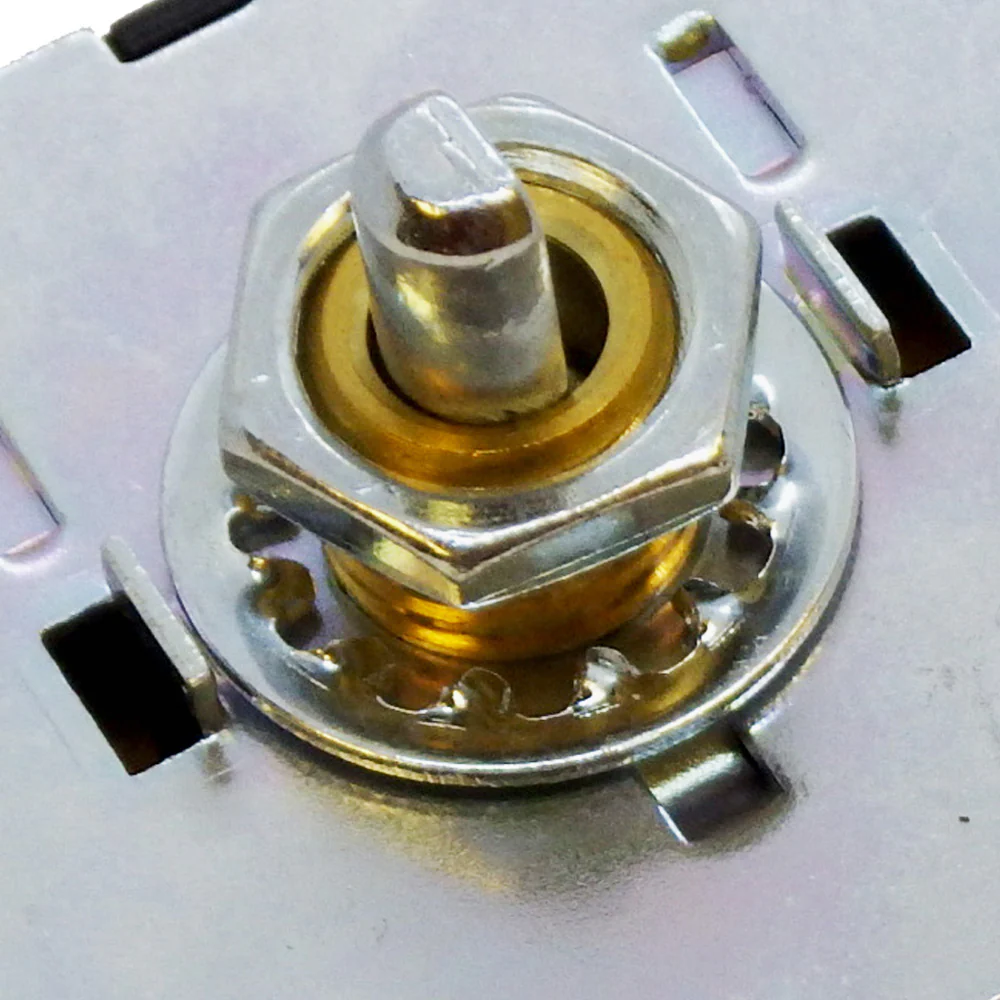

1 - 5-Position Rotary Switch, Panel Nut Mount
1 - 7/16"-20 Panel Nut
1 - 7/16" Internal-tooth Star Lock Washer
1 - Push-On Skirted Knob
1 - Instruction Sheet (also available here - see Information Downloads tab)

Information Downloads

697012 Installation Instruction Sheet



Installation Guide for Replacing Century/Solar 246-057-XXX Series Switches
