No need for pricey long handle crimping tools and replacement jaws. This tool does a 3 point crimp all at one time and it crimps up to 4/0 AWG cables.



Performs a 3 point crimp in a single operation. Crimps up to 4/0 AWG cables.

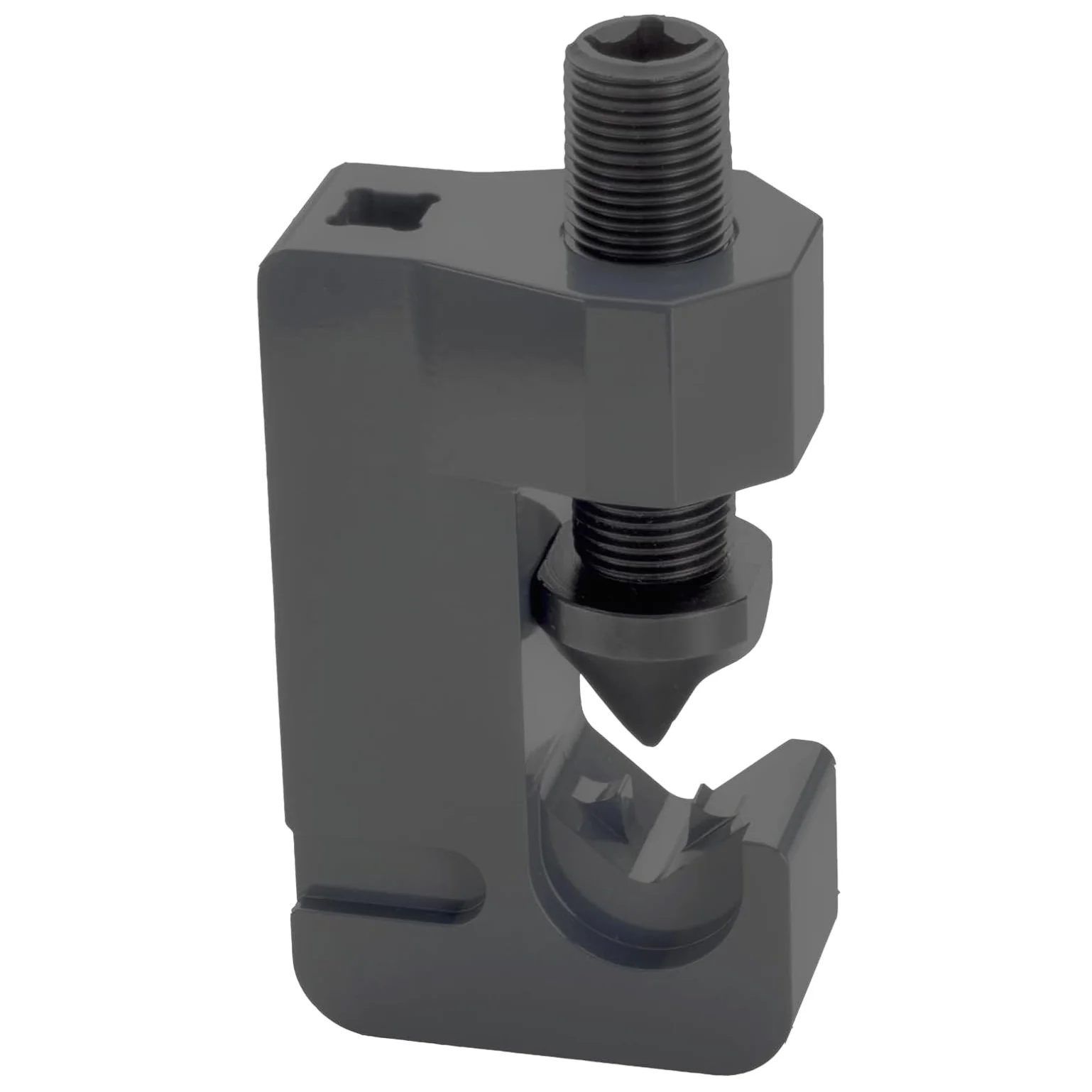

The B7946 is a versatile wire crimping tool. Tight work areas are not a problem for this small hand held crimper. It can be held with a 3/8" drive extension or ratchet as well as a 19mm or 3/4" open end wrench. Ratchet the movable crimping head down onto the 2 point base to make a 3 point crimp. Can be used with a 3/8" impact battery drill for heavy duty wire up to 4/0 AWG. Can be held in a vise for bench work.



- Crimps cable terminal ends onto cables up to 4/0 AWG

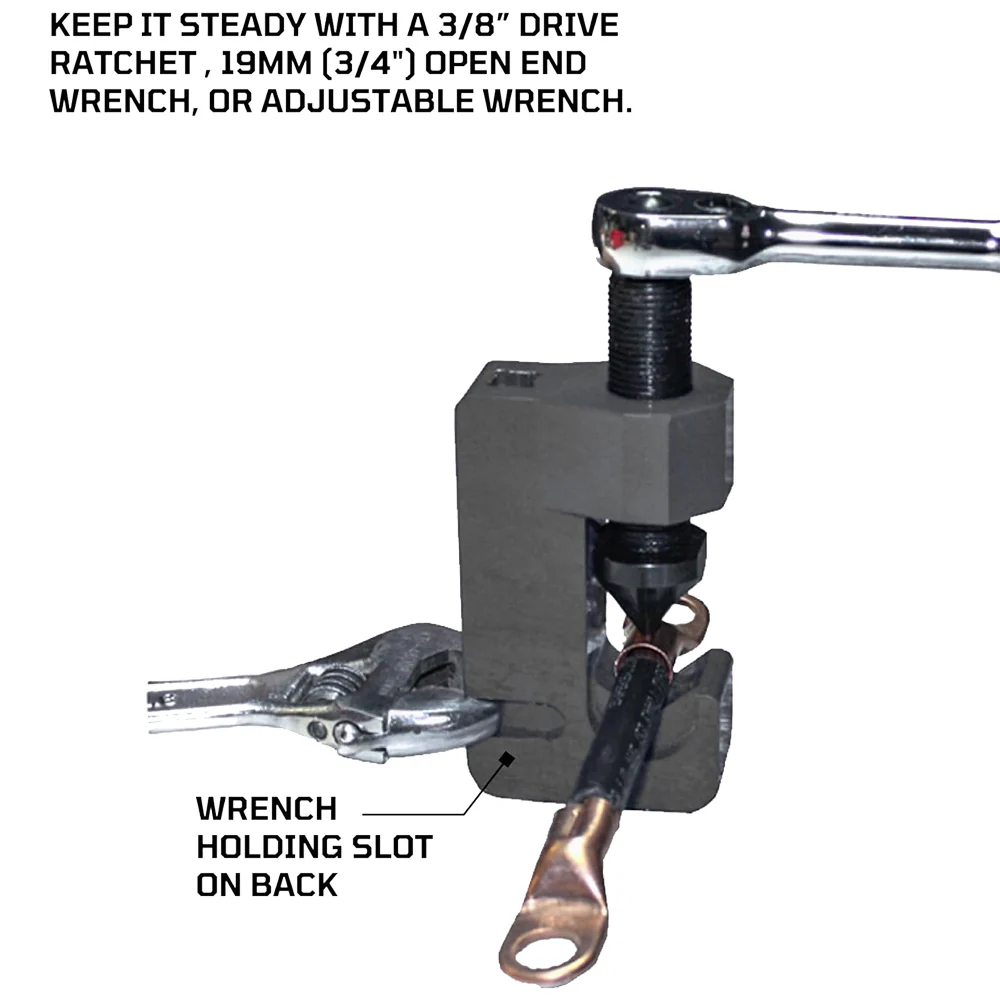

- Convenient 3/8" drive holding fixtures on top and bottom
- Adjustable, wrench-holding slot on back of tool
- Portable, durable, and compact - no need for a hammer
- Crimps cables on the vehicle, boat, airplane
- Great for in-car stereo installs

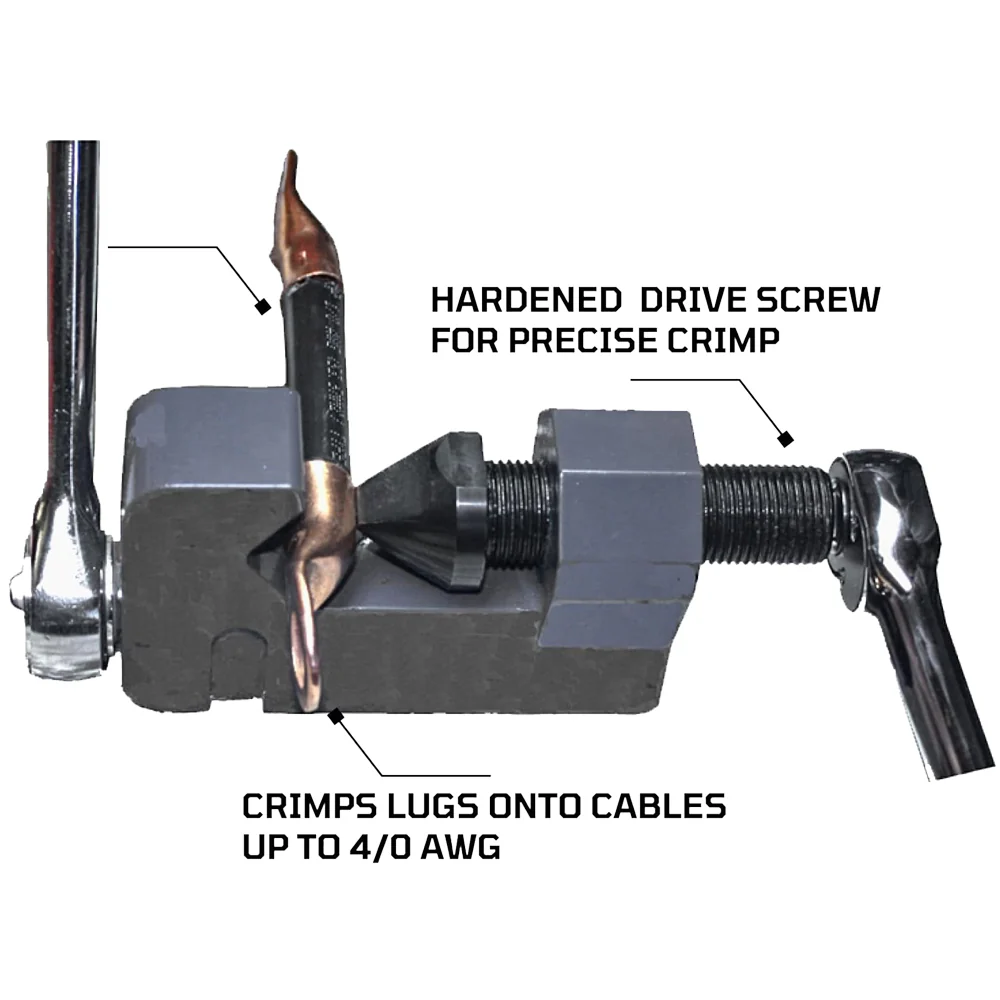

- Hardened, fine-thread drive screw for precise crimps



Specifications

Length: 2.40 in (61 mm)
Width: 1.53 in (39 mm)
Height: 4.35 in (111 mm)
Weight (lbs): 2.41 (1092 g)
