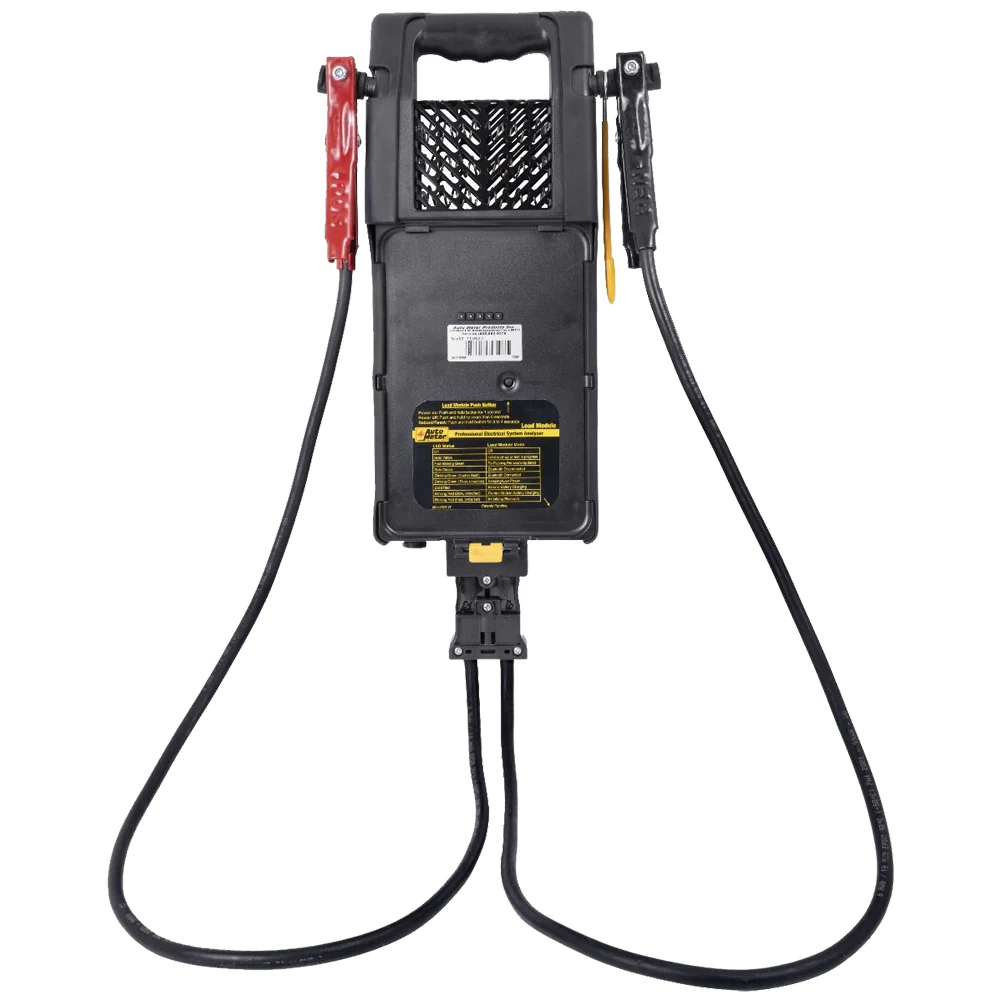

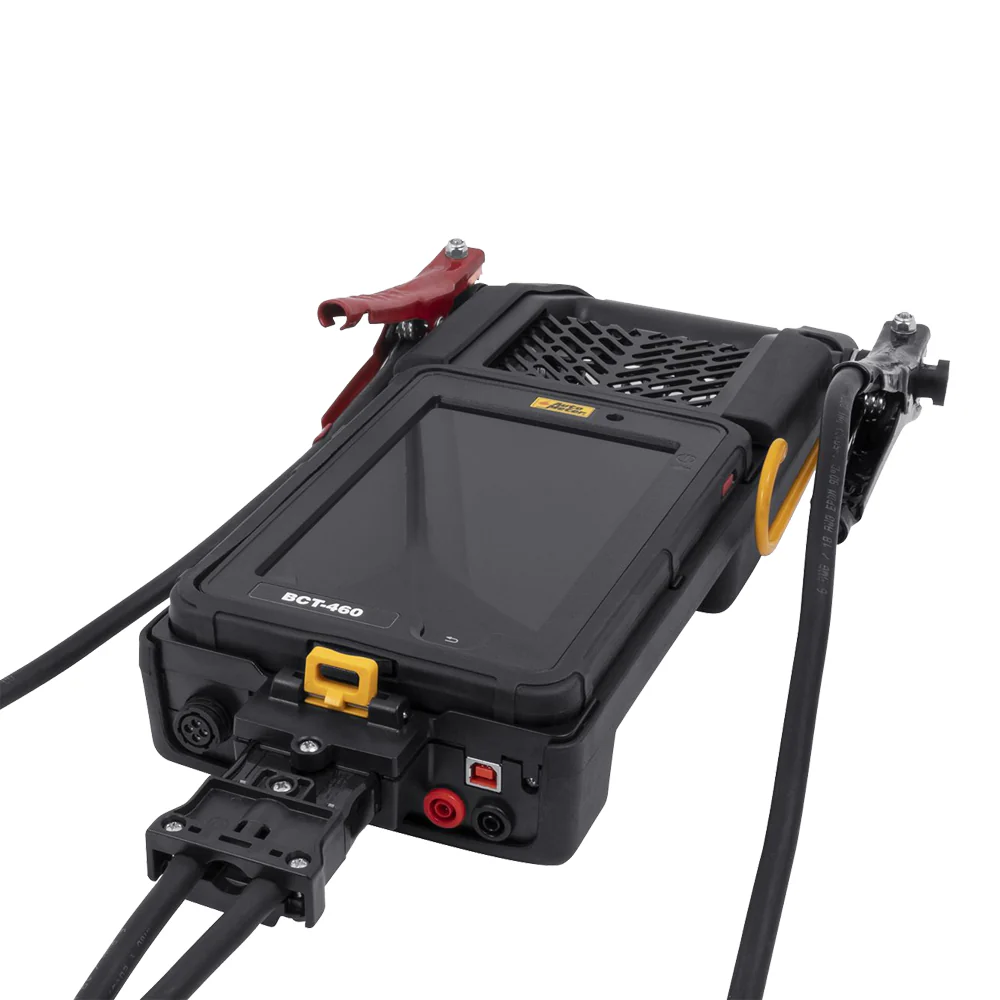

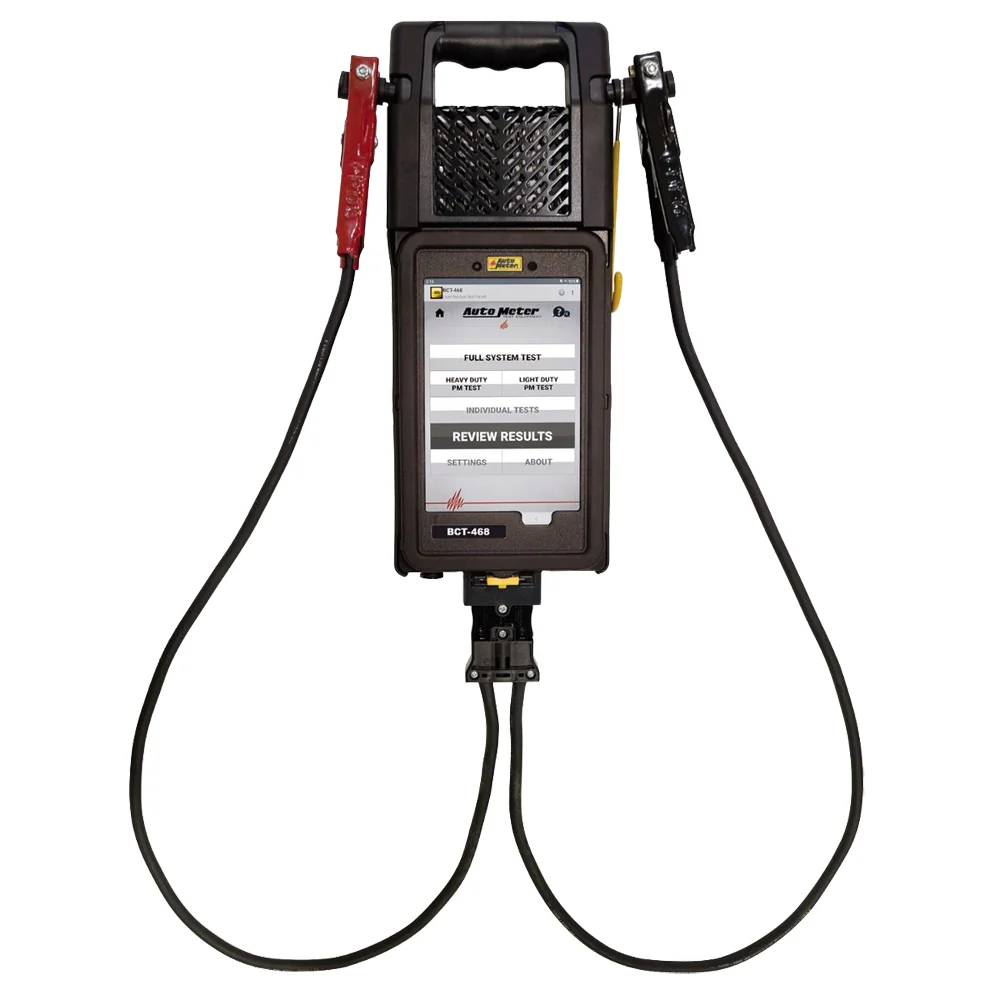

AutoMeter BCT-468 Tablet-Based Wireless Battery and System Tester for HD Trucks
AutoMeter BCT-468 Tablet-Based Wireless Battery and System Tester for HD Trucks
The BCT-468 is the ultimate handheld electrical system tester specifically designed for the heavy-duty truck market. Through the use of state of the art digital circuitry, a separable tablet and control module, and Auto Meter’s optional AMPNET cloud data management services, the BCT-468 delivers accurate, reliable, and fast testing results all-in-one new innovative Wi-Fi enabled device.
Features
- Innovative tablet based truck electrical system analyzer with wireless remote load module
- Includes a ruggedized control module with a 8”, wide viewing angle touch screen user interface. Load module lithium-ion battery is both rechargeable and replaceable
- True load test for 6 and 12 volt batteries (including AGM)
- Performs battery pack testing (up to 4 batteries)
- Tests 12 and 24 volt starting and charging systems
- Tests 6 and 12 volt batteries rated between 100-1600 CCA
- Provides a significant load during testing for incredible accuracy, even on partially discharged batteries
- Provides Quick PM tests for battery pack, starter, alternator (Up to 450 Amp output), and cable voltage drop tests
- Provides full electrical system test similar to the RP-129B
- Delivers a clear snapshot of cranking RPM for enhanced diagnostics (patent pending)
- Includes automatic voltage drop testing on starter, alternator, and lift-gate cables and connectors
- Includes built in non-contact IR battery temperature measurement. Also includes port for optional inductive current probe
- Wi-Fi enabled for automatic real time data collection and customer communications
- Performs lift gate testing with separately sold adaptors
- Field replaceable, plug and play leads for easy tool maintenance
- Step by step graphical troubleshooting instructions guide user through the testing process and clear, next step advice
Operation
- With the use of a microprocessor, a substantial true load, and AutoMeter’s patented digital pulse load testing protocol, the BCT-468 accurately measures the battery’s capacity and recovery for a comprehensive state of health assessment. Capable of detecting bad cells and “near end of life” conditions.
- The BCT-468 applies a true load to the battery in order to simulate real world operating conditions
- Charging System test results measure alternator current output, voltage regulation, diode ripple, and also starter cranking RPM (patent pending).
Specifications
Shipping Wt: 10.9 lbs.
Warranty: 12 Months
Information Downloads
