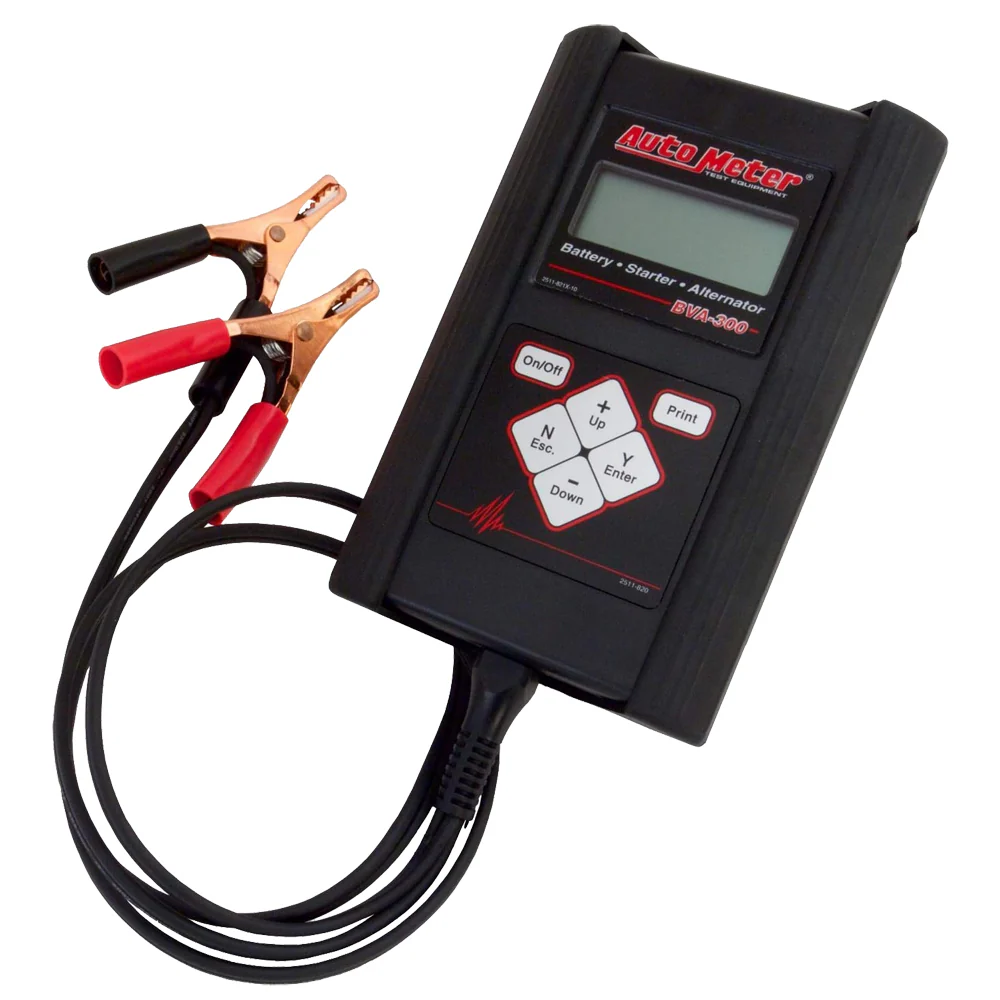

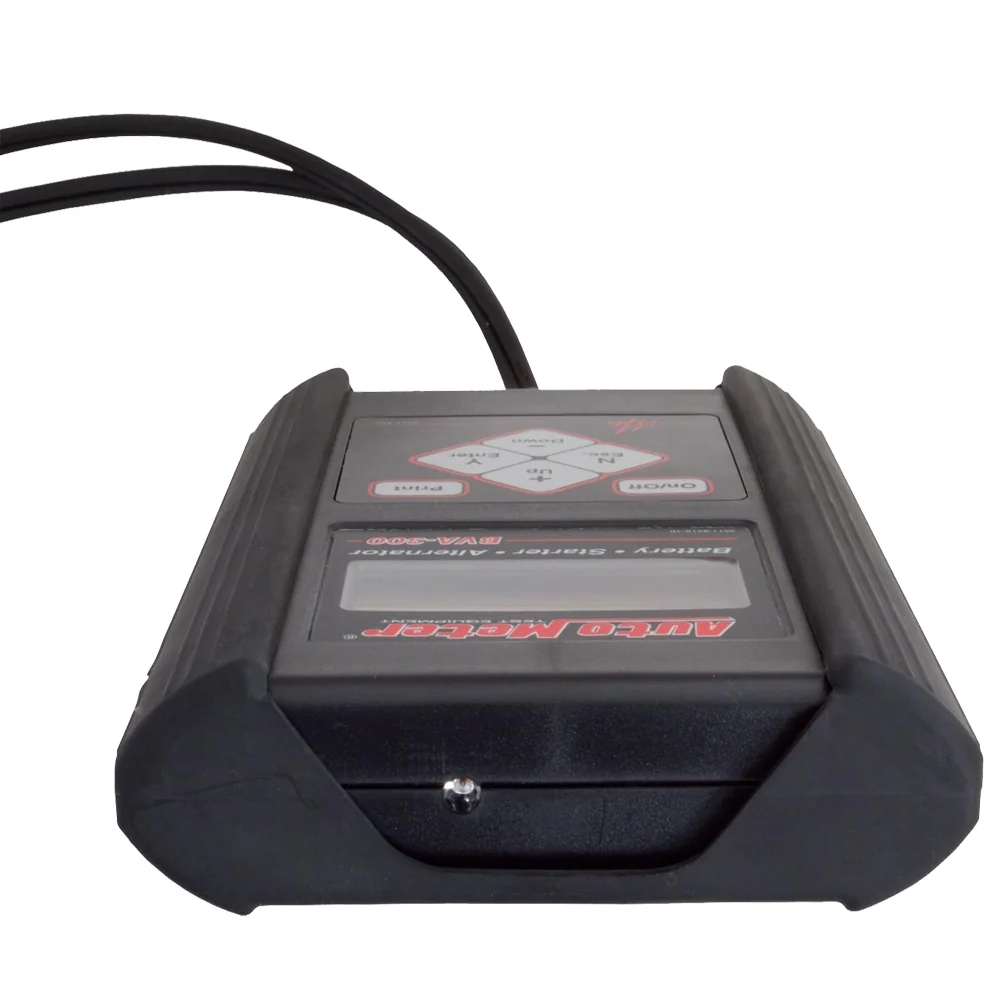

AutoMeter BVA-300 Intelligent 6V & 12V Hand-Held Electrical System Analyzer
AutoMeter BVA-300 Intelligent 6V & 12V Hand-Held Electrical System Analyzer
The BVA-300 is a Technician grade handheld electrical system tester that preforms a compete electrical system test in less than 82 seconds. Utilizing an on-board 40 amp load, the BVA-300 uses patented Digital Pulse Load technology to fully test most batteries, starters and alternators completely.
- Best of Both Worlds - Accuracy via Patented Resistance & Load Test
- Tests flooded and AGM batteries
- Tests 6 And 12 Volt Batteries
- Tests CCA Range of 100-1600
- Temperature Added For Accuracy
- Fully Automated Load
- Tests discharged battereis
- Easy Input Menus
- Tests starter draw and alternator output
- Stores the last 50 tests in memory
- Reverse polarity protection
- 64 character 4 line LCD screen
- 30"" - 16 gauge leads
- Tough plastic case with easy-grip rubber boot
- Customer communication with optional bolt-on PR-20 printer or PR-12 infrared printer or PC cable
Features
- Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 - also detects discharged batteries, bad cells, and has built in reverse polarity protection.
- Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use and more accurate.
- Automatically stores the last 100 tests in memory.
- 30" - 16 gauge leads with professional grade clamps that are easily field serviceable.
- Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
- English and Spanish language menus and test results.
- Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
- Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
- Utilizes advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests
- Battery test results include: Measured true CCA, voltage and percent of charge, and the battery's state of health (good, near end of life, or bad).
Specifications
Battery Types: Flooded & AGM Battery
Voltage: 6V & 12V
Battery Range: 100-1600 CCA
Automated Load: 40 Amp
Lead Size: 30” - 16 Gauge
Alternator Test: Yes
Stator Diode Test: Yes
Starter Draw Test: Yes
Voltage Drop Test: None
External Volt Leads: None
Memory: 100 Tests
Operational Temperature: 0-120F
Operational Humidity: 0-85%
Language: English & Spanish
Internal Battery: 9V
Dimensions: 4.5” x 7.1” x 1.4”
Weight: 1.3 lbs
California Residents: Prop 65 WARNING
Warranty: 12 Months
