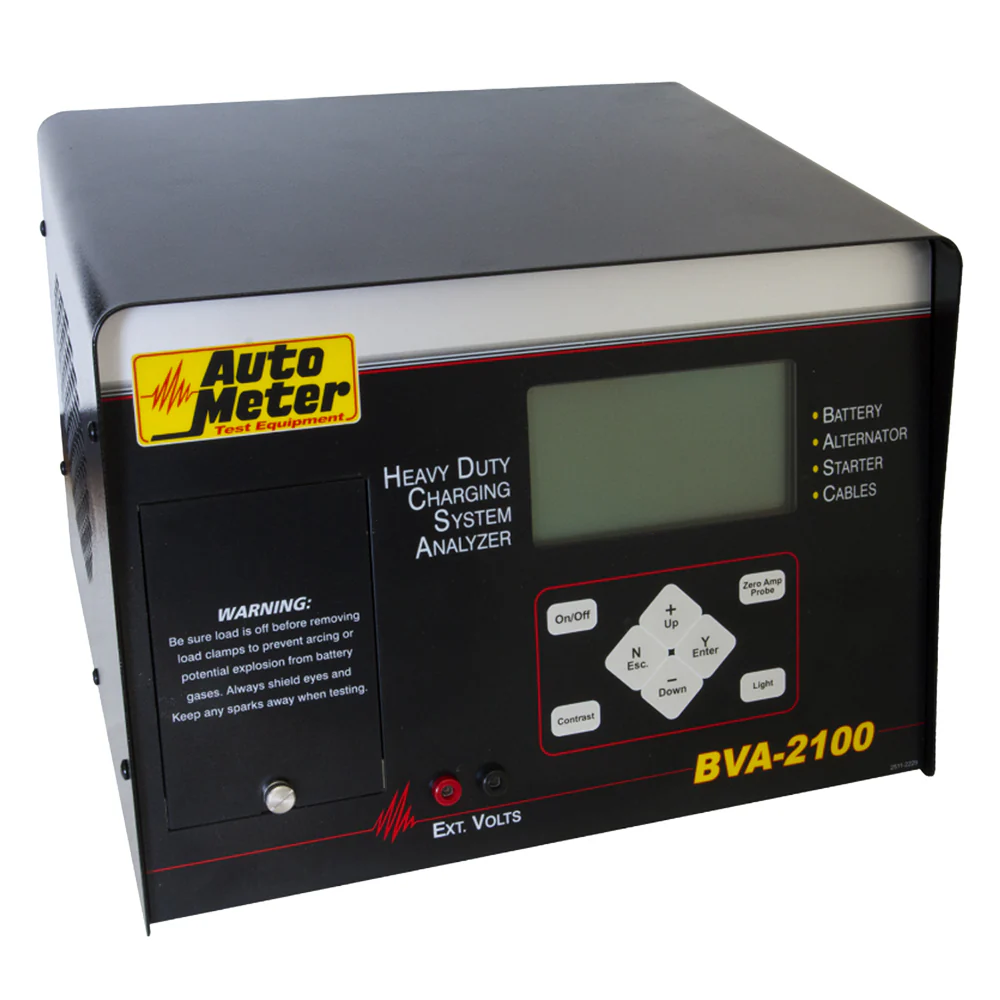

AutoMeter BVA-2100 Heavy Duty Automated System Analyzer - Upgraded to 500A
AutoMeter BVA-2100 Heavy Duty Automated System Analyzer - Upgraded to 500A
The BVA-2100 is the ultimate electrical system tester specifically designed for the Heavy Duty market. Through the use of state of the art digital circuitry and a 500 amp True Load system , the BVA-2100 delivers the word's most accurate, reliable, and fastest testing results for batteries, charging systems, starting systems, and voltage drop testing for heavy duty applications.
- Accurately pinpoints electrical system problems (battery, starter, alternator, wiring, and connections).
- Features advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
- True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle’s battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter’s Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
- V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance. This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire. AutoMeter’s V-Drop technology prevents the need to connect additional probes and/or disable ignition or fuel systems to engage in excessive engine crank periods. In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.

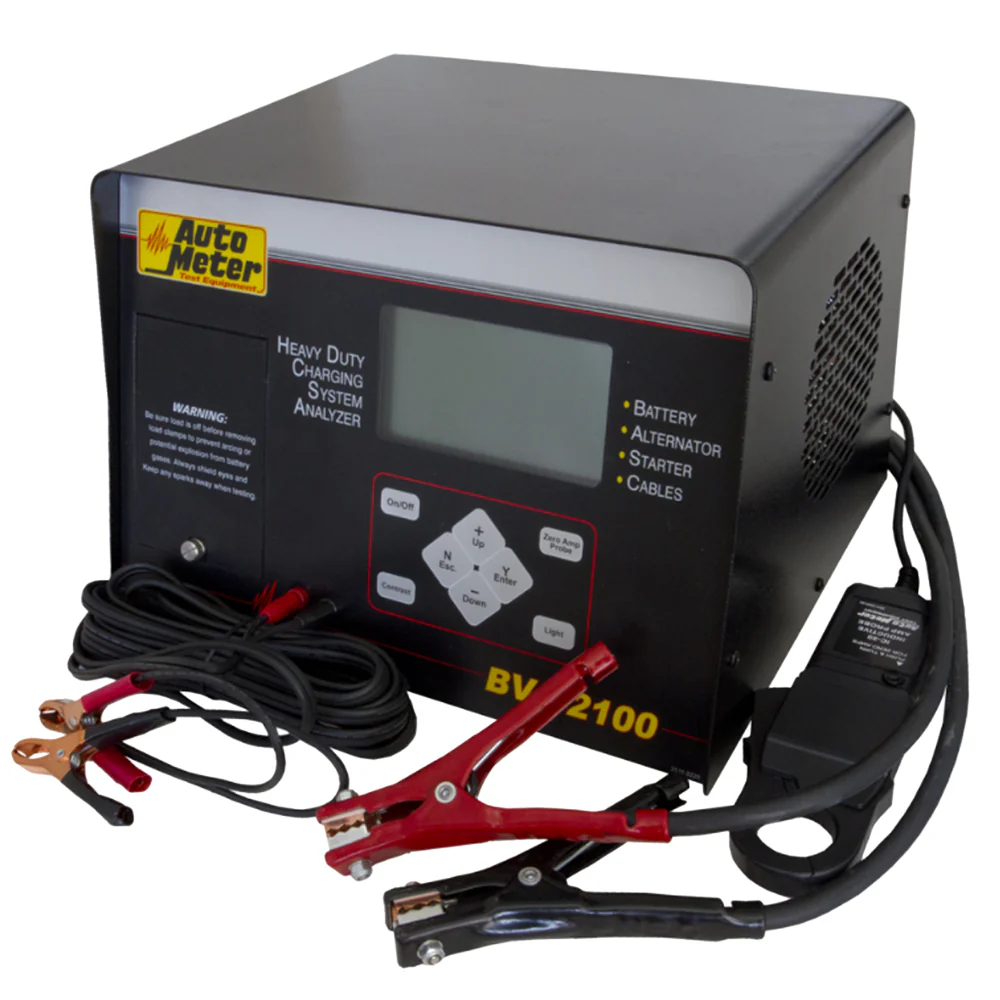

- Includes internal battery charger, inductive amp clamp, and external volt leads.
- Includes two separate and specific options for automotive and heavy-duty truck applications.
- Quickly and accurately tests nearly all 6V and 12V batteries and battery banks up to 4 batteries and 24V (including AGM).
- Features liftgate testing - using AutoMeter's truck/trailer adapters, the BVA-2100 quickly isolates exact truck or trailer electrical system issues before they become a problem.
- No external power required - runs on rechargeable 6V SLA battery, which charges when cables are hooked up to the battery. Also includes its own 120 VAC battery charger.
Specifications
Battery Voltage: 6 & 12 Volt
Battery CCA Range: 200-1600 CCA
Automated Load: 500 Amp Load
Lead Size: 10 FT - 6 AWG
Alternator Test: Yes
Stator Diode Test: Yes
Starter Draw Test: Yes
Voltage Drop Test: Yes - Automated
External Volt Leads Yes - 20 ft.
Memory: 150 Tests
Operational Temperature: 0-120 F
Language: English & Spanish
Internal Battery: 6 Volt - 7.6 Ah
Dimensions: 13” x 12” x 9.5”
Weight: 34 lbs
California Residents: Prop 65 WARNING
Warranty: 12 Months
Optional Accessories

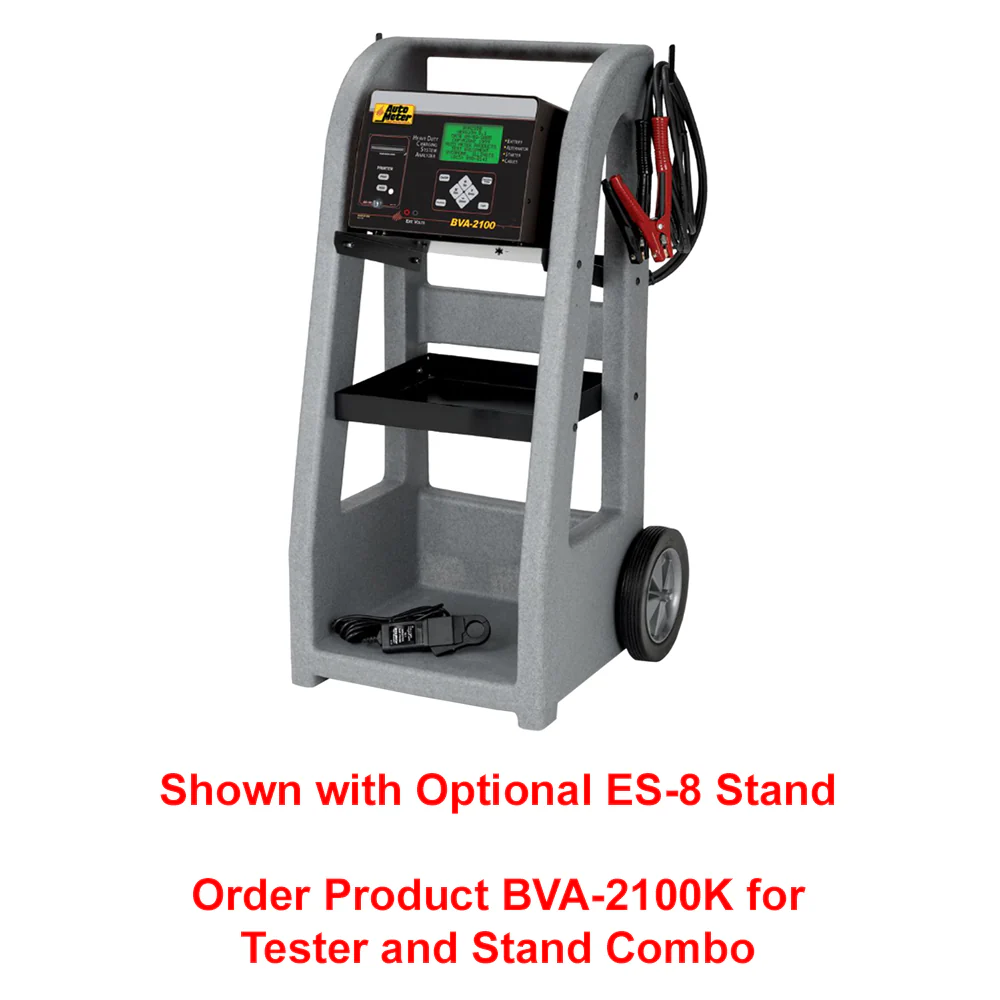

ES-8 Equipment Stand
ES-11 Equipment Stand
AC-14 Internal Printer
AC-26 J1708 Cable
AC-25 6-pin to 9-pin J1708 Adapter
AC-10 PC Cable
