UPG D1730 Charger/Maintainer for SLA Batteries - 12V, 500mA Automatic, Dual Stage - 14.8V Bulk Charge, 13.6V Float



This 12V, 500mA sealed lead acid automatic battery charger is designed to fully charge lead acid batteries and maintain them at proper storage voltage without overcharging. Operates on standard 115VAC.

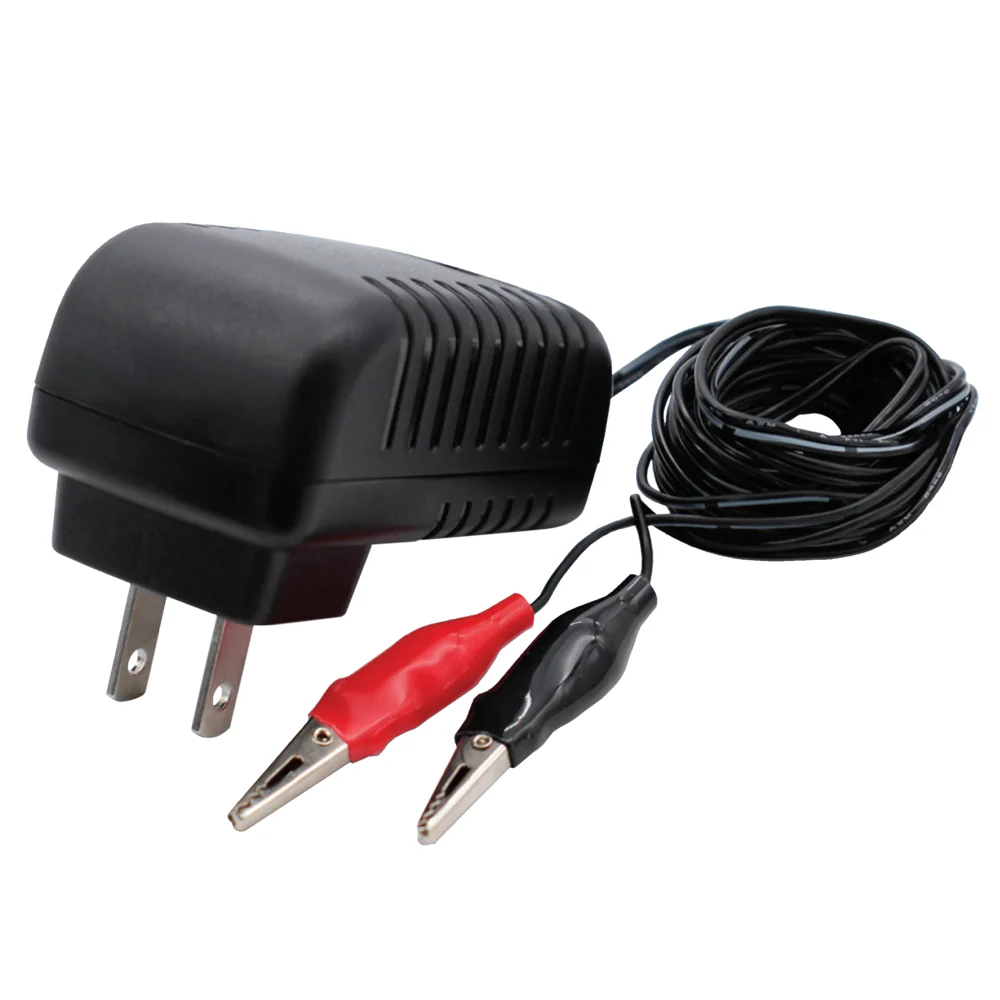

- 77 inch DC leads with alligator clips
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection

Specifications

Input Voltage: 120 VAC
Input Frequency: 60 Hz
Output Voltage: 14.8V Bulk Charge, 13.6V Float
Output Current: 500 mA Max.
Input Power (Watts): 18 W
Battery Size Range: 1.5 ~ 5 Ah
Operating Temperature: -10C ~ +40C
Storage Temperature: -20C ~ +80C
Certification Standards: UL, CUL

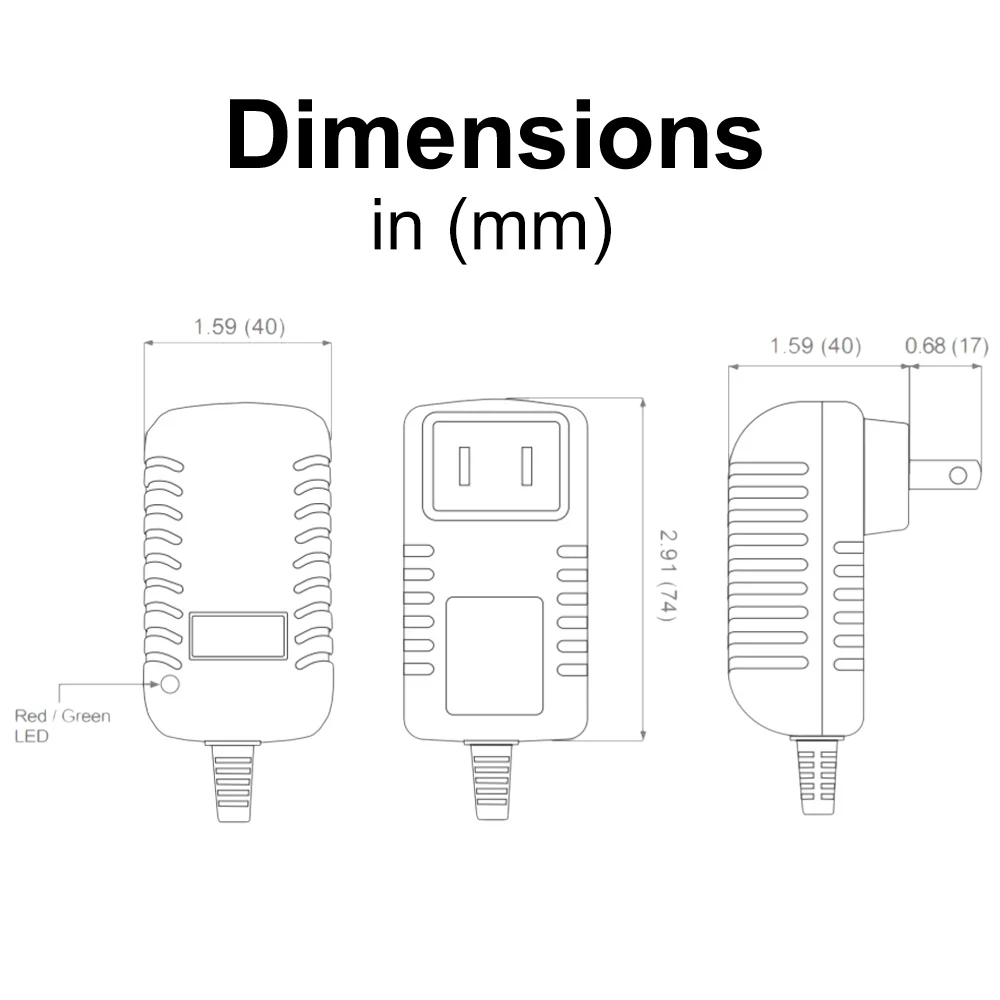

Length: 2.91" (81mm)
Width: 1.59" (38mm)
Height: 1.59" (38mm)
Weight: 0.19 lbs



LED Status Indication:
Charging = Red
Fully Charged = Green

Information Downloads

D1730 Data Sheet



UPG Small Charger Manual
