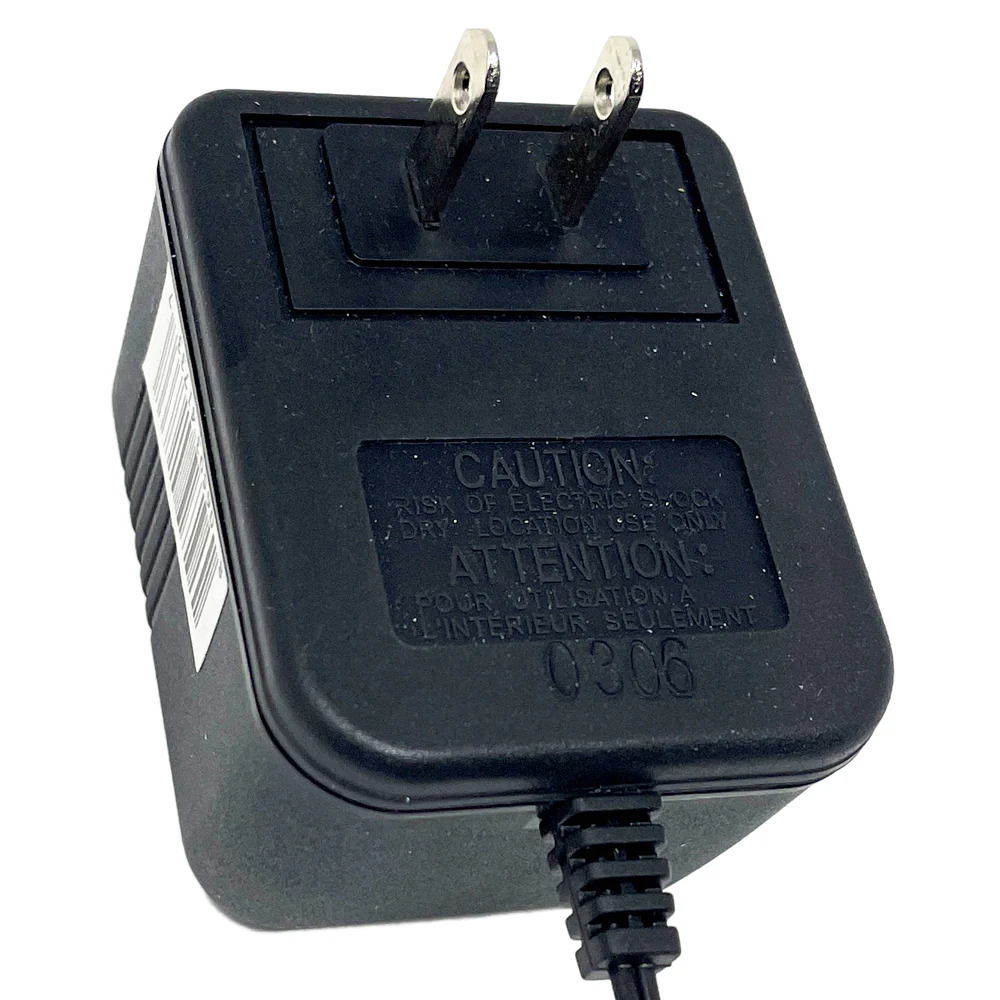

UPG Charger 12V, 500mA Unregulated, Single Stage w/Alligator Clips



This 12V, 500mA battery charger is designed to fully charge small 12V SLA batteries. Operates on standard 115VAC.



- 72" DC Leads w/Alligator Clips
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- Reverse Polarity Protection

Specifications

Input Voltage: 120 VAC
Input Current: 200mA
Input Frequency: 60 Hz
Output Voltage
Bulk Charge: 12VDC ±5%
Output Current: 500 mA
Battery Size Range: 2Ah ~ 5Ah
Operating Temperature: -20° C ~ +40° C
Storage Temperature: -20° C ~ +70° C
Certification Standards: UL
Dimensions:
L: 2.6" (66mm)
W: 2.17" (55mm)
H: 1.69" (43mm)
Wt: .65 lbs
Model: 12BC0500S-1
