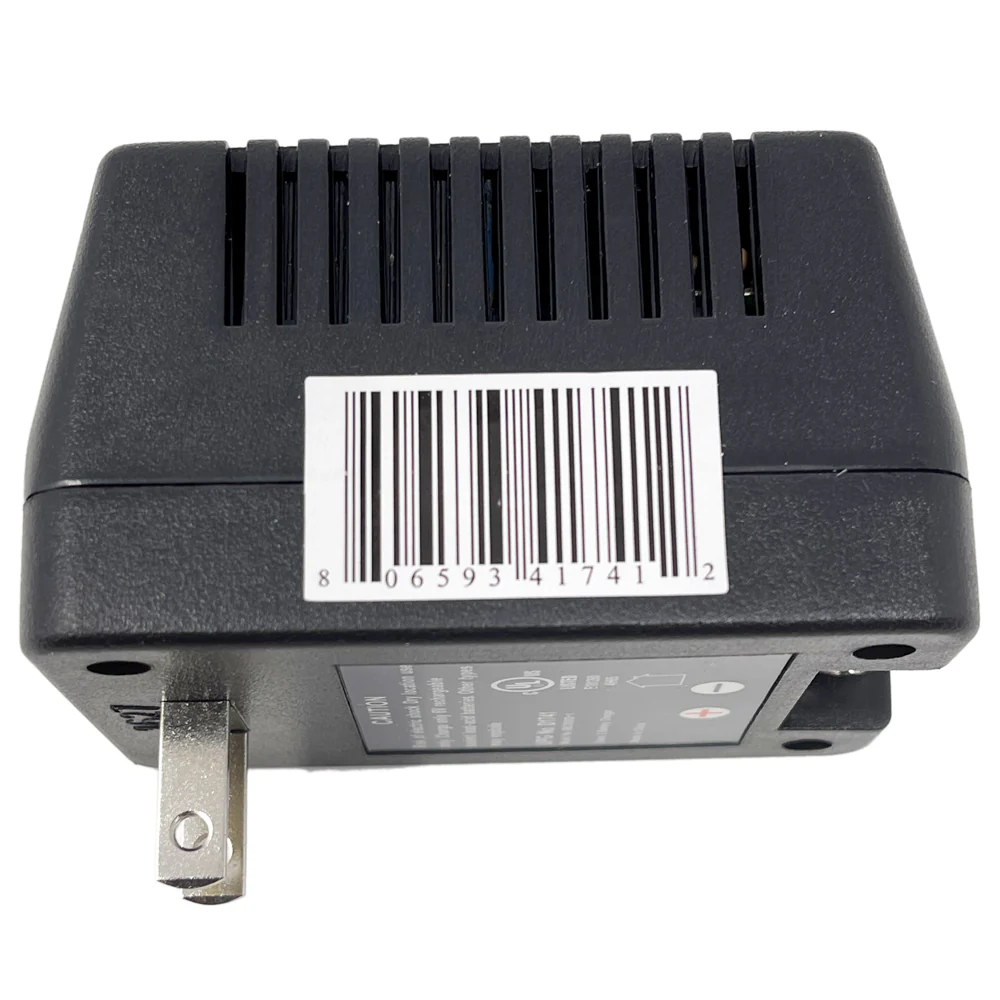

UPG Charger 6V, 500mA Regulated, Dual Stage 7.30V Bulk Charge, 6.85V Float



This 6V, 500mA battery charger is designed to fully charge small 6V SLA batteries and maintain them at proper storage voltage without overcharging. Operates on standard 115VAC.



- Screw Terminals
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- Reverse Polarity Protection



LED Status Indication:

Charging LED = Red
Fully Charged LED = Green



Available DC Leads:

D1766 - 72" DC Lead with Insulated Alligator Clips for UPG Small SLA Chargers

Specifications

Input Voltage: 120 VAC
Input Frequency: 60 Hz
Input Power (Watts): 25W
Output Voltage
Bulk Charge: 7.30 VDC
Float Charge: 6.85 VDC
Output Current:
Bulk Charge: 500mA
Float Charge: 1mA
Battery Size Range: .8 ~ 5 Ah
Operating Temperature: -20° C ~ +40° C
Storage Temperature: -20° C ~ +40° C
Connector: Screw Terminals
Certification Standards: UL
Dimensions:
L: 3.19" (81mm)
W: 2.20" (56mm)
H: 1.81" (46mm)
Wt: .88 lbs
LED Status Indication
Charging LED = Red
Fully Charged LED = Green
Model: 6BC0500D-1
