DSR138

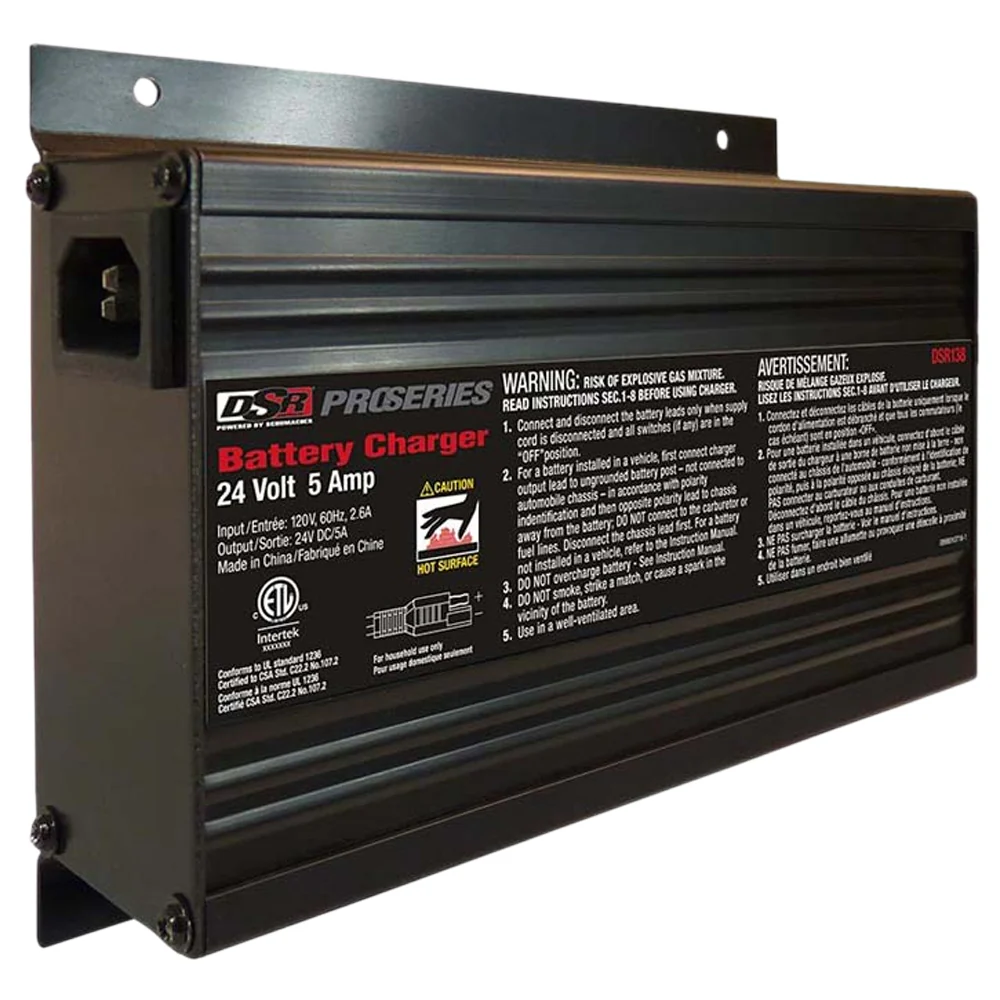

24V 5A Automatic On-Board Charger

Convenient for devices with difficult-to-reach batteries

The 5A 24V Automatic Charger is an excellent solution for devices with batteries in difficult-to-reach spaces. This battery charger mounts on any flat surface with quick-connect battery clamps, ring terminals, and 3-pin XLR 3-12C cables. It charges standard, AGM, and gel batteries with ease.

The 5A 24V Automatic Charger features a heavy-duty aluminum case that weighs less than two pounds for durable, convenient charging. Additionally, LED indicators inform users of the battery’s charging status. To maintain a safe charging environment, the charger includes safe-start, reverse-polarity, and short-circuit protection to prevent it from charging until battery clamps are properly connected.

Convenience and durability aren’t the only features users will appreciate with the 5A 24V Automatic Charger. Schumacher’s multi-state charging algorithm and maintain mode ensure every battery receives continuous, optimized charging as it reaches full voltage. Patented thermal runway protection also provides temperature control for efficient charging and peak performance.

- 6-foot total reach with 54 inches attached to unit and 18-inch accessory cable
- One-year warranty

Contents include: DSR138 automatic charger, AC cord (1), quick-connect battery clamp (1), quick-connect with ring terminals (1), quick-connect with 3-pin XLR 3-12C (1), and manual.

Specifications

Weight: 3.25 lb
Width: 10.13 in
Depth: 3.13 in
Height: 7.38 in
Input Current: 2.6A
Input Voltage: 120V AC
Output Current: 5A
Output Voltage: 24V
Safety Certifications: ETL
Battery Type: Standard,AGM,Gel
