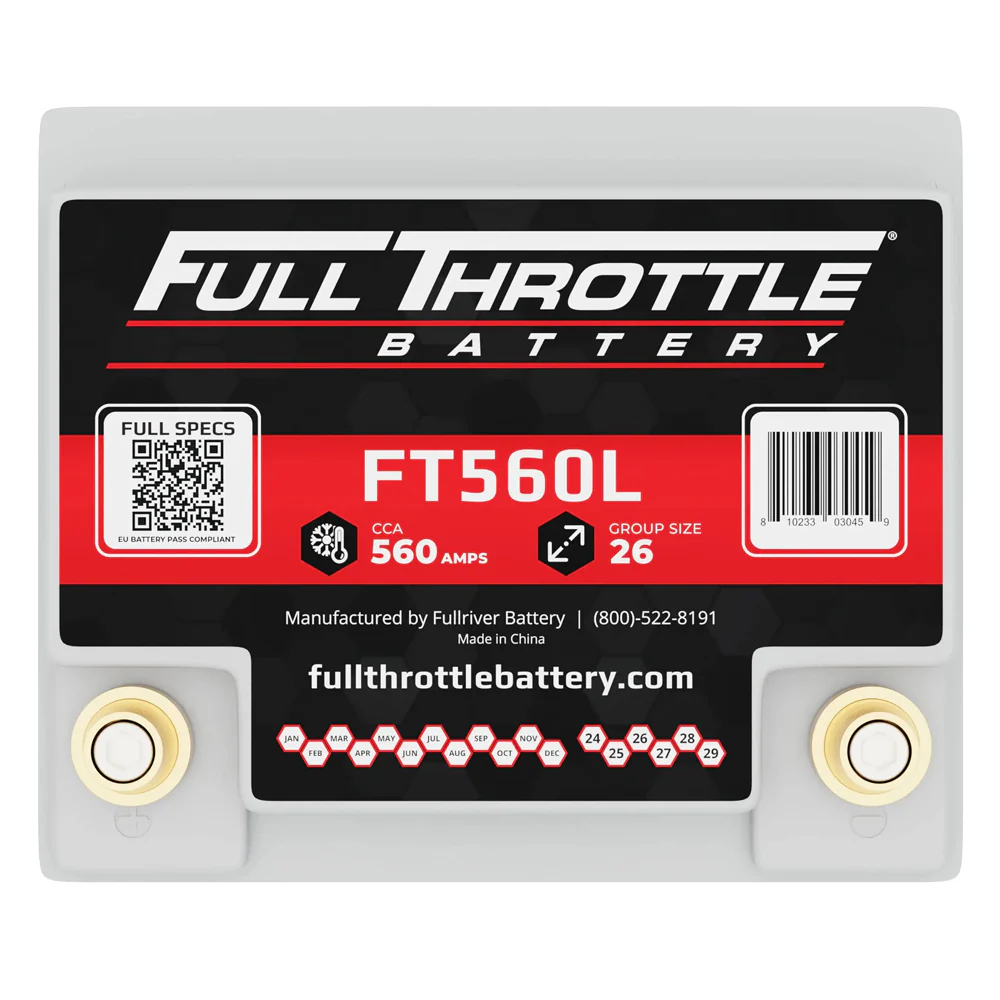

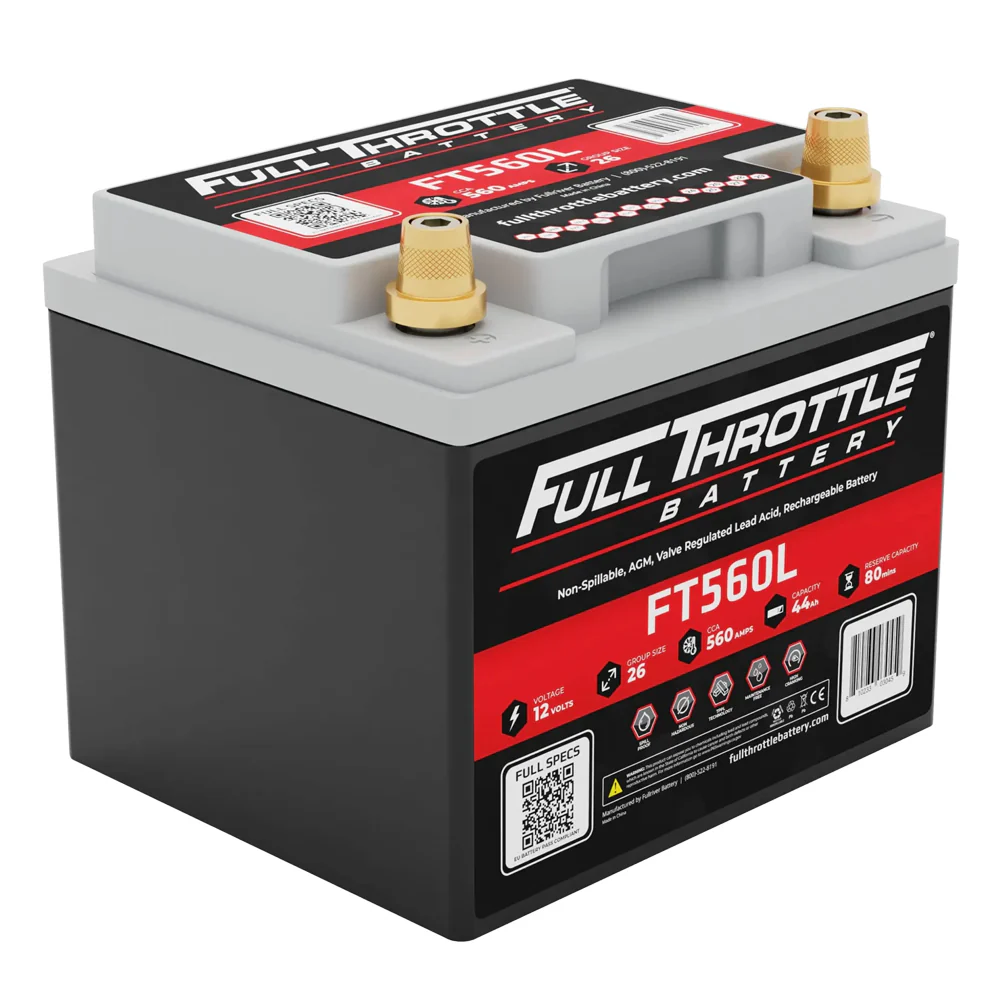

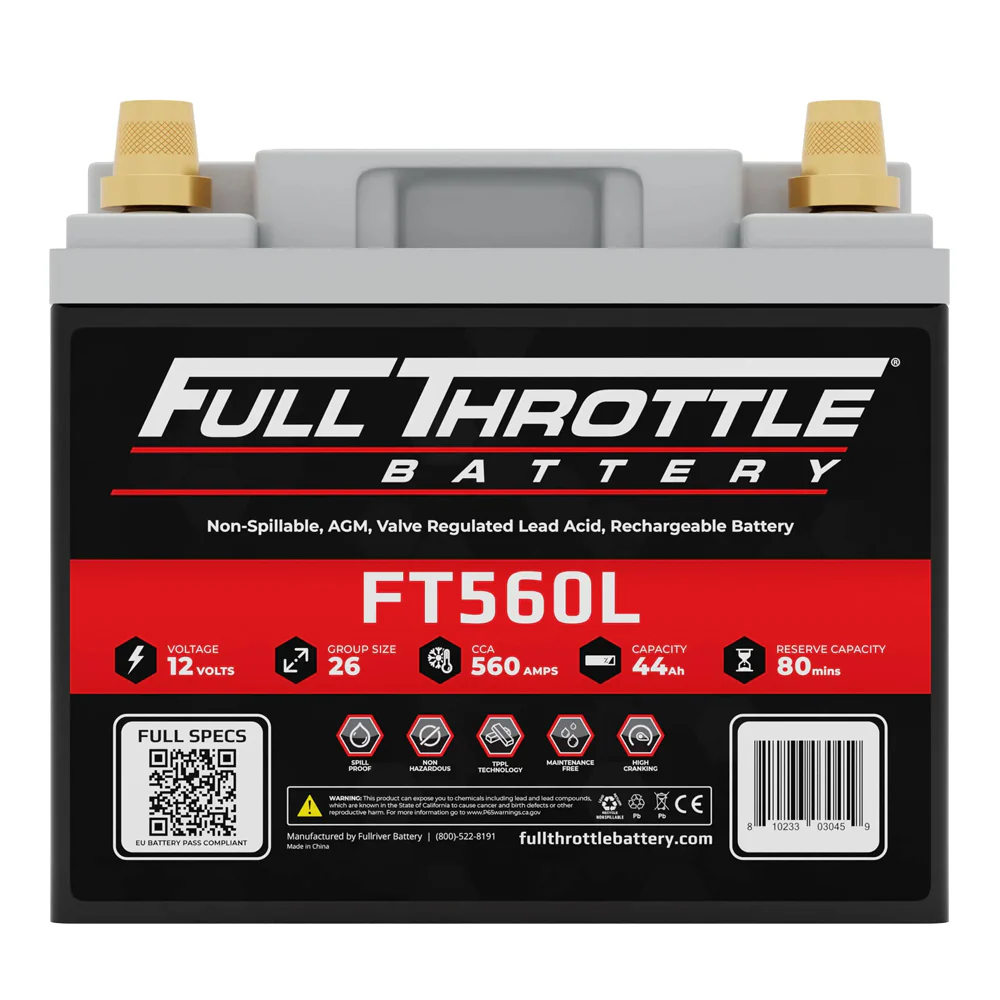

Full Throttle FT560L High-Performance AGM Starting Battery



- Fits Kawasaki Mule, Polaris Ranger, Polaris RZR (check dimensions)
- BCI Group 26/140R
- 560 CCA
- SAE Brass Posts
- Can Replace Yuasa YBX9140R



Full Throttle Series AGM batteries provide a combination of power, stability, and resilience to keep you running in the most extreme conditions.



Features
- High Performance: Built with high-compression cells and heavy-duty cases for exceptional cranking power and reliability.
- Long Lifespan: Utilizes 99.994% pure virgin lead, high-compression cells, and a maintenance-free design for a longer lifespan compared to traditional wet cell batteries.
- Fast Charging: Low internal resistance allows for charge rates up to 35% of total Ah, ensuring rapid recharging.
- Maintenance-Free: Sealed construction eliminates the need for adding water or dealing with corrosion, making them environmentally friendly and easy to maintain.
- Durable Construction: ABS plastic case is resistant to bulges under normal operation, and over partition welding provides greater shock and vibration resistance.
- True Dual-Service: Designed to handle both cranking and deep-cycle applications, making them suitable for a wide range of vehicle needs and applications.
- Versatile Mounting: Completely non-spillable, can be mounted in various orientations, including upside down (not recommended).
- Environmentally Friendly: Sealed construction and use of environmentally conscious manufacturing processes make them a safe and reliable option.
- Suitable for Start/Stop Vehicles: AGM technology is better equipped to handle the repeated cycling requirements of start/stop systems.
- Wide Range of Applications: Suitable for cars, trucks, motorcycles, marine, power sports, emergency responders, and semi-trucks, among others.

Specifications

Part No: FT560L
Voltage: 12
CCA: 560
CA: 725
Reserve Capacity @25 Amps: 80 minutes
C20 Capacity: 44 Ah
Internal Resistance: 0.0045
Group Size: BCI 26/140R
Length: 7.80 in (198 mm)
Width: 6.54 in (166 mm)
Height (case): 6.69 in (170 mm)
Height (over terminals): 7.08 in (180 mm)
Weight: 33.3 lbs (15.1 kg)
Case Material: ABS Plastic - Flame Resistance Rating UL94-HB
Case Color: Black
Cover Color: Gray
Terminal Type: SAE Brass Posts over M6 Studs
Warranty: 12 Mo Free-Replacement

Vehicle & Battery Replacement Data

Replaces These Batteries

26012-7501
26012-1377
140R
YBX9140R

Fits These Vehicles

AUTO & LIGHT TRUCK
MAKE	MODEL	ENGINE	YEAR(S)
Alfa Romeo	147	2.0L L4	2002 - 2007
Audi	Q3 Quattro	2.0L L4 (Diesel, PR-J1P or PR-J2S)	2015 - 2016
Cadillac	ATS	3.6L V6 (ATS-V)	2016 - 2017
Cadillac	ELR	1.4L L4	2014 - 2016
Chevrolet	Bolt EUV		2022
Chevrolet	Bolt EV		2017 - 2022
Chevrolet	SPARK	1.2L L4	2013 - 2015
Chevrolet	SPARK	1.2L L4	2013 - 2015
Chevrolet	SPARK	1.4L L4	2016 - 2022
Chevrolet	Spark EV		2014 - 2016
Kia	Soul EV		2019 - 2022
Lexus	UX250h	2.0L L4	2019 - 2022
Toyota	Corolla	1.8L L4	2020 - 2022
Toyota	Prius	1.8L L4	2016 - 2022
Toyota	Prius AWD-e	1.8L L4	2019 - 2022
Toyota	Prius Prime	1.8L L4	2017 - 2022
Toyota	RAV4	2.5L L4	2019 - 2022
UTV
MAKE	MODEL	ENGINE	YEAR(S)
Kawasaki	Mule Pro FXT, FX, FXR	820cc	2015 - 2023
Kawasaki	Mule ProDX, DXT	1000cc	2016 - 2023
Kawasaki	Mule ProDX,DXT	1000cc	2016 - 2022
Kawasaki	Teryx KRX1000	1000cc	2021 - 2023
Polaris	Ranger	1000cc	2016 - 2022
Polaris	Ranger General	1000cc	2016 - 2022
Polaris	Ranger 570, NSTR	570cc	2022 -
Polaris	Ranger Crew	900cc	2014 - 2022
Polaris	Ranger Crew 570	570cc	2022 - -
Polaris	Ranger Diesel, 902D ISRL Tractor	900cc	2011 - 2022
Polaris	Ranger Diesel, XP	1000cc	2015 - 2020
Polaris	Ranger XP	900cc	2013 - 2022
Polaris	RZR Trail, Trail 4	900cc	2015 - 2023
Polaris	RZR XP 1000, Turbo 4, Turbo S, 64 XP4, Trail S	1000cc	2014 - 2022
Polaris	RZR XP 1000, Turbo 4, Turbo S, 64 XP4, Trail S, 1000S4	1000cc	2014 - 2023
Polaris	RZR, Trail	900cc	2015 - 2022



Information Downloads

FT560L Specification Sheet

FullRiver Battery Installation-Operation Manual

FullRiver Charging Instructions
