PR18-8I - Amp Meter 0-8A Snap-In Inverted Mount for Schumacher Battery Chargers
Snap-in amp meter. 0-8 amp scale with inverted movement. Original replacement for various 5-6 amp chargers from Schumacher. Snap- in mount to charger panel. .250" push-on connectors.
Replaces Schumacher meters 5399-100-069, 5399100069, 5399-100-090, 5399100090.
Features
• Top Movement - Needle pivots from top
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Made in U.S.A.

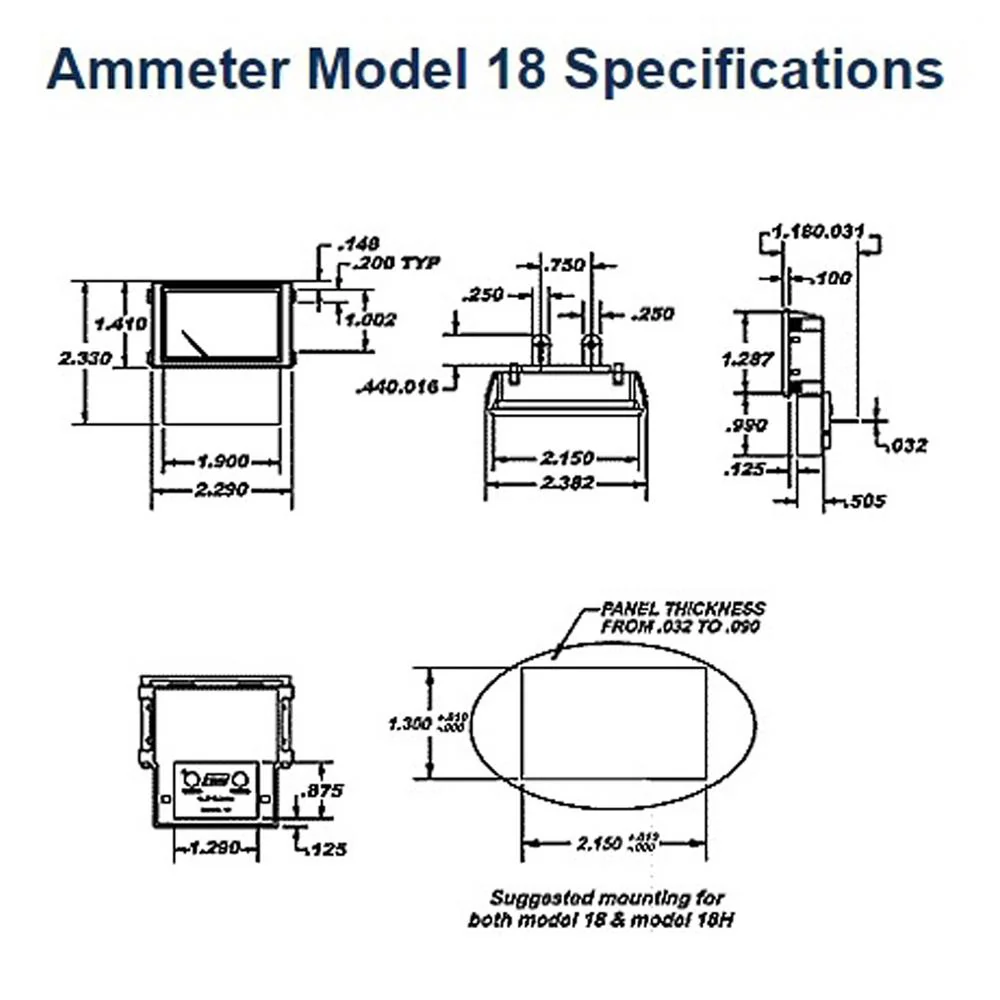

Specifications
• 1.4"H x 2.3"W Bezel Frame Outer Dimensions
• 1.3"H x 2.15"W Panel Mount Hole
• .250" Push-On Connectors
Related Items
PR3551-1 - Replacement Bezel
PR3327 - Induction Clip
