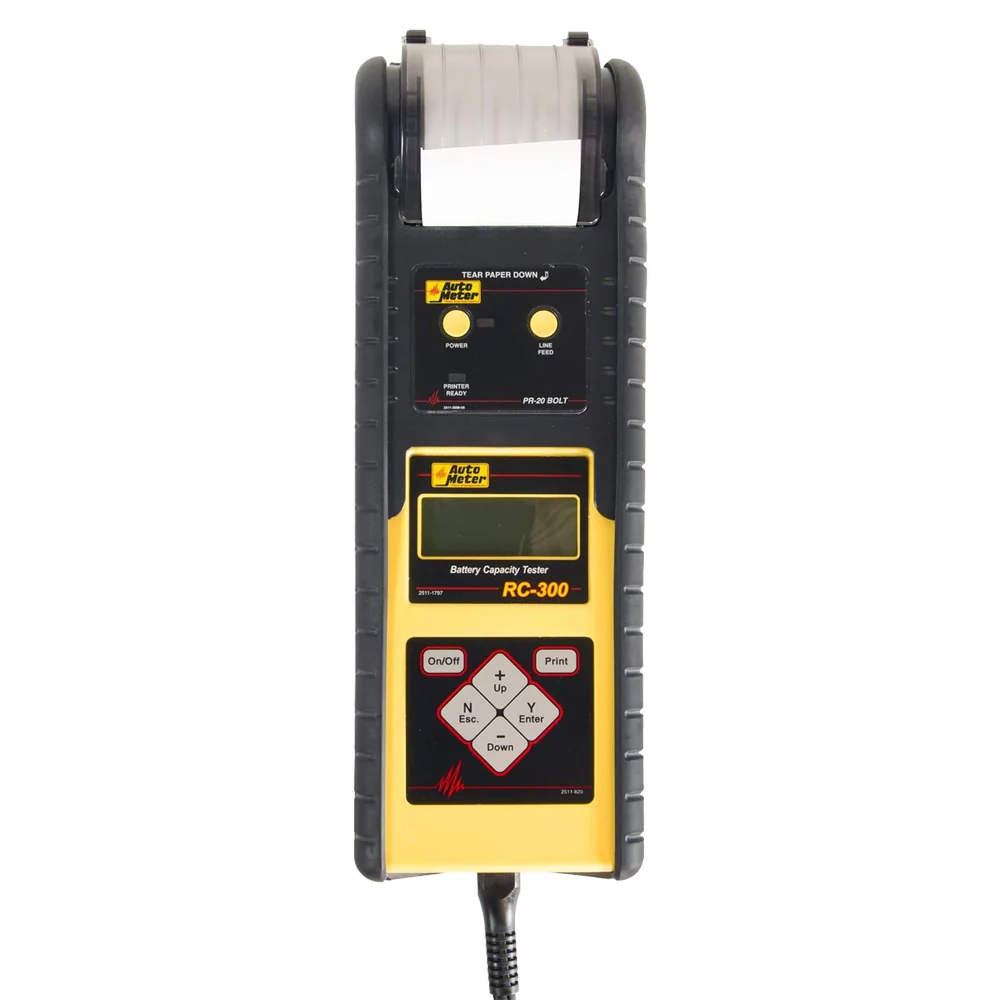

AutoMeter RC-300PR Technician Grade Handheld RC-300 Tester with PR-20 Printer
AutoMeter RC-300PR Technician Grade Handheld RC-300 Tester with PR-20 Printer
The RC-300PR is a portable, fully featured tester that provides quick and accurate results utilizing AutoMeter's Award Winning "Digital Pulse Load" technology. The RC-300PR is user friendly, instructing the user exactly what to do while testing an SLA battery. Professionally accurate test results are shown on a LCD display after each test and can be shared with a customer using the included bolt-on printer (PR-20). The RC-300PR has a built in memory so you can easily review and/or print test results.
Kit includes AutoMeter PR-20 add-on thermal paper printer specifically designed to enhance AutoMeter Electrical System Testers by providing instant hard copy results and credibility. Additional added value in package savings when purchasing kit.
Features
- Tests SLA , Flooded, Gel Cell, or AGM batteries. Also tests discharged batteries and detects bad cells.
- Applies a true 40 amp load during testing to simulate real world operating conditions and provide more accurate test results.
- Tests 6V and 12V batteries rated between 4AH - 50AH.
- Stores the last 50 tests in memory.
- The RC-300 enables the user to "blue print" known good batteries of different types/sizes to drive improved testing accuracy. The unit will store up to 40 different "blue printed" battery types. The user can also set customized pass/fail settings.
- Test results include: battery's measured amp hour (AH) capacity, battery voltage and percent of charge, and what the battery's state of health is (good, near end of life, or bad).
- 30" - 16 gauge leads.
- Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
- Tough impact resistant plastic housing with easy grip rubber boot that prevents damage to the unit.
RC-300 Specifications
- Load Test Capacity: 40 Amp
- Battery Sizes: 4.0 – 50 Amp Hours
- Digital Display: 1" x 2.5" - 4 line x 16 character
- Volt Ranges: Digital 0-30
- Cooling: Heat Sink Ventilation
- Leads: Load Amp-2 1/2 ft., 16 Gauge
- Dimensions: 3 3/4" x 6 3/4" x 1"
- Weight: 1.34 lbs.
- Memory: Stores the last 100 tests
- Internal Battery: 9 Volt Alkaline
PR-20 Printer Information
AutoMeter PR-20 Add-On Thermal Printer for All AutoMeter Portable Hand-Held Testers
The PR-20 is an add-on thermal paper printer for all AutoMeter portable handheld testers. The PR-20 attaches directly to the tester and features a protective boot for long service life.
- Add on thermal paper printer for all AutoMeter portable handheld testers.
- Attaches directly over the tester and is held in place by a rubber protective boot.
- Easy drop in paper replacement - uses standard 58mm thermal paper.
- Runs on a 7.4 V Li-Ion camcorder rechargeable battery (AC-113) (Typical battery life: 6000 print lines - 2 hour recharge time)
- Includes battery charger and battery charges while installed in unit.
Weight: 2 lbs
Warranty: 12 Months
Optional Accessories
- PR-12 Infrared Printer
- AC-12 PC Interface Adapter Cord
- AC-24J Carrying Case only
- AC-32 Serial Port to USB Adapter
- AC-62 AMP Link Data Download PC Software
Information Downloads
