SED® 50A Industrial Connector Housing - Anderson SB50 Compatible

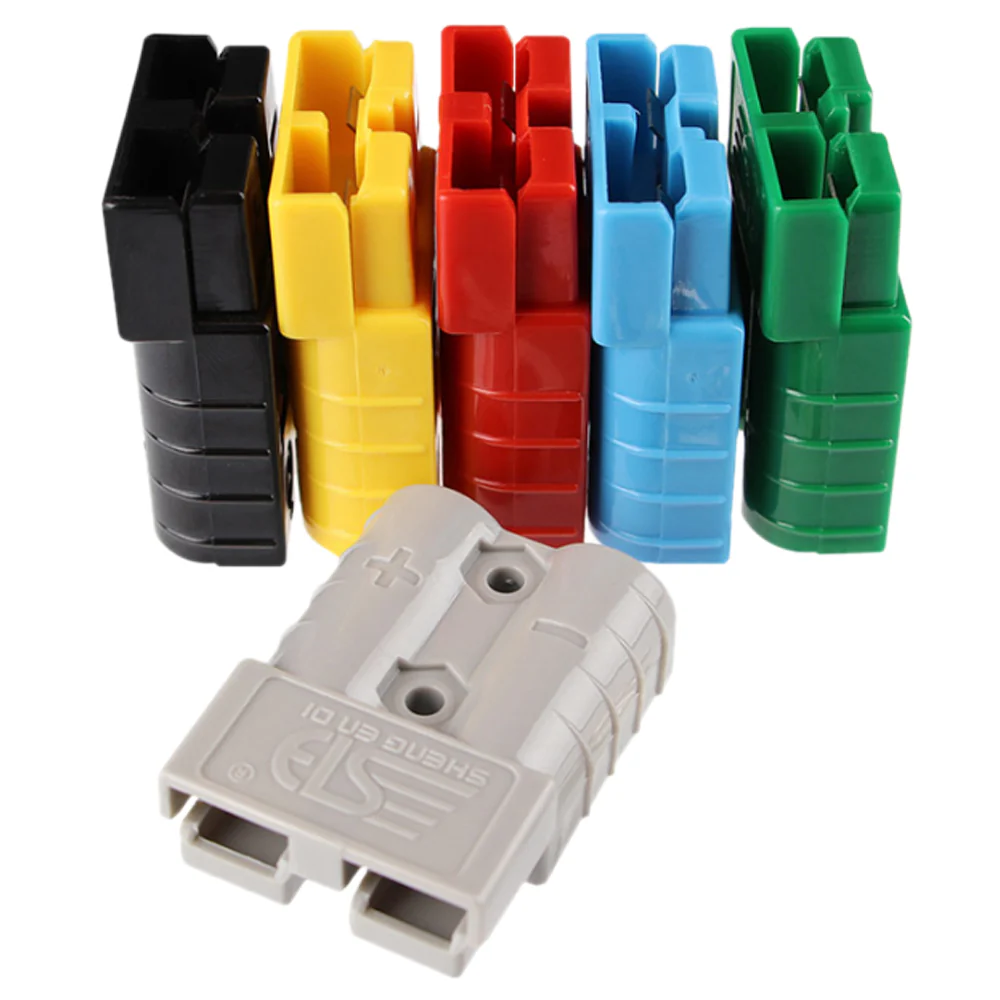

SED® SG50A Industrial Connector Housings. SED® SB-style connectors are a value‑priced alternative to other more expensive products and are fully compatible with Anderson SB50 Series Connectors. Available Housing Colors: Blue, Black, Green, Gray, Red, Yellow.

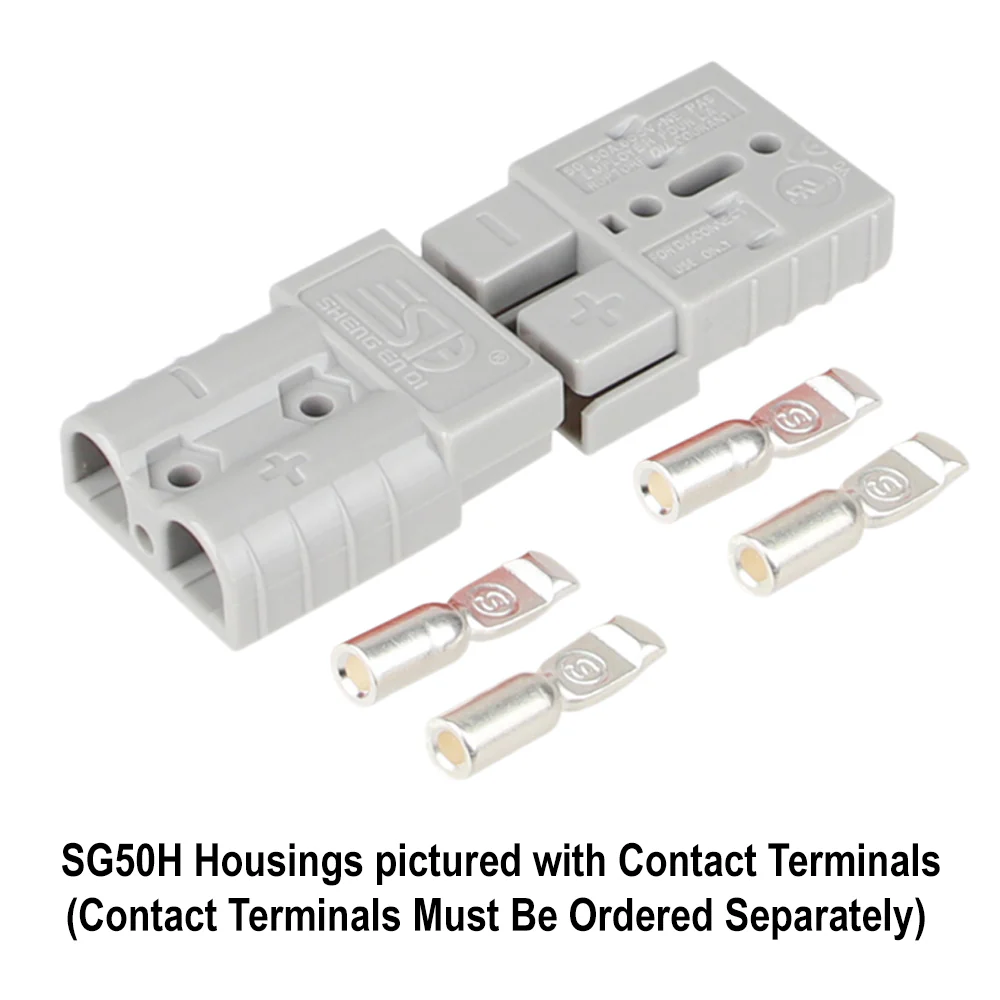

Notes About Contact Terminals:
- Contact Terminals for these 50 amp housings are available in these wire sizes:
10-12 AWG
8 AWG
6 AWG
- 2 Contact Terminals are required per housing. Click here to shop for 50 amp Contact Terminals for these housings.
Note that SB Series connector housings MUST be mated to the SAME SIZE and COLOR connector. The mating surfaces are mechanically keyed according to color.

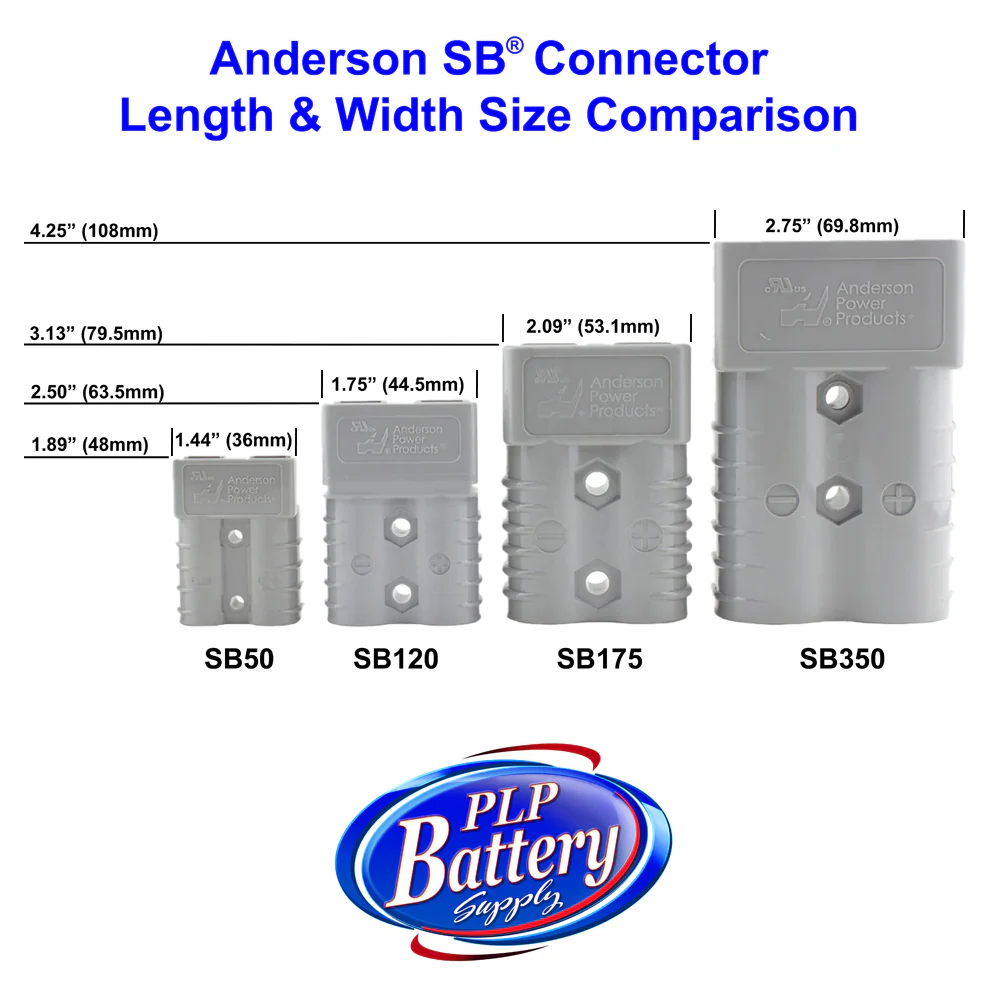

The SG50A connector is an Anderson style 50A plug, compatible with SB50 connectors. The standard for DC power distribution and battery connections, SB-type connectors feature a rugged one piece plastic housing using stainless steel springs to retain the contacts and create the “contact force” that provides extremely low resistance enabling greater electrical efficiency. SB-type connectors are also genderless (flip one 180 degrees and they will mate to each other) reducing inventory requirements. Connectors range in size from 50A to 350A. Each family size offers color-coded, mechanically keyed housings designed to prevent both visually and physically cross-mating devices with different voltages. All the connectors are UL rated to 600 volts so the keys and colors are just identifiers to prevent accidents. Contacts are silver plated copper to minimize electrical resistance while offering excellent durability and reliability. Popular applications include: Electrical Testing Equipment, Commercial Trucking, Battery Charger, Automatic Guided Vehicles, UPS, Material Handling, Motive Power, Electric Vehicles and Medical Equipment. Connector housings are fire-resistant, flame-retardant, and dustproof.
Compatible with Anderson SB50 Series Connectors and Housings.
Specifications
Rated Current (amps): 50A
Rated Voltage: 600V
Types of Classes: AC/DC
Number of Contacts: 2
Terminal Material: Silver-plated Red Copper
Terminal Type: Flat, Self-cleaning
Terminal Cable Gauges Available: 6 AWG, 8 AWG, 10-12 AWG
Flammability: UL94 V-0
Housing Material: PC Resin
Available Housing Colors: Blue, Black, Green, Gray, Red, Yellow
Country of Origin: China
SED® SG50A Industrial Connector Housings. SED® SB-style connectors are a value‑priced alternative to other more expensive products and are fully compatible with Anderson SB50 Series Connectors. Available Housing Colors: Blue, Black, Green, Gray, Red, Yellow.
Notes About Contact Terminals:
- Contact Terminals for these 50 amp housings are available in these wire sizes:
10-12 AWG
8 AWG
6 AWG
- 2 Contact Terminals are required per housing. Click here to shop for 50 amp Contact Terminals for these housings.
Note that SB Series connector housings MUST be mated to the SAME SIZE and COLOR connector. The mating surfaces are mechanically keyed according to color.
The SG50A connector is an Anderson style 50A plug, compatible with SB50 connectors. The standard for DC power distribution and battery connections, SB-type connectors feature a rugged one piece plastic housing using stainless steel springs to retain the contacts and create the “contact force” that provides extremely low resistance enabling greater electrical efficiency. SB-type connectors are also genderless (flip one 180 degrees and they will mate to each other) reducing inventory requirements. Connectors range in size from 50A to 350A. Each family size offers color-coded, mechanically keyed housings designed to prevent both visually and physically cross-mating devices with different voltages. All the connectors are UL rated to 600 volts so the keys and colors are just identifiers to prevent accidents. Contacts are silver plated copper to minimize electrical resistance while offering excellent durability and reliability. Popular applications include: Electrical Testing Equipment, Commercial Trucking, Battery Charger, Automatic Guided Vehicles, UPS, Material Handling, Motive Power, Electric Vehicles and Medical Equipment. Connector housings are fire-resistant, flame-retardant, and dustproof.
Compatible with Anderson SB50 Series Connectors and Housings.
Specifications
Rated Current (amps): 50A
Rated Voltage: 600V
Types of Classes: AC/DC
Number of Contacts: 2
Terminal Material: Silver-plated Red Copper
Terminal Type: Flat, Self-cleaning
Terminal Cable Gauges Available: 6 AWG, 8 AWG, 10-12 AWG
Flammability: UL94 V-0
Housing Material: PC Resin
Available Housing Colors: Blue, Black, Green, Gray, Red, Yellow
Country of Origin: China
