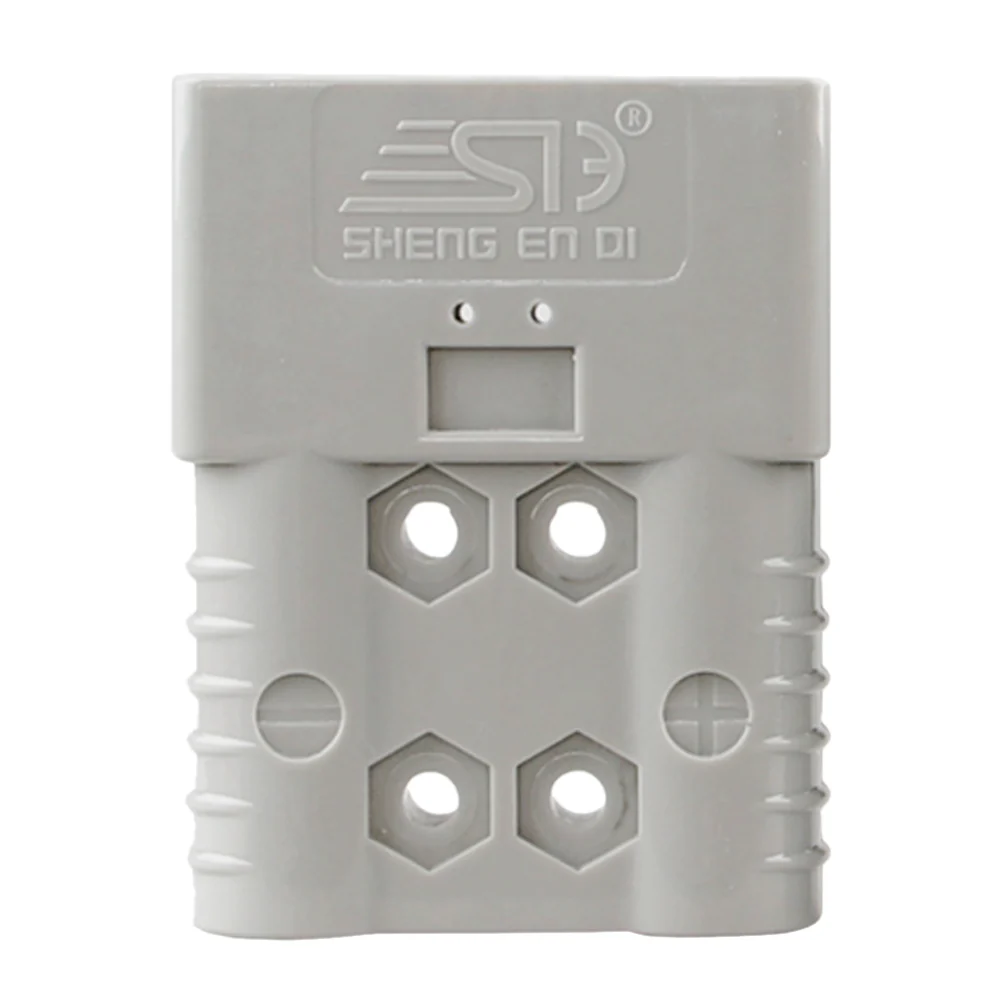

SED® SGX175A-Gray Connector Kit, SBX175 Compatible, 1/0 AWG

SED® SGX175 connectors are SBX175-compatible. SGX175 connectors can integrate 2 auxiliary power / signal contacts along with the two primary power circuits. SGX connectors are molded from a rugged PC resin and are rated IP20 per IEC 60529.

Features

- Touch Safe Interface - Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
- Up to 8 Last Mate / First Break Auxiliaries - Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
- Color-Coded Mechanical Voltage Keys - Like all multipole connectors, the SGX Series offers an easy way to identify circuits and protect against cross mating

Kit Contents

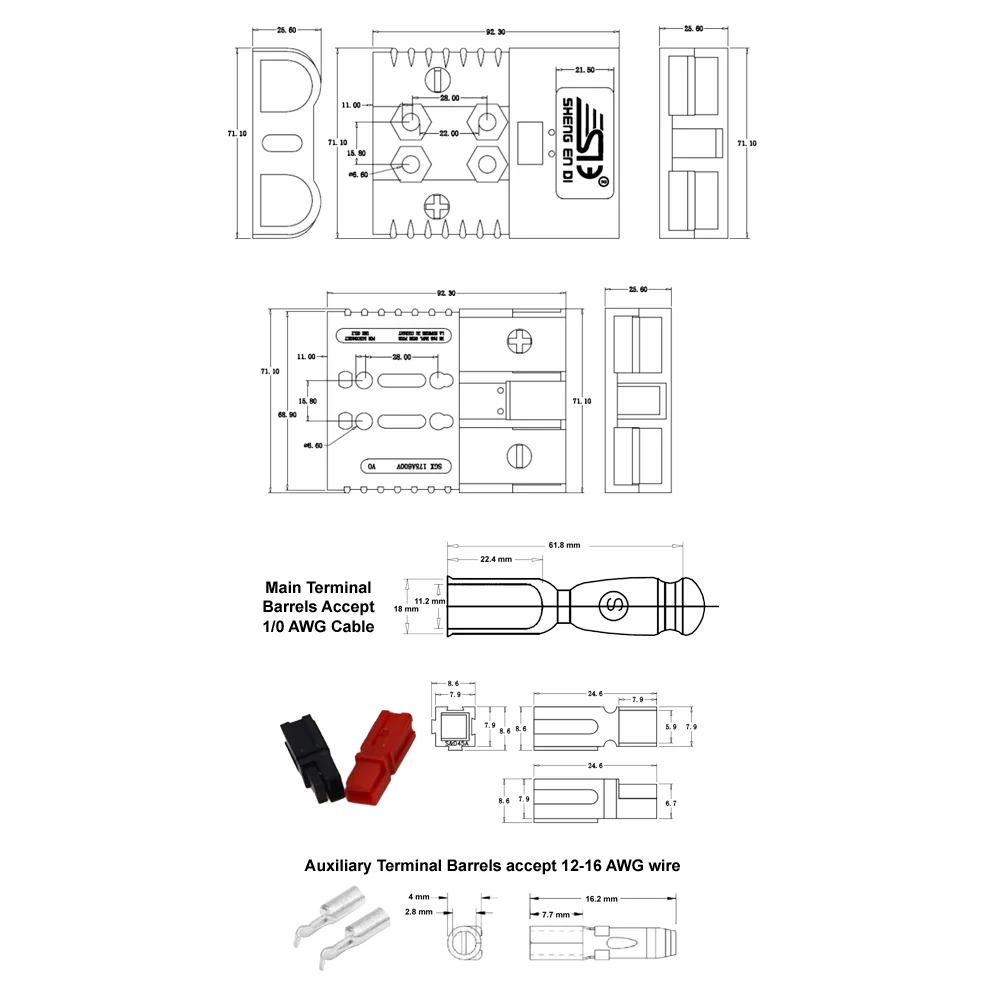

1 SGX175 Housing, SBX175-Compatible
2 Main Terminals, 1/0 AWG barrel size
2 45A Powerpole-Compatible Auxiliary Housings (Red/Black)
2 45A Powerpole-Compatible Auxiliary Terminals, 12-16 AWG barrel size
2 Auxiliary Housing Pins

Specifications

Rated current (amps): 175A
Rated voltage: 600V
Terminal Material: Silver-plated Red Copper
Terminal Barrel Gauge: 1/0 AWG
Flammability: UL94 V-0
Housing Material: PC Resin

Specifications (Auxiliary Terminals)

Rated current (amps): 45A
Rated voltage: 600V
Terminal Material: Silver-plated Red Copper
Terminal Barrel Gauge: 12-16 AWG
Flammability: UL94 V-0
Housing Material: PC Resin
