SED® SGX75-8-GY - SGX75-Gray Connector Kit, SBS75X Compatible, 8 AWG
SGX75-Gray Connector Kit, SBS75X Compatible, 8 AWG
The SBS connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits. This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SGX75 offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. All contact positions are rated for circuit interruption (hot plugging).
Kit Contents

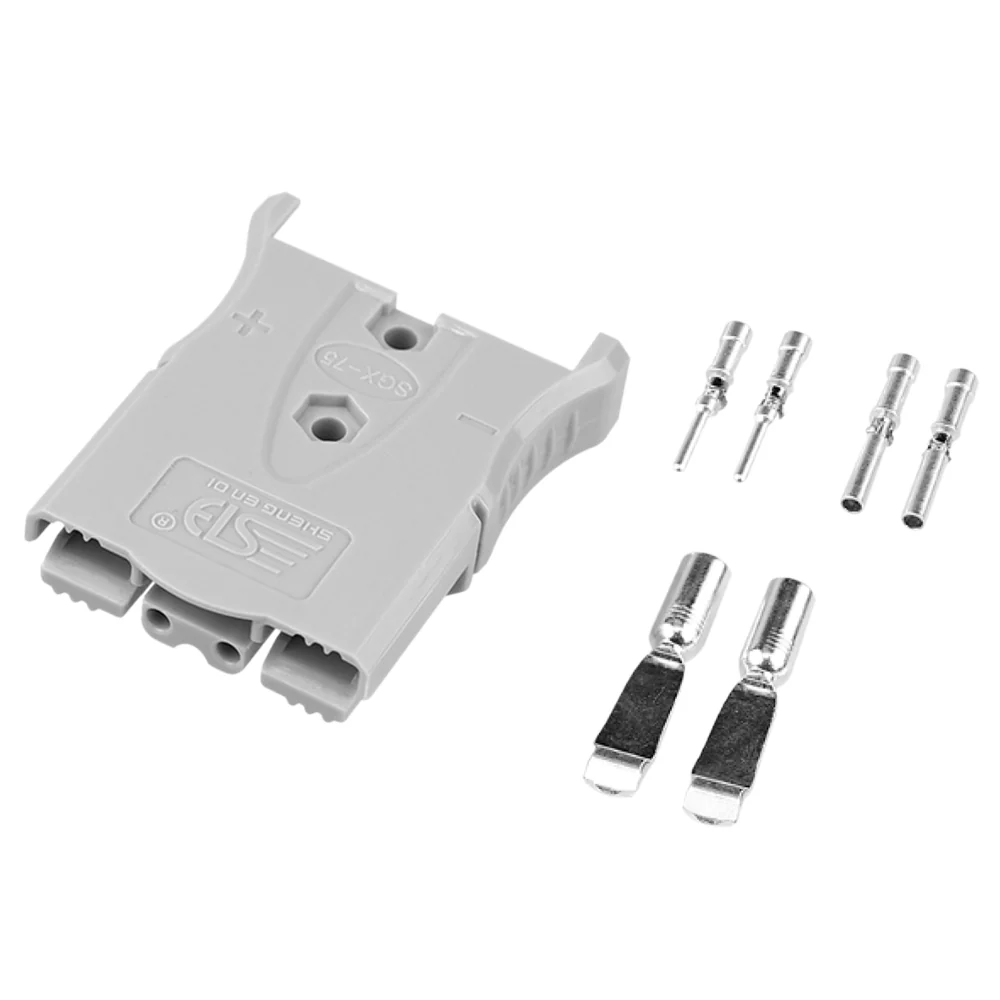

1 Gray Housing, SBS75X compatible
2 Main Terminals, 8 AWG barrel size
2 Male Signal Terminals
2 Female Signal Terminals

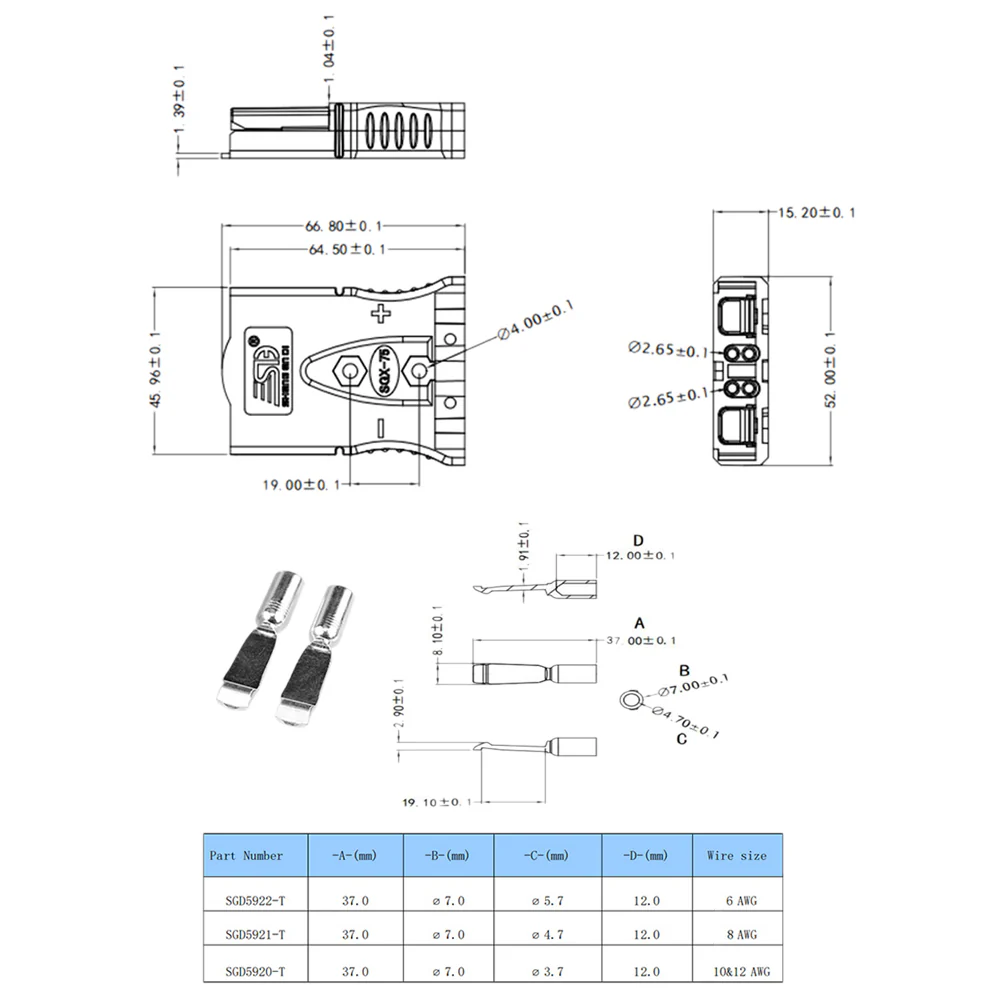

Specifications
Rated current (amps): 75A
Rated voltage: 600V
Insulation Resistance: ?9900M?
Contact/Disconnect Cycles: To 5000
Flammability: UL94 V-0
Average Connection/Disconnect (N): 100±10
Insertion Force: ?10kgf
Pullout Force: ?10kgf
Contact Barrel Wire Size (AWG): 8 AWG
Environment Temperatures(C): -20°C---75°C
Terminal Material: Silver-plated Red Copper
Production Process: Precision punching
Ag-plating thickness: 0.5?m
