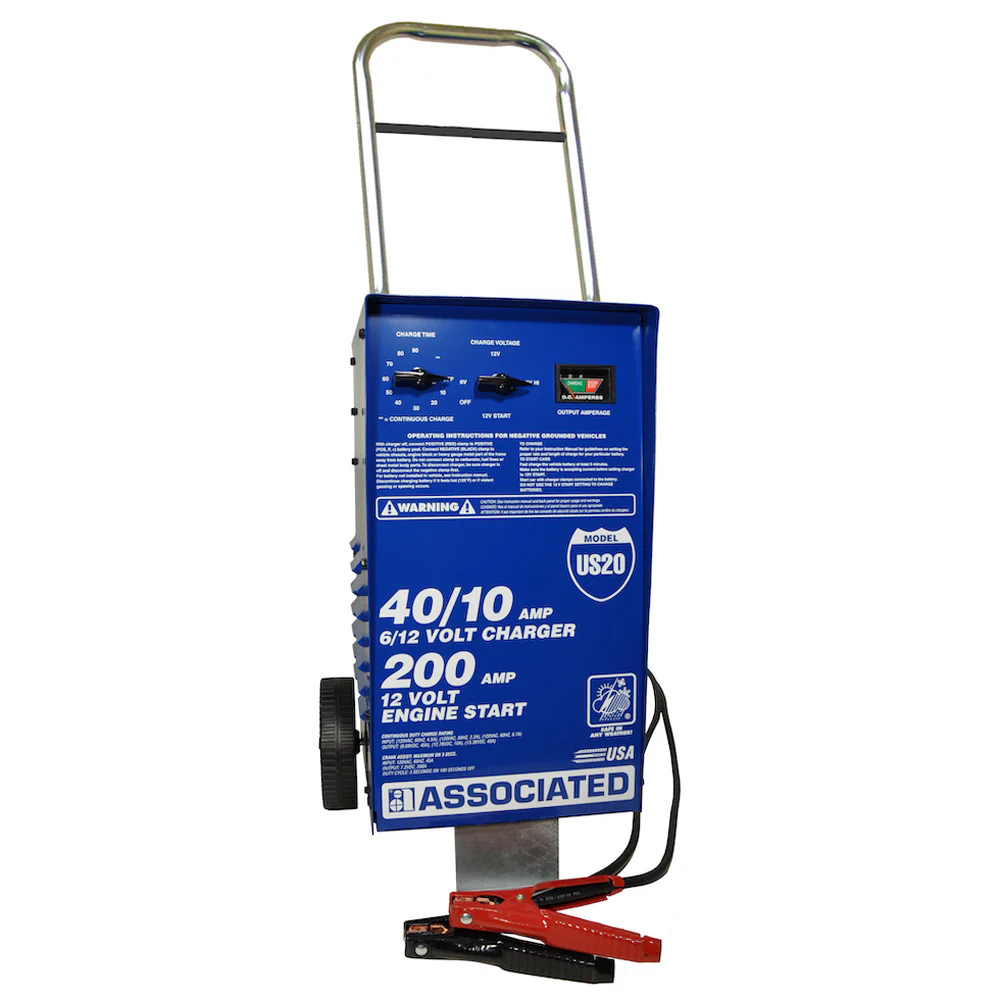

Associated US20 6/12V, 40/10A Fast Wheel Charger with 330A Boost (200A Crank Assist)



- MANUAL Charging with Charge Rate Switch and Timer
- 40 Amp Continuous Rating at 6/12 Volts
- 200 Amp Cranking Assist with a full 330 Amps Manufacturer’s Boost Rating (200 Amp Crank Assist)
- 90 Minute Timer with HOLD
- 4-Position Charge Rate Switch
- Amp Meter
- Perfect for the Small Shop Owner and the “Do-It-Yourself” User
- Fan Cooling Mechanism Prevents Overheating - Enhancing Unit’s Life Span Significantly
- Convenient Handle with Grip and Quality Steel Foot for Long Lasting Use
- CSA Listed for US and Canada
- Two Year Warranty
- “Safe In Any Weather” Operation
- MADE IN USA



Specifications

Model Number: US20
Continuous Rating: 40/40/10 Amp
Cranking Assist Rating: 200 Amps
Manufacturer’s Boost: Rating 330 Amps
Cable/Clamp Rating: 6.5’ 6.5 AWG/400 Amp Clamps
Warranty: Two Years
Shipping Dimensions: 14.5” x 13” x 24”
Weight: 35 LBS
AC Cord: 6’ 16-3
AC Voltage: 120VAC, 60 Hz
Timer: 90 Minute Timer with Hold



Information Downloads

Operator Manual



Product Bulletin
