20387 - Battery Doctor® Single Battery Mini Master Disconnect Switch - ON/OFF
Battery Doctor 2-Position Mini Master Single Battery Disconnect Switch for use on a single 12 Volt battery - negative cable application.
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds

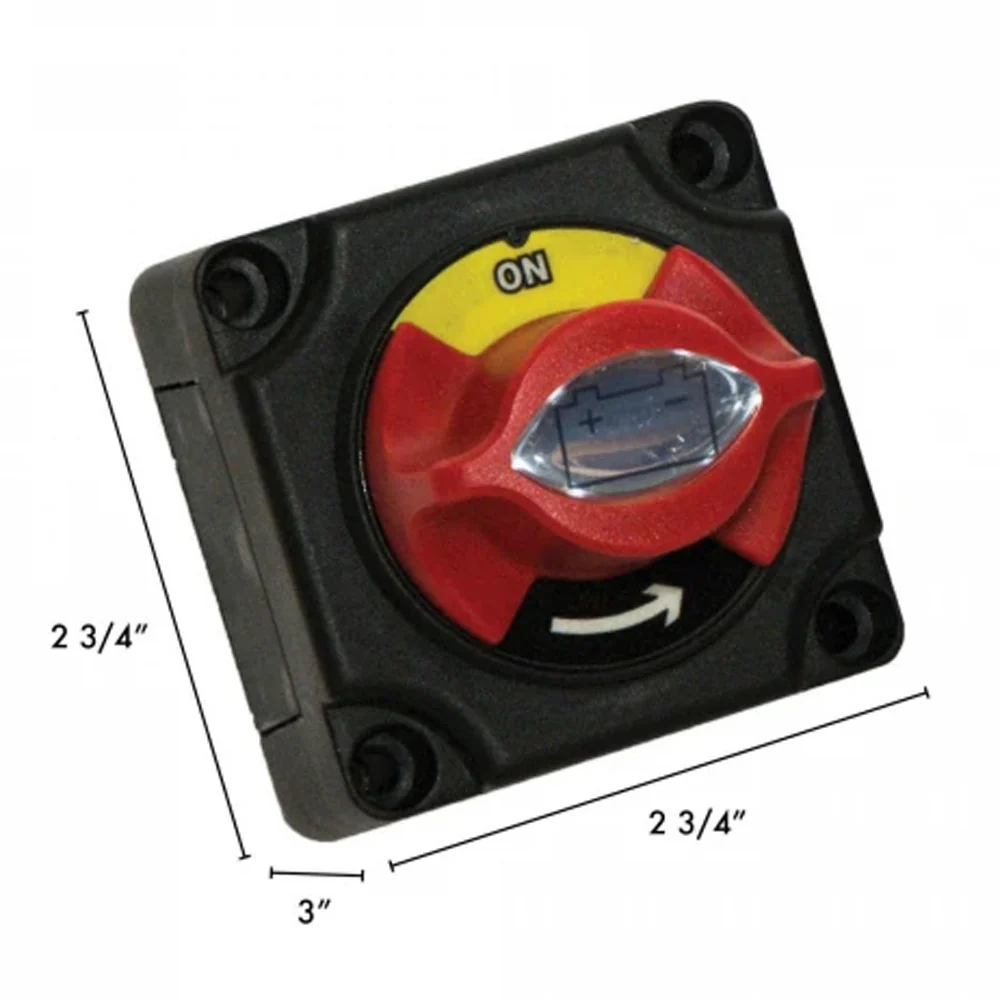

- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
Battery Doctor 2-Position Mini Master Single Battery Disconnect Switch for use on a single 12 Volt battery - negative cable application.
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
$39.55
20387 - Battery Doctor® Single Battery Mini Master Disconnect Switch - ON/OFF—
$39.55
Description
Battery Doctor 2-Position Mini Master Single Battery Disconnect Switch for use on a single 12 Volt battery - negative cable application.
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
- 2-Position - ON/OFF
- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Removable Knob for Security
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides
- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
