Battery Doctor® 4-Position Mini Master Battery Disconnect & Dual Battery Selector Switch for use on a dual 12 Volt battery application.

- For Applications Up to 48 Volts
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Can Be Used with 1 or 2 Batteries

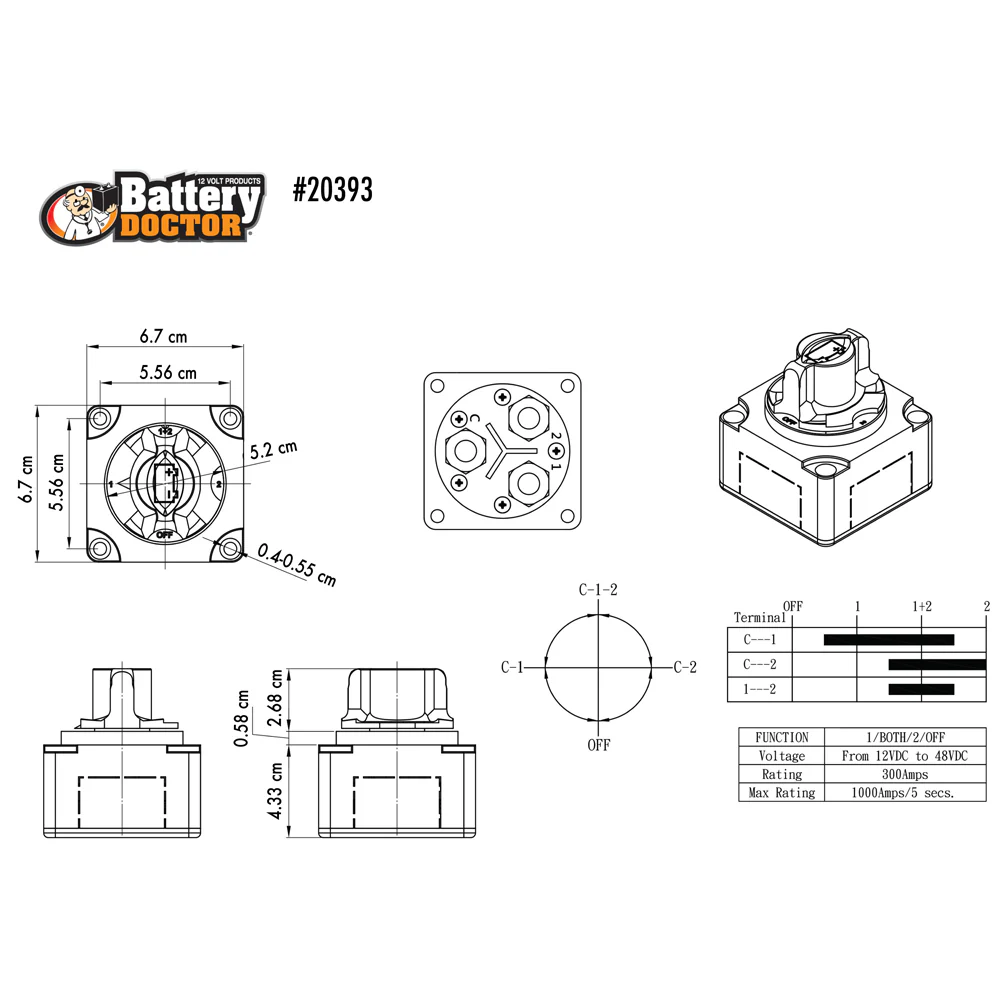

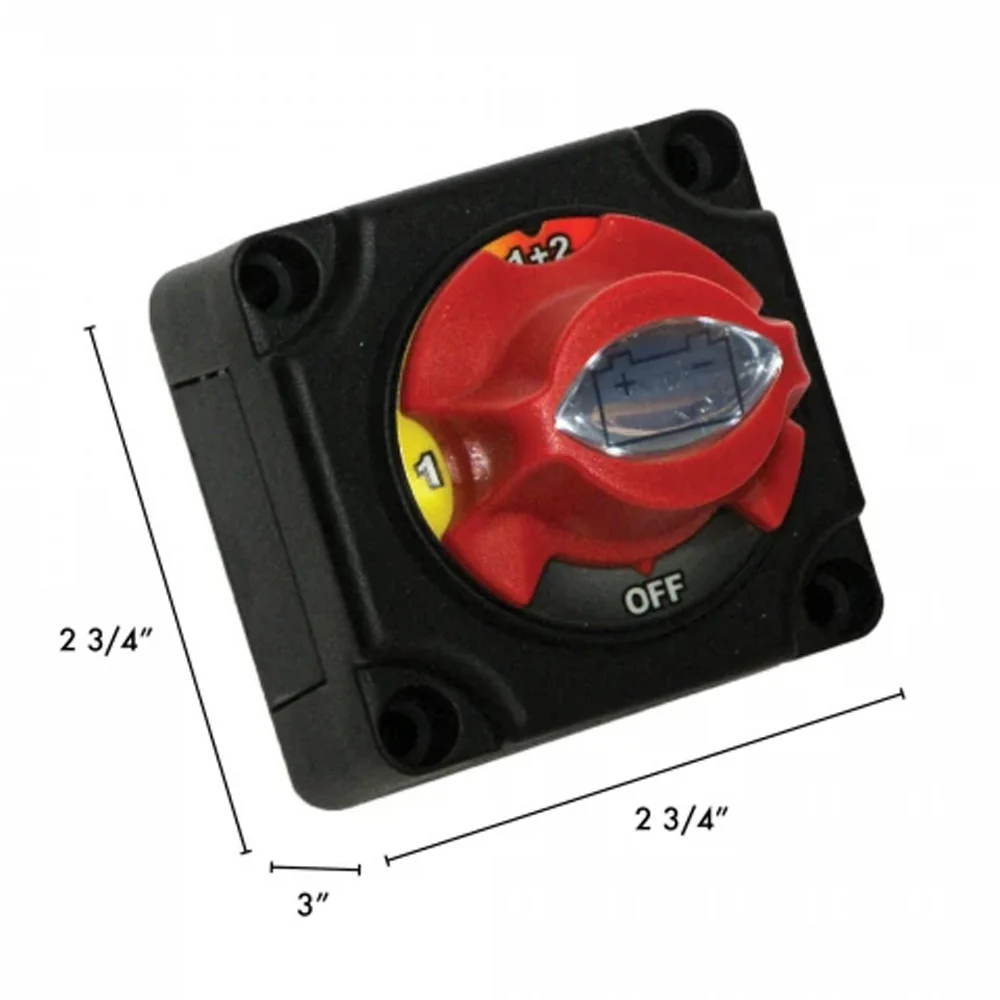

- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount w/4 Screw Holes
- Battery Doctor® Label Glows in the Dark
- Removable Back Plate
- Cable Knockout Plate on All 4 Sides

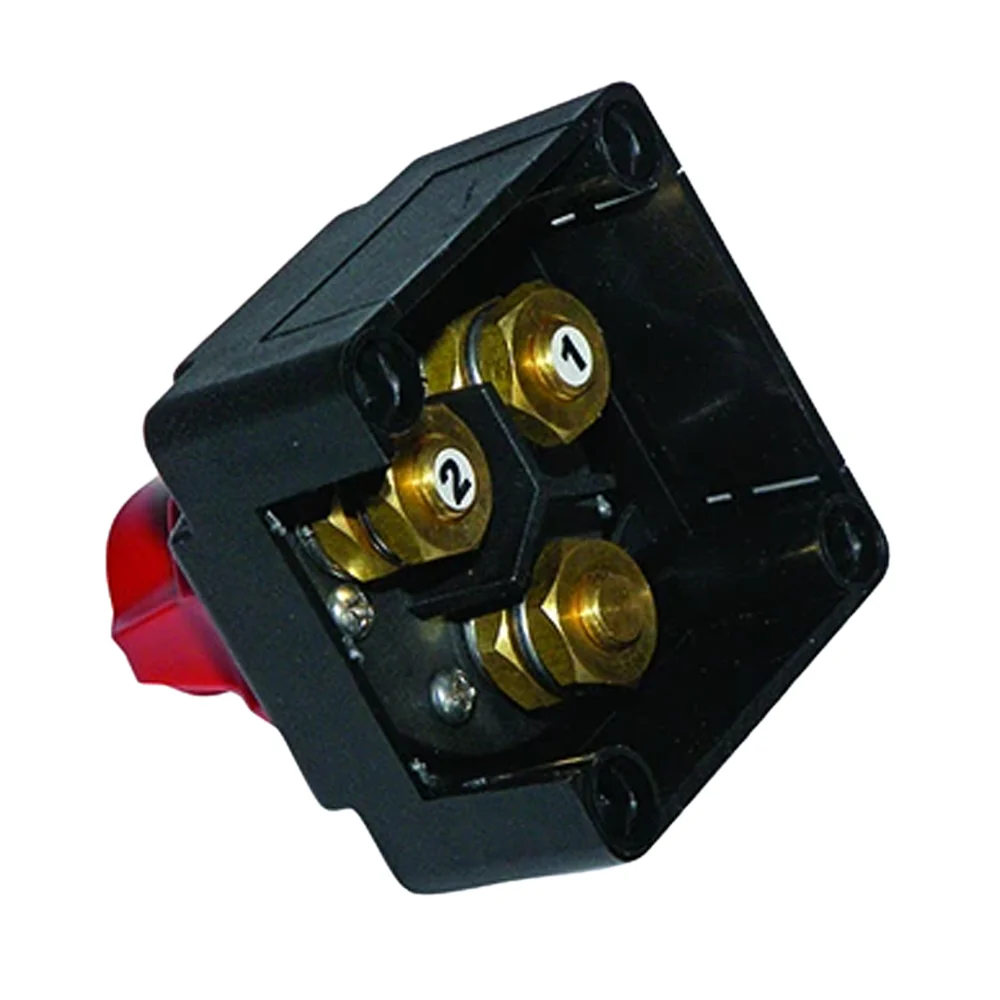

- 10mm Threaded Studs with Nuts
- ISO 8846 Approved
- RoHS Compliant
