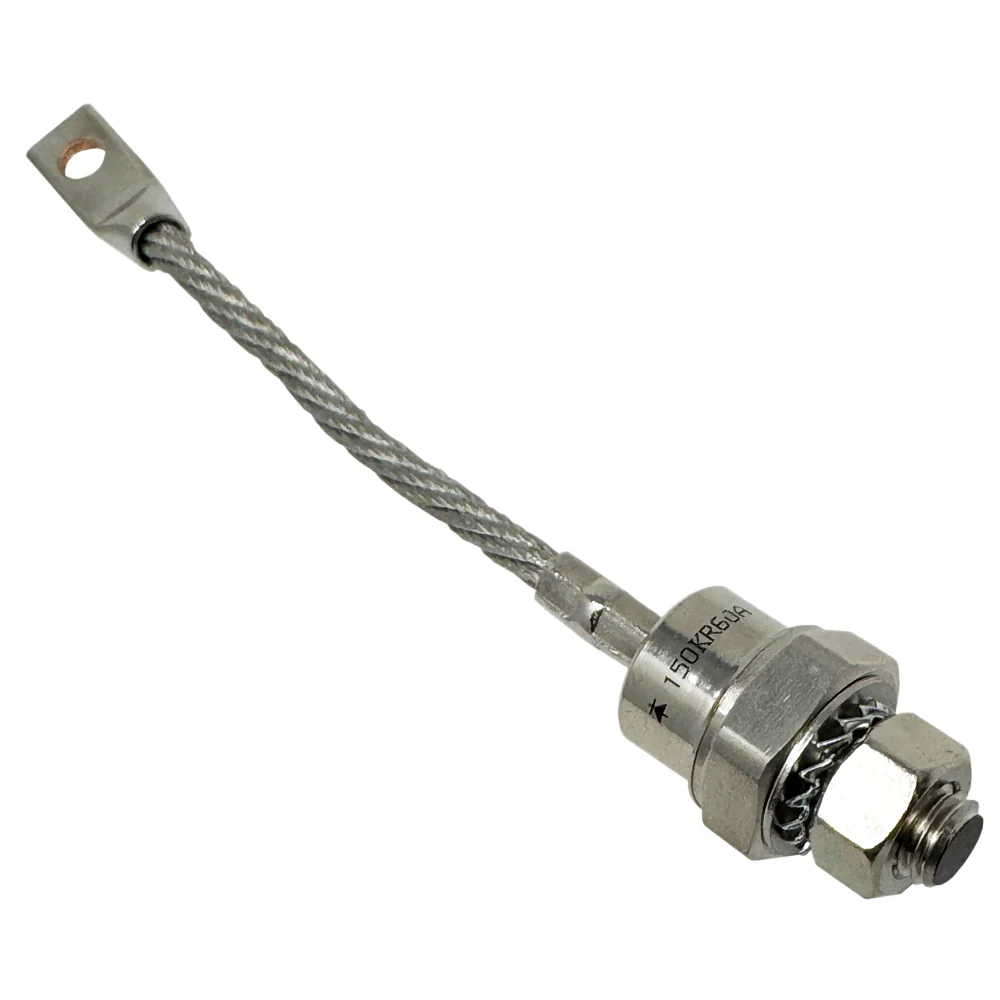

Stud Mount Diode, 150A, M12 (1/2") Stud, 600 PRV Negative Base w/Pigtail (Anode Stud)

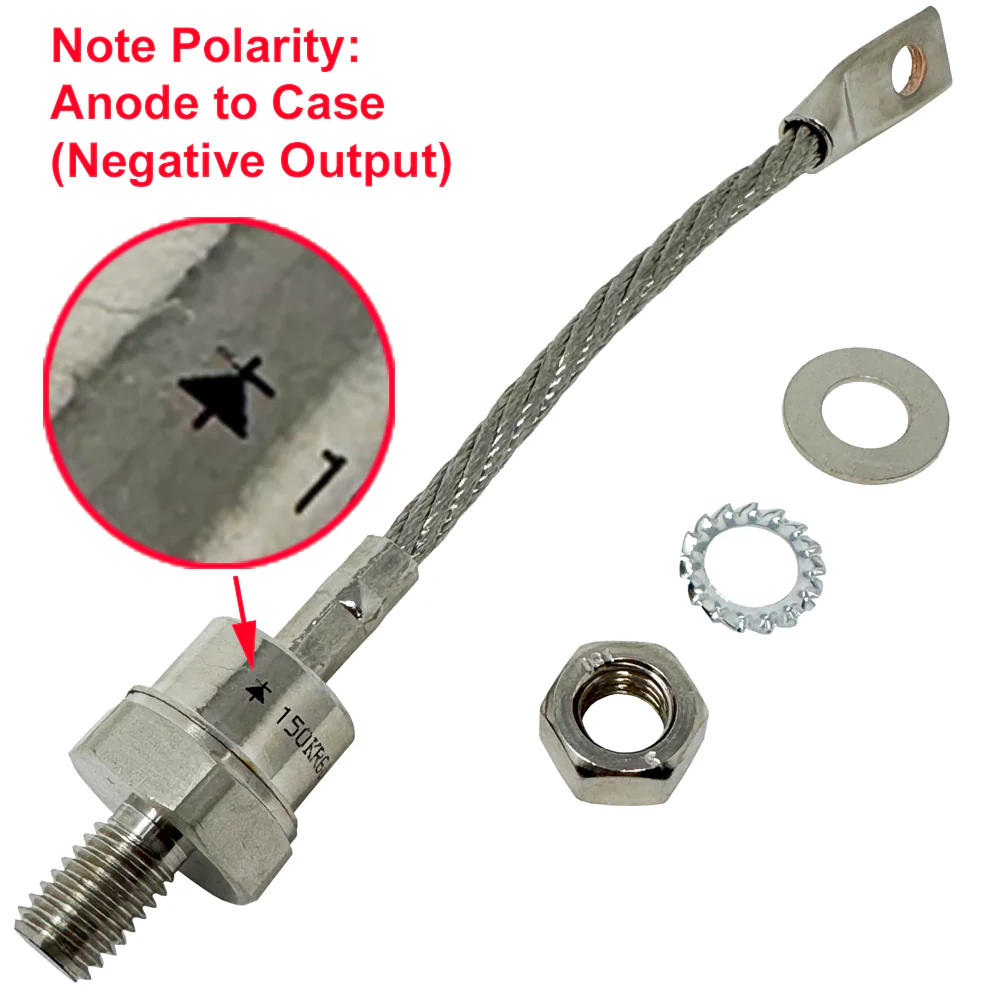

Heavy-Duty Standard Recovery Diode, for use in battery chargers with "Negative Output" rectifier (negative battery clamp is attached to rectifier output/heatsink).
Mounts in 1/2" or 12 mm hole.
Includes Nut & Washers.

Features

- Diffused diode
- High surge current capabilities
- Hermetic metal case

Typical Applications

- Welders
- Battery chargers
- Power supplies
- Machine tool controls
- High power drives
- Medium traction applications
- Free-wheeling diodes

Specifications

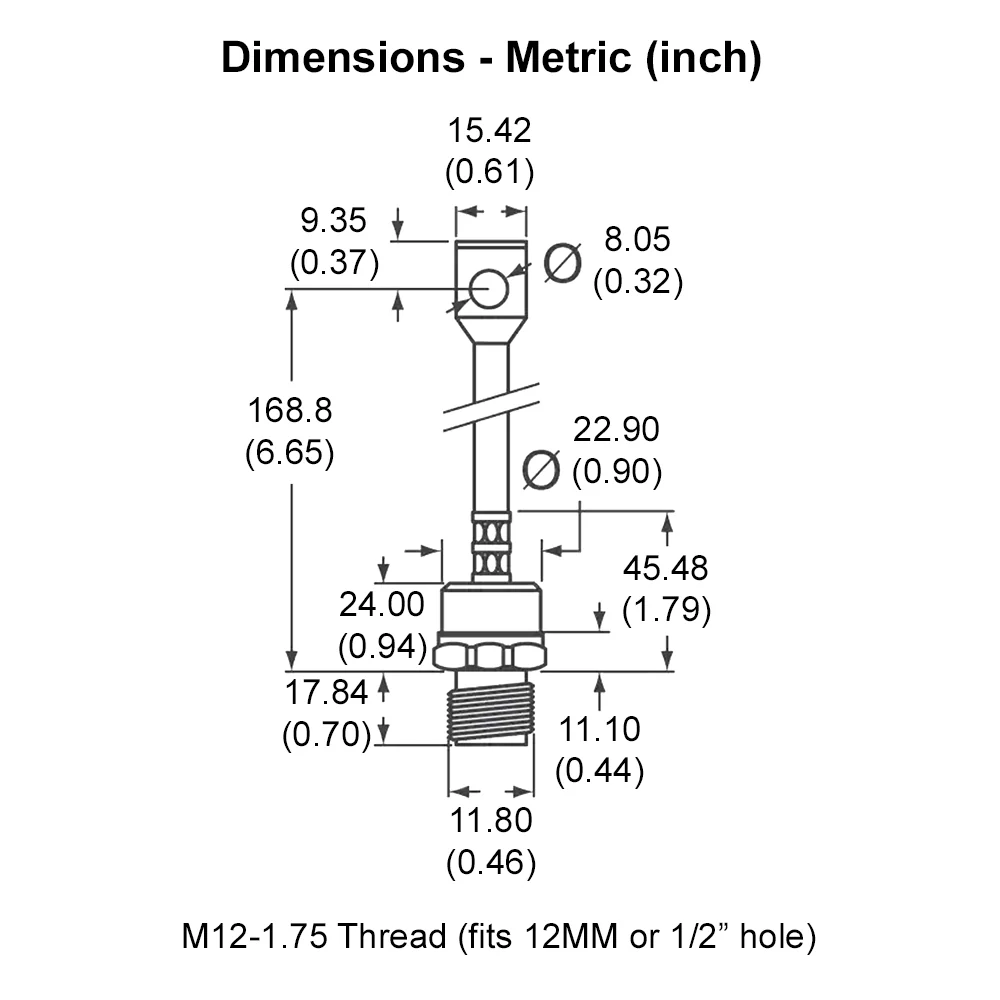

Overall Length: 7.80" (198 mm)
Pigtail Length (Mounting surface to Eyelet):  6.65" (168.8 mm)
Pigtail Eyelet Diameter: 0.320" (8.05 mm) (accommodates 5/16" or M8 bolt)
Pigtail Eyelet Tab Width: 0.61" (15.42 mm)
Mounting Stud Length: 0.70" (17.84 mm)
Mounting Stud Threads: M12-1.75
Approximate Weight: 132 g (0.291 lbs.)
Maximum Repetitive Peak Reverse Voltage: 600
Maximum Non-Repetitive Peak Reverse Voltage: 700
Max. Average Forward Current @ case temperature 125C: 150 A
Max. RMS Forward Current: 235 A
Max. Peak, one-cycle forward: 3000 A
Max Non-Repetitive Surge Current: 3140 A
Threshold Voltage: 0.80 V
Max. Forward Voltage Drop: 1.47 V
Max. Junction Operating Temperature range: -40C to 180C
Max. Storage Temperature Range: -40C to 180C
Max. Thermal Resistance, junction to case: 0.3 K/W (DC operation)
Max. Thermal Resistance, case to heatsink: 0.1 K/W (Mounting surface, smooth, flat and greased)
Max. Allowed Mounting Torque +0 -20% (Non-lubricated threads): 17 Nm
Max. Allowed Mounting Torque +0 -20% (Lubricated threads): 14.5 Nm
