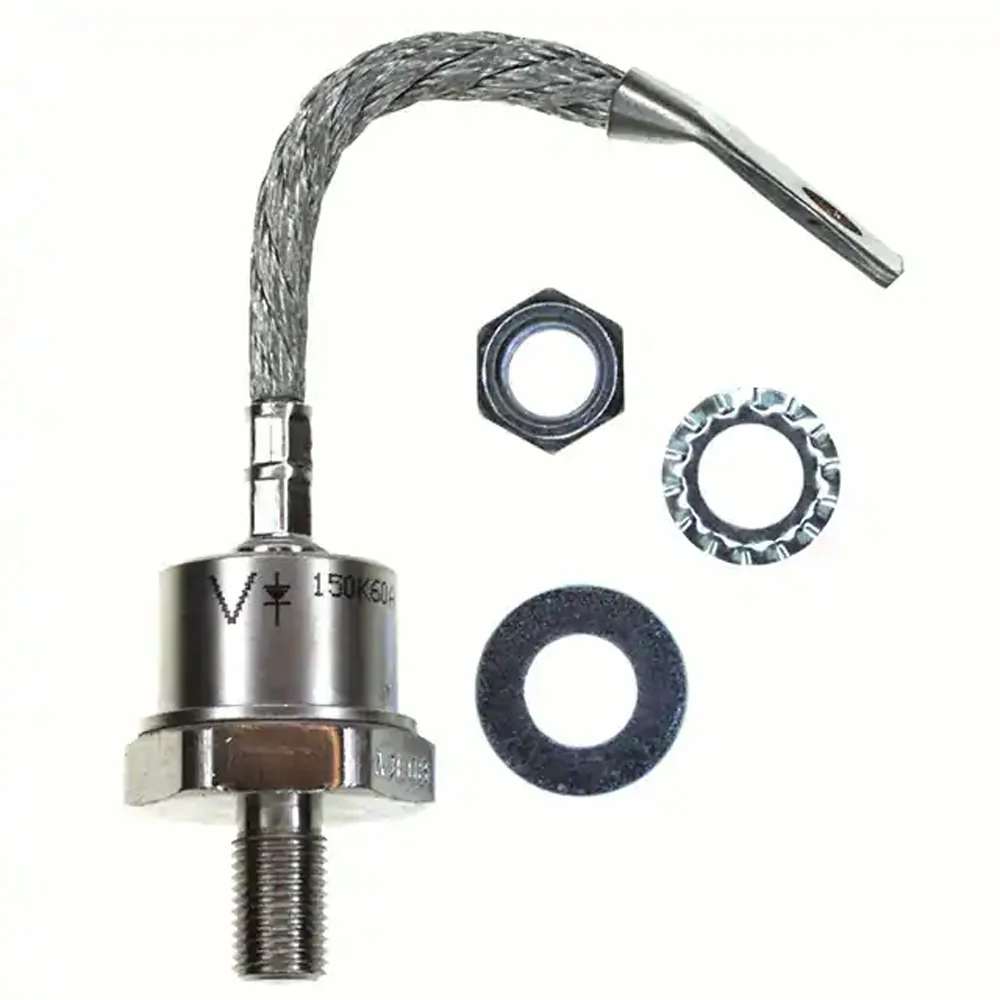

696030 - Stud Mount Diode, 150A, 3/8" Stud, 600 PRV Positive (Cathode Stud) w/Pigtail

Heavy-Duty Standard Recovery Diode, for use in battery chargers with "Positive Output" rectifier (positive battery clamp is attached to rectifier output/heatsink).
Includes Nut & Washer.

Features

• Diffused diode
• High surge current capabilities
• Hermetic metal case

Typical Applications

• Welders
• Battery chargers
• Power supplies
• Machine tool controls
• High power drives
• Medium traction applications
• Free-wheeling diodes

Specifications

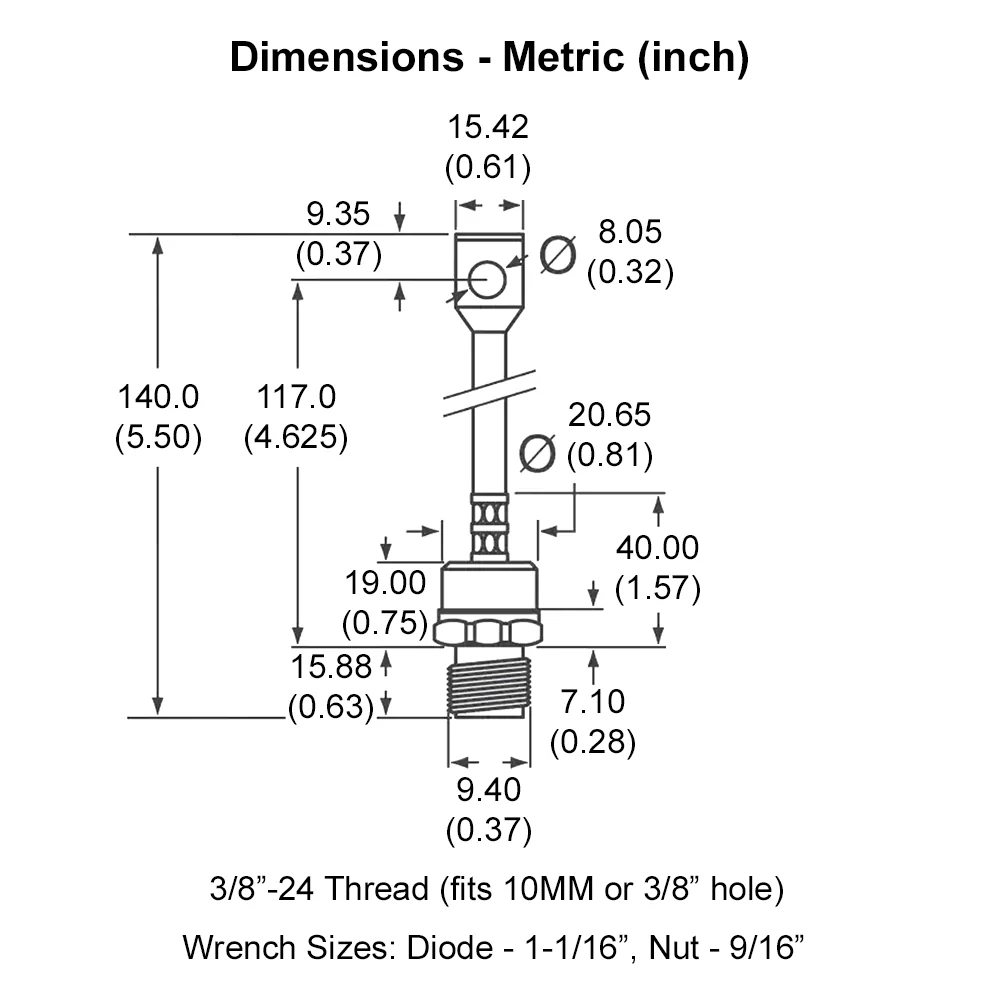

Overall Length (+/- 3%): 5.50" (140 mm)
Pigtail Length (Mounting surface to Eyelet Center) (+/- 3%): 4.625" (117 mm)
Pigtail Eyelet Diameter: .315" (8 mm) (accommodates 1/4", 5/16" or M8 bolt)
Pigtail Eyelet Tab Width(+/- 3%): 0.61" (15.4 mm)
Mounting Stud Length: 0.63" (15.9 mm)
Mounting Stud Threads: 3/8"-24UNF
Wrench Size (Diode): 1-1/16"
Wrench Size (Nut): 9/16"
Approximate weight (including nut, washers): 0.22 lbs. (100 g)
Maximum Repetitive Peak Reverse Voltage: 600
Maximum Non-Repetitive Peak Reverse Voltage: 700
Max. average forward current @ case temperature 125°C: 150 A
Max. RMS forward current: 235 A
Max. peak, one-cycle forward: 3000 A
Max non-repetitive surge current: 3140 A
Threshold voltage: 0.80 V
Max. forward voltage drop: 1.47 V
Max. junction operating temperature range: -40 to 180°C
Max. storage temperature range: -40 to 180°C
Max. thermal resistance, junction to case: 0.3 K/W (DC operation)
Max. thermal resistance, case to heatsink: 0.1 K/W (Mounting surface, smooth, flat and greased)
Max. allowed mounting torque +0 -20% (Non-lubricated threads): 17 Nm
Max. allowed mounting torque +0 -20% (Lubricated threads): 14.5 Nm
