696364 - Switch Kit - 3 Position Slide Switch with Contact Bridge (8 terminal) - replaces Schumacher 0499000031
Switch Kit - 3 Position Slide Switch with Contact Bridge (8 terminal) - replaces Schumacher 0499000031

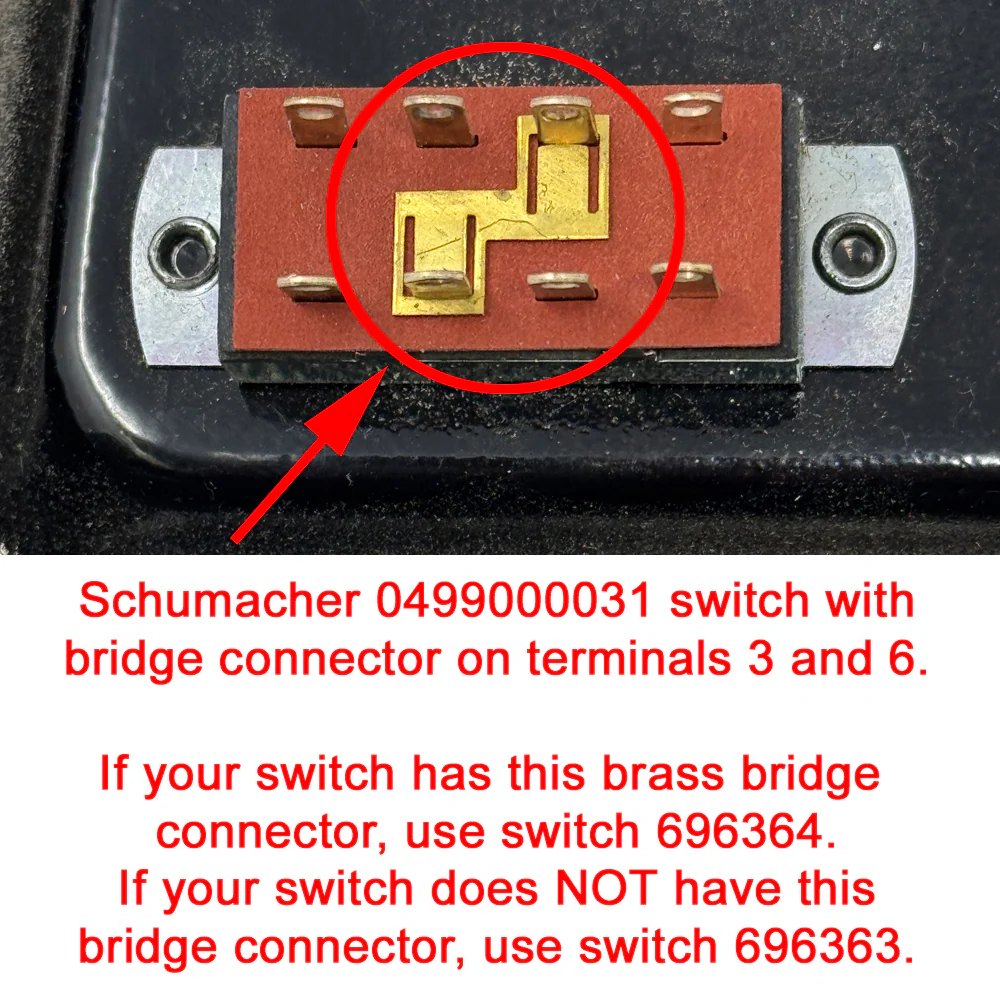

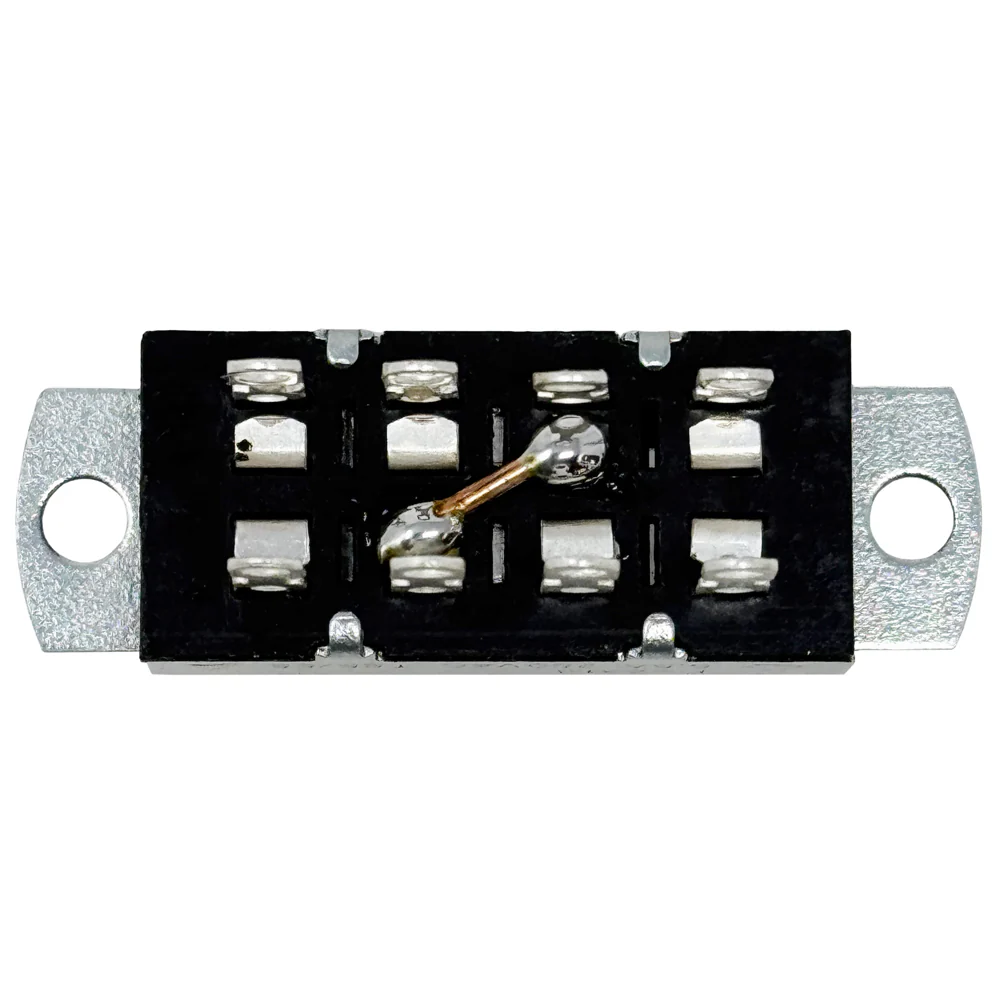

Has soldered bridge jumper between contact terminals 3 and 6.
This switch is typically used as the Volt/Amp Rate select switch on Schumacher chargers.

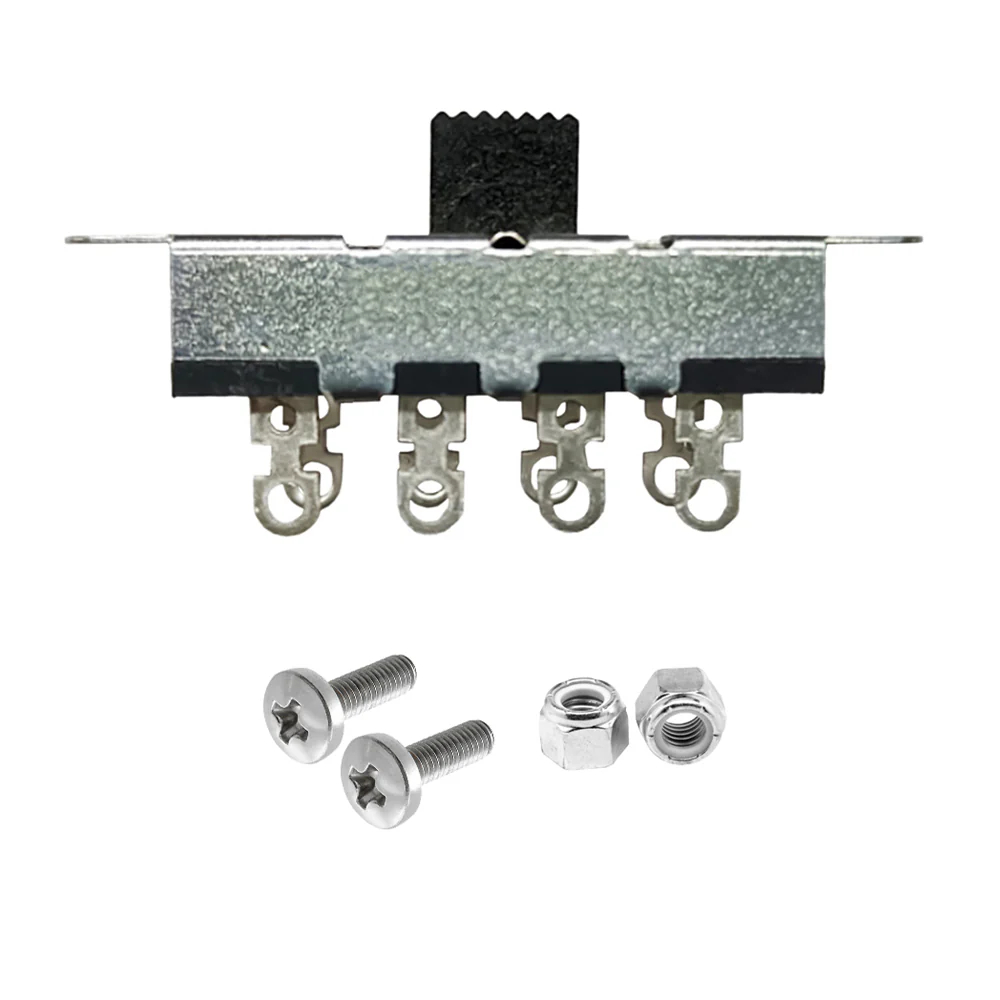

Includes mounting screws and nuts.
For 3 position switch WITH NO Contact Bridge, use switch kit 696363.
Replaces
Schumacher 0499000031
Schumacher 0499-000031
Charger Compatibility
SE-21MA (Rate Select)
SE-50MA-2 (Rate Select)
SE-60 (Rate Select)
SE-70MA (Rate Select)
SE-1052 (Volt Select)
SE-5212A
Specifications
Contact Rating UL: 16A 125VAC, 8A 250VAC
Operating Temperature: 55°C
Electrical Life: more than 10,000 cycles

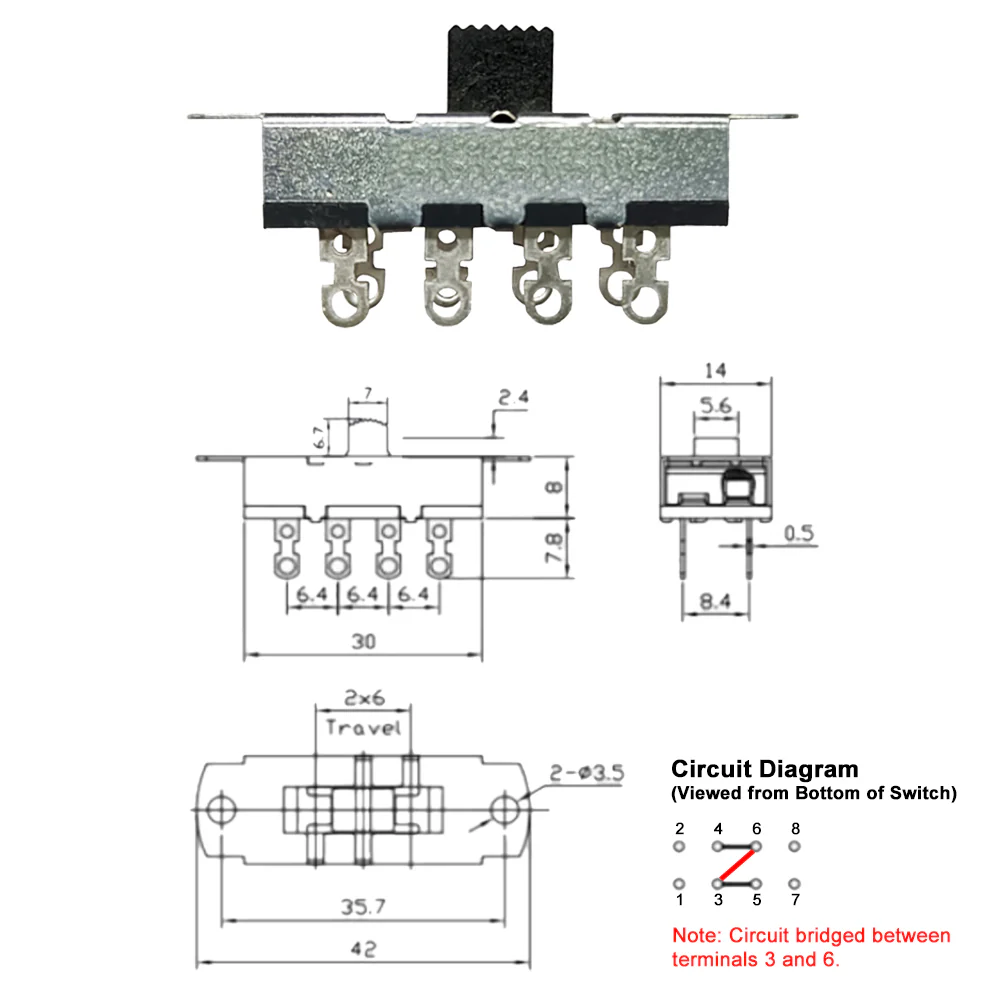

Dimensions:
Length: 1.65 in (42 mm)
Mounting Holes OC: 1.40 in (35.6 mm)
Mounting Hole Dia: 0.139 in (3.5 mm)
Width: .55 in (14 mm)
Height (overall): .87 in (22 mm)
Terminal Width: 0.120 in (3.05 mm)
Knob Width: .22 in (5.5mm)
Knob Height: .28 in (7 mm)
