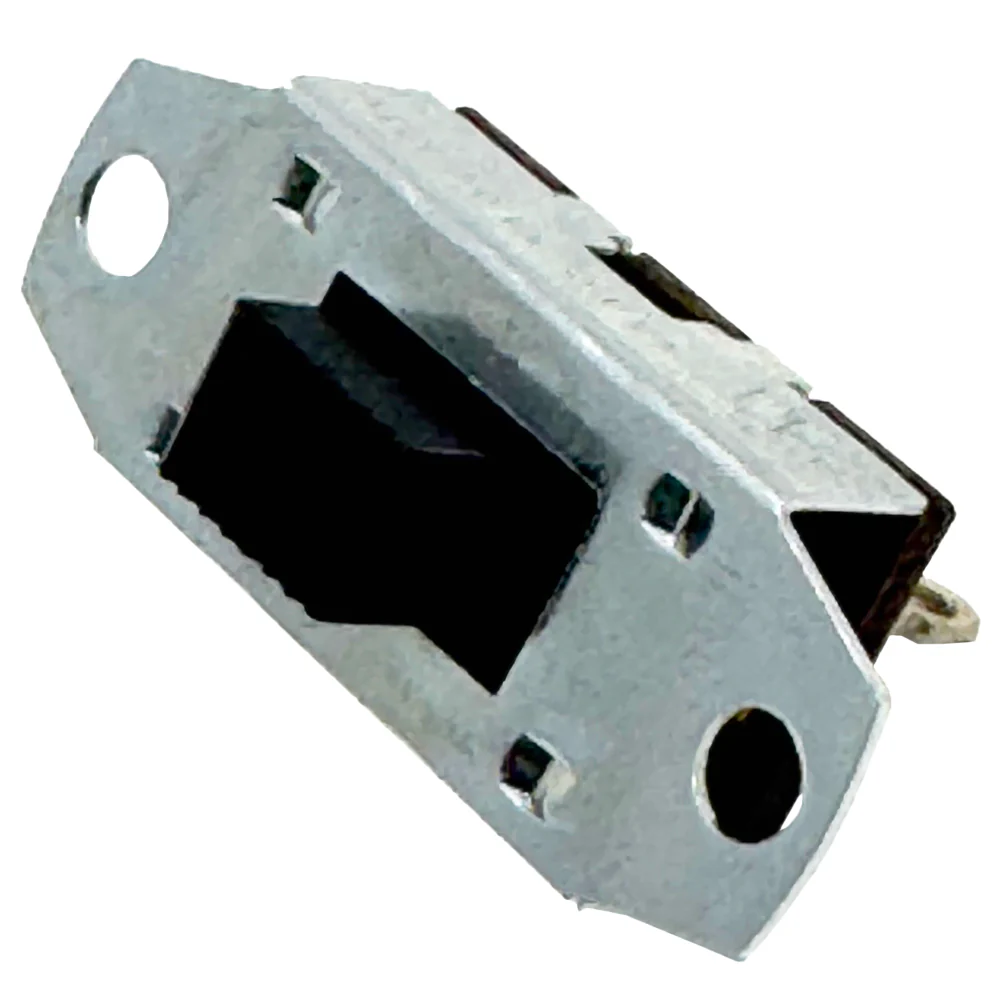

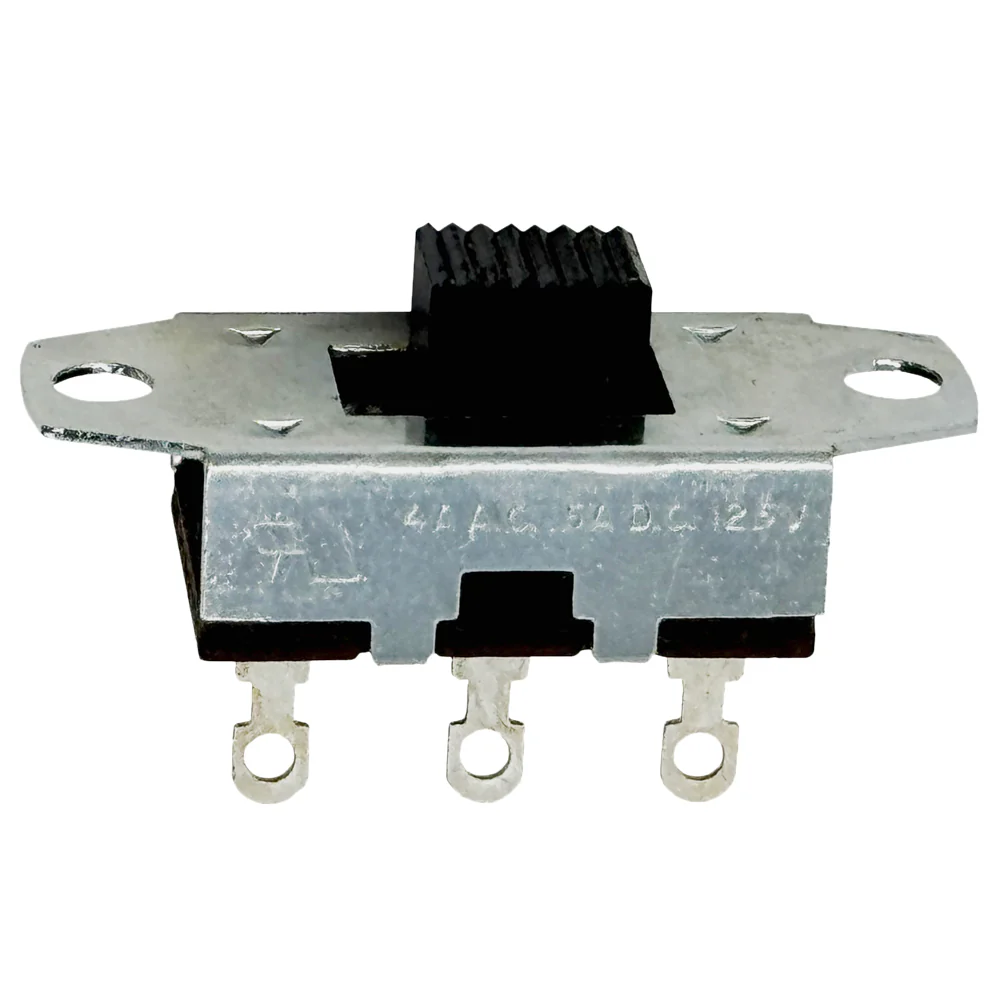

Switch Kit - 2-Position Slide Switch (3 terminal) - replaces Schumacher 0499000032

- This switch has been used in numerous battery chargers from Schumacher, Schauer, and other manufacturers.
- Commonly used to select Volts, Amps, or Battery Type.
- Kit includes M3 Stainless Steel Machine Screws and Nyloc Nuts.

Replaces

Schumacher 0499000032
Schumacher 0499-000032

Charger Compatibility

NAPA
85-7512



Schumacher
82-6PE
PS-1022MA (Rate Select)
PS-2100MA (Battery Type Select)
SE-60 (Charge/Maintain Select)
SE-520MA (Rate Select)
SE-1010-2 (Rate Select)
SE-1012D (Volt Select)
SE-1510MA (Battery Type Select)
SE-1052MA
SE-1275A (Battery Type Select)
SE-2150MA (Battery Type Select)
SE-2151MA (Operation Select)
SE-5212A (Battery Type Select)



Sears
71201
71206
71212
71221
71222

Specifications

Switch Type: Slide
Contact Type: SPDT (Single Pole Double Throw)
Number of Positions: 2 (ON-ON)

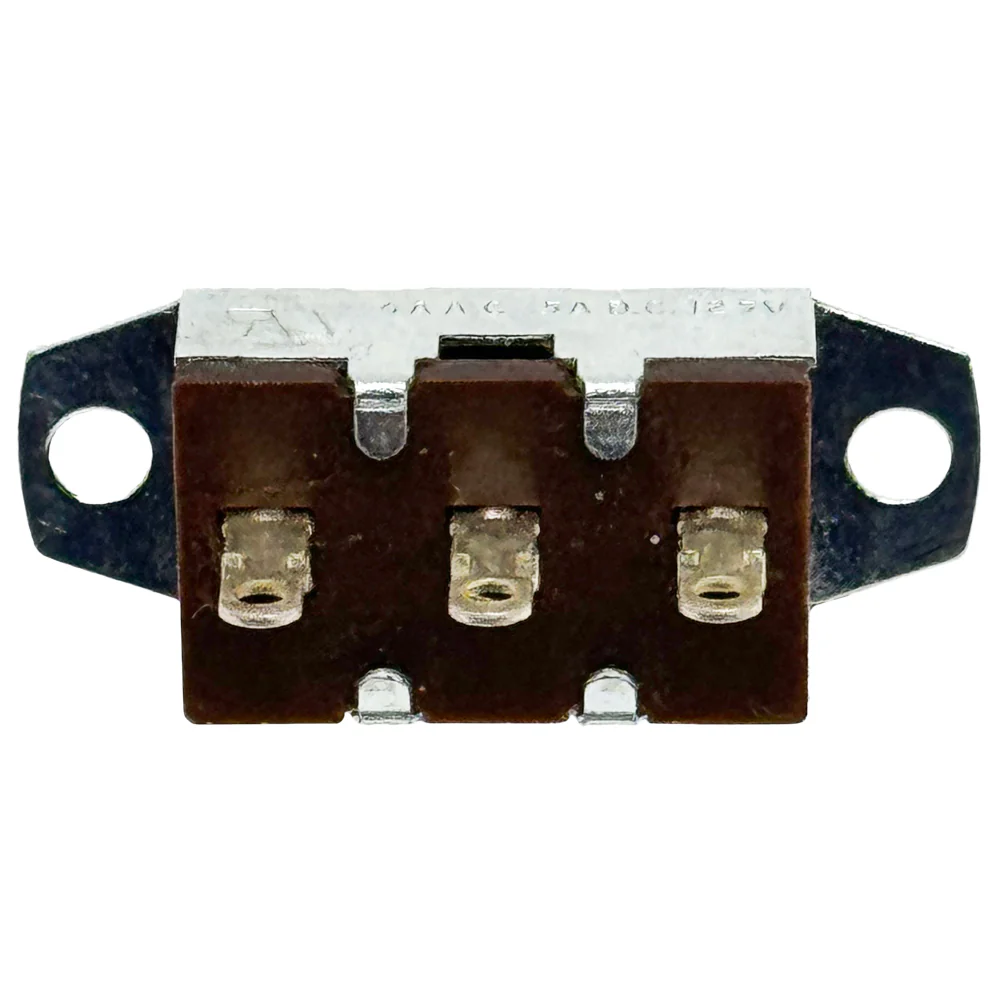

Number of Terminals: 3
Terminal Type: .110 Push-On or Solder
Current Rating UL: 4.0A AC, 0.5A DC
Voltage Rating: 125V
Operating Temperature: 55°C
Electrical Life: more than 10,000 cycles

Dimensions:
Length: 1.36 in (34.5 mm)
Mounting Holes OC: 1.13 in (28.8 mm)
Mounting Hole Diameter: 0.136 in (3.45 mm)
Width: 0.55 in (14 mm)
Height (overall): 0.83 in (21.1 mm)
Terminal Width: 0.110 in (2.80 mm)
Knob Width: 0.22 in (5.5mm)
Knob Height: 0.20 in (5.1 mm)
