696551 - Knob, 2" Pointer for Associated Eqpt Timers and Switches - Set Screw Lock - Direct Replacement for Associated 610930

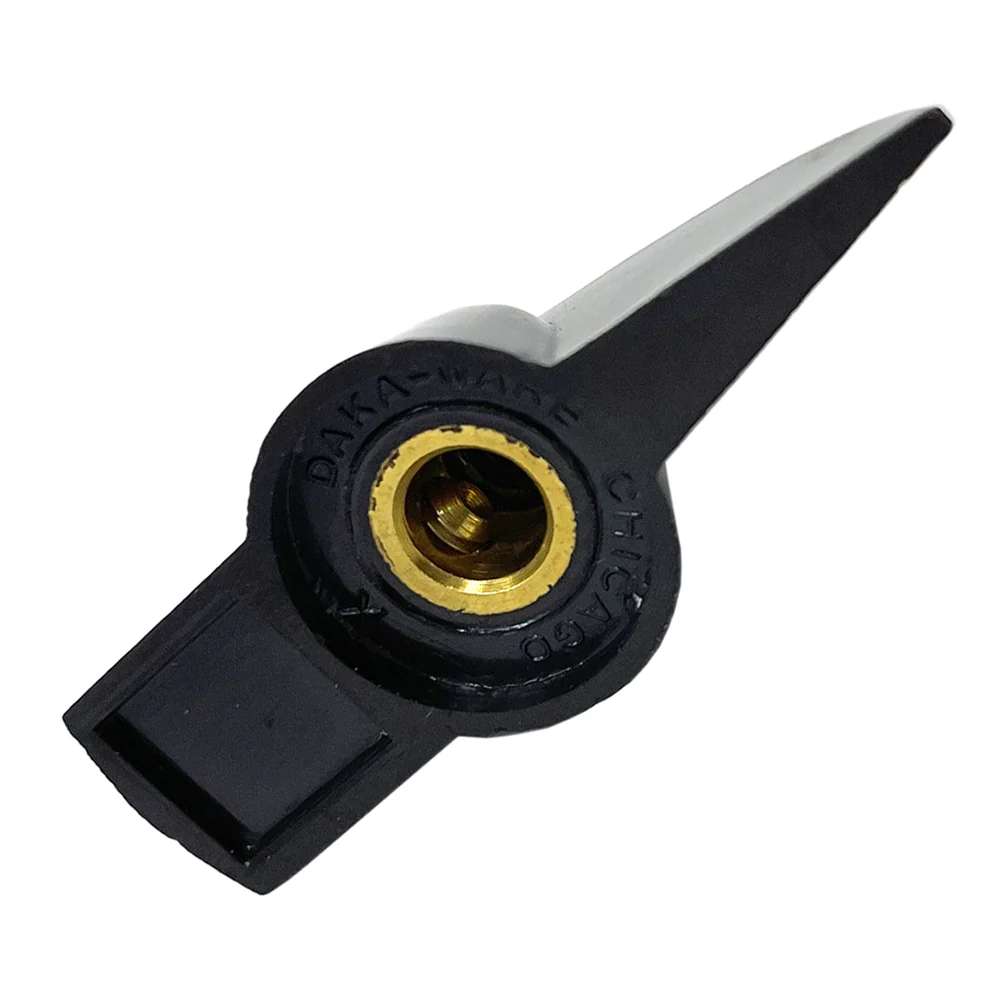

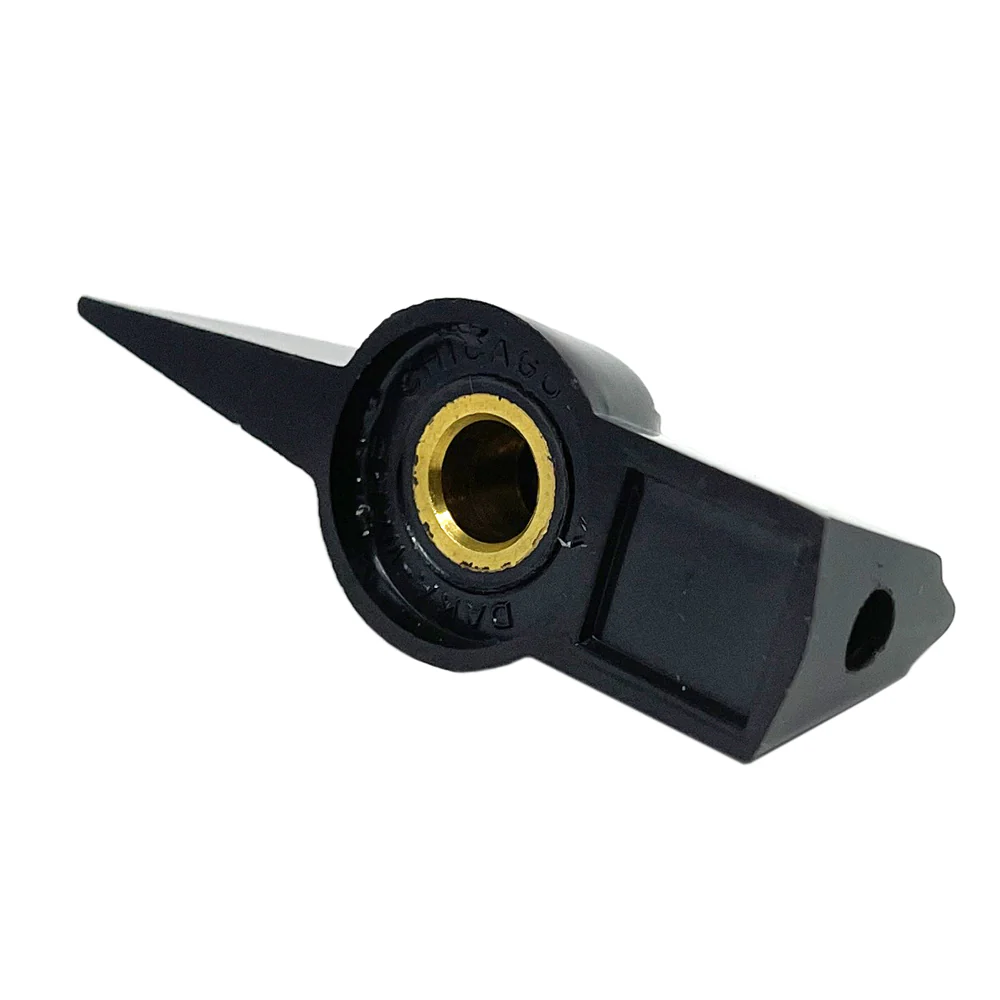

Black plastic knob with 2" pointer, brass shaft insert and set screw for durability.1/4" D-Shaft with Set Screw Lock, fits all 1/4" D-shaft rotary rate switches & timers.



Fits all Associated™ 1/4" shaft rotary rate switches & timers. This was previously in widespread use on most Associated Eqpt chargers before changing to the 603147 spring clip type knob (696550).



Can be used with Power Forged™ rotary rate switches (697012, 697013, 697015) and timers (697060A. 697066, 697120A, 697122, 697124). This is the knob we include with our 697015 switch kit.

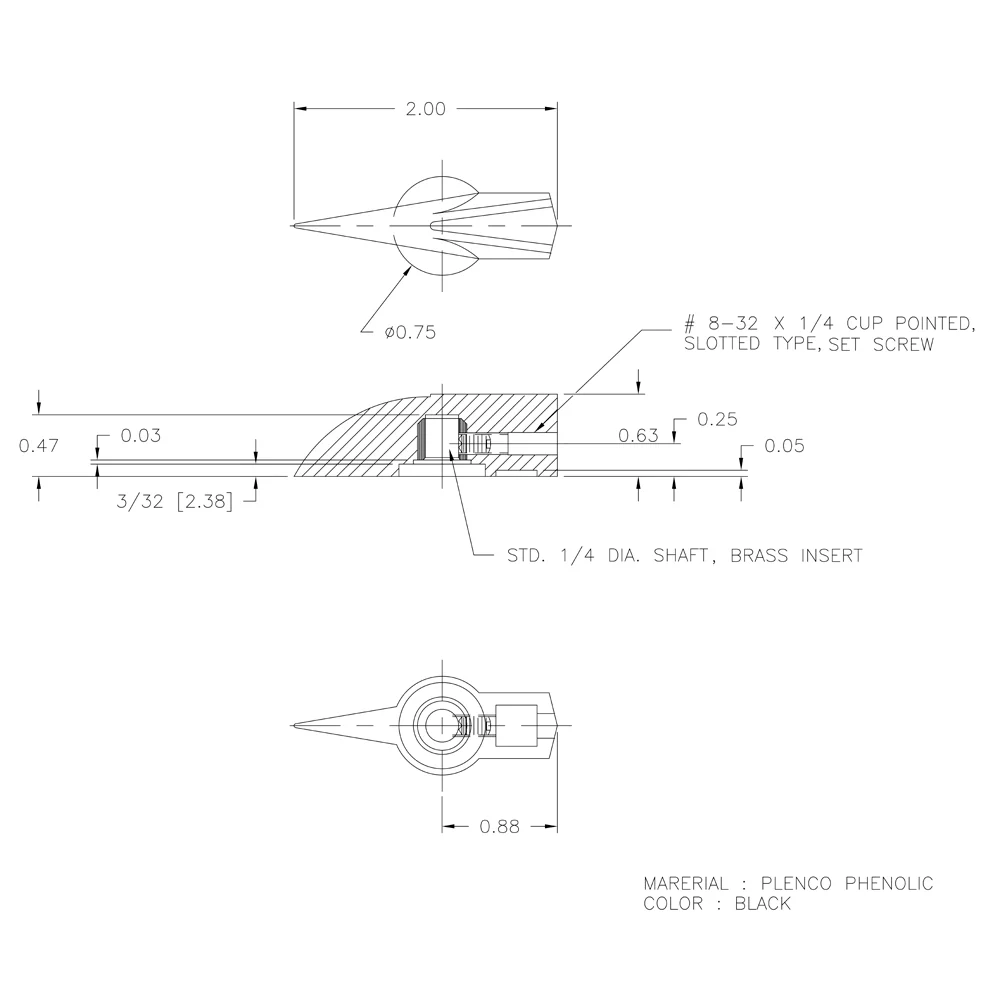

Pointer Length: 2" (51mm)
Height: .63"
Shaft Diameter: 1/4" (6 mm)
Shaft Bushing: Brass
Set Screw: Slotted, 8-32 x 1/4"
Material: Phenolic Resin (plastic)
Color: Black
