696615 - Power Forged 100 Amp Rectifier Rebuild Kit for 696611, 696613 (Rectifiers with Square Shoulder Retaining Bolts)
Save $$$ by Rebuilding your Burned-Out Rectifier!
Power Forged 100 Amp Rectifier Rebuild Kit for 696611 & 696613 (Rectifiers with Square Shoulder Retaining Bolts)
Designed for use in chargers with continuous-duty output ratings up to 100 Amps, this Heavy-Duty kit features 20 diodes rated at 50 Amps each.
This kit can ONLY be used to rebuild Power Forged rectifiers with Square Shoulder retaining bolts, used in Century/Solar battery chargers (part numbers 696611 and 696613).
This kit contains components to rebuild dual diode assemblies, each with an array of up to 10 diodes, for a total of up to 20 diodes. Kit provides replacements for all original components except for the heat sink plate itself - so the redundant capacity of the original design is retained.

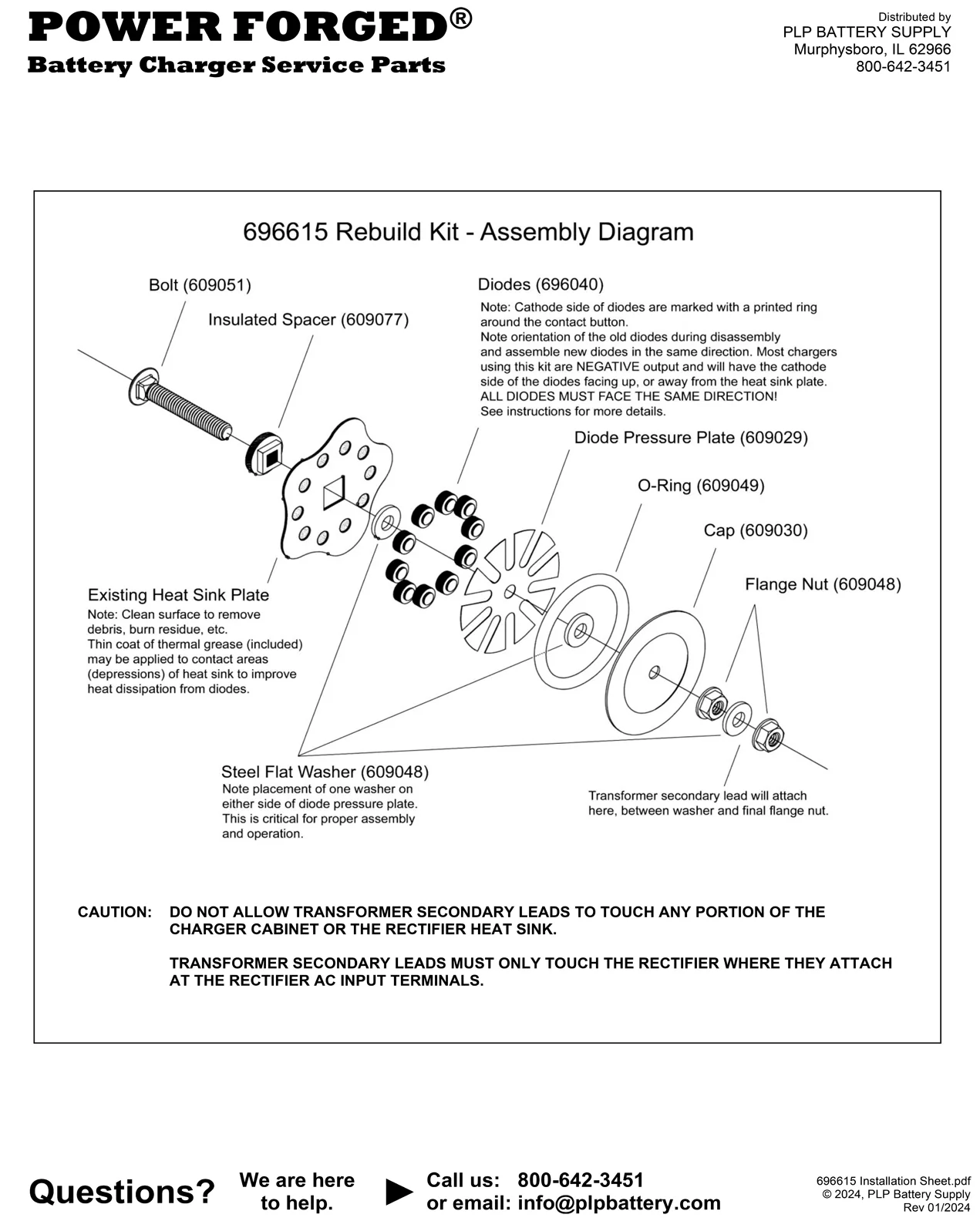

- Straightforward instructions and simple design of this style rectifier allows for ease of rebuilding. No special tools are required.
- Diodes may be installed cathode to base for positive output chargers, or anode to base for negative output chargers - providing proper current rectification for either charger design.

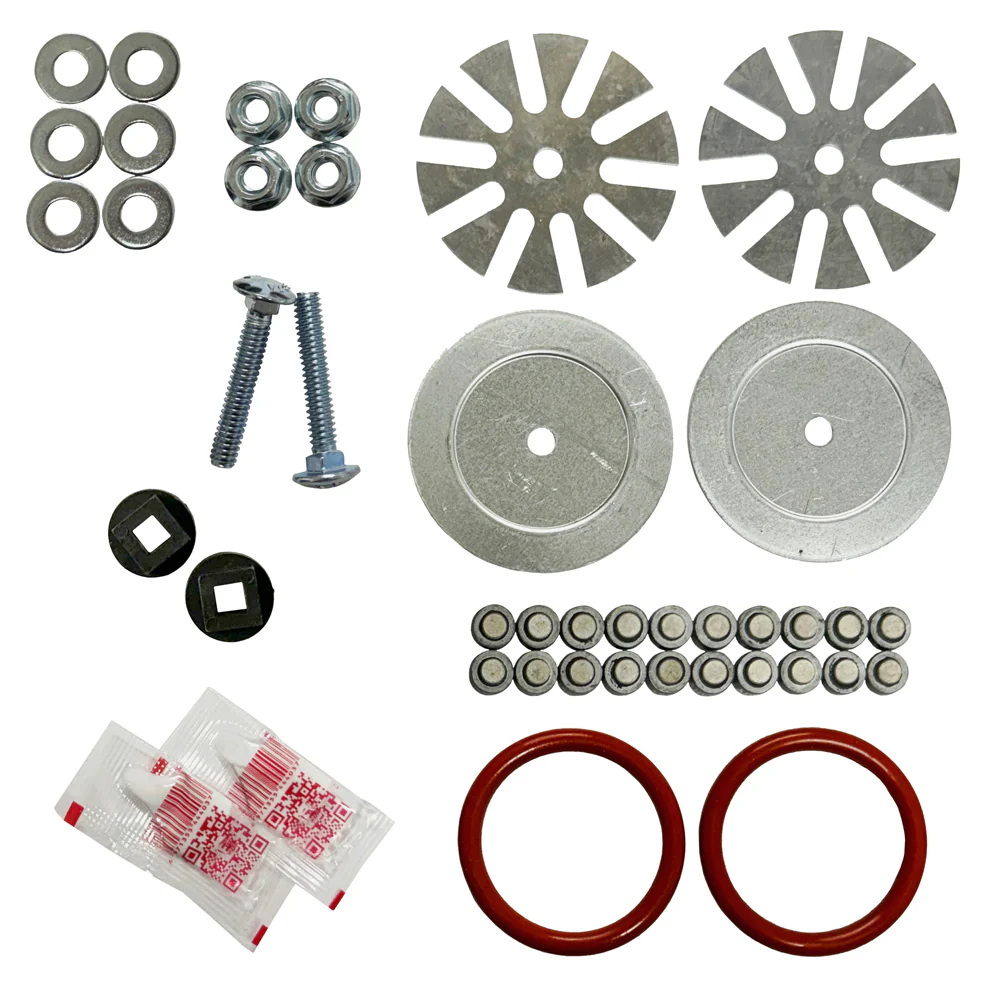

Contents
- 20 new, 50A/400PRV 10MM button diodes
- 2 square shoulder insulating washers
- 2 fusible diode contact plates
- 2 retainer caps
- 2 O-Rings
- All required hardware
- 2 packets of thermal grease

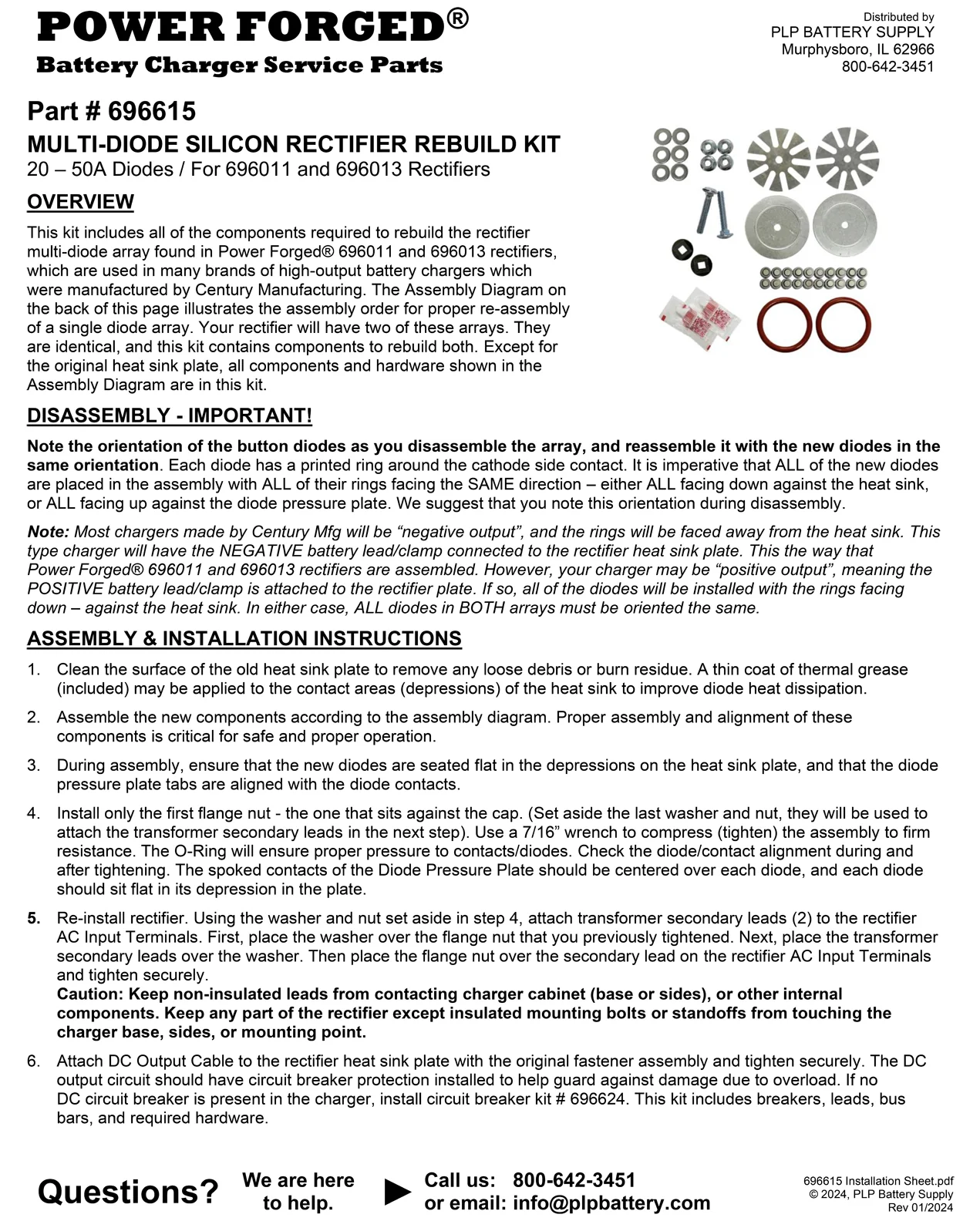

- Instruction sheet
Note: The heat sink plate and rectifier mounting hardware are NOT included. If the heat sink plate is not serviceable or otherwise unable to be re-used, this kit cannot return the rectifier to functionality.
