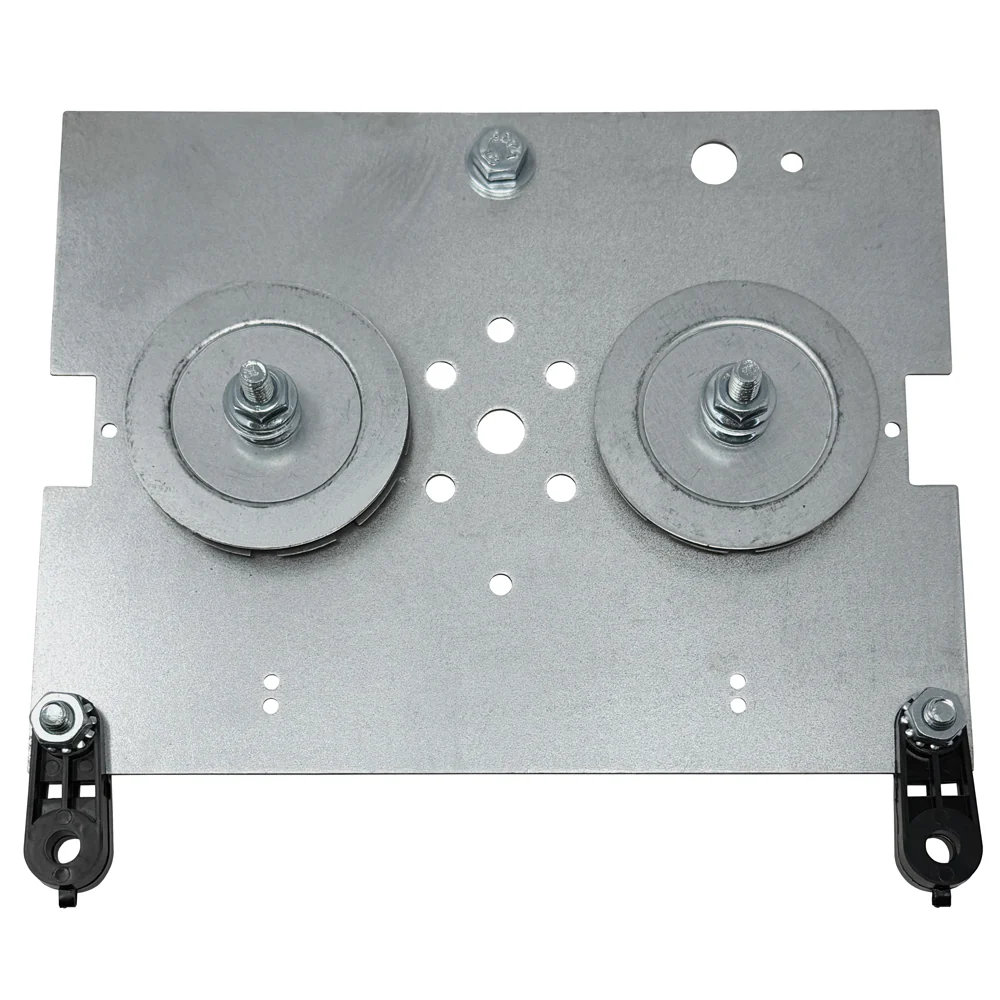

696640 - Power Forged 100 Amp Heavy-Duty Rectifier Positive Base with Standoff Kit, Direct Replacement for Associated Eqpt 610100, 611073, 610850
Our Heaviest-Duty Positive-Base Rectifier with Insulated Standoff Kit. Designed for use in chargers with continuous-duty output ratings up to 100 Amps, and "Boost" ratings up to 600 Amps. This is the same rectifier as our 696600, but supplied with insulated mounting standoffs as used on late-model Associated Equipment chargers where the rectifier mounts to the transformer laminations.
This rectifier is a direct replacement for Associated P/N 610100, 611073, and 610850, used in Associated charger models 6001, 6002, 6002A, 6002B, 6003, 6006, 6008, 6009, 6009A, 6014, 6027B, 6065, NAPA 85-800, MATCO MC600, and SNAP-ON models YA165A, YA166B, YA167A, YA167B, YA168A, YA268, and others.
May be used to replace selenium rectifiers found in early-model or vintage battery chargers.
Features
- Fully assembled and tested.
- Equipped with 50 amp diodes, doubling the capacity of the 25 amp diodes used in Associated OEM rectifiers.
- Dual diode assemblies, each with an array of 10 diodes, for a total of 20 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes.
- Robust capacity makes this the perfect replacement rectifier for a wide variety of high-output battery chargers, especially those with high "boost" ratings.
- Straightforward, reparable design. Rectifier damage may be repaired with 696610 Rectifier Rebuild Kit.
- Full-wave rectification.
- Includes 696631 Resistor Kit - for chargers manufactured by Associated Eqpt and equipped with "Stop/Go Lite" polarity protection technology (polarity indicator in the clamp). If your charger does not have this feature, do not install the resistor.

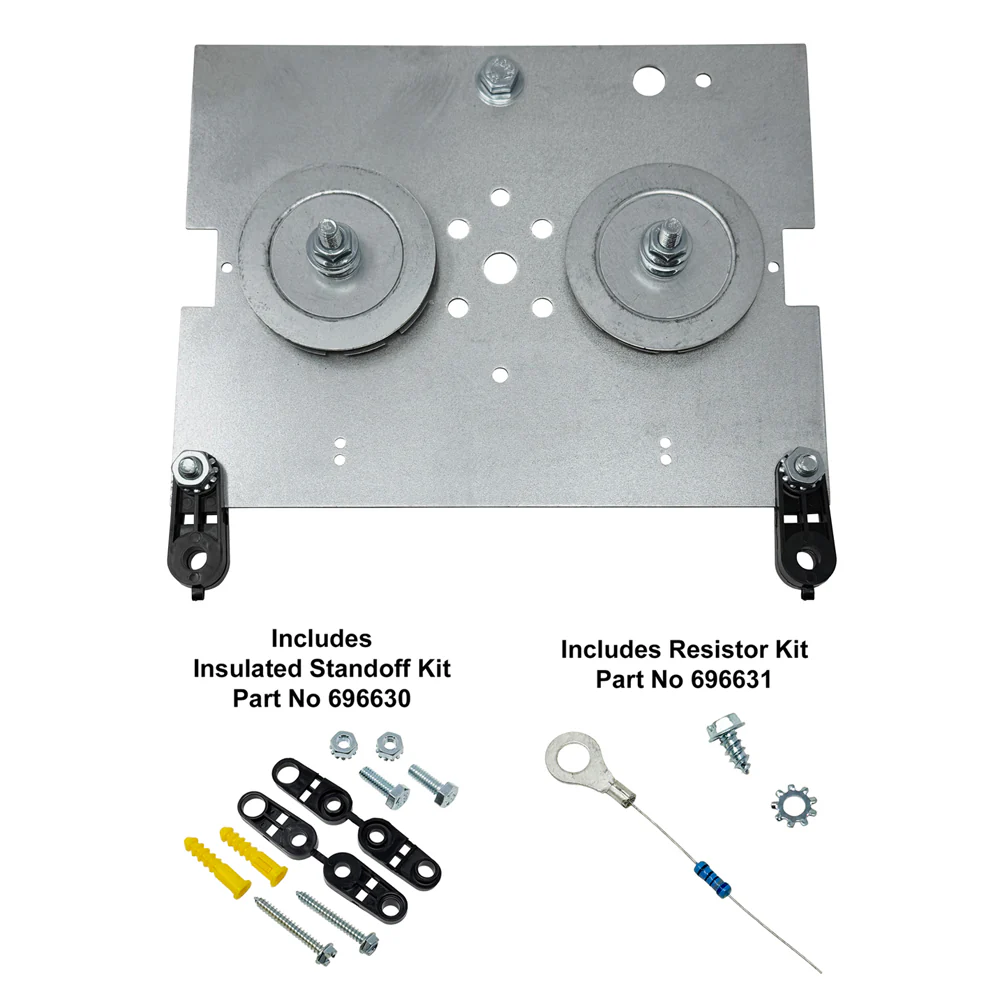

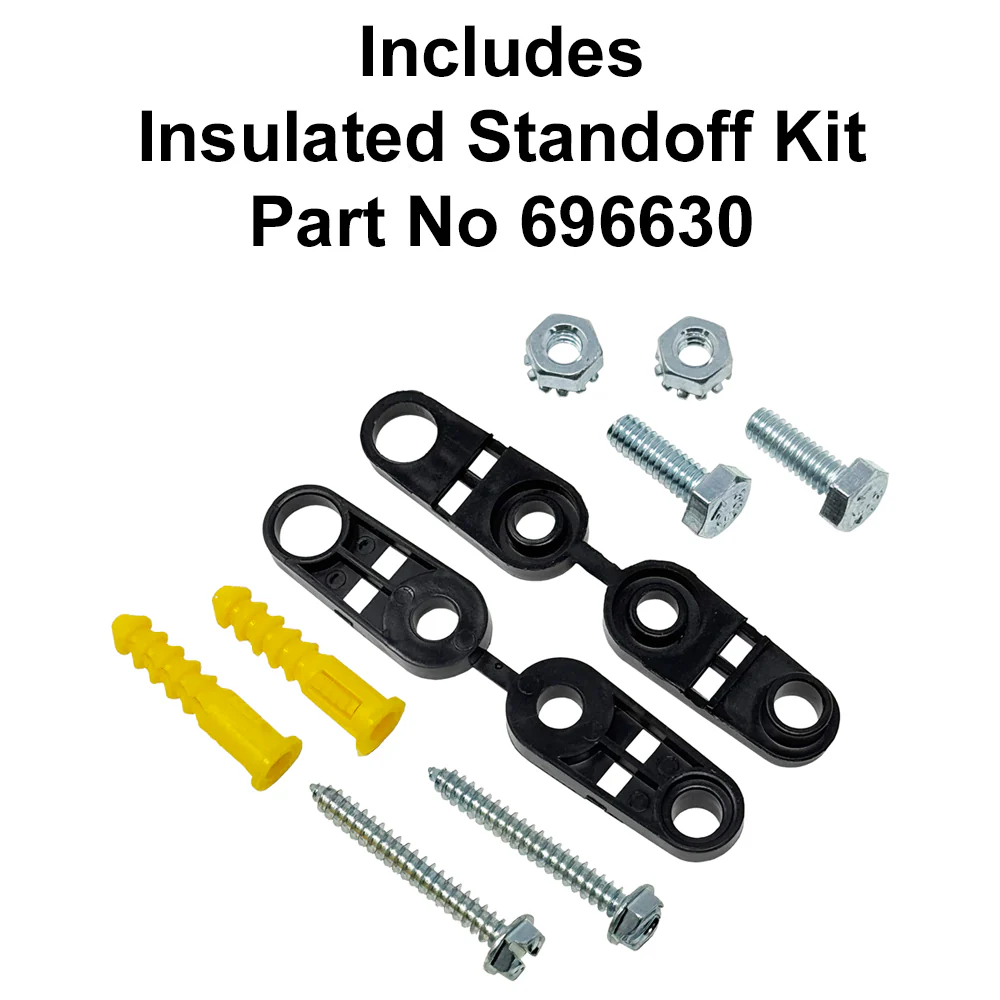

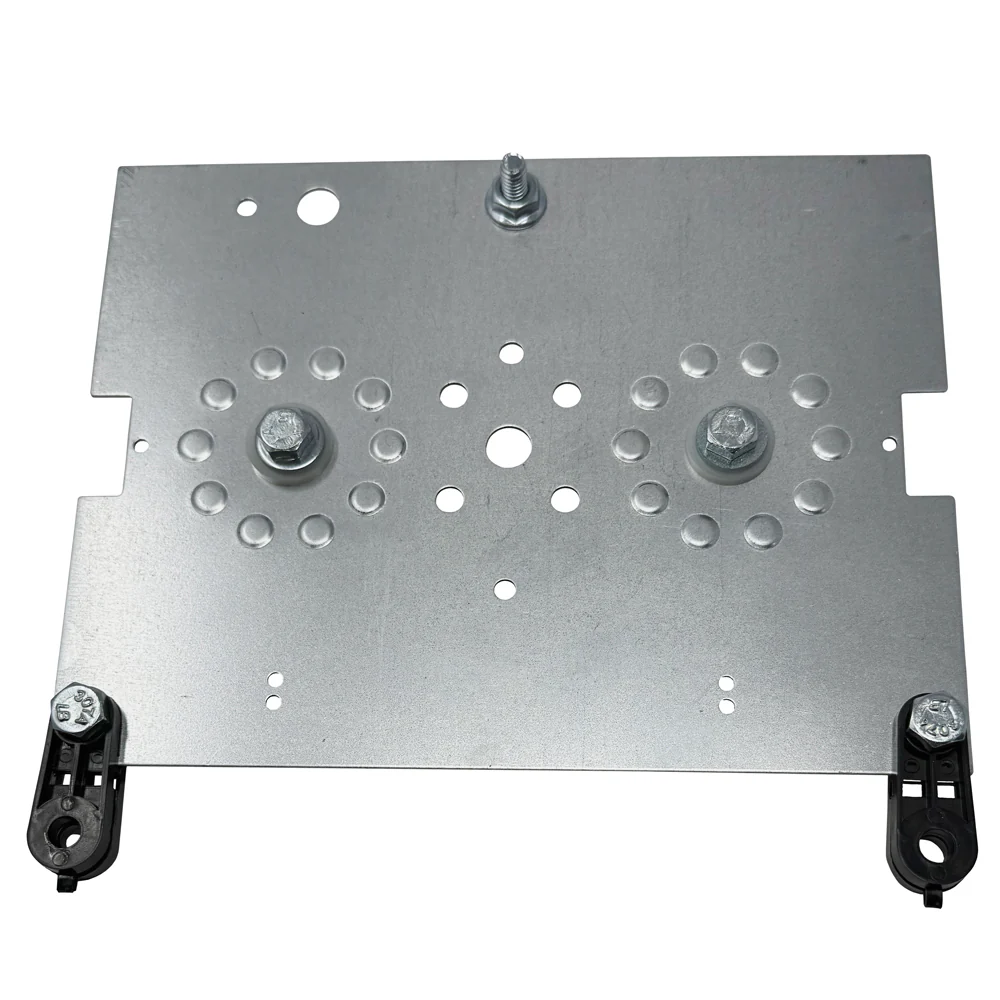

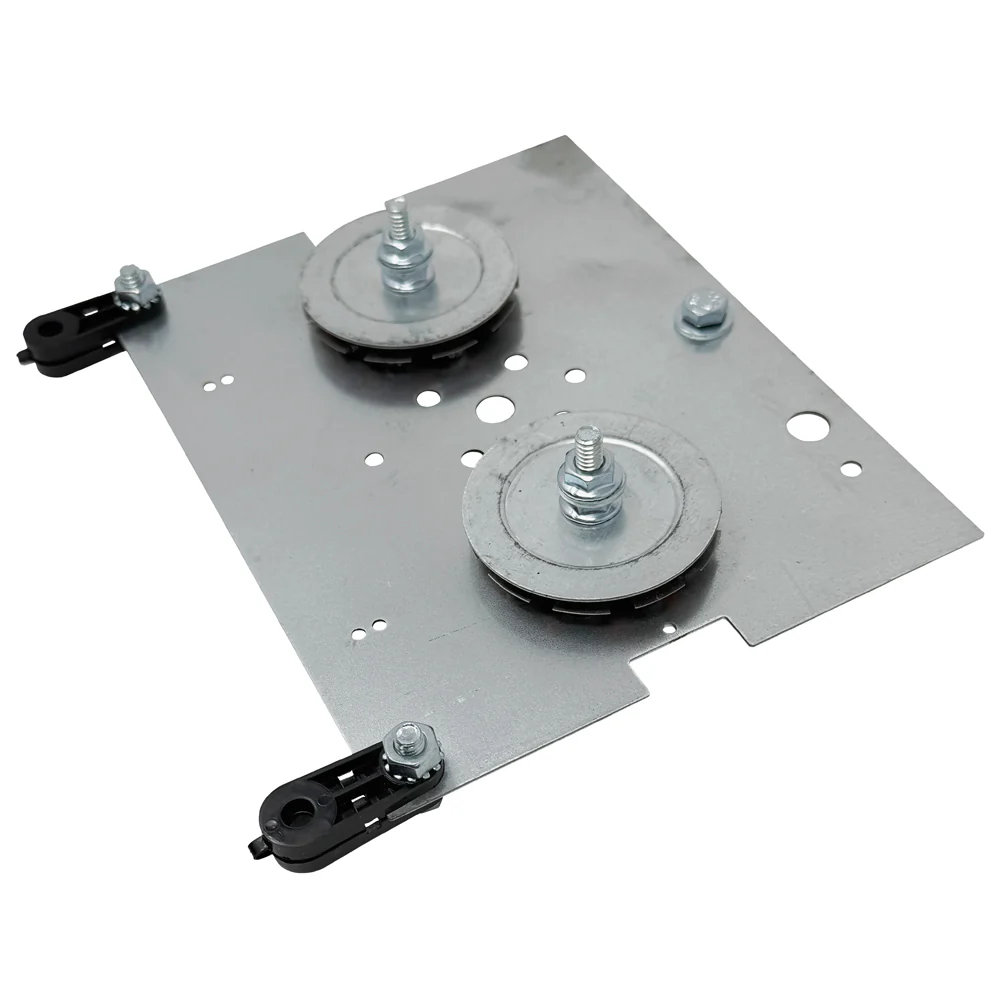

- Includes 696630 Insulated Mounting Standoff Kit - for transformer mount on late-model Associated chargers.
Specifications
- Dual 10 x 50A/400PRV 10MM button diode arrays (20 diodes total)
- Each diode connects to the array via an independent, fusible link.
- Depth: 1.65 in.
- Height: 6.00 in.
- Width: 7.75 in.
- Weight: 1.00 lb.
