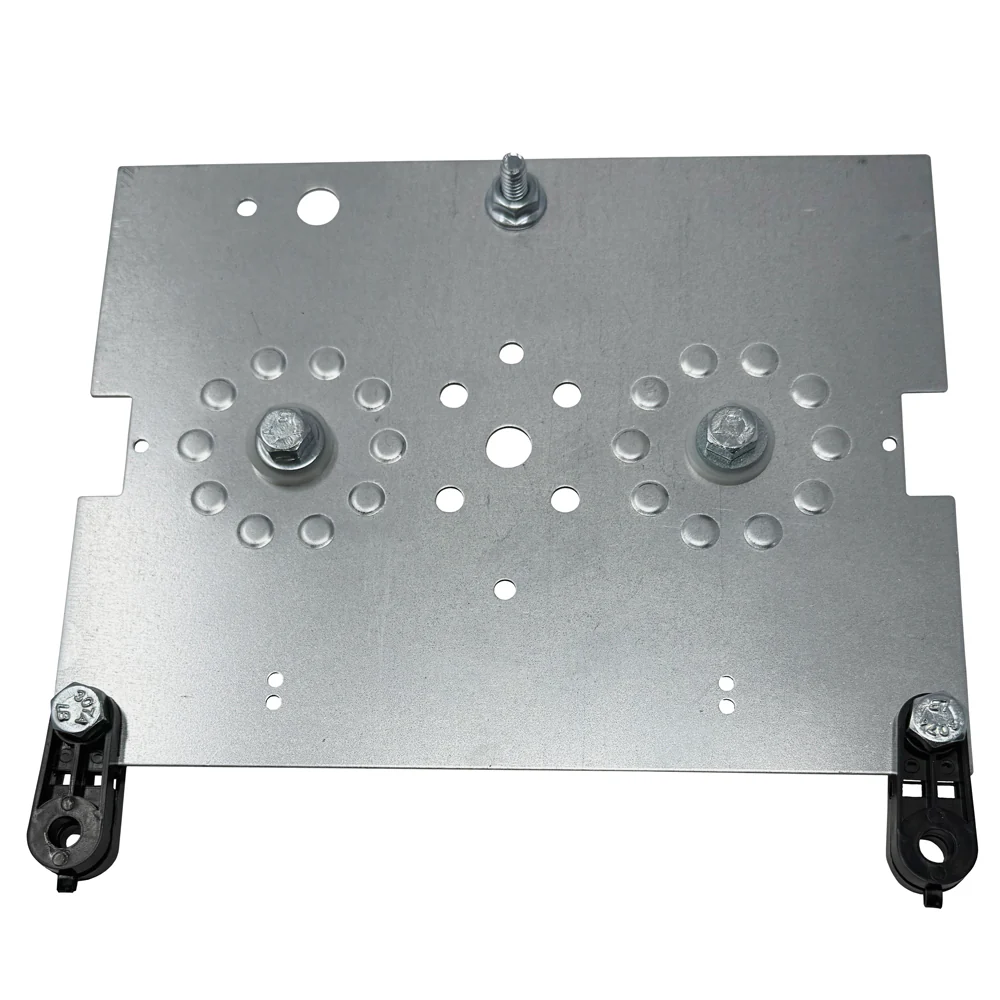

696642 - Power Forged 80 Amp Heavy-Duty Rectifier Positive Base with Standoff Kit, Direct Replacement for Associated Eqpt 610122
Heavy-Duty Positive-Base Rectifier. Designed for use in chargers with continuous-duty output ratings up to 80 Amps and "Boost" ratings up to 450 Amps. This is the same rectifier as our 696602, but supplied with insulated mounting standoffs as used on late-model Associated Equipment chargers where the rectifier mounts to the transformer laminations.
This rectifier is a direct replacement for Associated P/N 610122, used in Associated charger models 6009, 6009A, 6019 and other models with 12 diode positive base rectifiers.
Excellent replacement for selenium rectifiers found in older or vintage battery chargers.
Features
- Fully assembled and tested.
- Dual diode assemblies, each with an array of 6 diodes, for a total of 12 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes.
- Robust capacity makes this the perfect replacement rectifier for a wide variety of high-output battery chargers, especially those with high "boost" ratings.
- Straightforward, reparable design. Rectifier damage may be repaired with 696610 Rectifier Rebuild Kit.
- Full-wave rectification.
- Includes 696631 Resistor Kit - for chargers manufactured by Associated Eqpt and equipped with "Stop/Go Lite" polarity protection technology (polarity indicator in the clamp). If your charger does not have this feature, do not install the resistor.
- Includes 696630 Insulated Mounting Standoff Kit - for transformer mount on late-model Associated chargers.
Specifications
- Dual 6 x 50A/400PRV 10MM button diode arrays (12 diodes total)
- Each diode connects to the array via an independent, fusible link.
Depth: 1.65" (Including central mounting bolt: 2.65")
Height: 6.00"
Width: 7.75"
Weight: 1.00 lbs.
Heavy-Duty Positive-Base Rectifier. Designed for use in chargers with continuous-duty output ratings up to 80 Amps and "Boost" ratings up to 450 Amps. This is the same rectifier as our 696602, but supplied with insulated mounting standoffs as used on late-model Associated Equipment chargers where the rectifier mounts to the transformer laminations.
This rectifier is a direct replacement for Associated P/N 610122, used in Associated charger models 6009, 6009A, 6019 and other models with 12 diode positive base rectifiers.
Excellent replacement for selenium rectifiers found in older or vintage battery chargers.
Features
- Fully assembled and tested.
- Dual diode assemblies, each with an array of 6 diodes, for a total of 12 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes.
- Robust capacity makes this the perfect replacement rectifier for a wide variety of high-output battery chargers, especially those with high "boost" ratings.
- Straightforward, reparable design. Rectifier damage may be repaired with 696610 Rectifier Rebuild Kit.
- Full-wave rectification.
- Includes 696631 Resistor Kit - for chargers manufactured by Associated Eqpt and equipped with "Stop/Go Lite" polarity protection technology (polarity indicator in the clamp). If your charger does not have this feature, do not install the resistor.
- Includes 696630 Insulated Mounting Standoff Kit - for transformer mount on late-model Associated chargers.
Specifications
- Dual 6 x 50A/400PRV 10MM button diode arrays (12 diodes total)
- Each diode connects to the array via an independent, fusible link.
Depth: 1.65" (Including central mounting bolt: 2.65")
Height: 6.00"
Width: 7.75"
Weight: 1.00 lbs.
