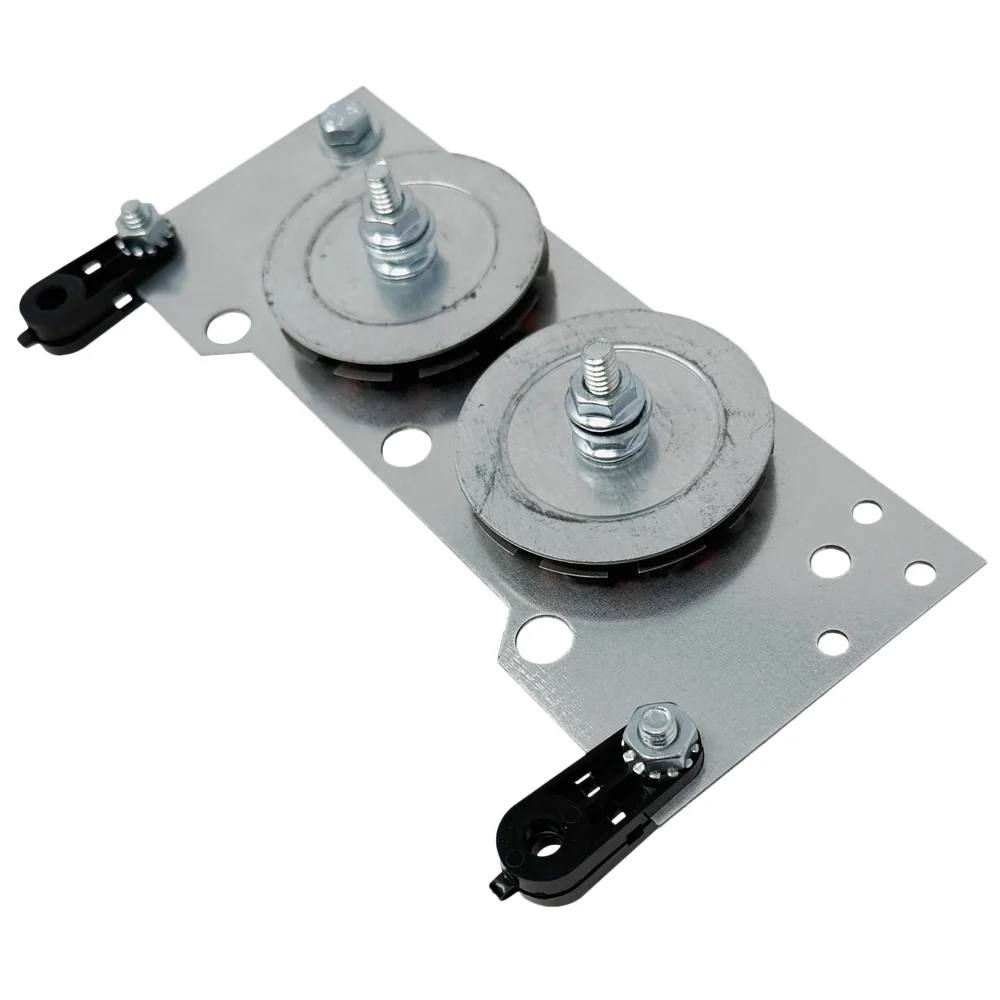

Our Heaviest-Duty Compact Rectifier. Designed for use in chargers with continuous-duty output ratings up to 100 Amps, and "Boost" ratings up to 600 Amps! This is the same rectifier as our 696604, but supplied with insulated mounting standoffs as used on late-model Associated Equipment chargers where the rectifier mounts to the transformer laminations.



This rectifier is a direct replacement for Associated P/N 610827 and a High Capacity, 20-diode replacement for Associated P/N 610364, used in Associated Eqpt charger models 6008, 6009B, 6010A, 6010B, 6012, 6014, 6021, 6006, 6065, Cornwell ADS240FC, Cornwell ADS6012CW, Mac BCH7109, Mac BCH7115, MATCO MC500, Snap-On YAH123, Snap-On YA165A, Snap-On YA167A, Snap-On YA167B, and others.

Excellent replacement for selenium rectifiers found in older or vintage battery chargers.

Features

- Fully assembled and tested.
- Dual diode assemblies, each with an array of 10 diodes, for a total of 20 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes.
- Robust capacity makes this the perfect replacement rectifier for a wide variety of high-output battery chargers, especially those with high "boost" ratings.
- Straightforward, reparable design. Rectifier damage may be repaired with 696610 Rectifier Rebuild Kit.
- Full-wave rectification.
- Includes 696632 Resistor Kit - for chargers manufactured by Associated Eqpt and equipped with "Stop/Go Lite" polarity protection technology (polarity indicator in the clamp). If your charger does not have this feature, do not install the resistor.
- Includes 696630 Insulated Mounting Standoff Kit - for transformer mount on late-model Associated chargers.

Specifications

- Dual 10 x 50A/400PRV 10MM button diode arrays (20 diodes total)
- Each diode connects to the array via an independent, fusible link.
- Depth: 1.65"
- Height: 3.00"
- Width: 7.75"
- Weight: 1.00
