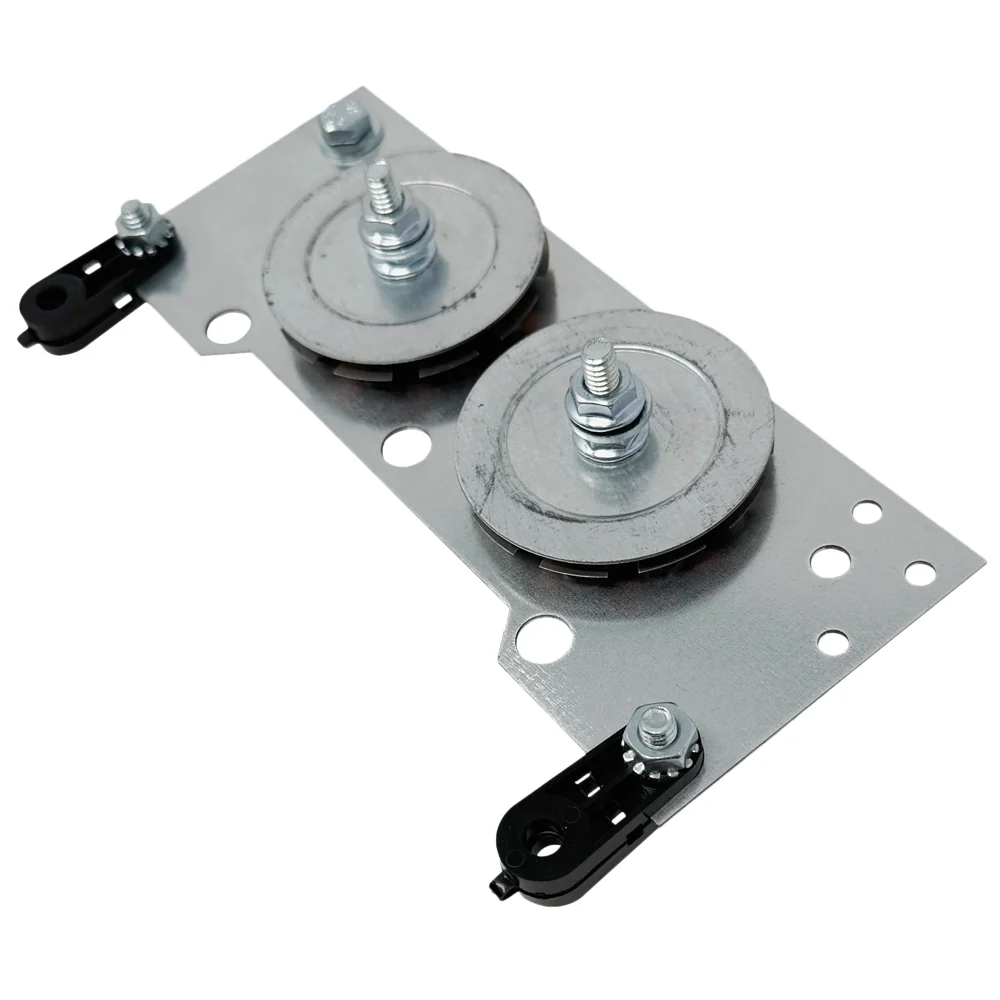

Compact Rectifier designed for use in chargers with continuous-duty output ratings up to 60 Amps, and "Boost" ratings up to 350 Amps. This rectifier is supplied with insulated mounting standoffs as used on late-model Associated Equipment chargers where the rectifier mounts to the transformer laminations.



This rectifier is a direct replacement for Associated P/N 610344, used in Associated Eqpt charger models 6015,Snap-On YA165B and others.



Features

- Fully assembled and tested.
- Dual diode assemblies, each with an array of 4 diodes, for a total of 8 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes.
- Extra capacity makes this the perfect replacement rectifier for a wide variety of moderate-output battery chargers, especially those with "boost" ratings in the 250-350 amp range.
- Straightforward, reparable design. Rectifier damage may be repaired with 696610 Rectifier Rebuild Kit.
- Full-wave rectification.
- Includes 696632 Resistor Kit - for chargers manufactured by Associated Eqpt and equipped with "Stop/Go Lite" polarity protection technology (polarity indicator in the clamp). If your charger does not have this feature, do not install the resistor.
- Includes 696630 Insulated Mounting Standoff Kit - for transformer mount on late-model Associated chargers.

Specifications

- Dual 4 x 50A/400PRV 10MM button diode arrays (8 diodes total)
- Each diode connects to the array via an independent, fusible link.
- Depth: 1.65"
- Height: 3.00"
- Width: 7.75"
- Weight: 1.00
