697124 - Timer Kit - Mechanical 135 Minute Timer with Knob and Screws, Replaces Schumacher 0099000094
135 Minute Mechanical Timer Kit - Direct Replacement for Schumacher 0099000094
Introducing the 697124 Timer Kit, a superior alternative to the discontinued Schumacher 0099000094 timer. With enhancements like silver contacts, copper balance wheel screw, positively secured contact spring, and heavy metal case, this 135-minute mechanical timer is designed to be durable and reliable. No need to worry about fitment problems, this is a direct replacement for the classic 0099000094 timer found in untold thousands of Schumacher chargers. It also replaces many earlier style timers.
When oriented with the "OFF" position at 12 o'clock, this switch has a "HOLD" position (constant ON) when rotated counterclockwise to the 11 o'clock position. Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position at 12 o'clock. The full 135 minute duration is clockwise at 270 degrees from off, or at the 9 o'clock position.
Features
- 135 Minute duration, with "HOLD" position
- Mounts in charger panel with included M3 screws
- Industry-standard .250" solderless push-on connectors
- Straightforward instructions and simple design allows easy installation. No special tools are required
- No AC power is required to run the timer
- Mounting screws are covered by the sturdy press-fit skirted knob
- No specialty tools required
Specifications
- .250" Push-on connectors
- SPST (single pole, single throw) switch action
- Switched Current Rating - 15A/125VAC, 16A/250VAC
- Timer body - 1.71"H x 1.85"W (2.04" incl terminals) x 1.04"D
- Stem - .70"L x 6MM (.236") Diameter
Contents

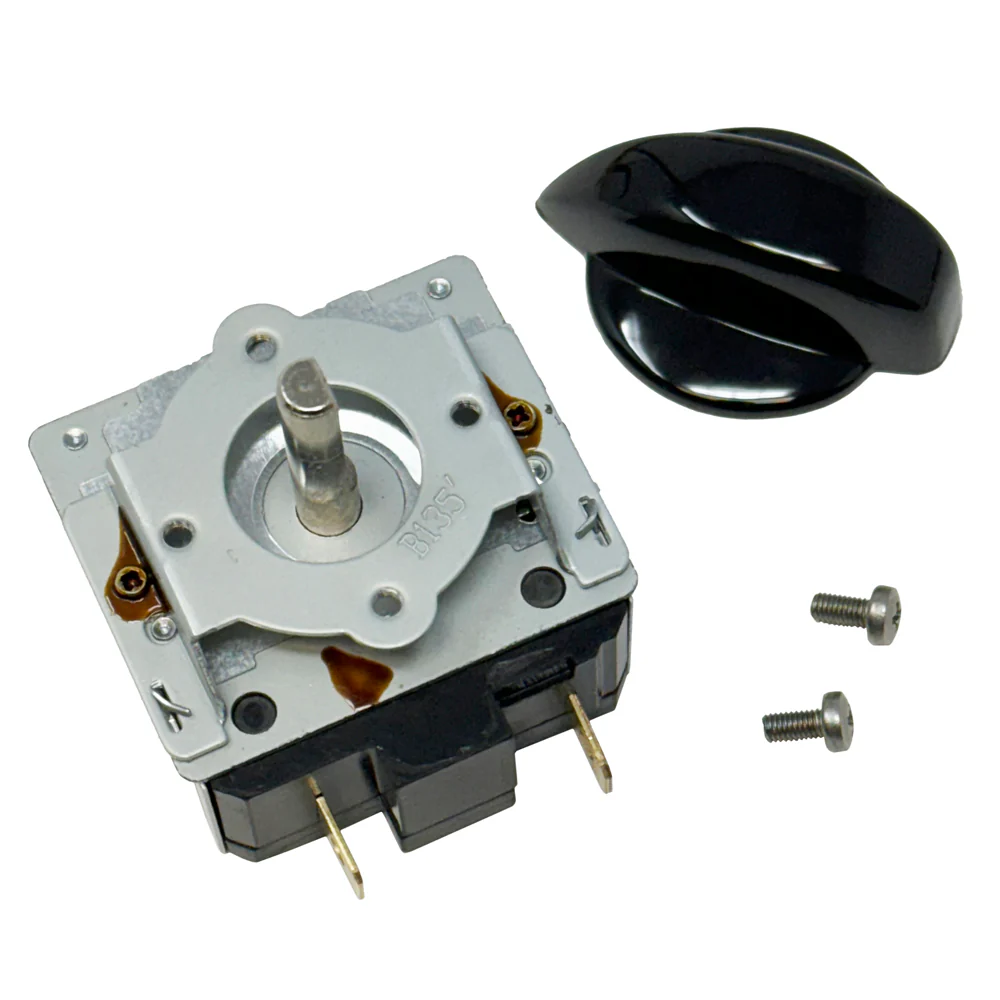

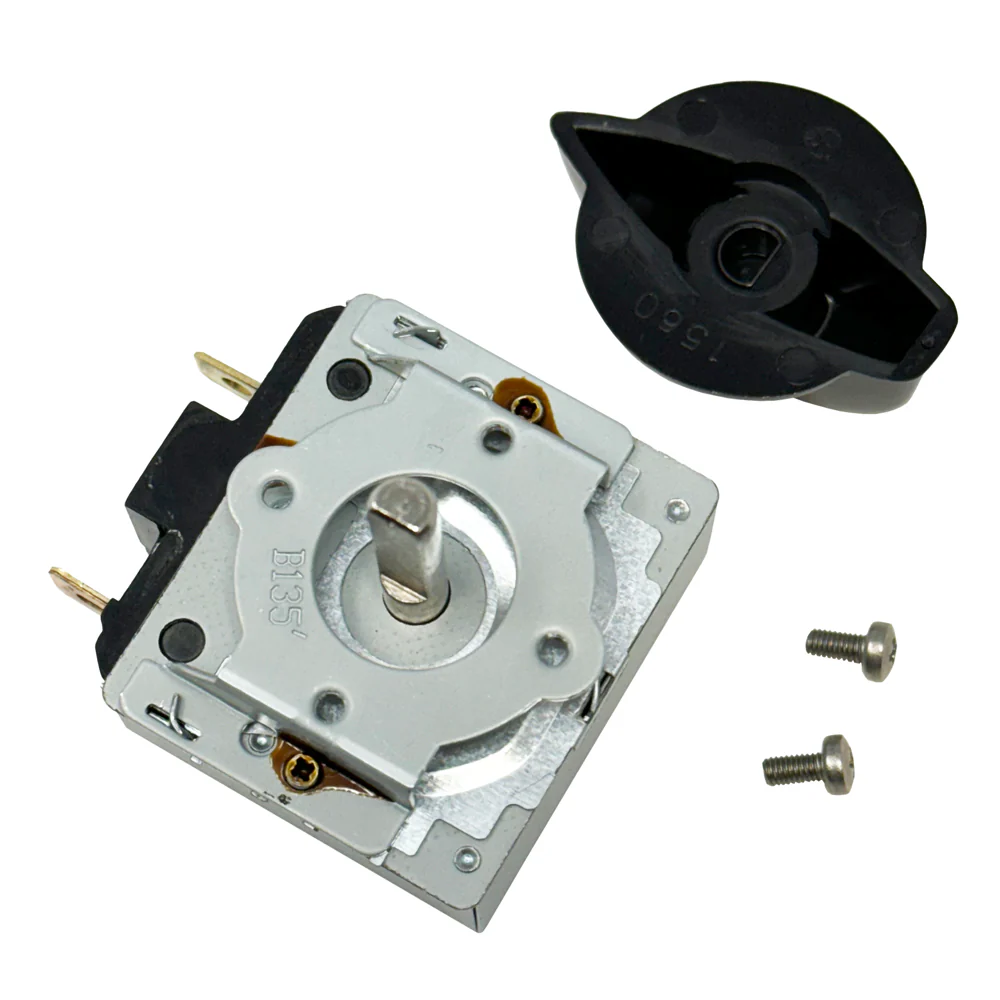

- 135 minute timer with "HOLD" position
- Skirted Pointer-style Knob - push-on fit with metal retainer insert (our part # 696552)
- Mounting screws (M3-0.5 x 6mm)
- Instruction sheet
Cross Reference
Compatible Timers
0099000094
0099-000094
Compatible Chargers
Schumacher Electric
PS-3000
PS-5250 0099000064
PS-8050
PSC-2030T
PSW-22
PSW-2035
PSW-2550
PSW-3060
PSW-61224
PSW-70300A
SE-60 (OE is a 12 hour timer)
SE-1012D
SE-1024D
SE-2001
SE-2158
SE-2254
SE-3000
SE-3522
SE-3612
SE-4020
SE-4022
SE-4220
SE-4225
SE-5025
SE-6030
SE-6242A
SE-8050 (old style)
SE-8050 (new style)
CarQuest
CBC7350
Sears
71240
71450
71460
John Deere
TY25862
TY25862 / 5250
TY25863 (JD-200-30T)
TY26878
Information Downloads
