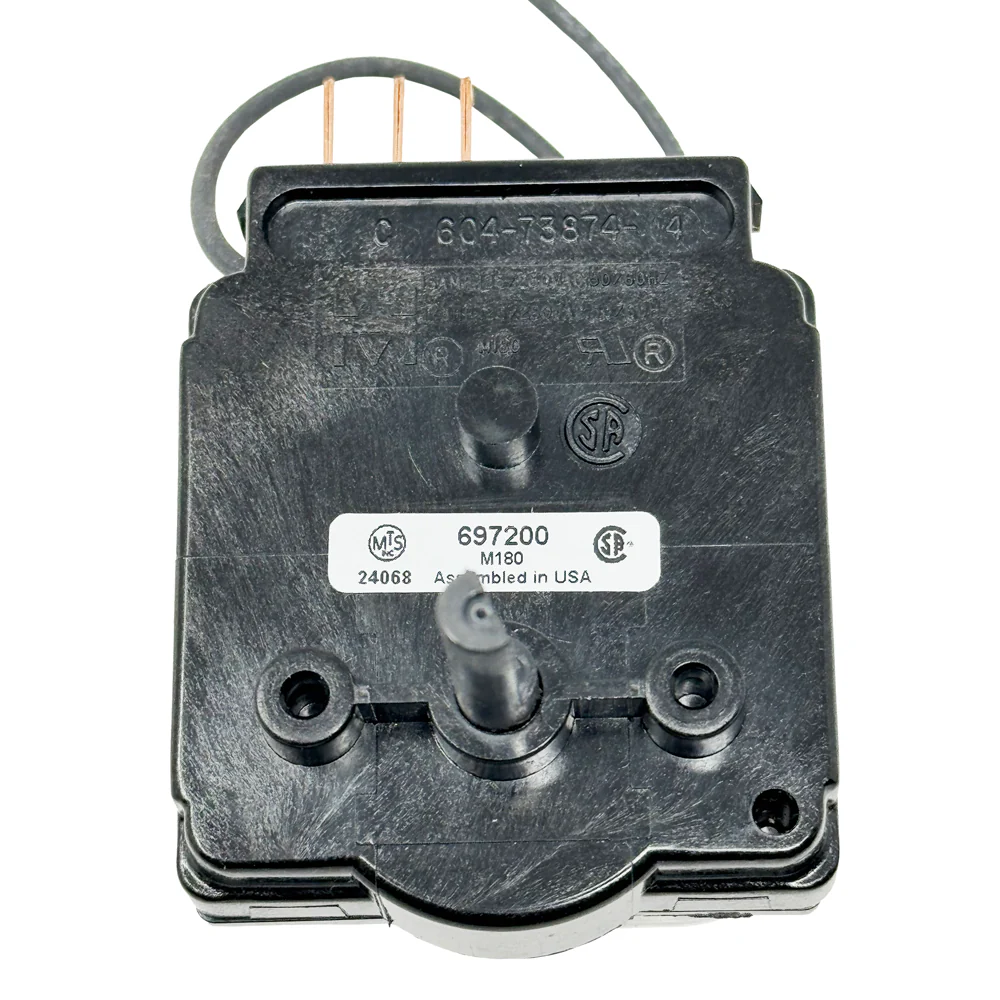

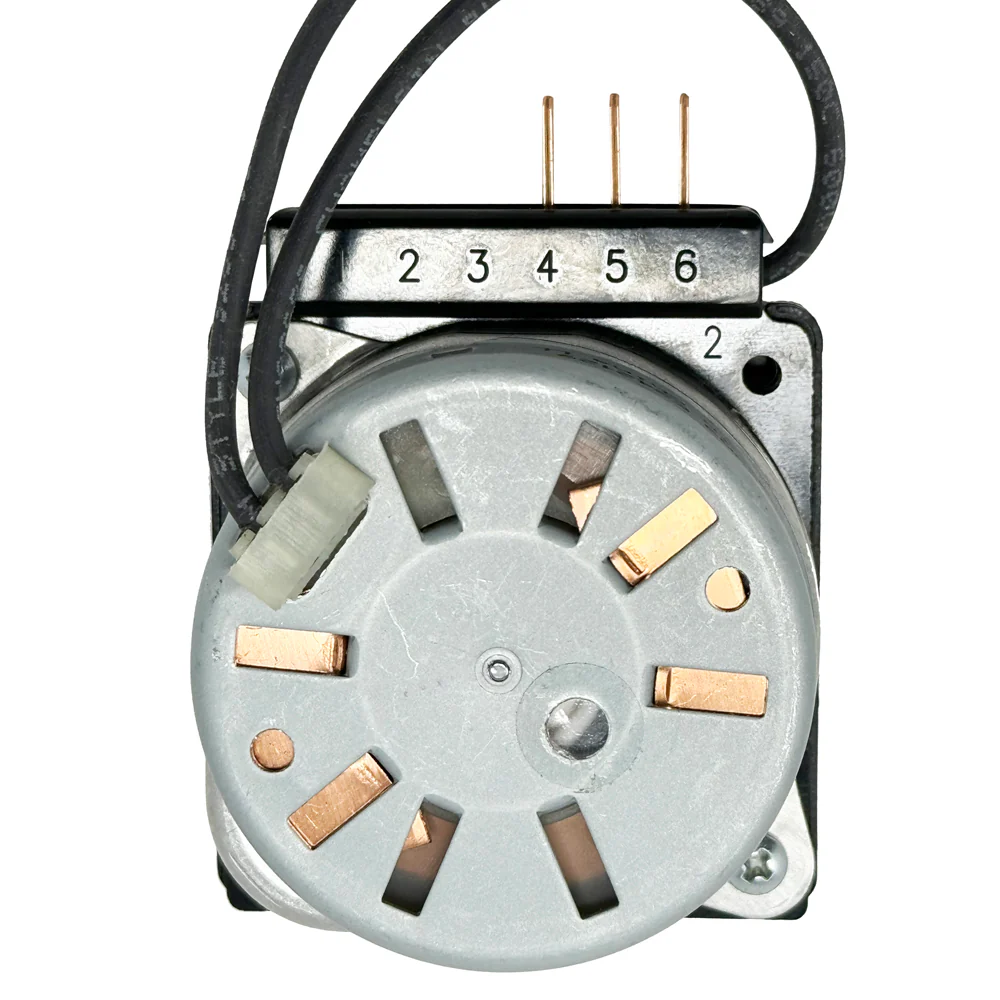

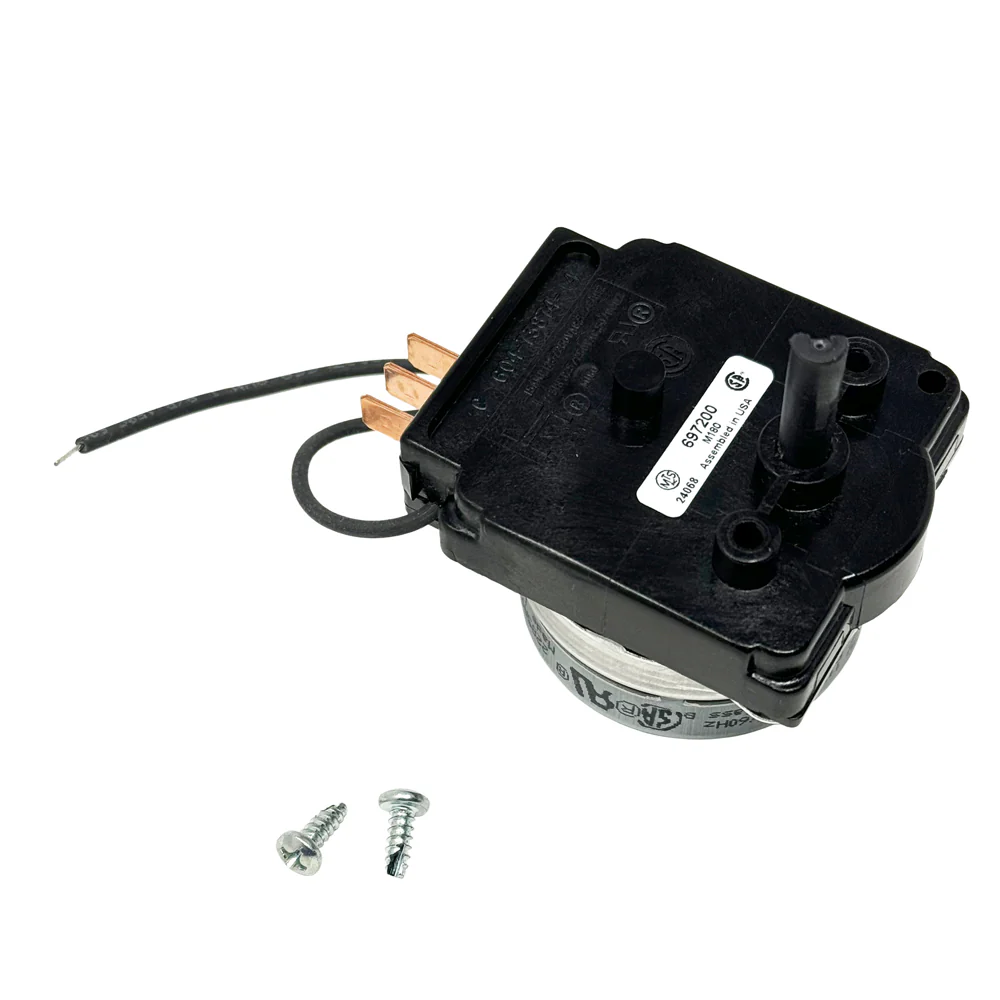

Timer ONLY - 120 Min Electromechanical, Screw Mount, Exact OEM replacement for Associated 611245 (045-0026) (NO KNOB)



This is the most economical way to purchase this replacement timer for Associated Equipment chargers. It is the best value if the timer dial face on your charger is still legible (you don't need dial labels) and you can re-use your old knob - all you need is the timer itself.



- Exact OEM replacement for Associated Timer 611245 (045-0026)
- Same timer as used in Associated 611254 Timer Upgrade Kit
- 120 VAC
- Uses 2 ea 609052 mounting screws (included)
- Made in the USA



DOES NOT INCLUDE KNOB or TIMER DIAL LABELS. If you need these parts for your installation, order 697202 Timer Installation Kit, which includes these items with the timer.



Specifications

Input: 120 VAC
Connectors: .250" push-on
Switched Current Rating: 15A, 125/250VAC, 50/60HZ
Timer body Dimensions: 2.476"H x 2.01"W x 1.969"D
Stem: .815"L x .248" Diameter
Shaft Width at Flat: .156 in (approximately 1/3 removed)

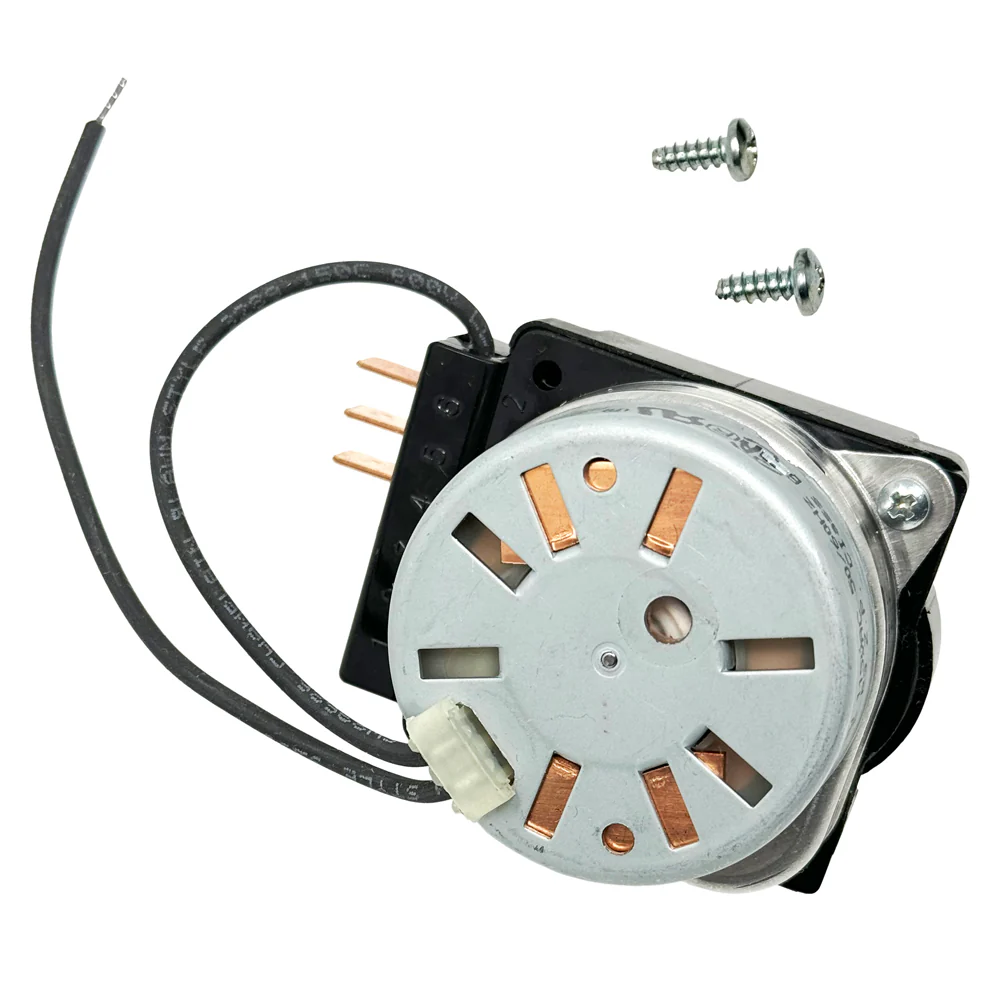

Supplied Hardware: (2) #6 thread-cutting screws, Phillips head



Information Downloads

697200 Installation Instructions
