697203 - Timer Kit - Electromechanical 120 Min w/Hold, with Knob and Hardware - Threaded Bushing Mount
Timer Kit - Electromechanical 120 Min w/Hold, with Knob and Hardware - Threaded Bushing Mount
This timer kit contains components necessary to replace obsolete electromechanical timers in many older battery chargers. The included dial labels are particularly helpful in retrofit applications – for example, replacing a 90-minute timer.
Note that these installations are not direct “bolt‑in” replacements. Some modification of the charger cabinet may be necessary (e.g.- drilling holes), as well as a basic electrical knowledge and skill level.
Basic electrical tools are necessary. A multi‑meter may also be required.
This switch typically mounts in one of two orientations:
Horizontal Mount - the anti-rotation pin is aligned below the knob stem (at 6 o'clock) and the OFF position is at approximately 2 o'clock on the timer dial face.
Vertical Mount - the anti-rotation pin is aligned to the right of the knob stem (at 3 o'clock) and the OFF position is at approximately 11 o'clock on the timer dial face.
In either orientation, the timer has a "HOLD" position (constant ON) when rotated counterclockwise from OFF by approximately 15 degrees. Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position and power off the charger.
Features
- 120 Minute duration, with "HOLD" position.
- Mounts in charger panel with included panel nut and lock washer.
- Straightforward instructions and simple design allows easy installation. No special tools are required, though drilling may be necessary.
- Made in the USA
Specifications
- .250" Push-on connectors
- Switched Current Rating - 15A, 125/250VAC, 50/60HZ
- Timer body - 2.476"H x 2.01"W x 1.969"D
- Stem - .815"L x .248" Diameter

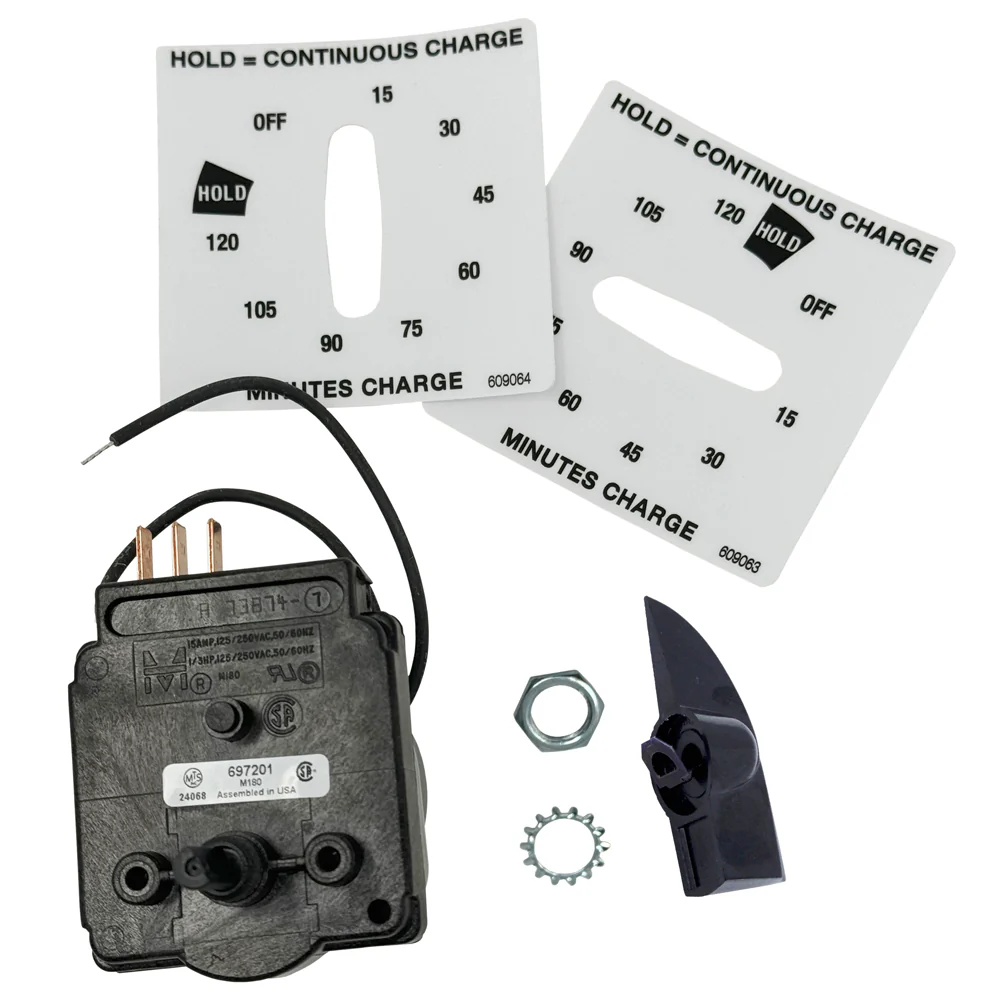

Contents

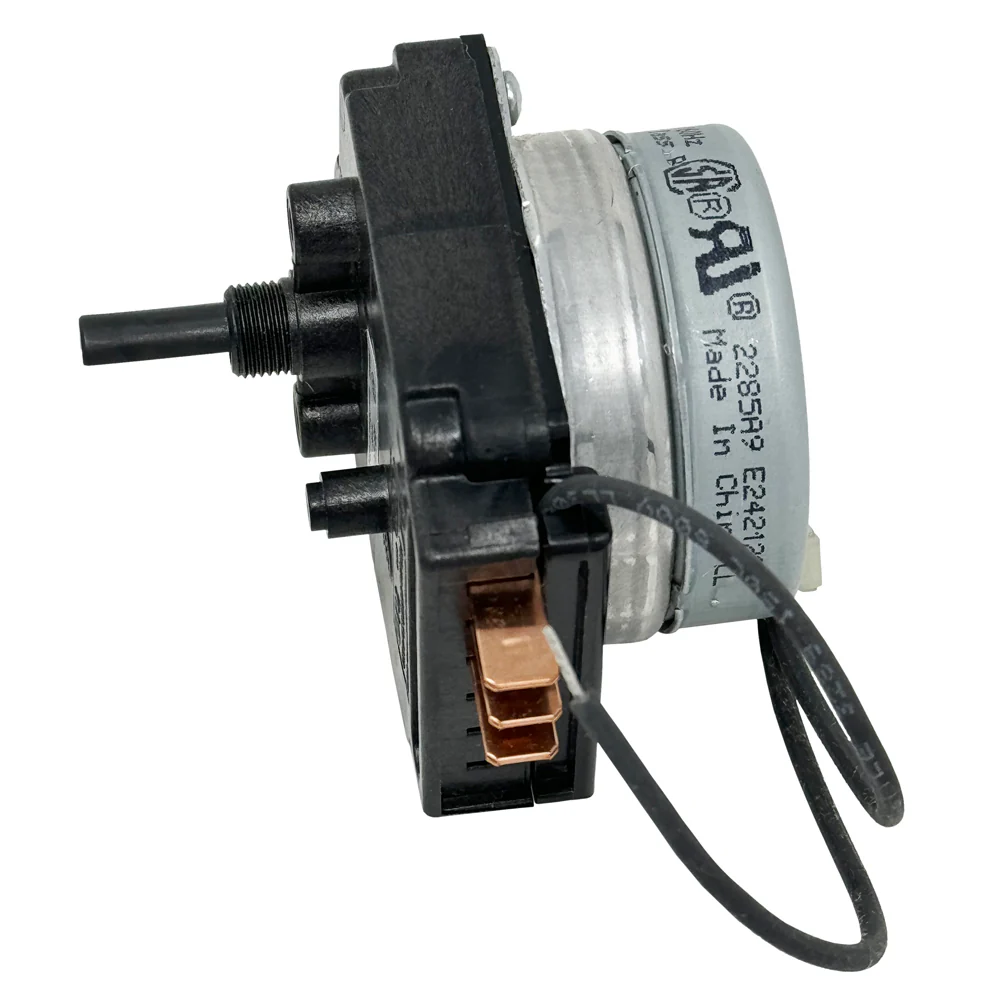

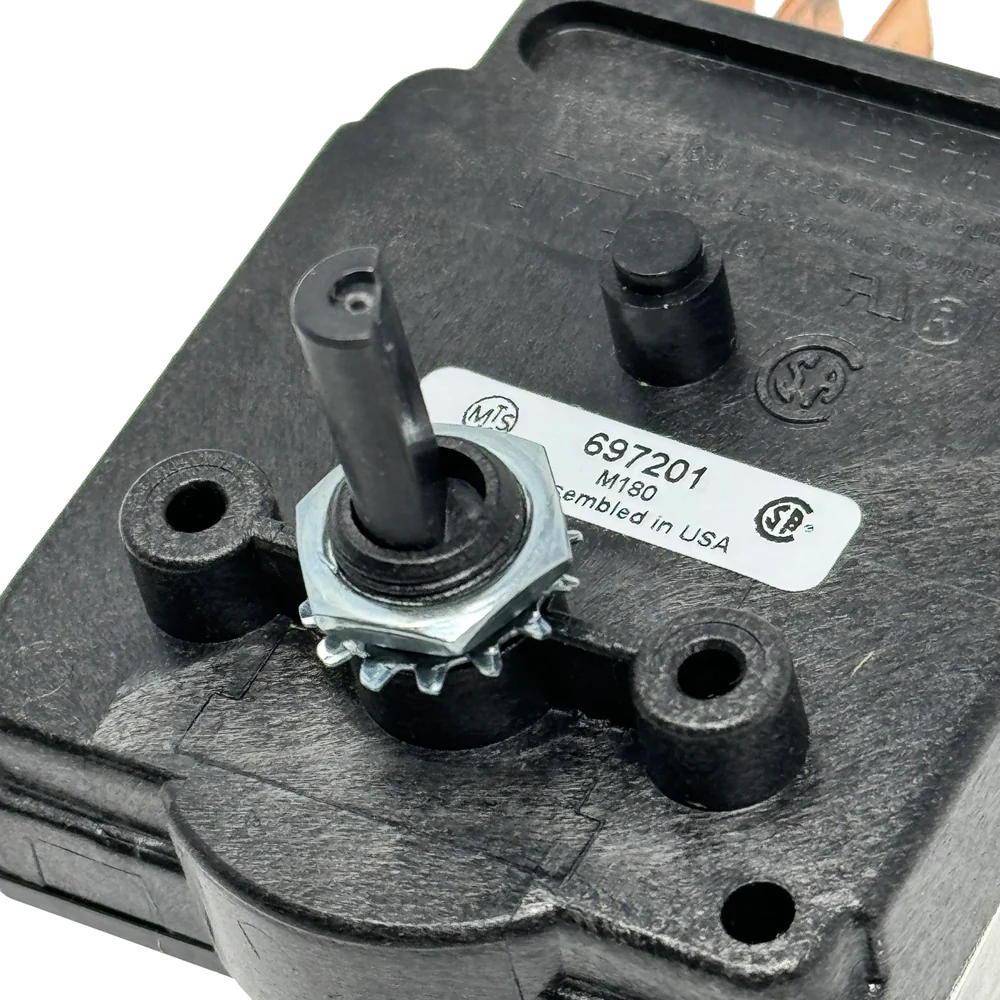

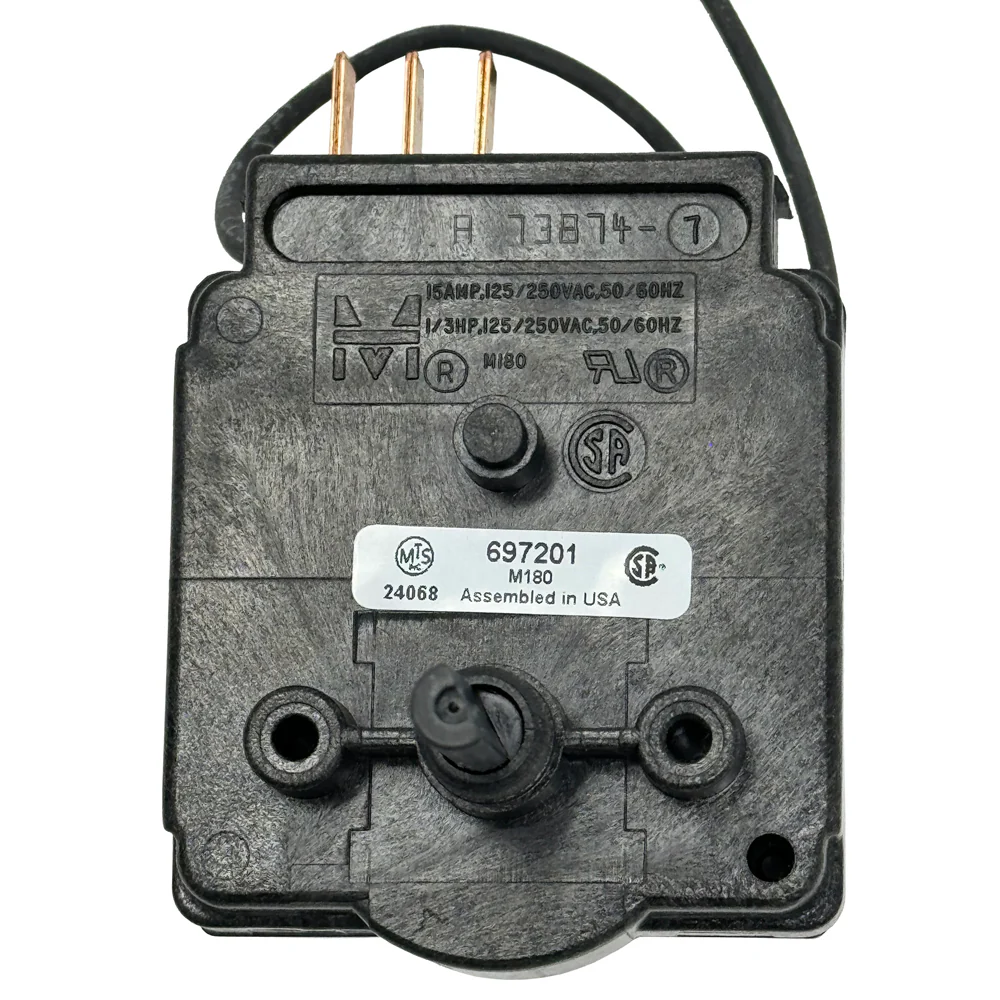

1 - 697201, 120-minute electromechanical timer with panel nut and lock washer
1 - 696550, spring clip pointer knob (EXACT OEM replacement for Associated 603147)
1 - 609063, timer dial label - horizontal mount
1 - 609064, timer dial label - vertical mount
1 - Installation Instructions
