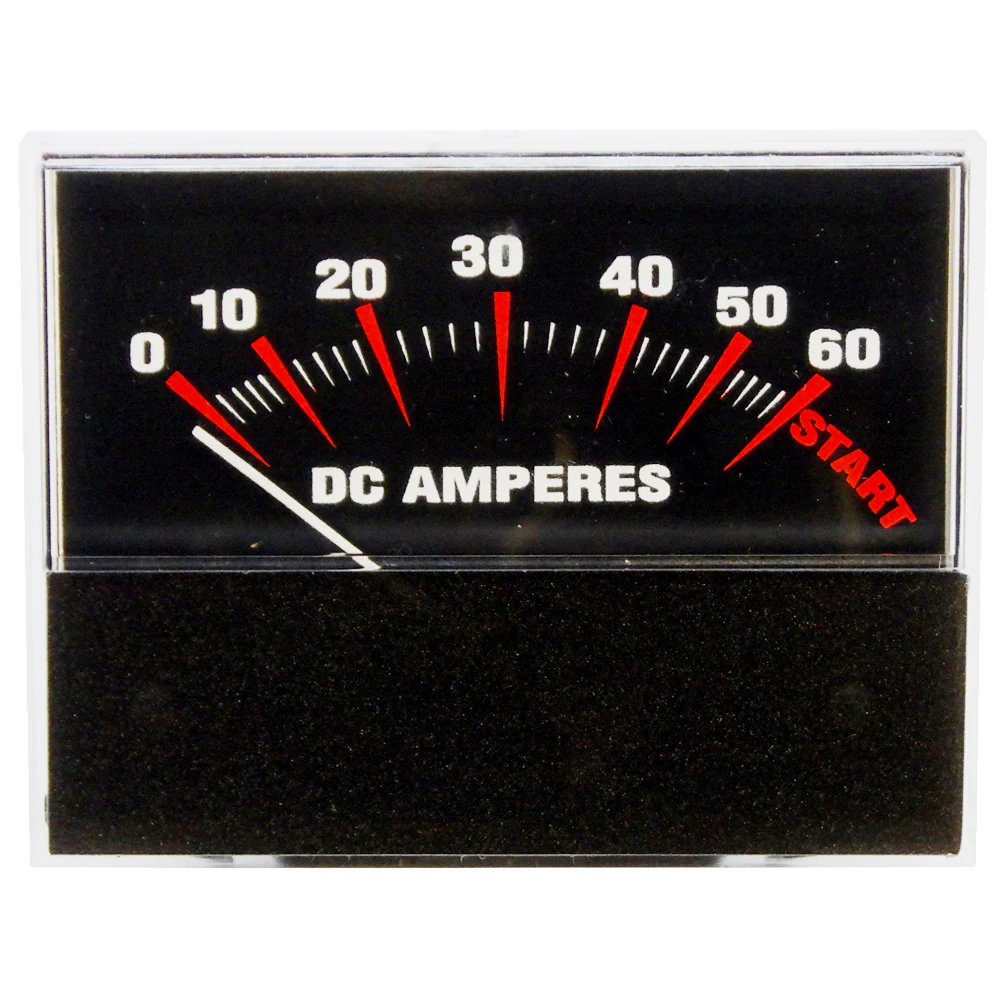

Original Replacement for various Schumacher and other chargers. Inductive pickup, no meter connections required. Snap-in mount to charger panel. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel. Check width for clearance. Direct Replacement for Schumacher meter 5399-100-146.

Fitment Note: Bezel is significantly larger than mounting hole.

Also replaces these OEM amp meters:

Schumacher 5399-100-146 (60A w/Boost) Direct Replacement
Schumacher 5399-100-149 (50A w/Boost)
Schumacher 5399-100-147 (40A w/Boost)

Note: Product Number changed 2/15/2024. Old number PR21S-60B.

Features

• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom

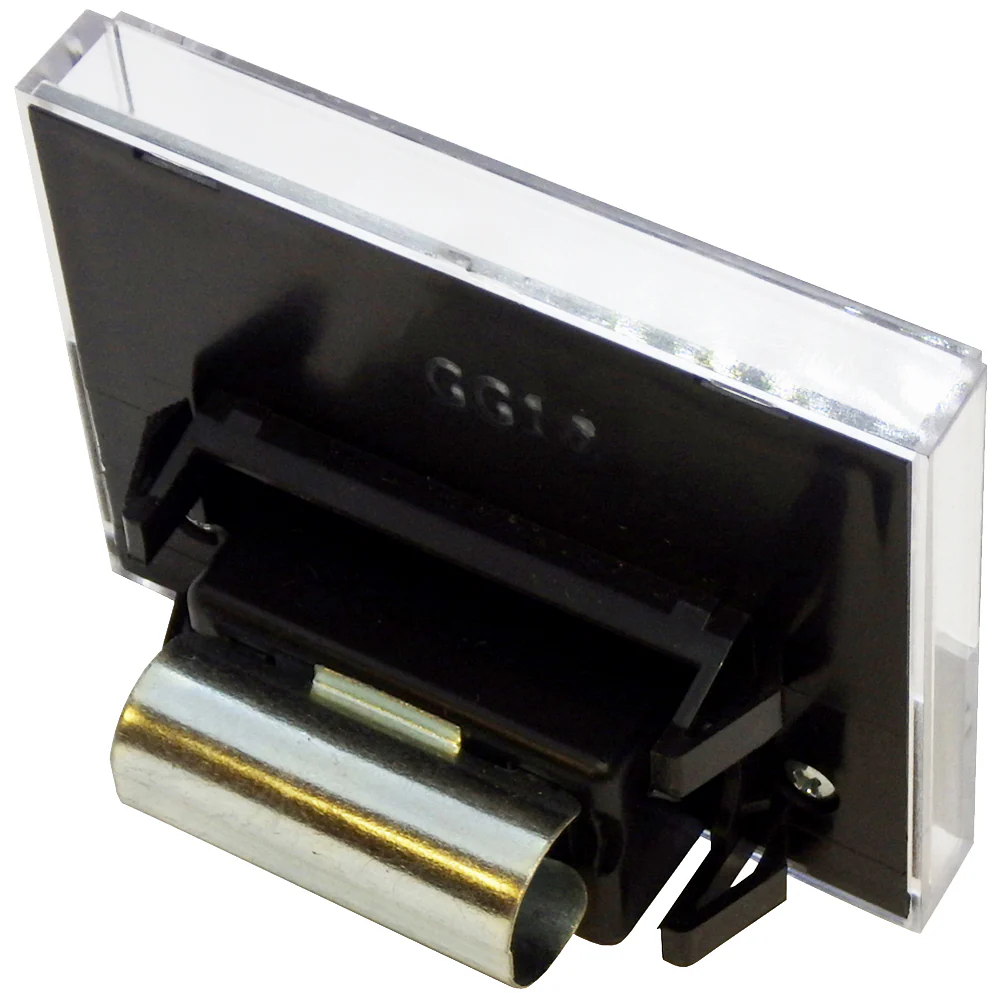

• Inductive Pick-up - Charging current flows through the pick-up
• Accuracy: 5% of Full Scale

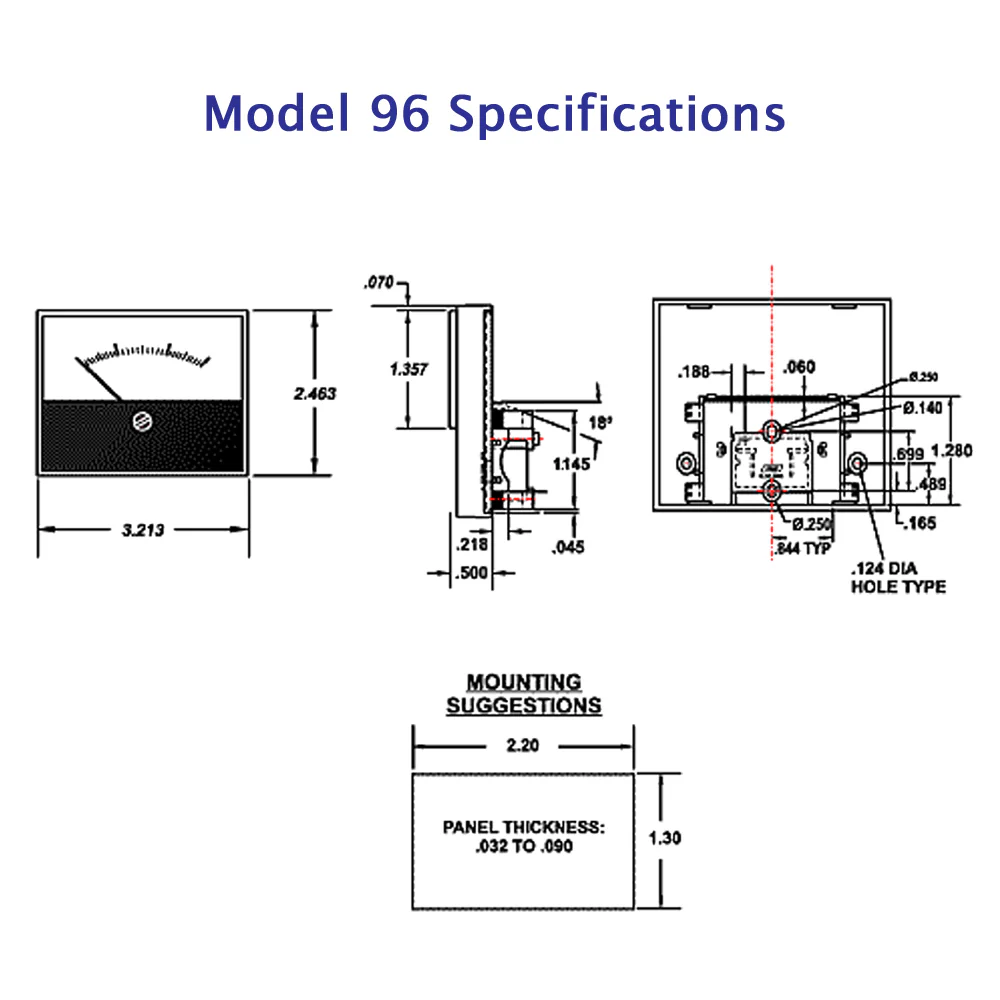

Specifications

• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
