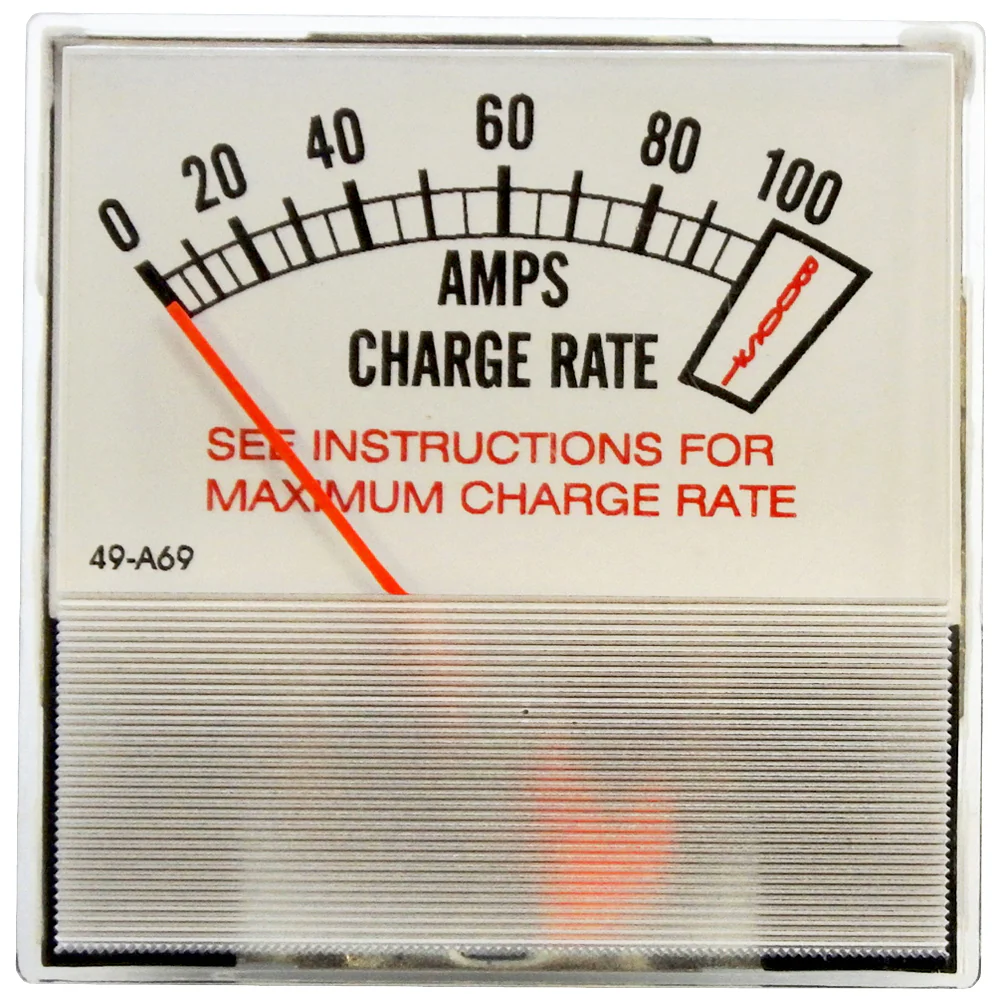

PR37-100B - Amp Meter 0-100A w/Boost Clamp-Mount Heavy-Duty for Battery Chargers
0-100 Amp Heavy-Duty DC Amp Meter w/Boost for Battery Chargers with Clamp-Mount Installation.
Original Replacement for Various 50-90 Amp Chargers. Also an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel. Can replace Associated 605204 (Using U-Clamp instead of corner studs).
Features
• Polystyrene Bezel with Zinc-Plated Steel Backplate
• Rugged, Moving Magnet construction
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale

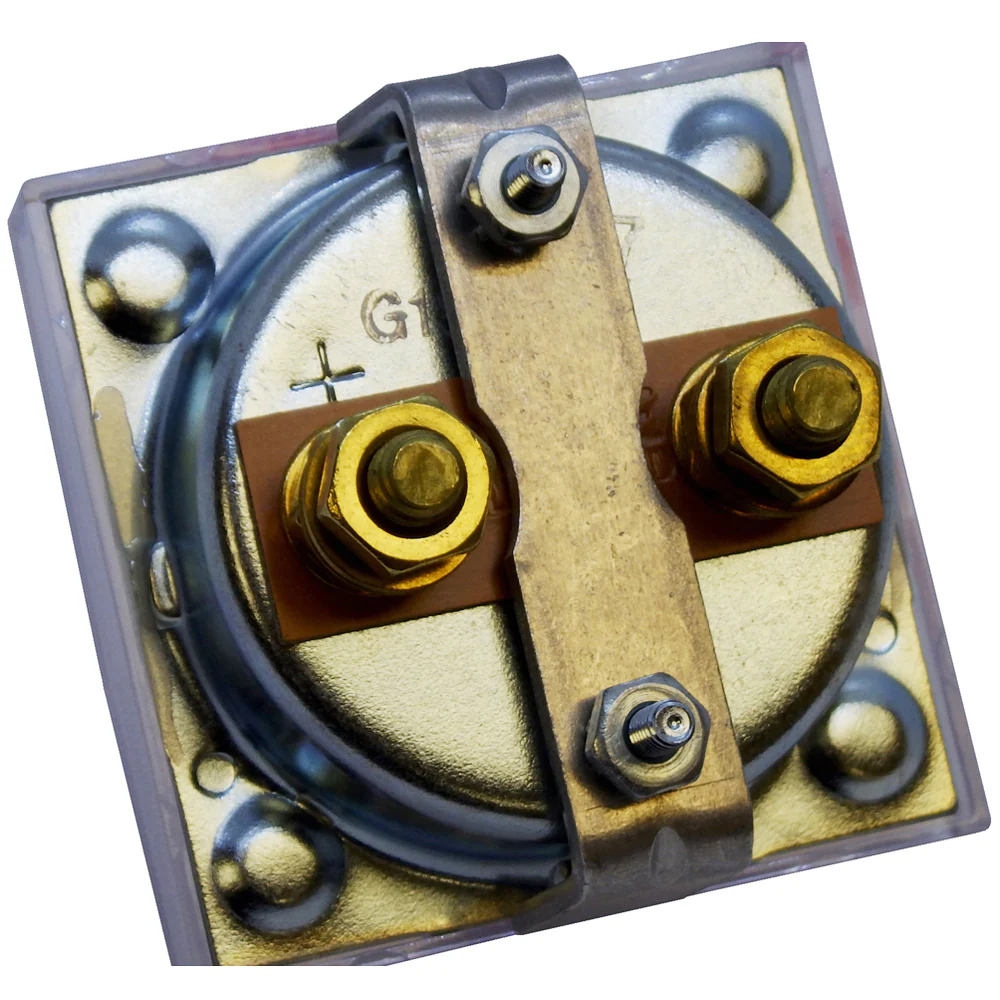

• Includes Mounting & Connection Hardware
• Made in U.S.A.

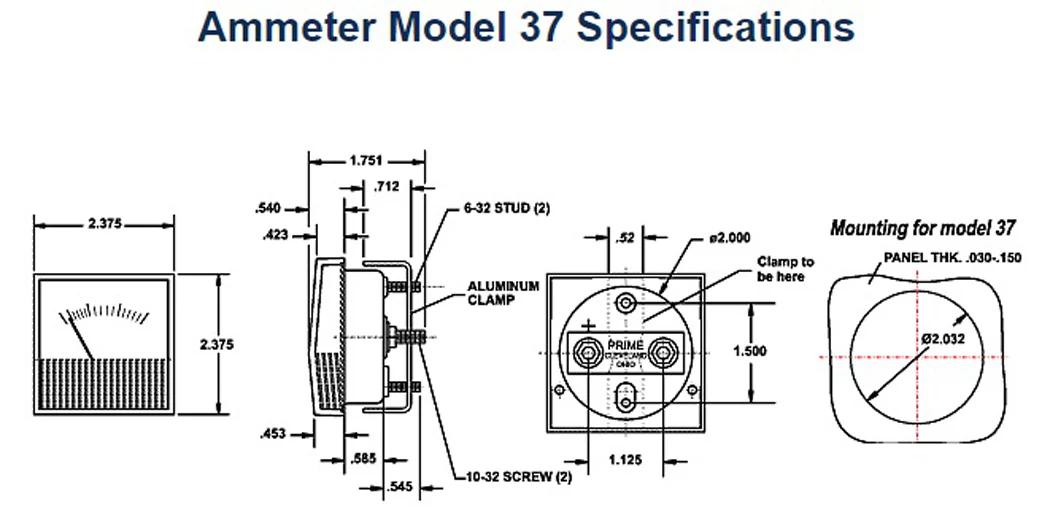

Specifications
• 2.375"L x 2.375"W x .540"H Bezel Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors
Related Items
PR2763-2 - Replacement Bezel for Type PR27 & PR37 Meters
0-100 Amp Heavy-Duty DC Amp Meter w/Boost for Battery Chargers with Clamp-Mount Installation.
Original Replacement for Various 50-90 Amp Chargers. Also an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel. Can replace Associated 605204 (Using U-Clamp instead of corner studs).
Features
• Polystyrene Bezel with Zinc-Plated Steel Backplate
• Rugged, Moving Magnet construction
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.
Specifications
• 2.375"L x 2.375"W x .540"H Bezel Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors
Related Items
PR2763-2 - Replacement Bezel for Type PR27 & PR37 Meters
