DHC BT2400PRO - Professional Cloud-Ready Battery & Electrical System Tester w/ Printer, App & Bluetooth
BT2400PRO is a professional hand-held battery and electrical system tester with built-in VIN code scanner and temperature sensor. It also supports DHC cloud data service as a complete battery management solution for your business.
The BT2400PRO from DHC is the ultimate in next-generation battery / electrical system testers. Based on the DHC Performance Platform, it offers better accuracy, user experience, and flexibility. Equipped with a new color TFT-LCD display, brand-new user interface, and a temperature sensor, it is engineered to be fast, accurate, and easy to use. With it's full feature set and top-of-the-line functionality, it is an excellent choice for professional technicians in the automotive/light truck service industry.
Features
Battery, Cranking, and Charging System Tester
- 6V and 12V battery tests
- 12V START-STOP battery test
- 12V and 24V cranking/charging system test
- Internal resistance tests
Temperature Sensor
The BT2400PRO has a built-in infrared temperature sensor for accurate and instant temperature compensation.
Intuitive Graphical User Interface
- Color TFT-LCD display
- Virtual keyboard for fast input
- Clear and friendly interface
Wired & Wireless Connectivity
- Built-in WIFI connectivity
- USB Type-A port
- Auto date/time
Flexible Battery Type Support
In addition to the traditional AA alkaline batteries, the BT2400PRO can also support AA NiMH rechargeable batteries and 18650 Li-Ion rechargeable batteries. DHC recommends 18650 rechargeable Li-Ion batteries for the best battery life performance.
DHC Cloud Services (mybatteryexpert.com)
- Upload test results automatically through Wi-Fi
- Store and manage data through our cloud interface

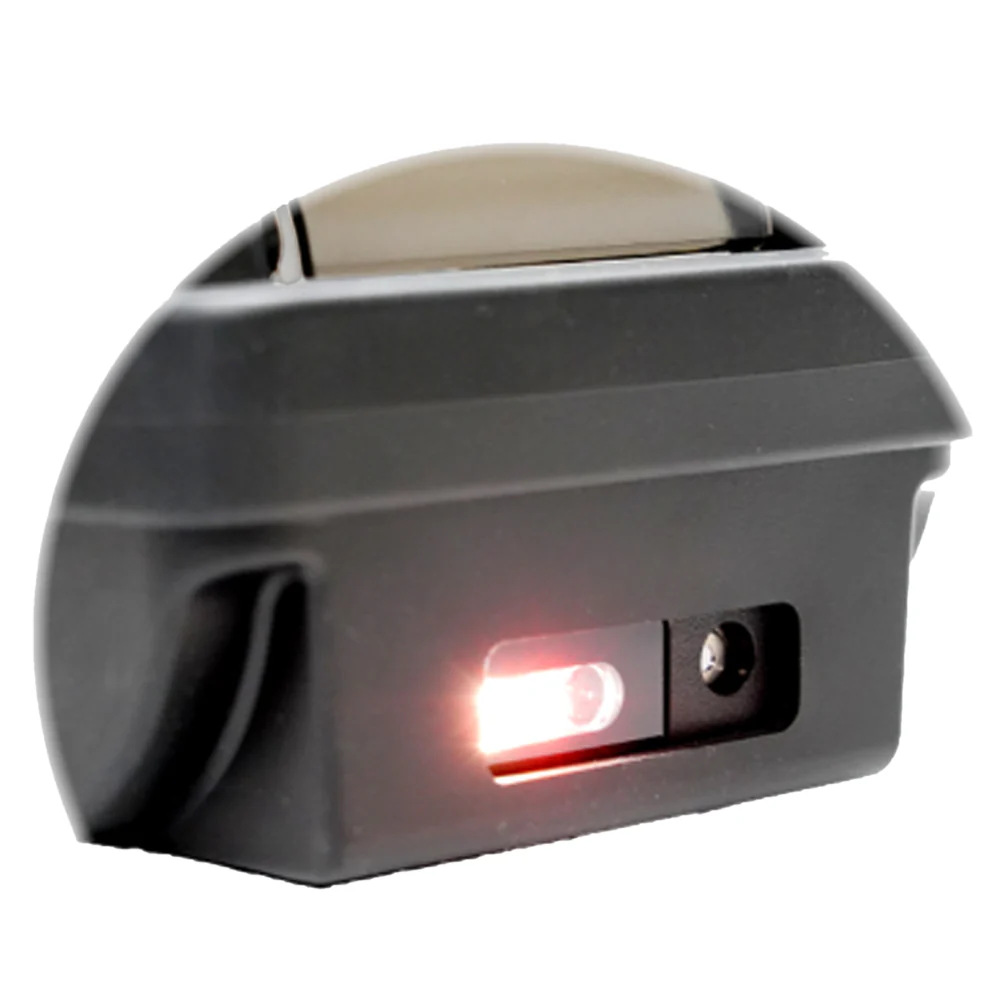

1D/2D Bar Code Scanner
- Support VIN code scan
- Improve efficiency and shorten test time
On-Tester Clamp-Cable Diagnostics
Built-in clamp and cable diagnostic capability to confirm component performance.

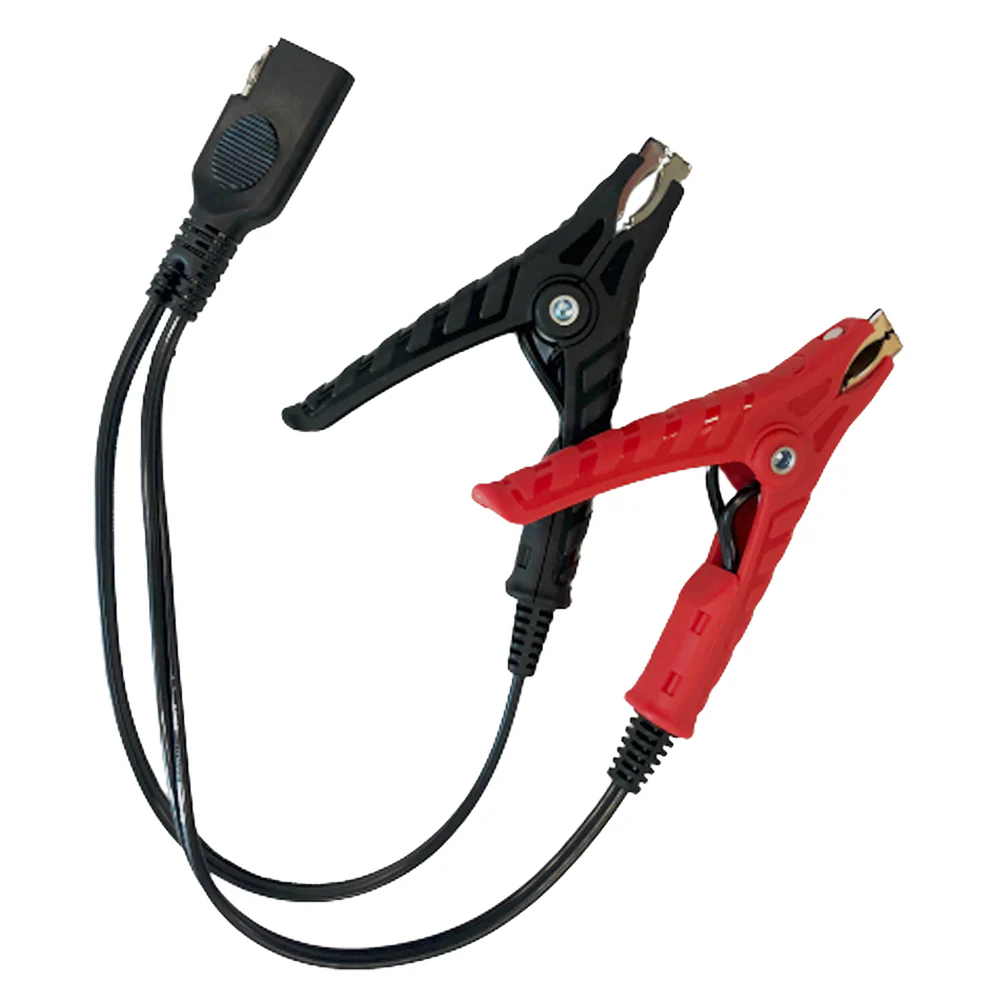

Field-Replaceable Clamp Sets
All BT2400 Series testers now feature easily replaceable clamp sets that plug into the tester lead set with a standard flat plug. If clamps become damaged, simply order replacement clamp set PN 324BT1000000.
Stay Up to Date
Over-the-Air in-field firmware update means the BT2400PRO is ready for future battery technologies and additional functionality.
Amp Clamp & Voltage Probe Support
Optional amp clamp (PN 1019309201) and voltage probe (PN 1027241801) are available for enhanced testing capabilities.
12 Month Warranty
Specifications
DHC BT2400PRO Specifications
Battery Test: 6V, 12V
Start-Stop Battery Test: 12V
Cranking/Charging System Test: 12V, 24V
Internal Resistance Test: 12V, 24V
Supported Battery Types: Flooded, AGM Flat Plate, AGM Spiral Plate, EFB, VRLA, GEL
Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
Operating Range: 25 to 3,000 CCA
Voltage Range: 1V to 32V
Operating Temperature: 0-50°C (32-122°F)
Sensor Array: Barcode Scanner, Temperature Sensor
Input Device: 6-key keypad (up, down, left, right, enter, back)
Display: TFT-LCD Color Display with Intuitive Graphical User Interface (240x320)
Test Code and Test Counter: Yes - Recall and Print Last 7 Days Test Results
Built-in Clamp and Cable Diagnostics: Yes
Clamp-Cable Set Length: 5.9 ft
Detachable Clamps: Yes (replacement PN 324BT1000000)
Voltage Probe: Optional (PN 1027241801)
Amp Clamp: Optional (PN 1019309201)

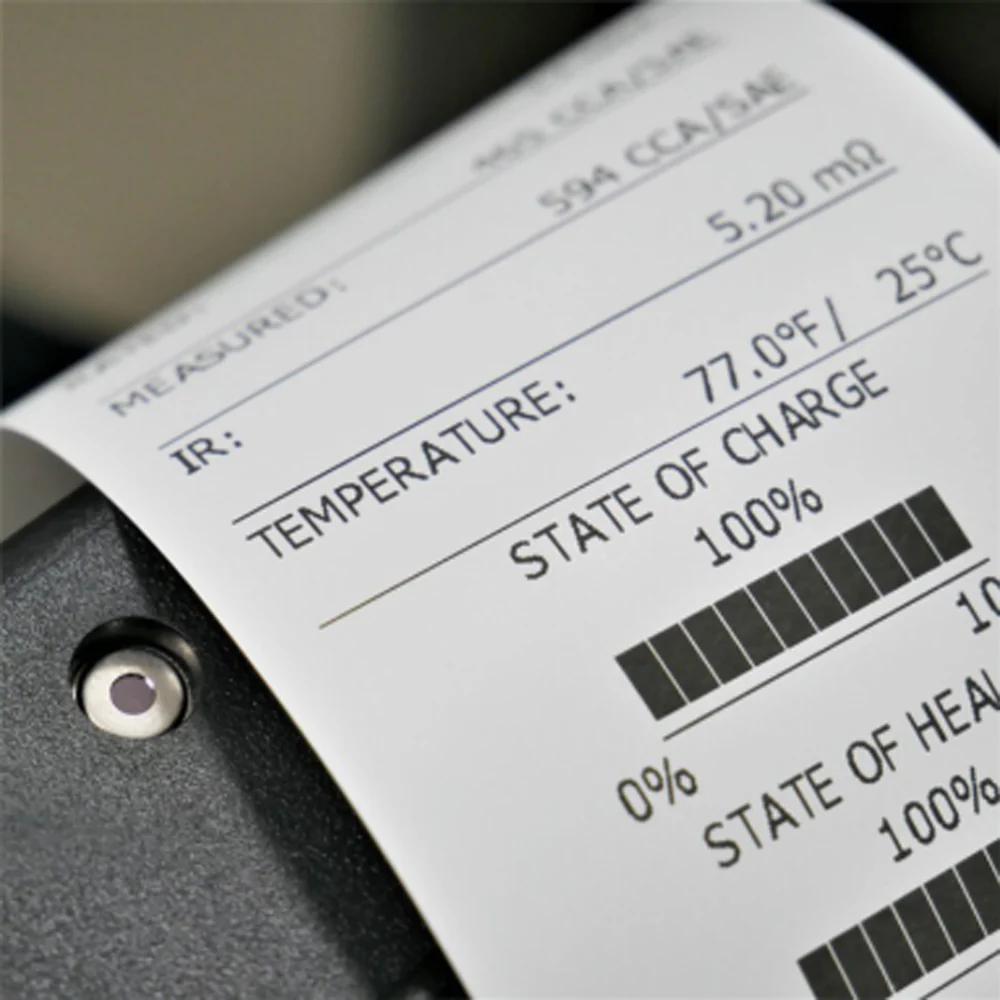

Printer: 2-inch thermal printer
Internal Battery Support: AA Alkaline, AA NiMH rechargeable, 18650 Li-Ion rechargeable batteries
Wireless Connection: WiFi, Bluetooth
Wired Connection: USB Type-A
PC Software: Yes, Supports DHC Result Management Software
Firmware Update: Yes, In-Field via PC Software or Cloud Interface
Cloud Data Management: Yes
Dimensions (L x W x H): 11.2 x 5.5 x 3.0 in (285 x 140 x 75 mm)
Operating Languages: English, French, Spanish, German, Italian, Portuguese
Shipping Carton Dimensions
Length (in): 18.5
Width (in): 13.39
Height (in): 4.73
Weight (lbs): 7.05
What's in the Box
- BT2400PRO Tester
- Thermal Printing Paper (uses standard 2.25" thermal printer paper, available at any office supply store)
- AA batteries
- Hard-Shell Protective Carrying Case
Information Downloads
