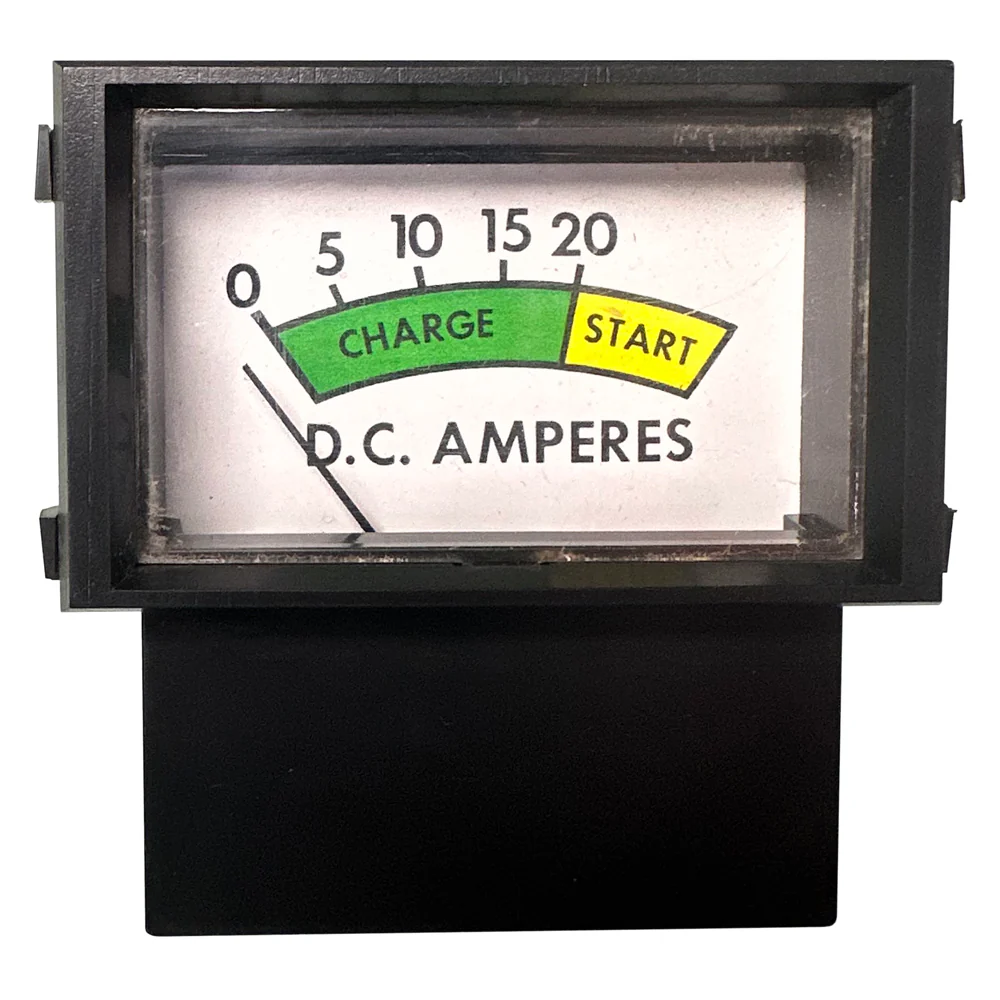

PR18-20B - Amp Meter 0-20A with Boost Snap-In for Battery Chargers
Snap-in amp meter. 0-20 amp with "Boost" scale. Original replacement for various 20-30 amp chargers from Schauer, Schumacher, etc. Snap-in mount to charger panel. .250" push-on connectors.
Direct Replacement for Schauer 0508-024397
Features
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Made in U.S.A.

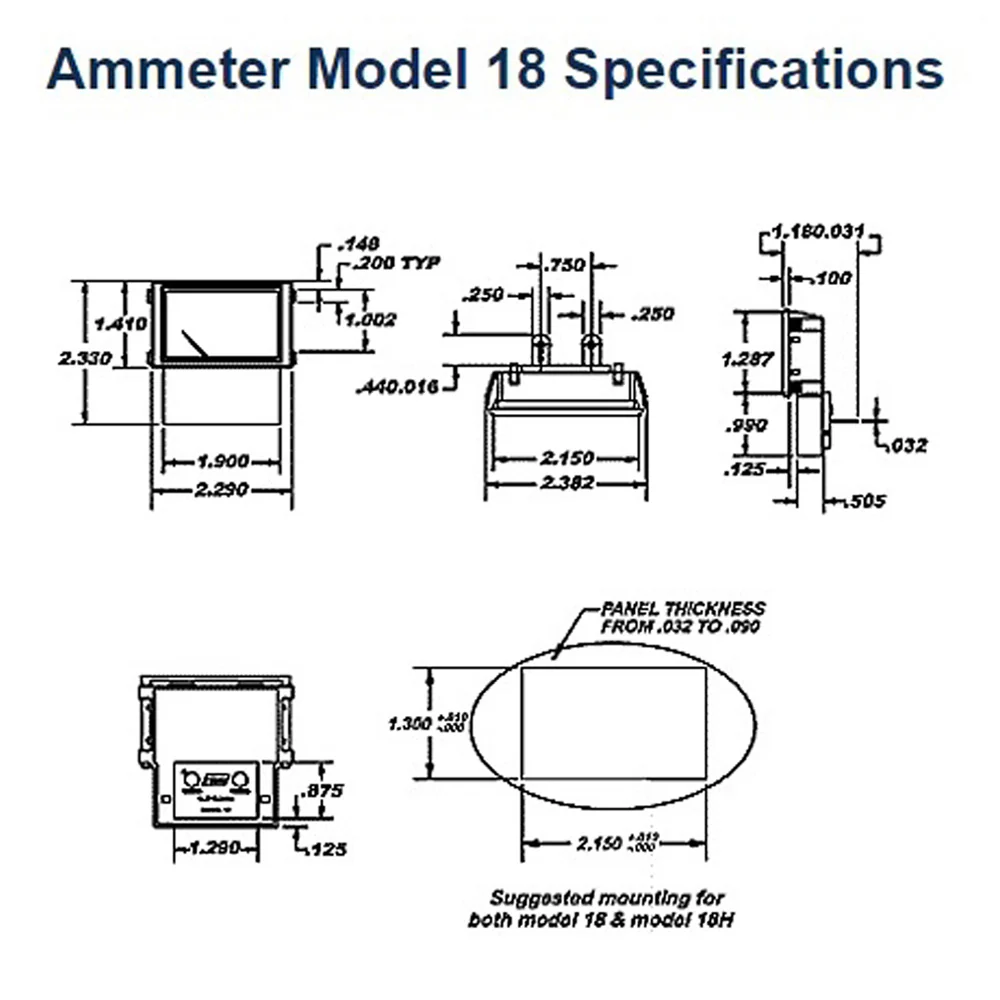

Specifications
• 1.4"H x 2.3"W Bezel Frame Outer Dimensions
• 1.3"H x 2.15"W Panel Mount Hole
• .250" Push-On Connectors
Related Items
PR3551-1 - Replacement Bezel
PR3327 - Induction Clip
