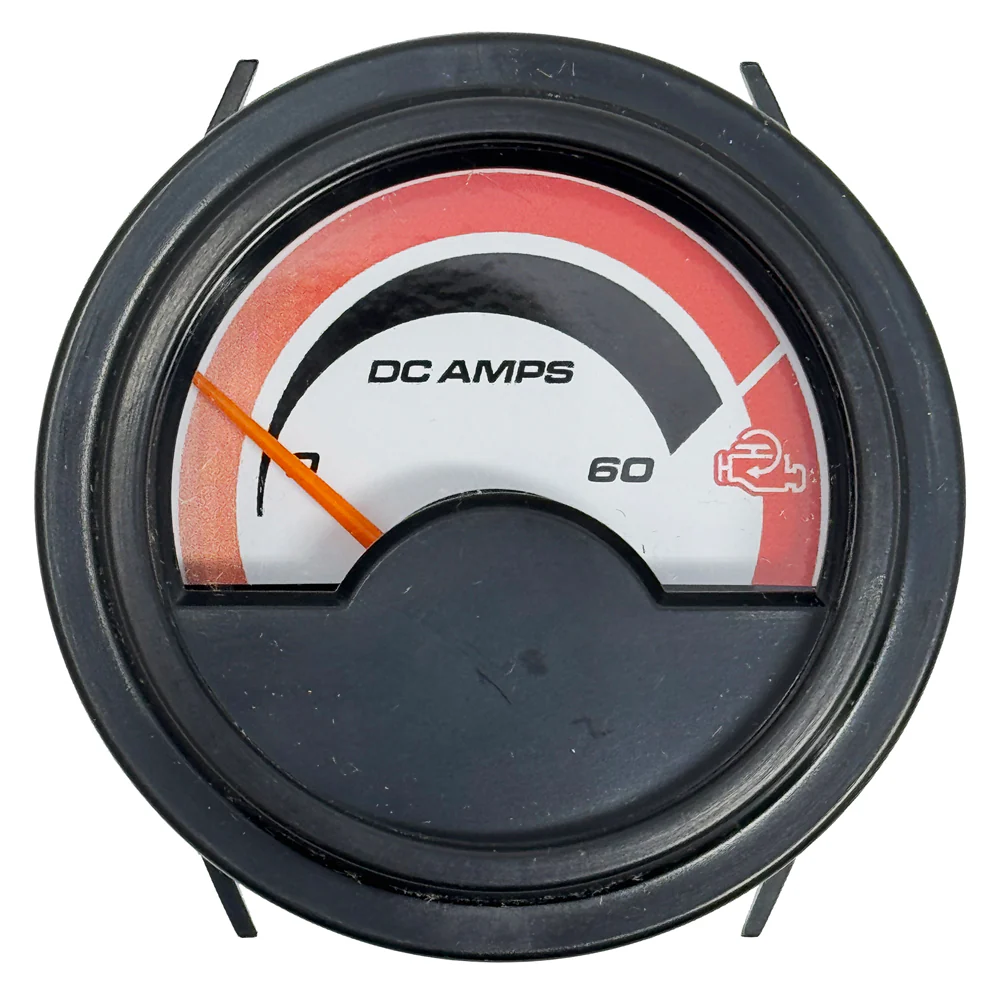

Amp Meter, 0-60A w/Boost Round Snap-In w/Inductive Pick-Up for Schumacher Battery Chargers

Schumacher PN: 5399200035, 5399-200-035



Original replacement for various Schumacher wheel chargers from 40-60 Amp plus boost.
Direct replacement for Schumacher meter 5399-200-035 (5399200035).



- Direct OEM replacement for Schumacher meter 5399-200-035 (5399200035)
- Can be retro-fit to other chargers
- Bezel Frame Outer Diameter: 2.23 in (56.64 mm)

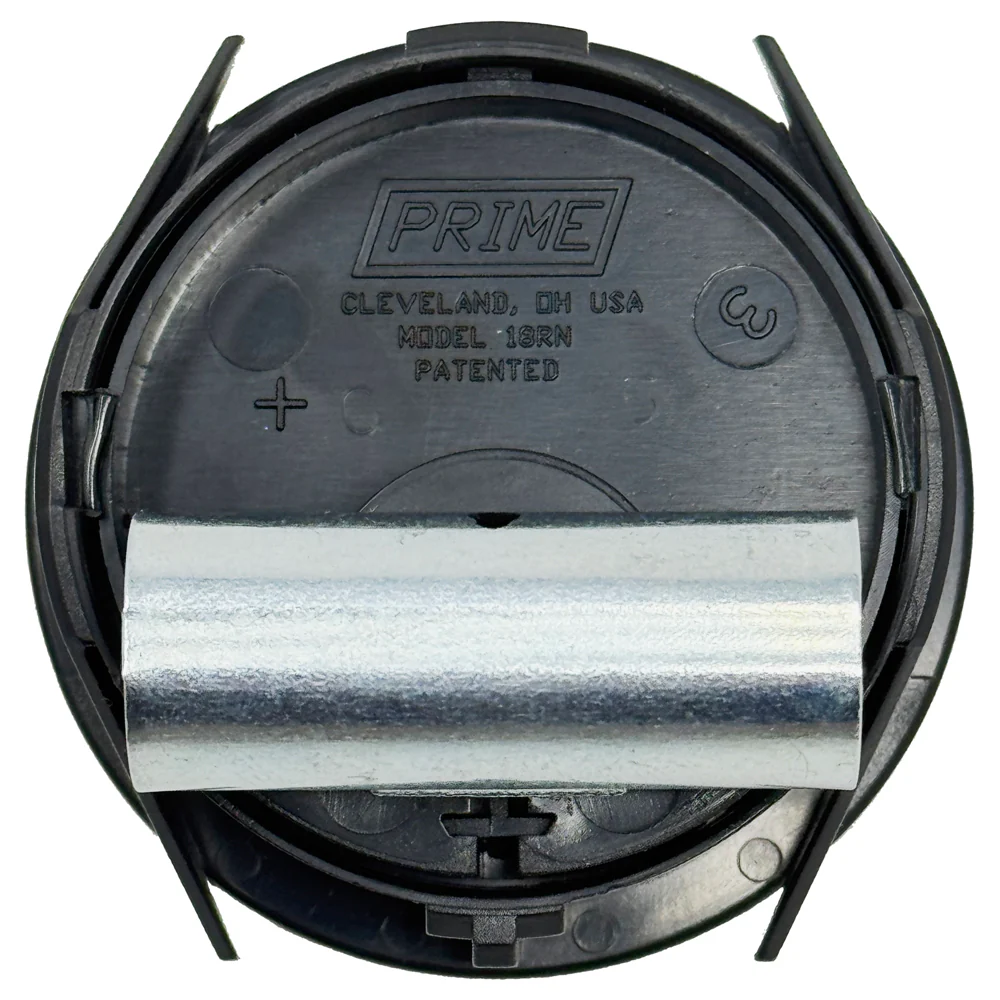

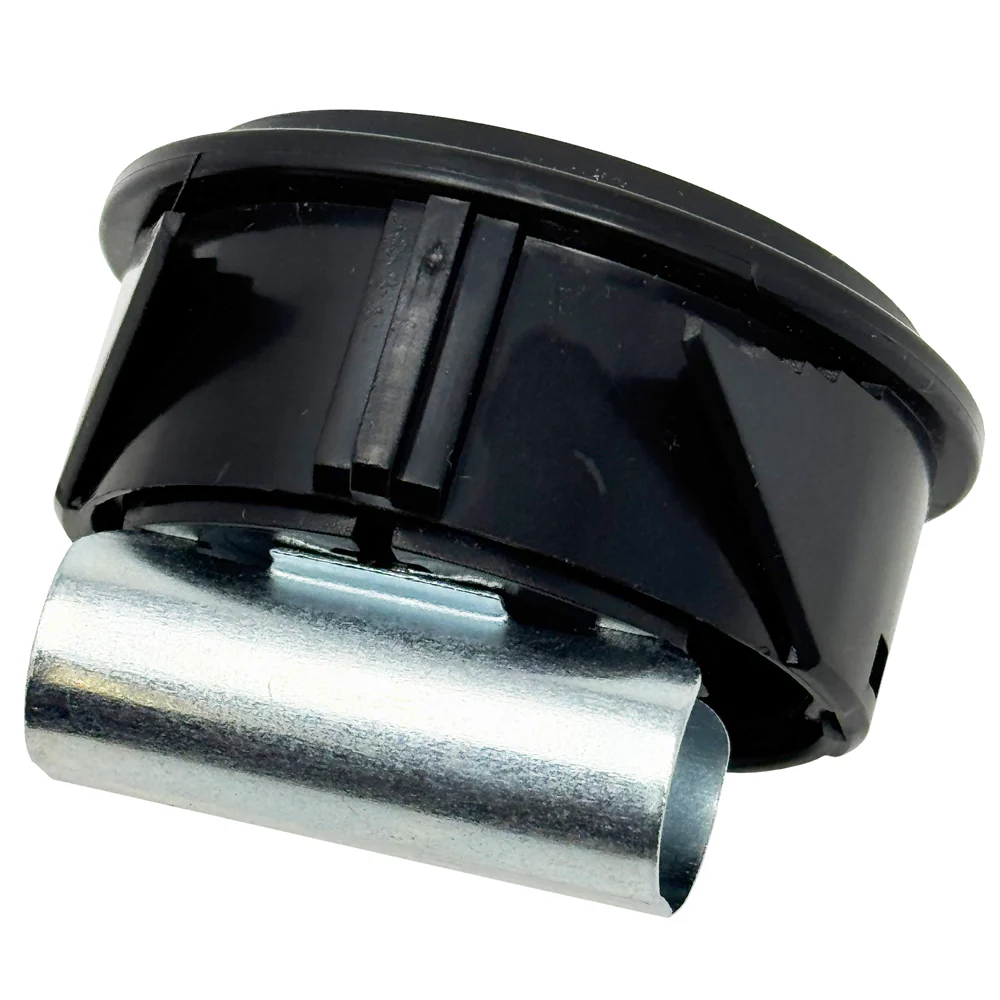

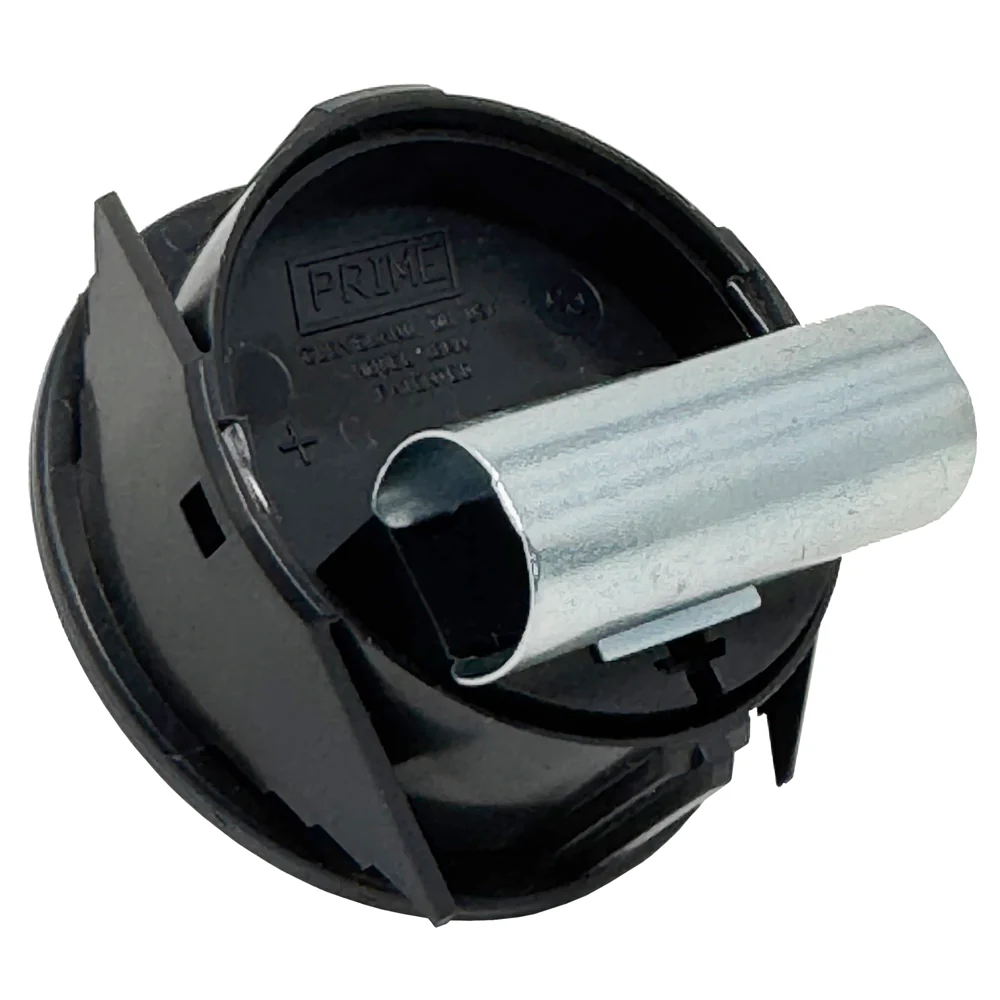

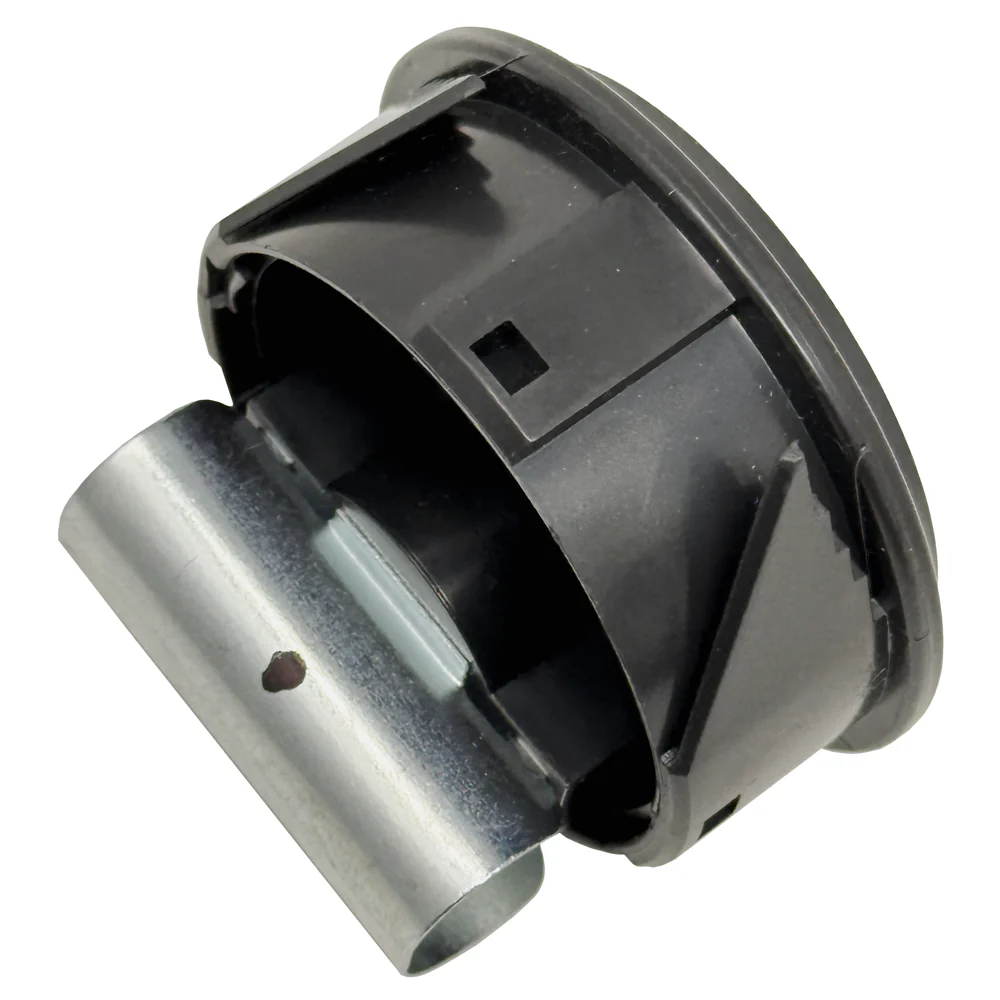

- Inductive pick-up (no direct connection of wires)
- Panel Mount Hole Dimensions: 2.02" Diameter with bottom notch (0.130 in W x 0.060 in H)
- Snap-in mounting method, no tools required.
- Black Acetal Plastic case
- Accuracy: 5% of Full Scale
- Analog bottom movement - needle swings from bottom of meter
- Made in U.S.A.



Fits These Chargers



Schumacher DSR139
Schumacher DSR140
Schumacher FR01534
Schumacher FR01535
Schumacher SC1437
Schumacher SC1445
Schumacher SC1446
Schumacher SC1565
Schumacher SC1574

Specifications

Panel Hole (.032 - .187 Panel Thickness): 2.020±.005 inch with 0.130 in W x 0.060 in H bottom notch
Length (Depth): 1.56 in (39.6 mm)
Diameter (bezel O.D.):  2.19 in (55.63 mm)
Bezel Thickness: 0.25 in (6.35 mm)
Case Diameter (behind bezel): 2.00 in (50.8 mm)
Lens Material: Polycarbonate
Display Window: 0.98 in H x 1.59 in W
Weight (lbs): 0.07 (32 g)
Connection: Inductive - charging current sensed through meter pick-up
