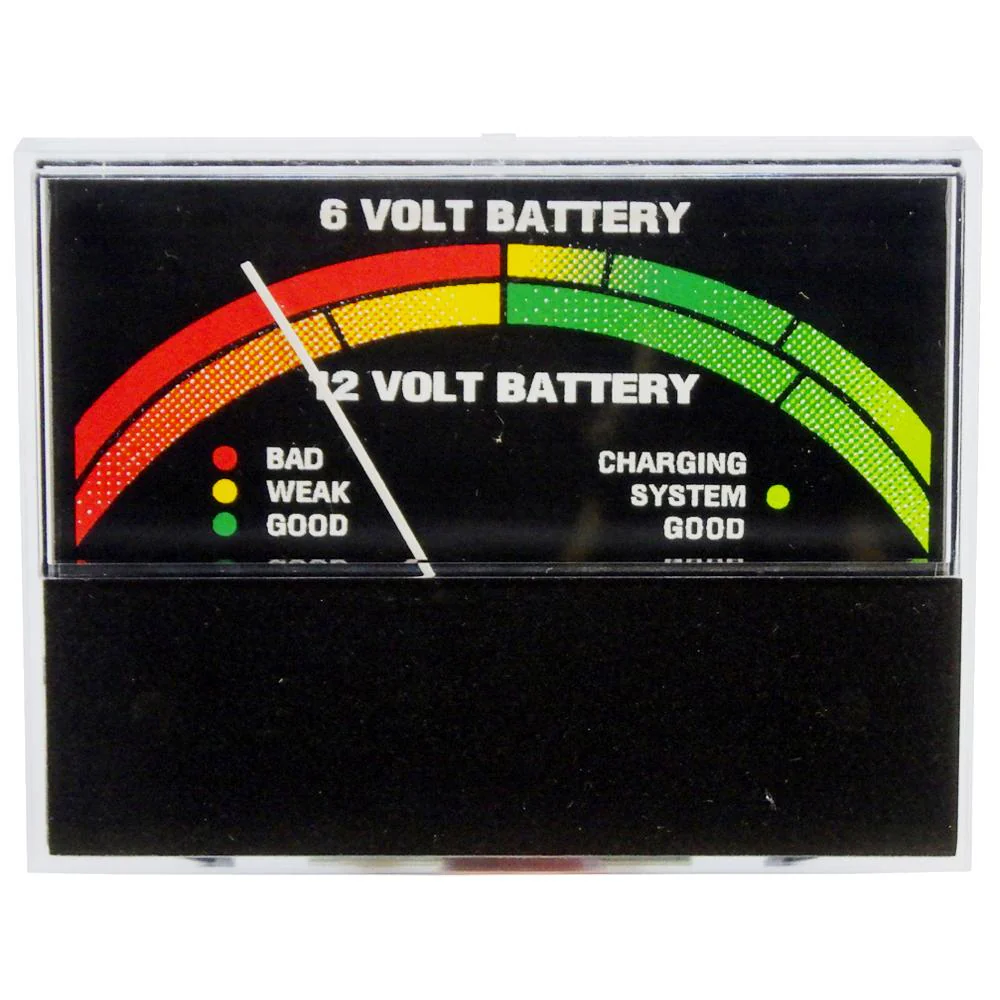

6 & 12 Volt Snap-In DC voltmeter. 6 & 12 Volt Scales indicate battery and charging system voltage as Good - Weak - Bad. Snaps into 1.30"H x 2.20"W Panel Mount Hole. No tools required. Includes installed circuit board, with .250" push-on terminals.

Direct Replacement for Schumacher meter 5399-200-017, used in charger models PSW-2550, SW-3060, and others. Can be retro-fit to older units as a universal replacement.
Fitment Note: Bezel is significantly larger than mounting hole.



Note: Part Number changed 2/15/2024. Old number PR21S-6V12DV.

Features

• Can be retro-fit to older units as a universal replacement.
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Circuit Board installed on meter
• Accuracy: 5% of Full Scale
• Made in U.S.A.

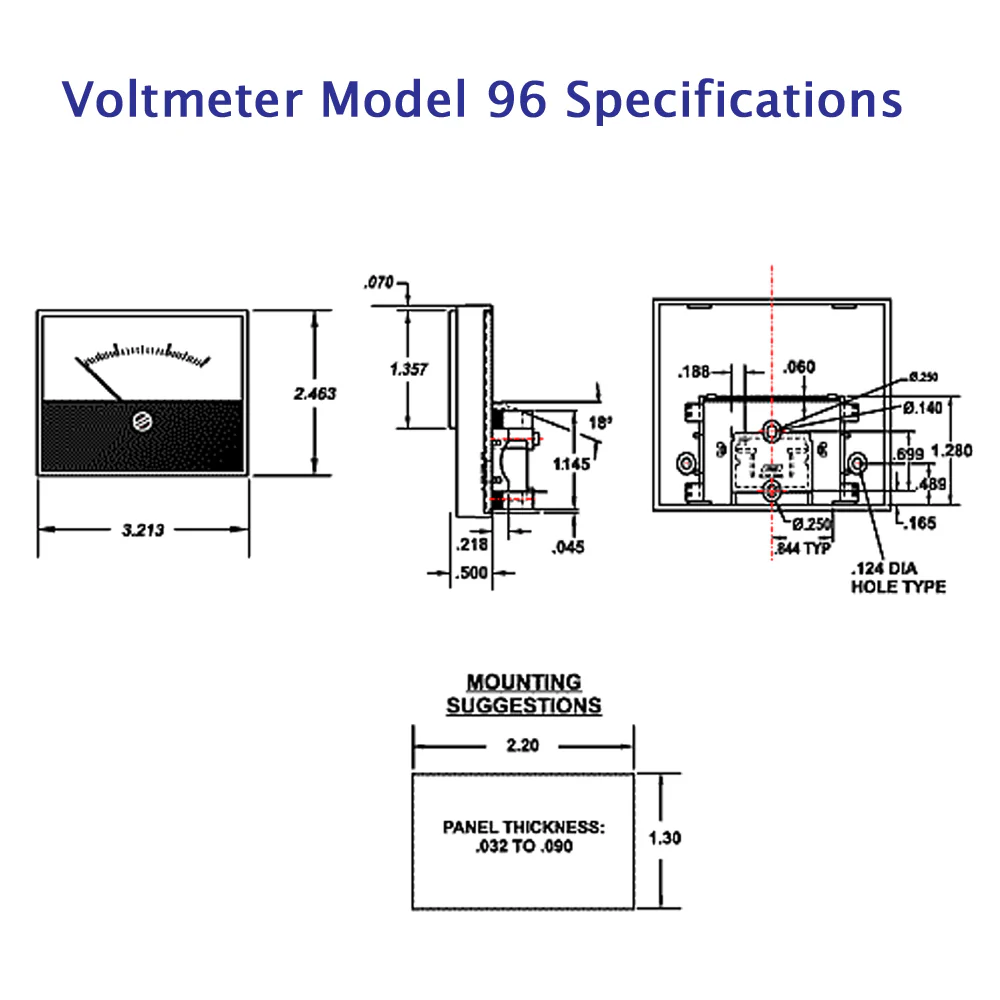

Specifications

• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
• .250" Push-On Connectors

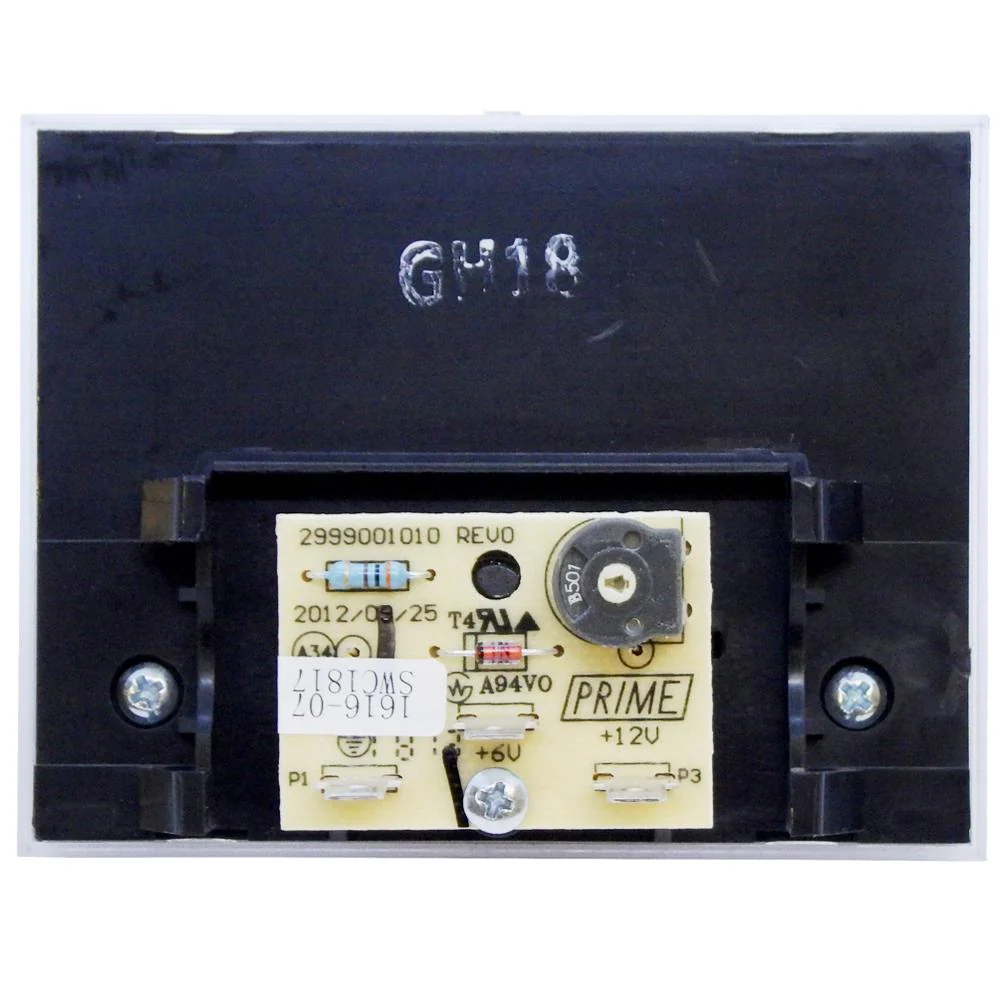

Wiring Reference

P1 - Common to breaker.
P2 - To 6 Volt terminal on Switch.
P3 - To 12 Volt terminal on Switch.
