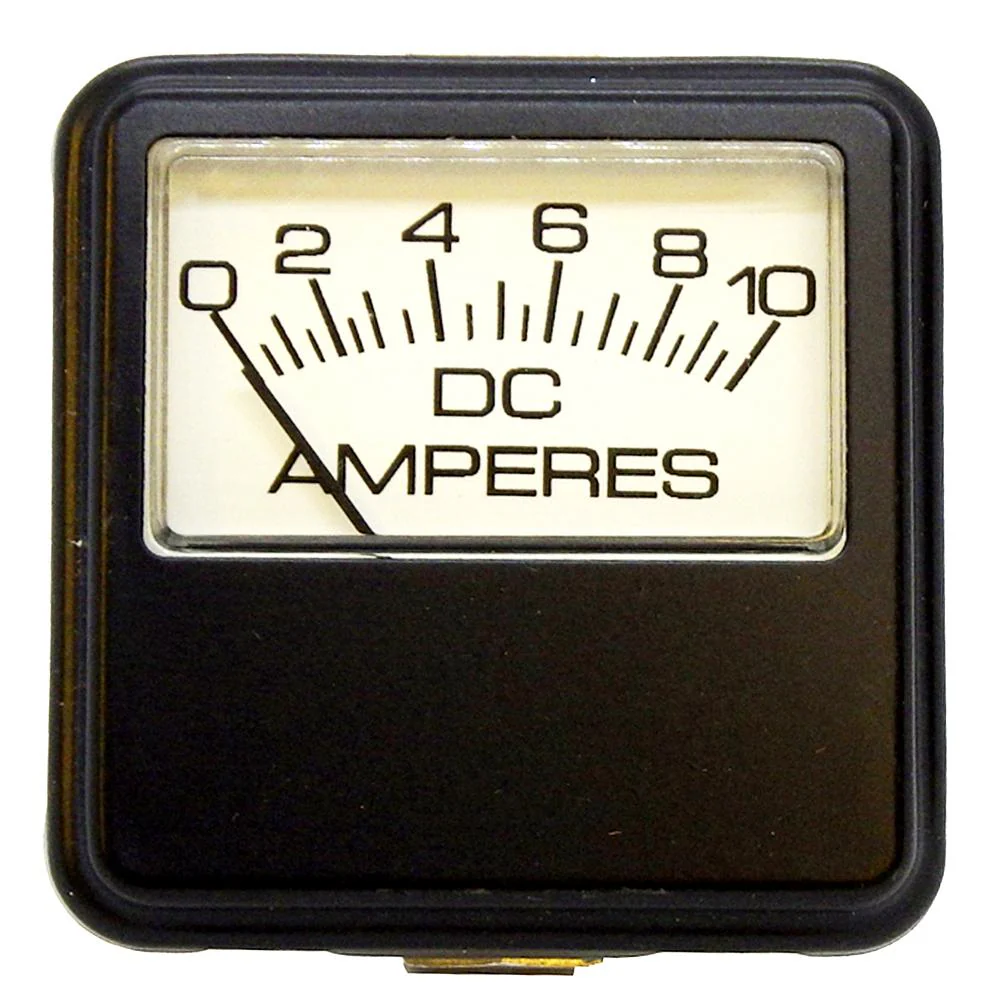

0-10 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Original Replacement for Various 6-8 Amp Chargers. Also an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel.

Features

• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

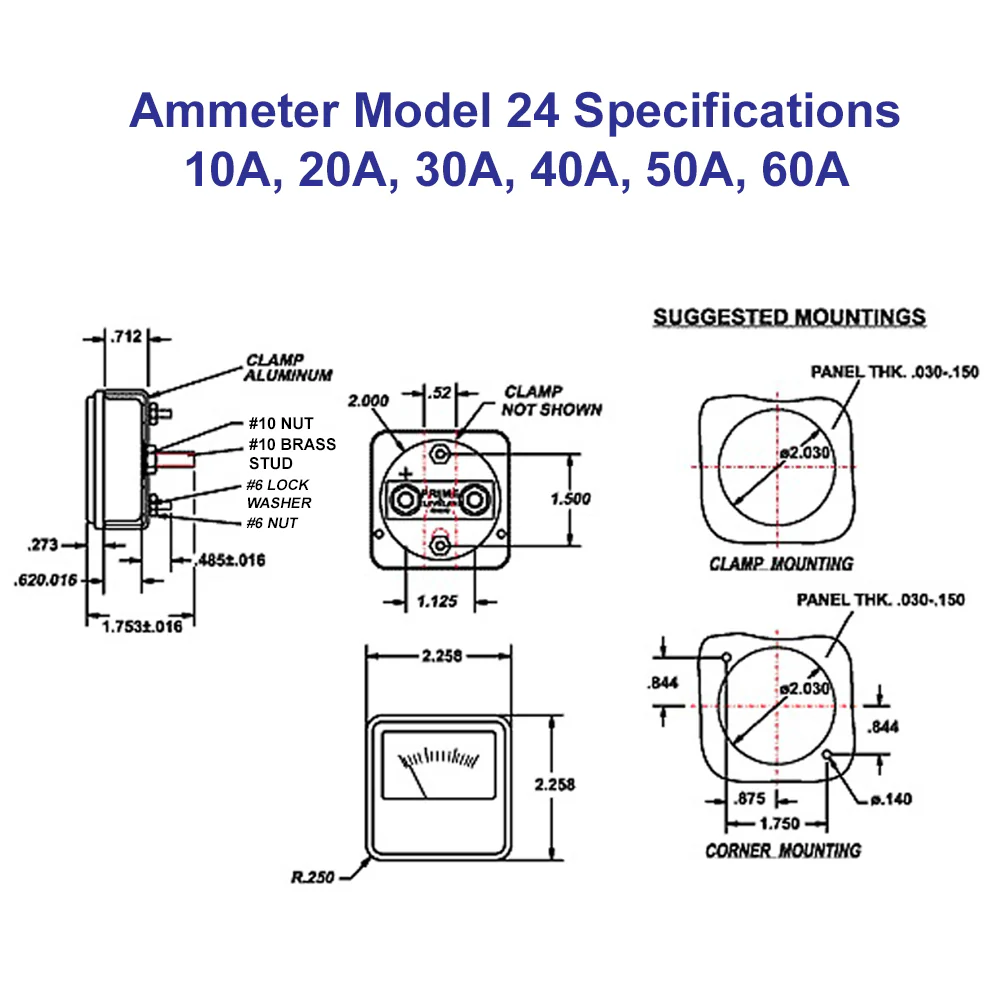

Specifications

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole

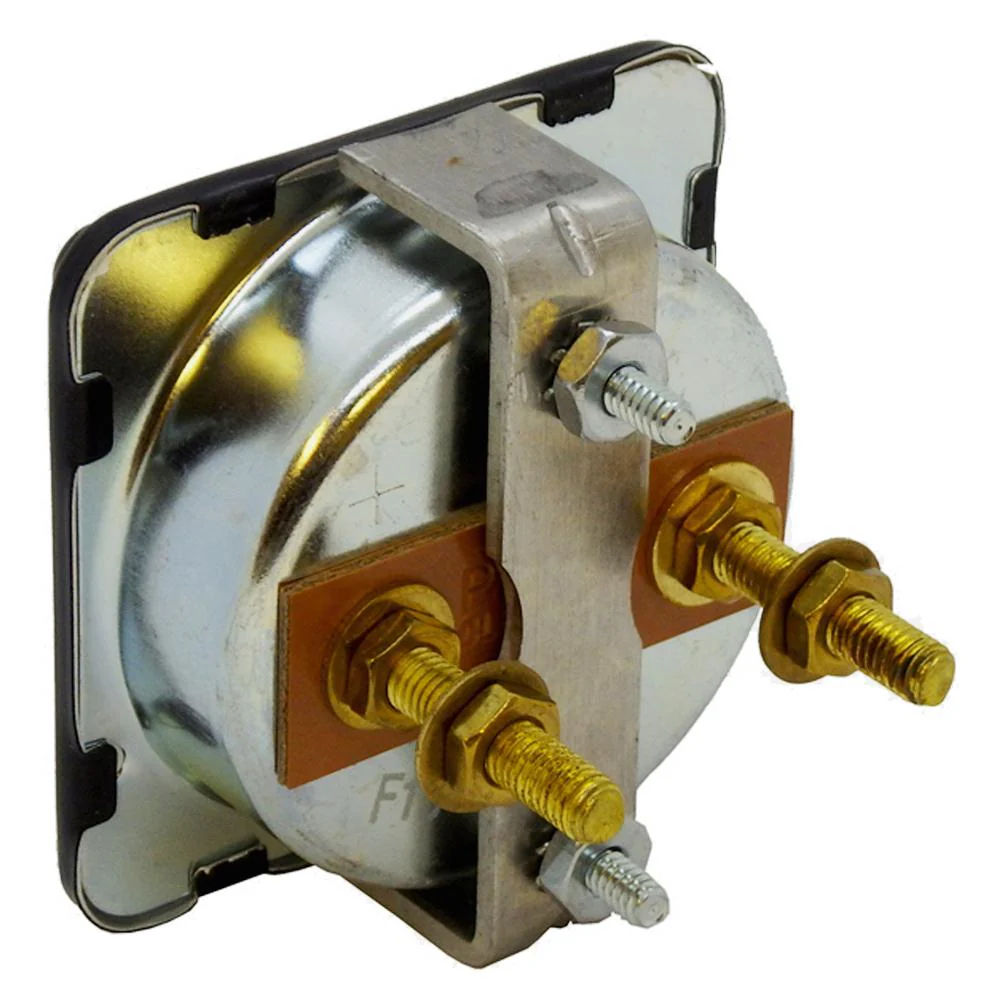

• #10 Brass Stud Connectors (includes tab adapters to convert stud terminals to .250" push-on connectors)
