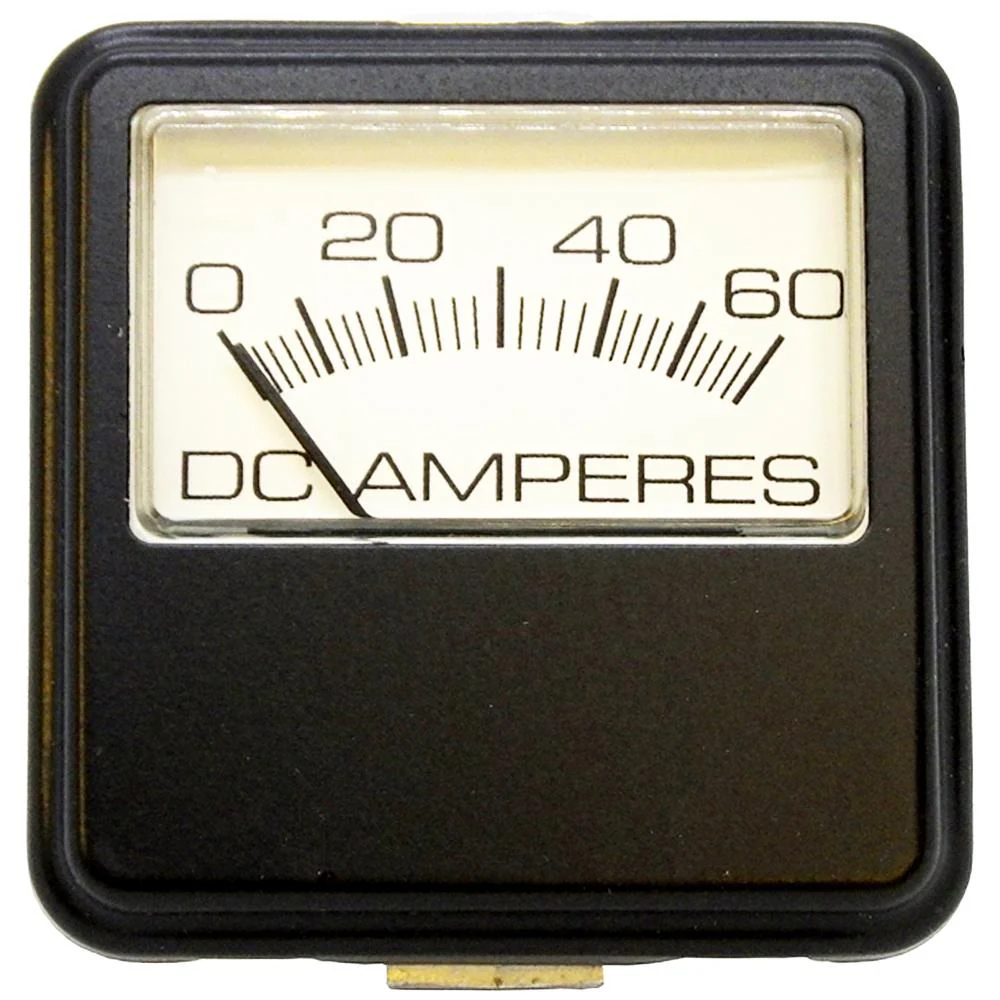

PR24-60 - Amp Meter 0-60A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers

Product image 1
1 / 3

PR24-60 - Amp Meter 0-60A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers

0-60 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Used in various 30-60 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.

Direct replacement for:
• Century/Solar meter 247-020-666
• Christie meter 247-031-000
• Christie meter 535761-202
• John Deere meter PT1409

Features

• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

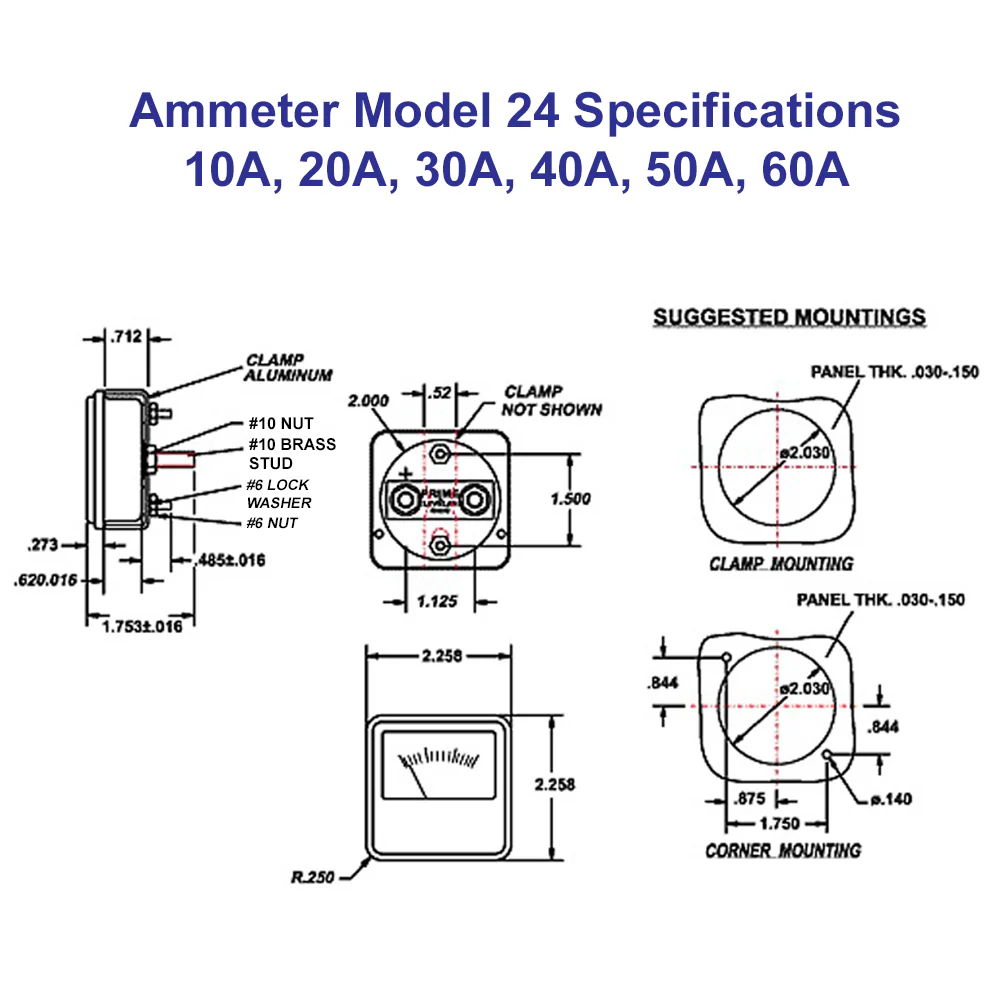

Specifications

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole

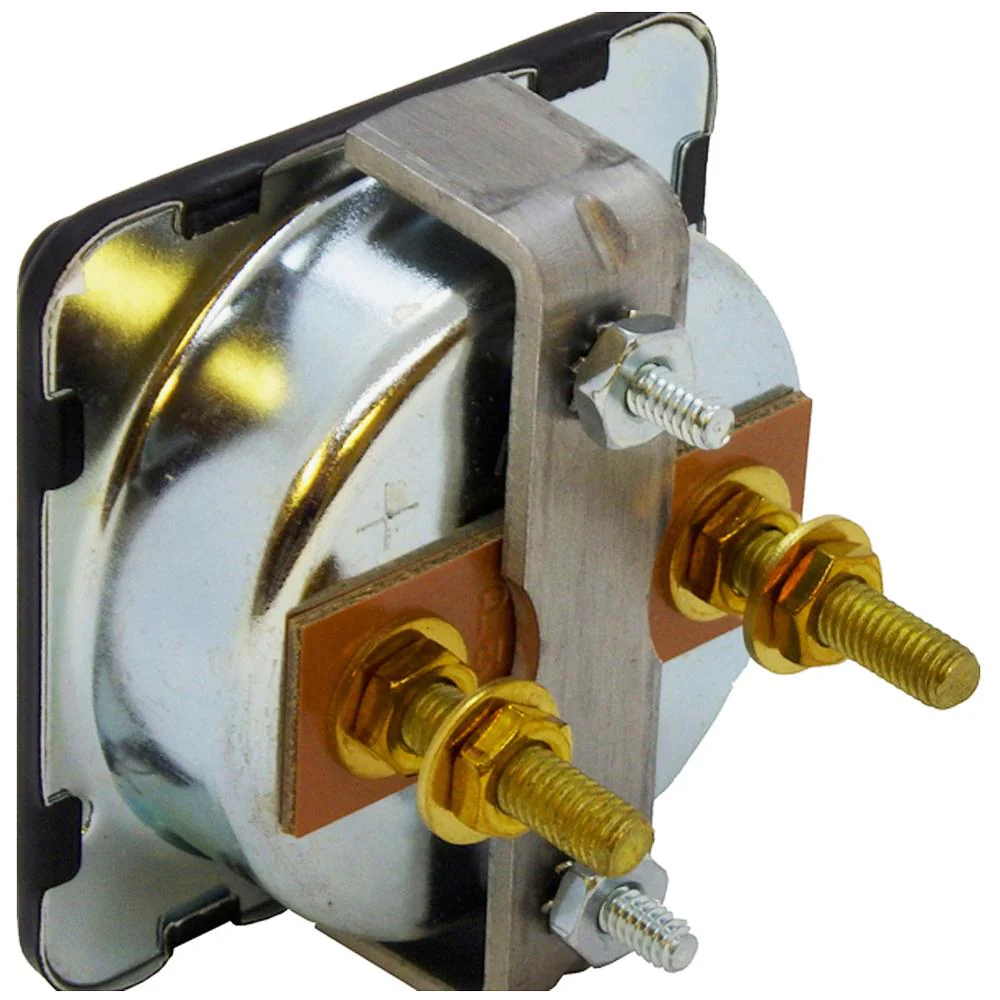

• #10 Brass Stud Connectors

0-60 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Used in various 30-60 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.

Direct replacement for:
• Century/Solar meter 247-020-666
• Christie meter 247-031-000
• Christie meter 535761-202
• John Deere meter PT1409

Features

• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

Specifications

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #10 Brass Stud Connectors

$27.85
PR24-60 - Amp Meter 0-60A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers—
$27.85

Description

0-60 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Used in various 30-60 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.

Direct replacement for:
• Century/Solar meter 247-020-666
• Christie meter 247-031-000
• Christie meter 535761-202
• John Deere meter PT1409

Features

• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

Specifications

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #10 Brass Stud Connectors
