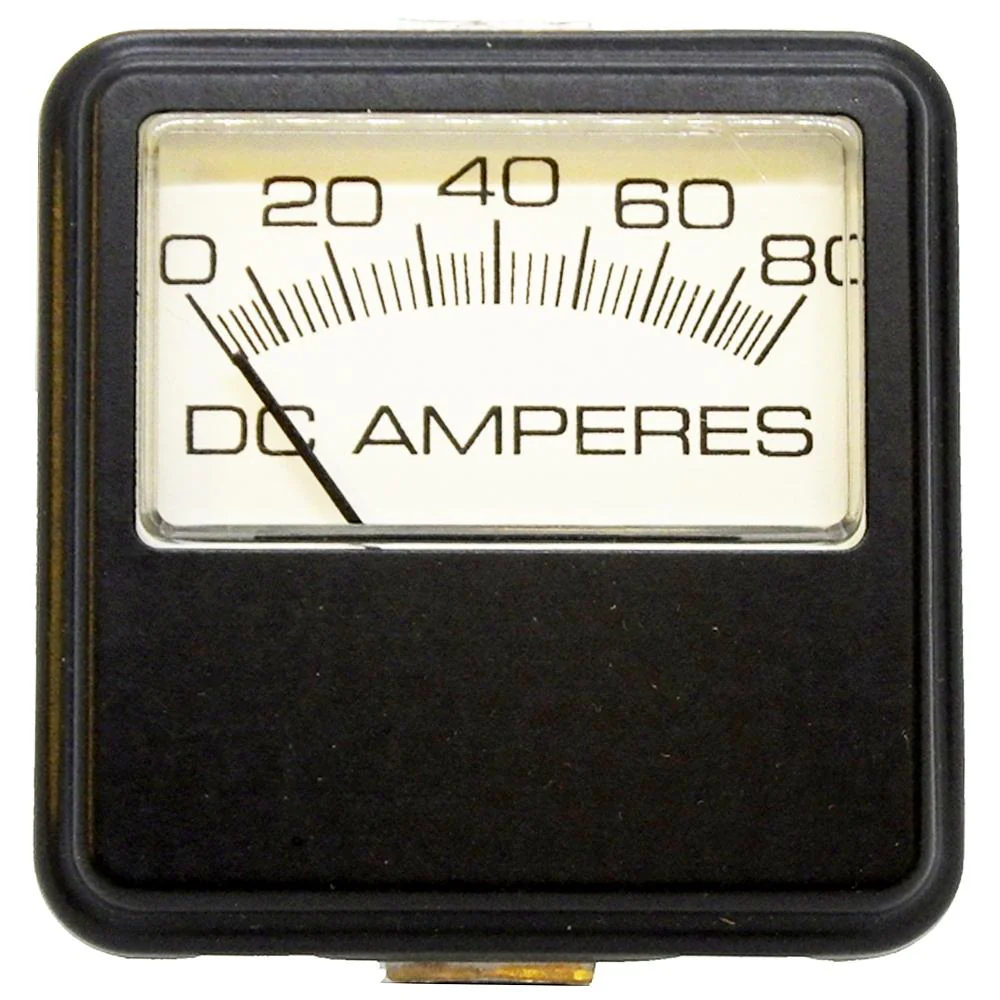

PR24-80 - Amp Meter 0-80A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers
0-80 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Original replacement for various 50-70 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.
Features
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.
Specifications

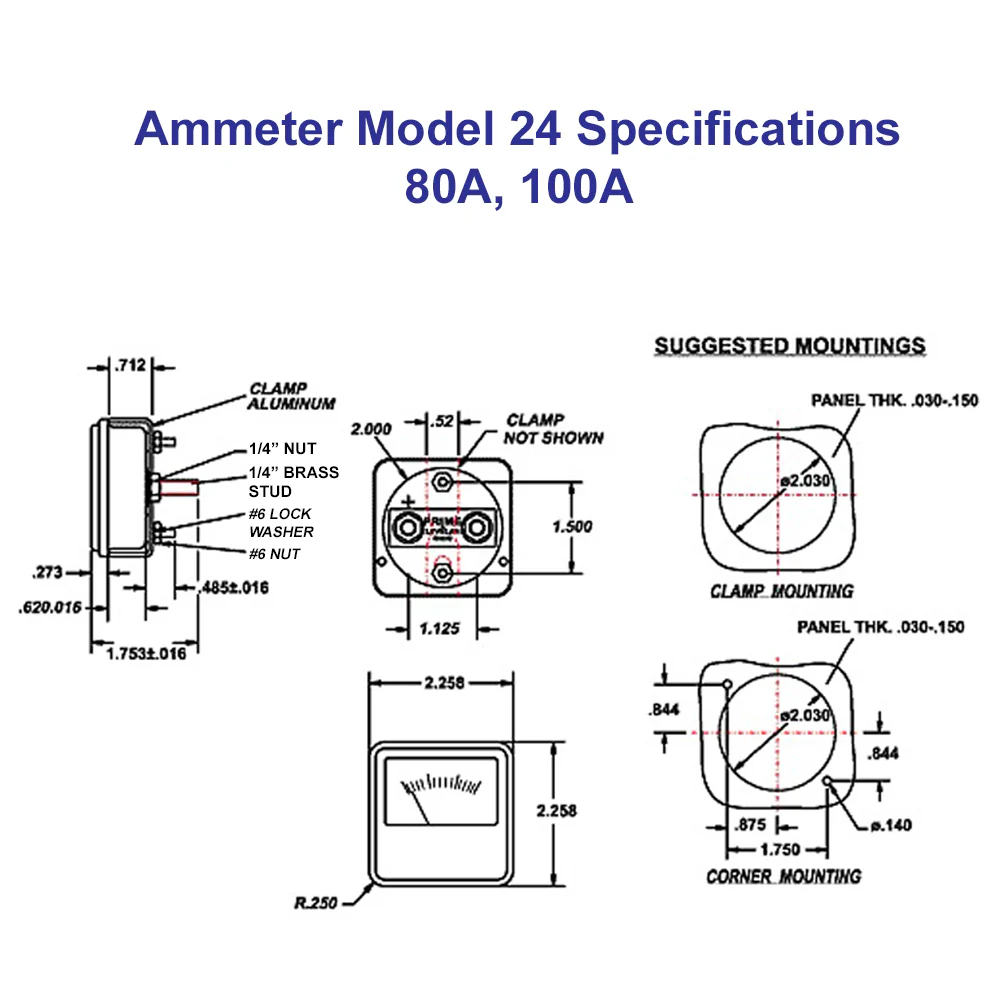

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole

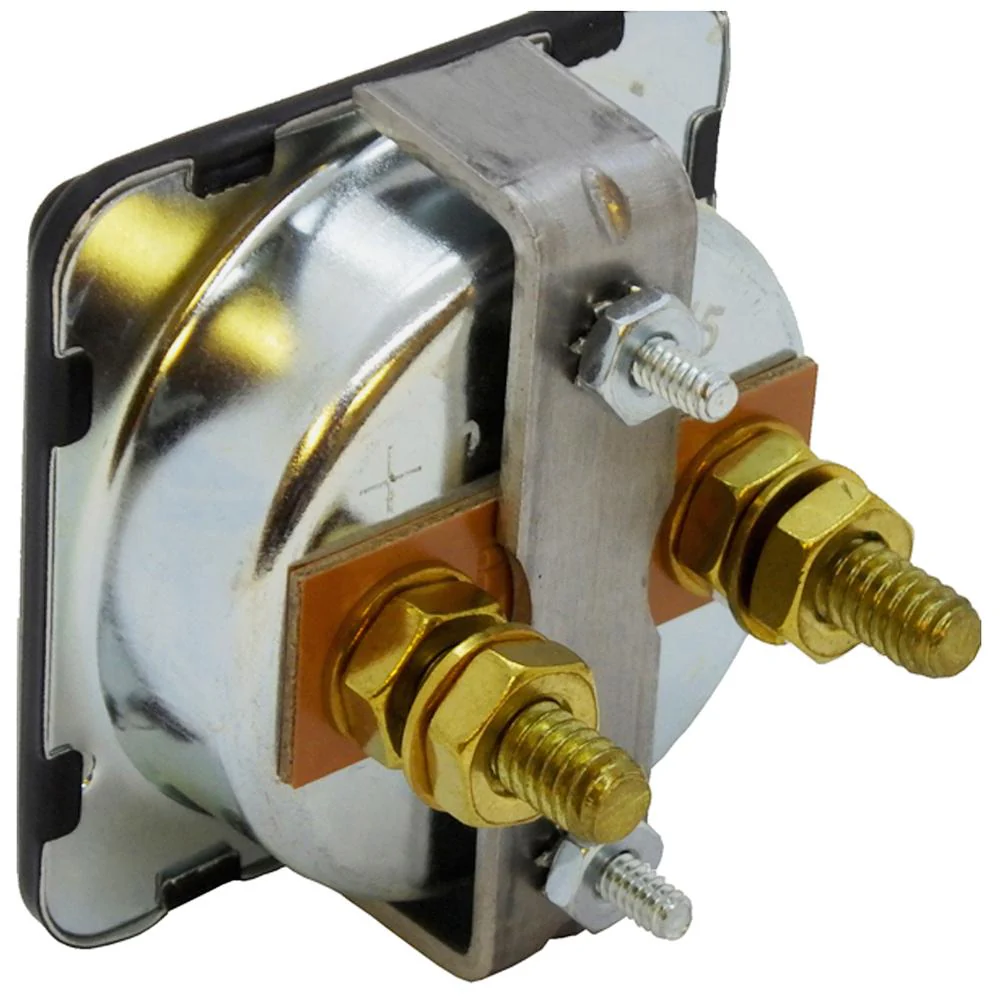

• 1/4" Brass Stud Connectors
0-80 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Original replacement for various 50-70 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.
Features
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.
Specifications
• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors
Description
0-80 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Original replacement for various 50-70 amp chargers. Retro-fit in any battery charger with a 2" circular mounting hole in the panel.
Features
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.
Specifications
• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors
