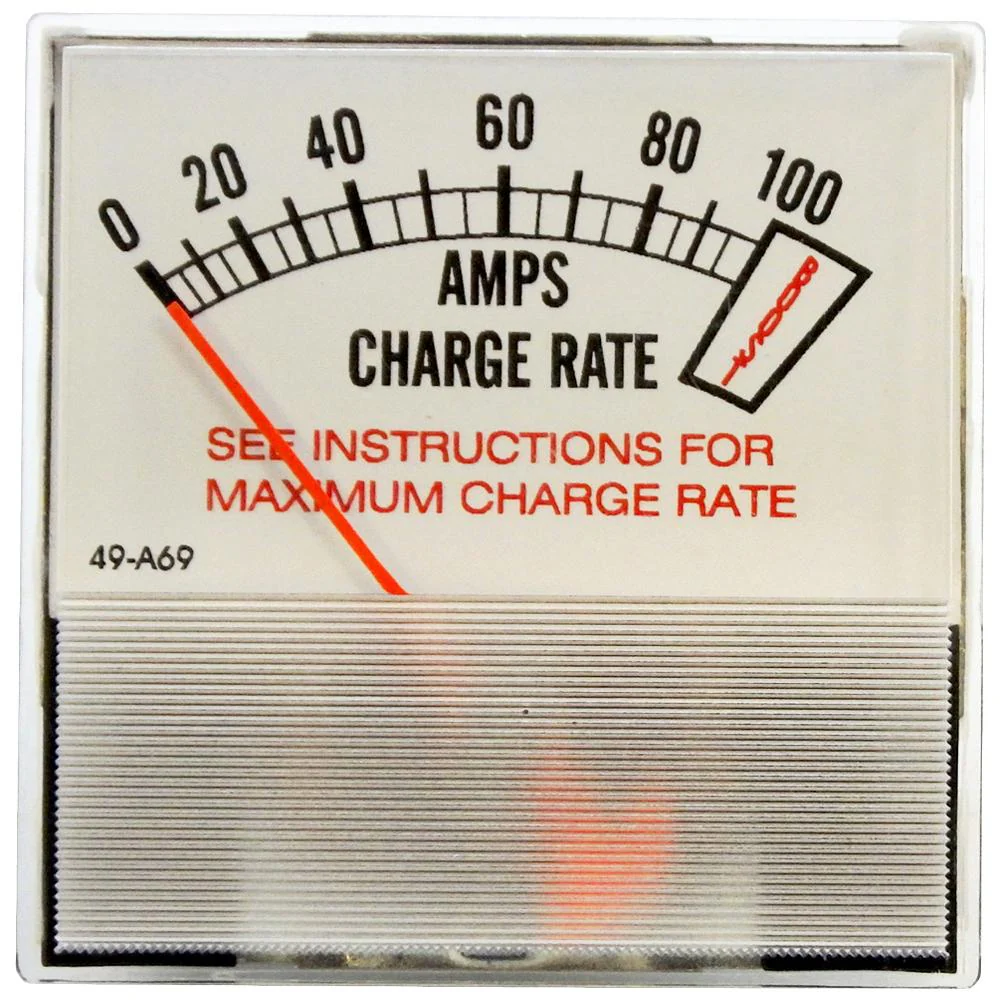

0-100 Amp Heavy-Duty DC Amp Meter w/Boost for Battery Chargers
Corner Stud-Mount
Original Replacement for Associated Eqpt Meter 605204. Also an easy retro-fit in any battery charger with with corner-stud mount holes and a 2" circular mounting hole in the panel.

Features

• Polystyrene Bezel with Zinc-Plated Steel Backplate
• Rugged, Moving Magnet construction
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

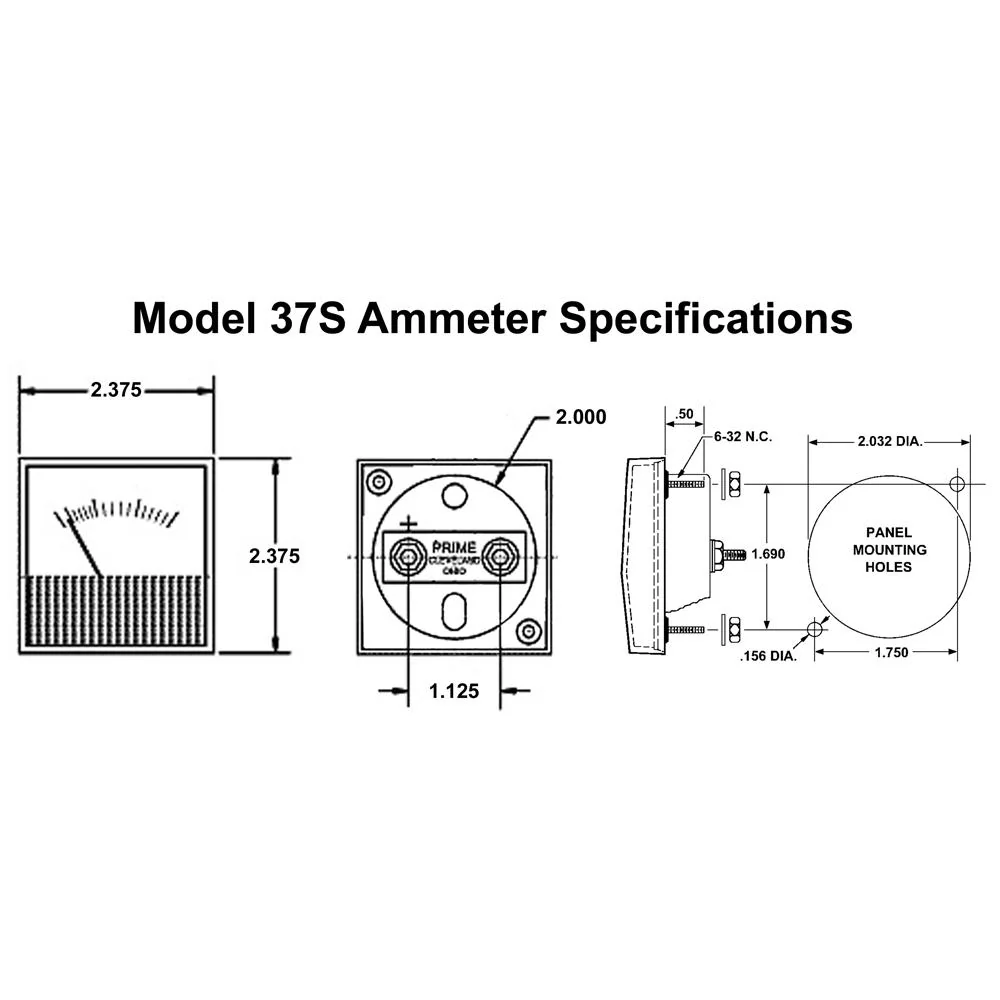

Specifications

• 2.375"L x 2.375"W x .540"H Bezel Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors

Related Items

PR2763-2 - Replacement Bezel for Type PR27 & PR37 Meters
