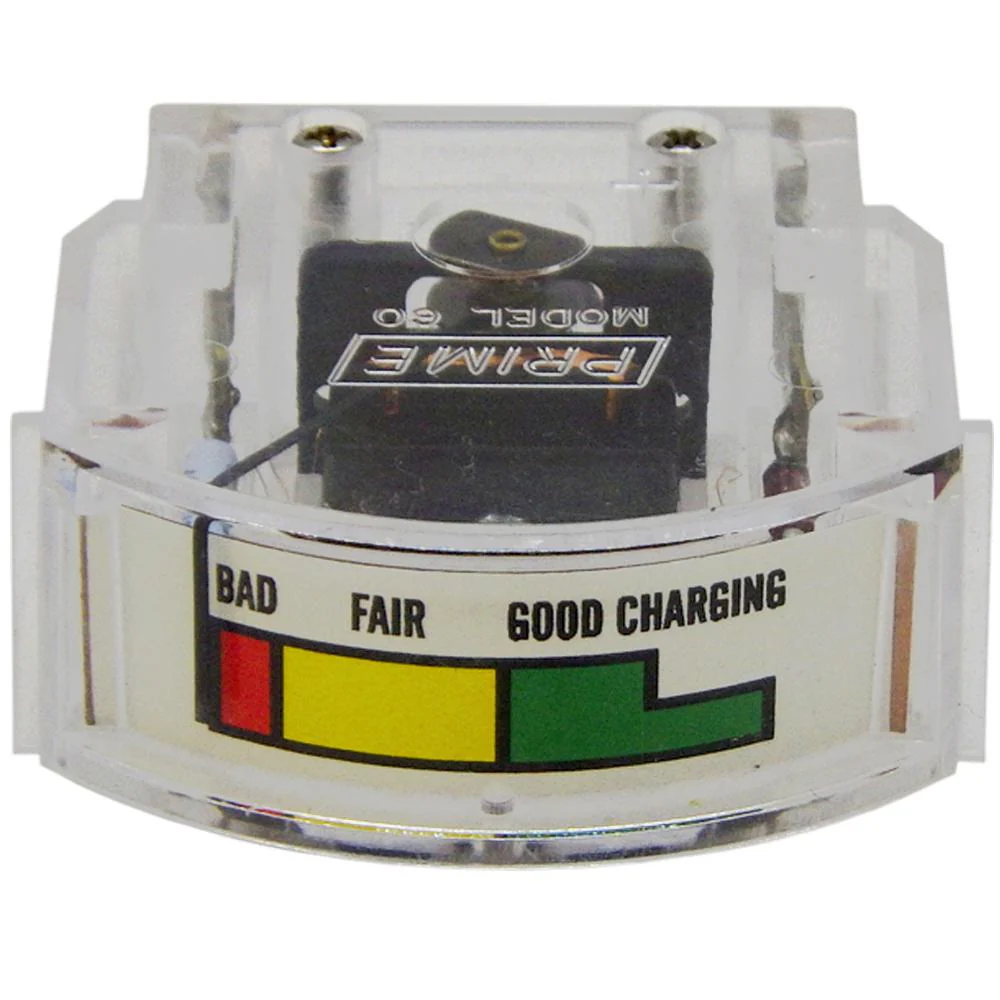

PR60-381 - Volt Meter 12V DC State-of-Charge Edgewise (Convex) Push-Clamp Mount for E/S
12V DC Edgewise Volt Meter, Push-Clamp Mount for Battery Chargers & Voltage Monitoring. 10-15V DC range. Mounts in panel (.030-.150" thickness), rectangular hole 1.840"W x .775"H. Retained by a brass push-clamp (included).
Features
• Arc Movement - Vertical needle pivots from back
• Accuracy: 5% of Full Scale

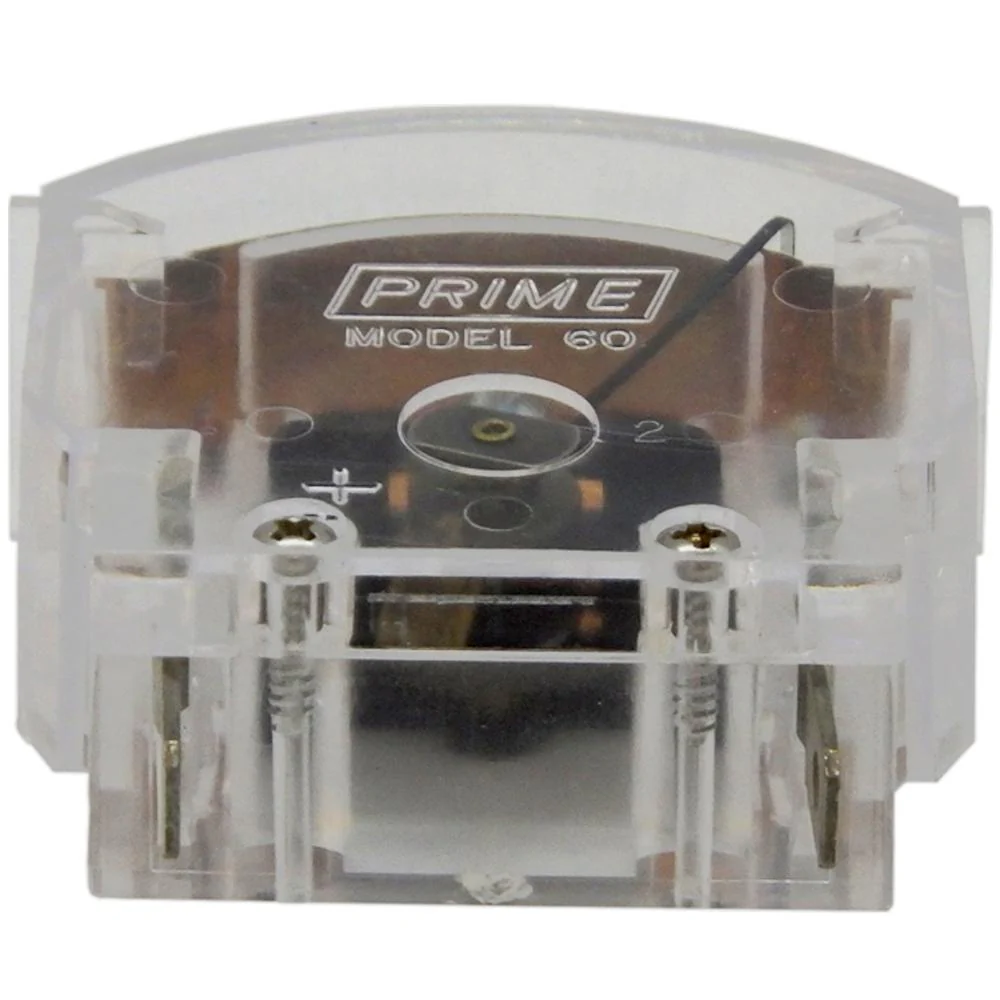

• Includes Mounting & Connection Hardware (Brass Push-Mount Clamp)
• Original Equipment on Electra-Start boost units
• Made in U.S.A.
Specifications

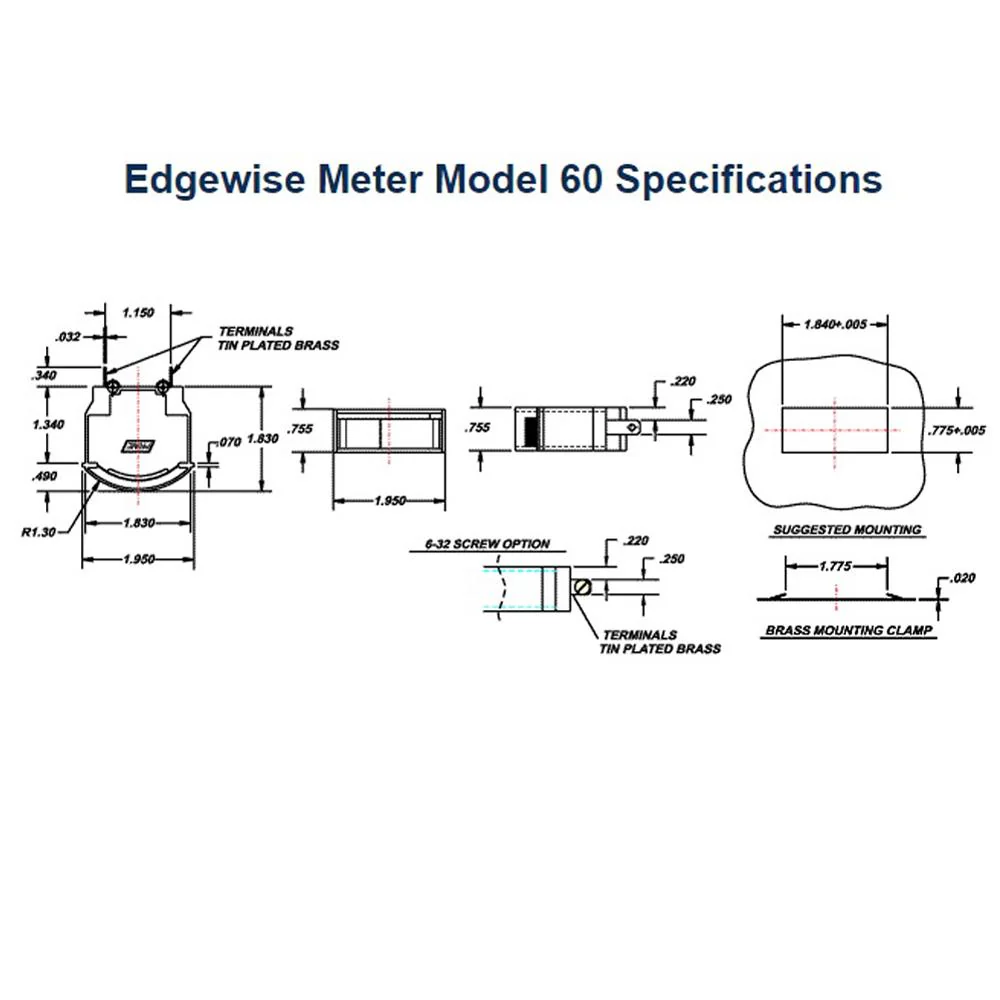

• .755"H x 1.95"W Bezel Outer Dimensions
• 1.840"W x .775"H Rectangular Panel Mount Hole
• .250" Brass Push-On Connectors
12V DC Edgewise Volt Meter, Push-Clamp Mount for Battery Chargers & Voltage Monitoring. 10-15V DC range. Mounts in panel (.030-.150" thickness), rectangular hole 1.840"W x .775"H. Retained by a brass push-clamp (included).
Features
• Arc Movement - Vertical needle pivots from back
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware (Brass Push-Mount Clamp)
• Original Equipment on Electra-Start boost units
• Made in U.S.A.
Specifications
• .755"H x 1.95"W Bezel Outer Dimensions
• 1.840"W x .775"H Rectangular Panel Mount Hole
• .250" Brass Push-On Connectors
Original: $24.95
-65%$24.95
$8.73Description
12V DC Edgewise Volt Meter, Push-Clamp Mount for Battery Chargers & Voltage Monitoring. 10-15V DC range. Mounts in panel (.030-.150" thickness), rectangular hole 1.840"W x .775"H. Retained by a brass push-clamp (included).
Features
• Arc Movement - Vertical needle pivots from back
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware (Brass Push-Mount Clamp)
• Original Equipment on Electra-Start boost units
• Made in U.S.A.
Specifications
• .755"H x 1.95"W Bezel Outer Dimensions
• 1.840"W x .775"H Rectangular Panel Mount Hole
• .250" Brass Push-On Connectors
